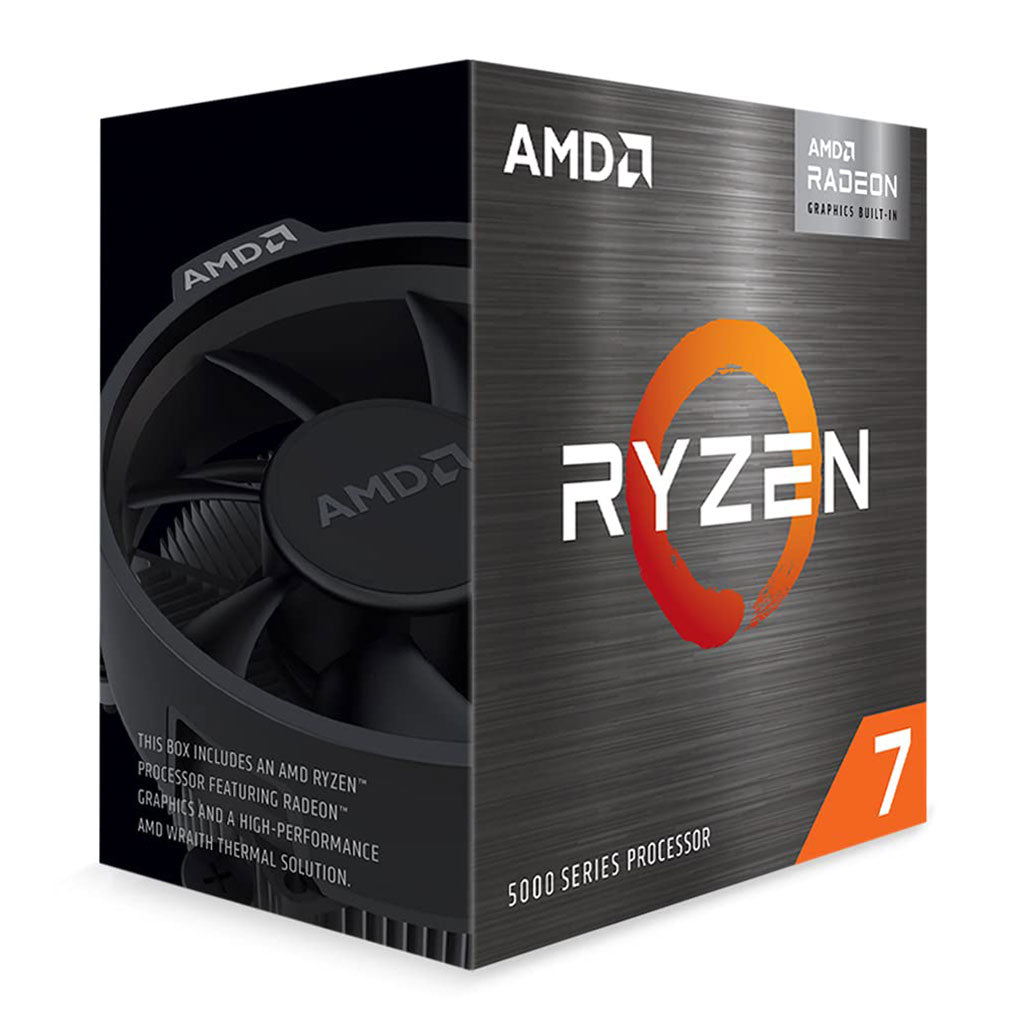

AMD Ryzen™ 7 5700G  with Wraith Stealth cooler 20MB 8C/16T

General Specifications

Platform: Boxed Processor

Product Family; AMD Ryzen™ Processors

Product Line: AMD Ryzen™ 7 5000 G-Series Desktop Processors with Radeon™ Graphics

Former Codename: "Cezanne"

Architecture: "Zen 3"

# of CPU Cores: 8

# of Threads: 16

Max. Boost Clock: Up to 4.6GHz

Base Clock: 3.8GHz

L2 Cache: 4MB

L3 Cache: 16MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: TSMC 7nm FinFET

Unlocked for Overclocking: Yes

CPU Socket: AM4

Thermal Solution (PIB): Wraith Stealth

Max. Operating Temperature (Tjmax): 95°C

Launch Date: 4/13/2021

*OS Support:

• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit
• *Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express® Version: PCIe® 3.0

System Memory Type: DDR4

Memory Channels: 2

System Memory Specification: Up to 3200MT/s

Graphics Capabilities

Integrated Graphics: Yes

Graphics Model: Radeon™ Graphics

Graphics Core Count: 8

Graphics Frequency: 2000 MHz

Product IDs

Product ID Boxed: 100-100000263BOX

Product ID Tray: 100-000000263

Product ID MPK: 100-100000263MPK
