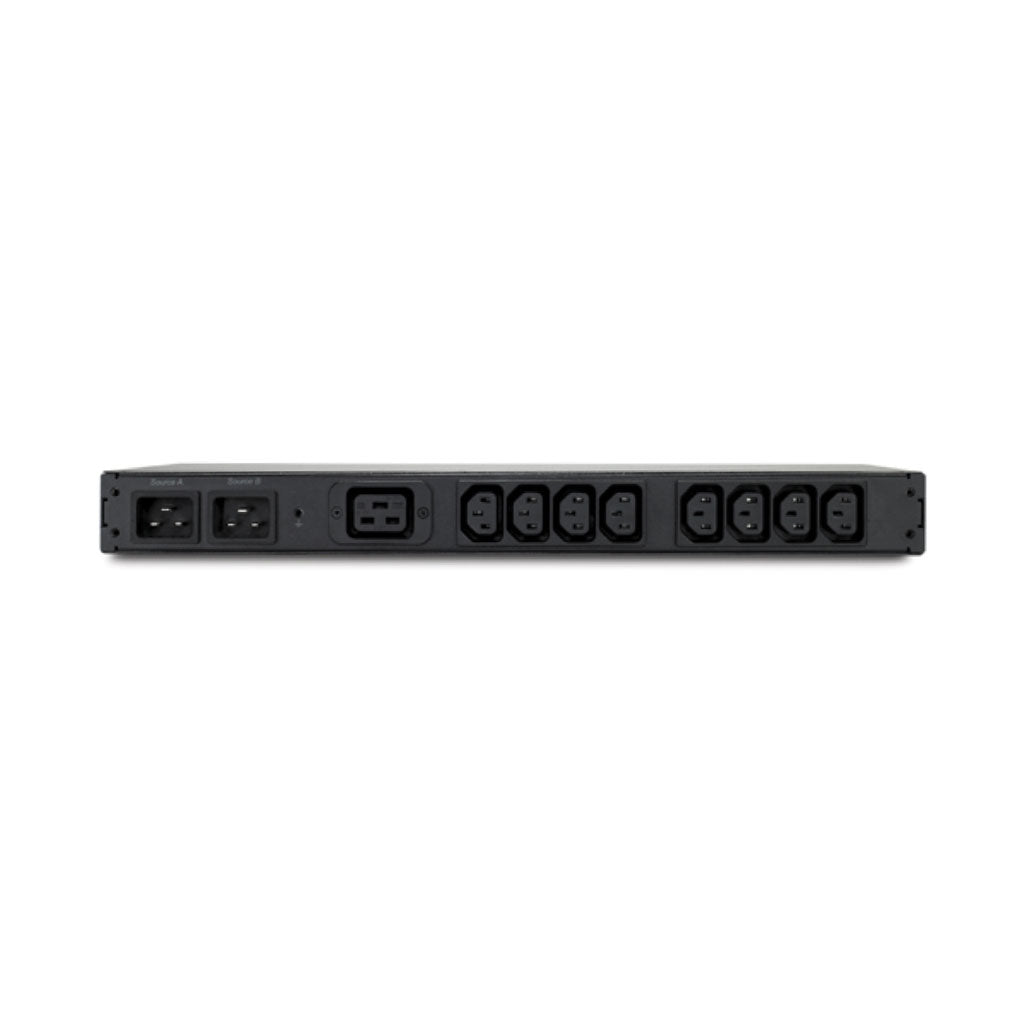

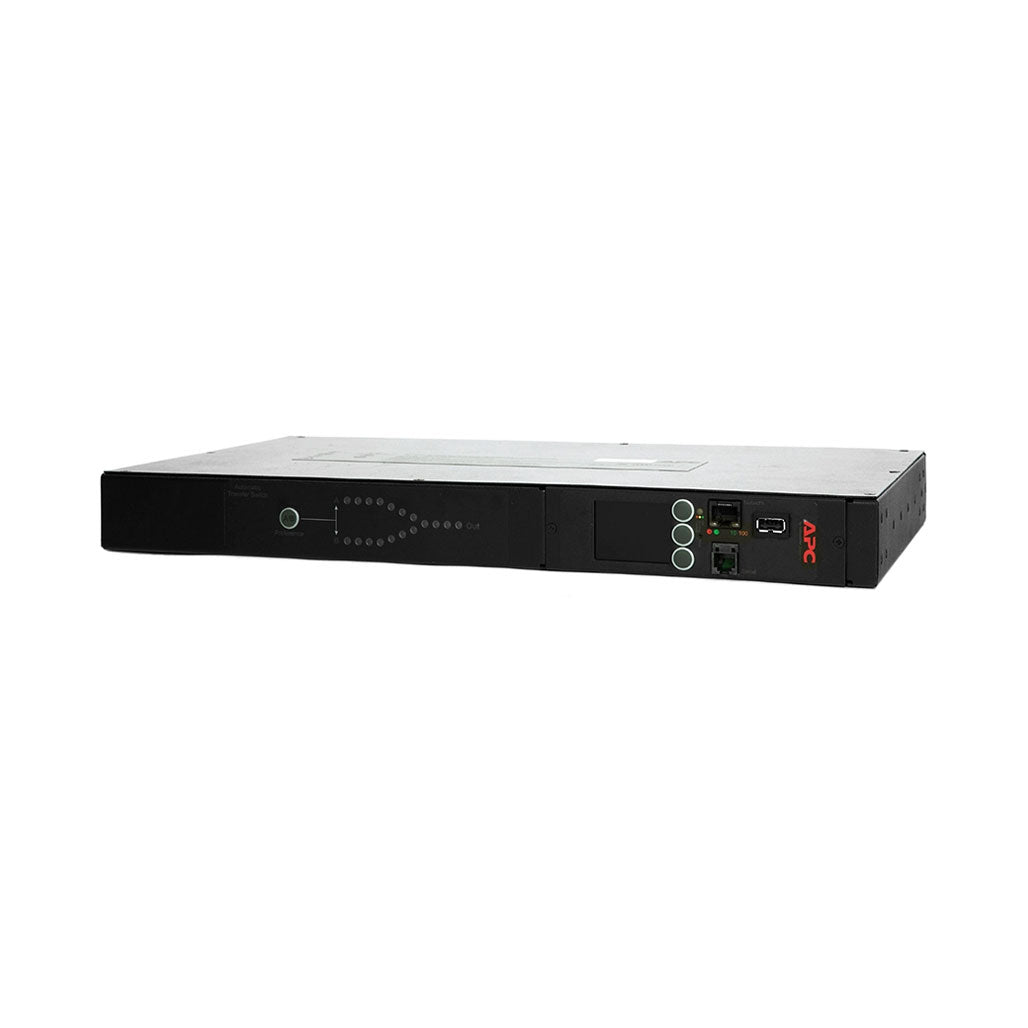

APC AP4423 Rack ATS - 230V, 16A, C20 IN, (8) C13 (1) C19 OUT, 1U Rack-Mounted Automatic Transfer Switch

APC AP4423 Rack ATS - Reliable Power Switching for Data Centers

The APC AP4423 Rack ATS is designed to ensure continuous power delivery for critical IT equipment. With 230V input and output voltage, a 16A maximum current draw, and multiple IEC power outlets, this automatic transfer switch is perfect for maintaining power redundancy and high availability in your data center or server room.

Key Features:

• Input Voltage: 230 V
• Output Voltage: 230 V
• Input Connection Type: IEC 60320 C20
• Output Connection Type: 8 x IEC 60320 C13, 1 x IEC 60320 C19
• Form Factor: 1U Rack-Mounted
• Load Capacity: 3700 VA

Physical Specifications:

• Color: Black
• Dimensions: 4.4 cm (H) x 43.2 cm (W) x 23.6 cm (D)
• Net Weight: 3.74 kg
• Mounting: Front or rear, no preference

Environmental Specifications:

• Operating Temperature: -5 to 45 °C
• Storage Temperature: -25 to 65 °C
• Operating Humidity: 5 to 95%
• Storage Humidity: 5 to 95%
• Operating Altitude: 0 to 10,000 ft
• Storage Altitude: 0 to 15,240 m

Compliance and Standards:

• Certifications: CUL listed, CE, UL listed
• Standards: EN 55022 class A, FCC part 15 class A

Power Specifications:

• Network Frequency: 50/60 Hz
• Maximum Line Current: 20 A
• Input Current Limits: 20 A
• Protection: Without circuit breaker

Package Includes:

• APC AP4423 Rack ATS
• Mounting hardware
• Rack mounting brackets
• Serial configuration cable

Packing Details:

• Package Type: PCE
• Package Dimensions: 11.4 cm (H) x 35.6 cm (W) x 60 cm (L)
• Package Weight: 5.51 kg

Ensure seamless power transfer and enhance the reliability of your power management system with the APC AP4423 Rack ATS, designed for easy integration and maximum uptime in your IT infrastructure.
