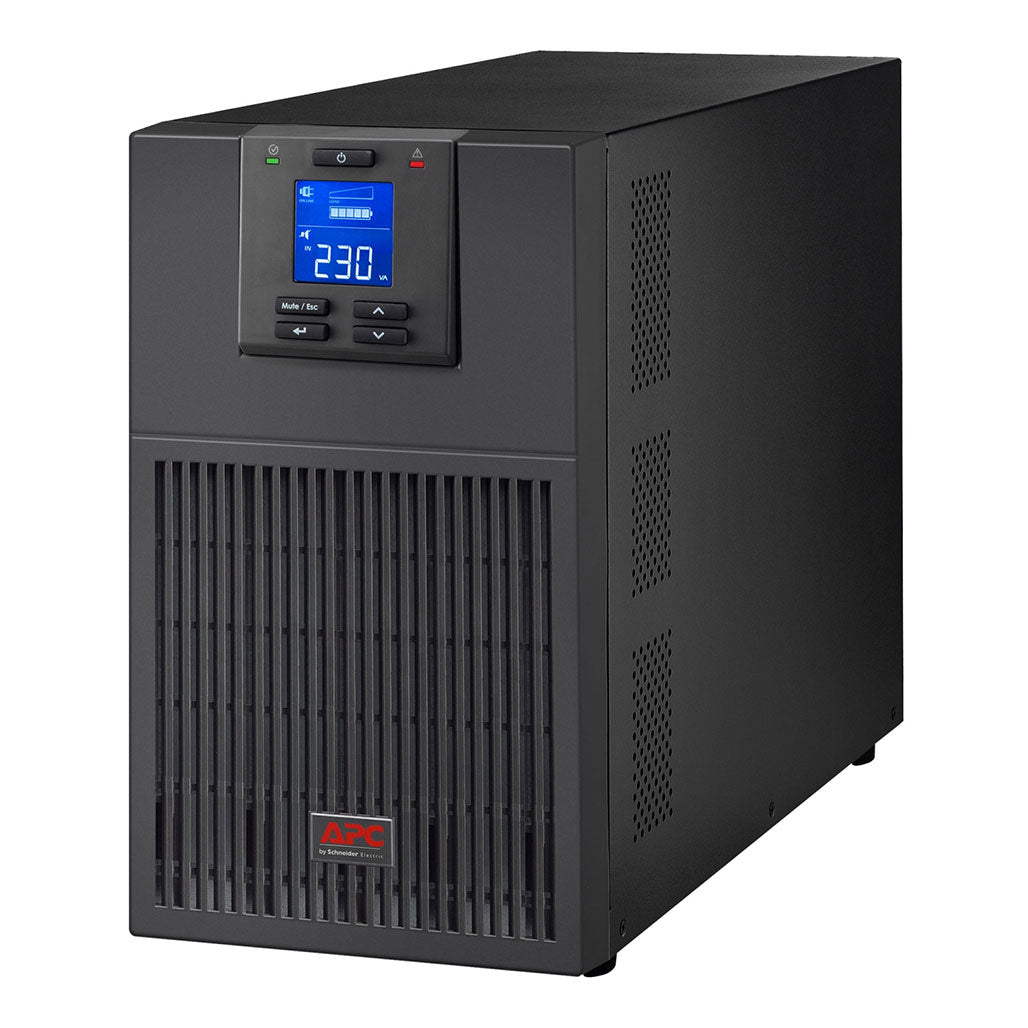

APC Easy UPS On-Line 3kVA/2400W Tower 230V - Advanced Power Protection with Intelligent Card Slot & LCD

APC Easy UPS On-Line 3kVA/2400W Tower 230V - Reliable Power Protection for Essential Systems

The APC Easy UPS On-Line 3kVA/2400W Tower offers robust and high-quality double-conversion online power protection for critical systems, ensuring stable power even in the most challenging conditions.

Key Features:

• Rated Power: Provides 2400 W / 3000 VA, supporting essential loads and critical equipment.
• Output Voltage: Configurable for 220V, 230V, or 240V nominal output voltage to match your needs.
• Efficiency: Achieves an 88% efficiency at full load, reducing energy consumption and operational costs.
• Output Voltage Distortion: Maintains a low 3% distortion for clean and stable power delivery.
• Output Frequency: Syncs to mains at 50/60 Hz ± 3 Hz for consistent power supply.
• Load Crest Factor: Supports a 3:1 load crest factor for handling peak loads.
• UPS Type: Double conversion online technology for the highest level of power protection.
• Wave Type: Delivers a pure sine wave output, ensuring compatibility with sensitive electronics.
• Bypass: Features internal automatic and manual bypass for uninterrupted power supply during maintenance.

Input Specifications:

• Main Input Voltage: 230V, with support for 220V and 240V input voltages.
• Voltage Range: Supports a wide input voltage range of 110 - 285V at half load and 160 - 280V at full load.
• Input Frequency: Auto-sensing 40 - 70 Hz for flexible power input.

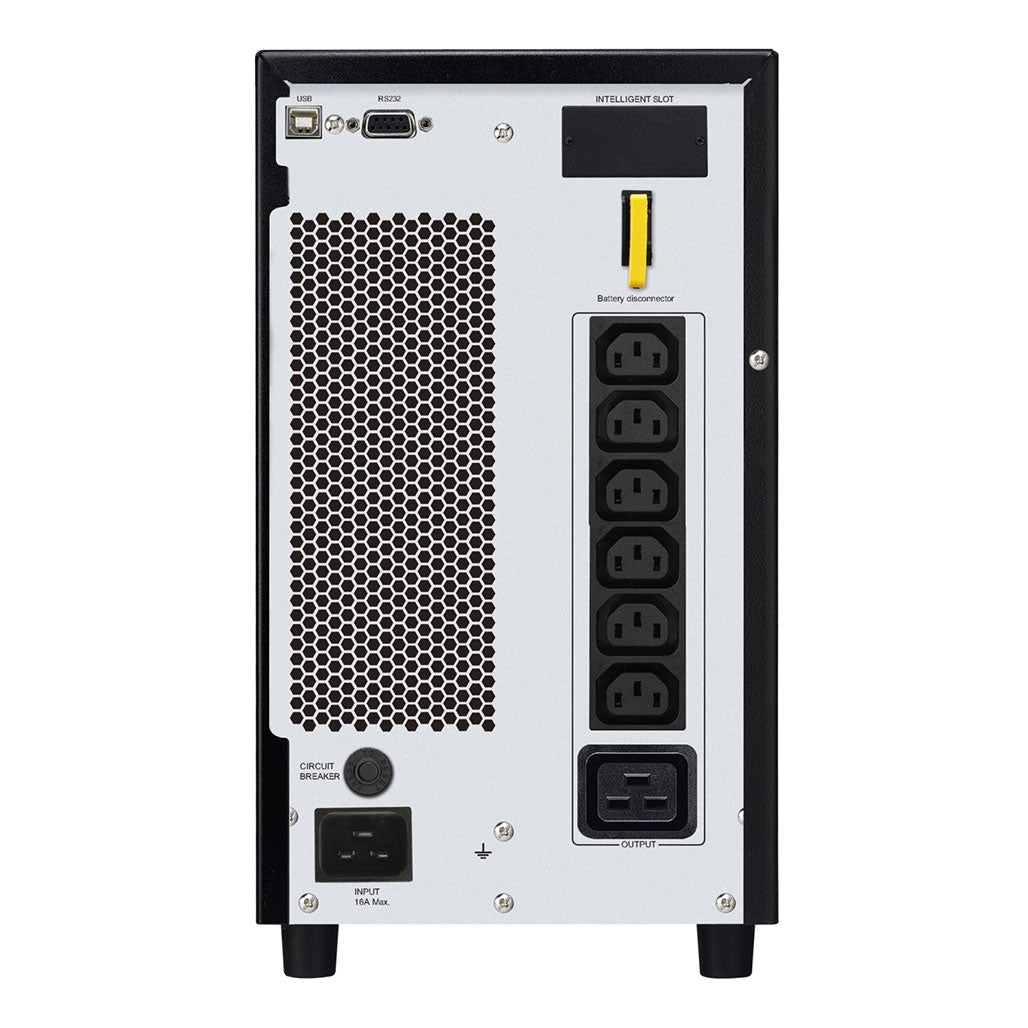

• Connector Type: IEC 60320 C20 for reliable connections.

Battery and Runtime:

• Battery Type: Durable lead-acid battery for reliable power storage.
• Battery Voltage: Operates at 72V for optimal performance.
• Recharge Time: Typical recharge time of 4 hours for quick recovery.
• Battery Life: Expected battery life of 3 - 5 years, ensuring long-term reliability.
• Battery Charger Power: Capable of charging at 60W for efficient power restoration.

Communications and Management:

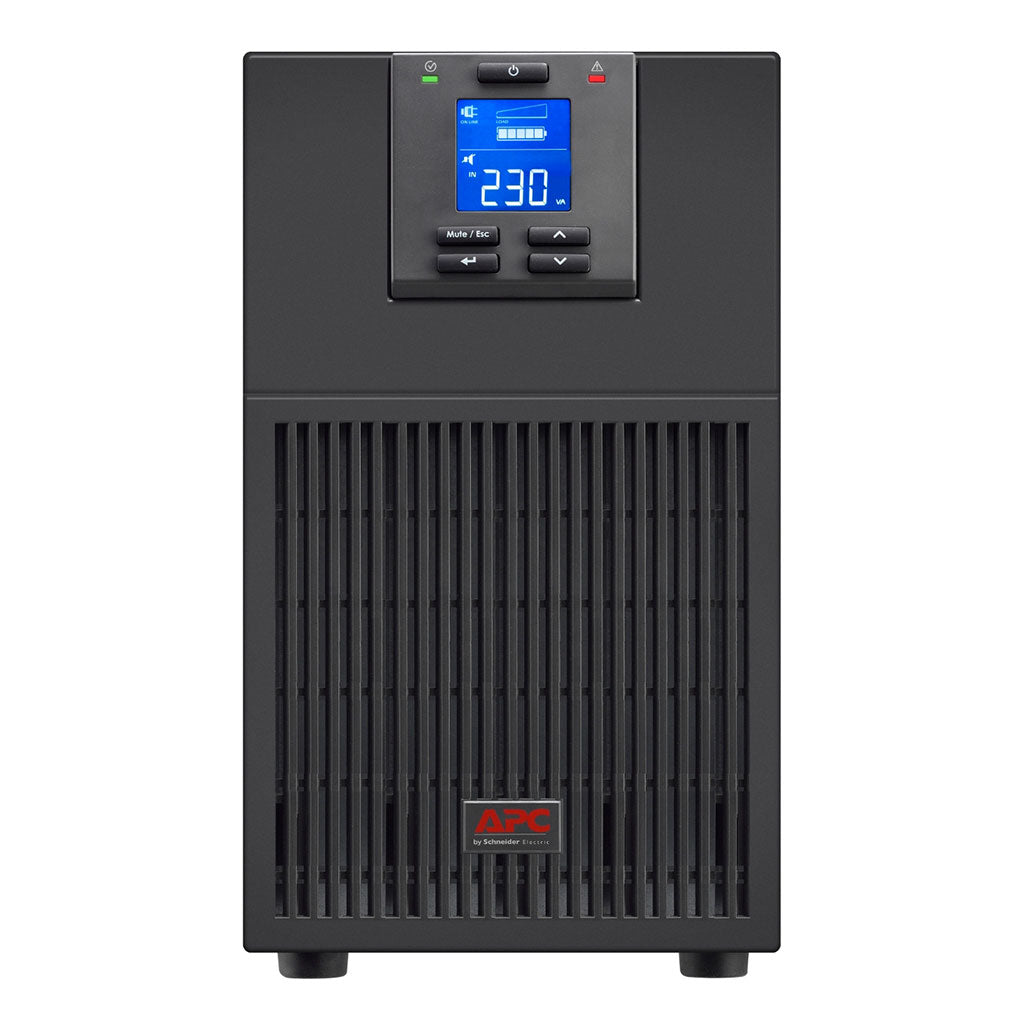

• Interface Ports: Includes a multifunction LCD status and control console for easy monitoring and management.
• Alarm System: Provides distinct alarms for battery operation, low battery, and overload conditions.
• Free Slots: One available slot for additional management options.
• Surge Protection: Offers a 600 Joules surge energy rating for enhanced protection against power surges.

Physical Specifications:

• Dimensions: Compact tower design with a height of 33.6 cm, width of 19 cm, and depth of 42.5 cm.
• Weight: Net weight of 26.8 kg, with a shipping weight of 29 kg for easy transport and installation.
• Color: Sleek black (RAL 7010) design for professional aesthetics.
• Mounting Position: Vertical installation with no preference for location.

Environmental and Safety Standards:

• Operating Temperature: Designed for a wide range of operating temperatures (0 - 40 °C).
• Humidity: Operates efficiently in humidity levels from 0 - 95% (non-condensing).
• Elevation: Suitable for use up to 3000 meters above sea level.
• Storage Conditions: Can be stored at temperatures from -20 to 50 °C and humidity levels from 0 - 95% (non-condensing).
• Noise Level: Emits a low 50 dBA of audible noise, ensuring a quiet operation environment.
• Thermal Dissipation: Manages 910 BTU/hr of thermal dissipation for effective heat management.
• Protection Class: IP20 rating for solid object protection.

Included Accessories:

• Cables: Comes with 1 IEC 60320 C19 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, and 1 RS-232 configuration cable.
• User Manual: Comprehensive manual for easy setup and operation.

Invest in the APC Easy UPS On-Line 3kVA/2400W Tower for advanced power protection, high efficiency, and comprehensive management capabilities, ensuring your critical equipment remains operational and secure
