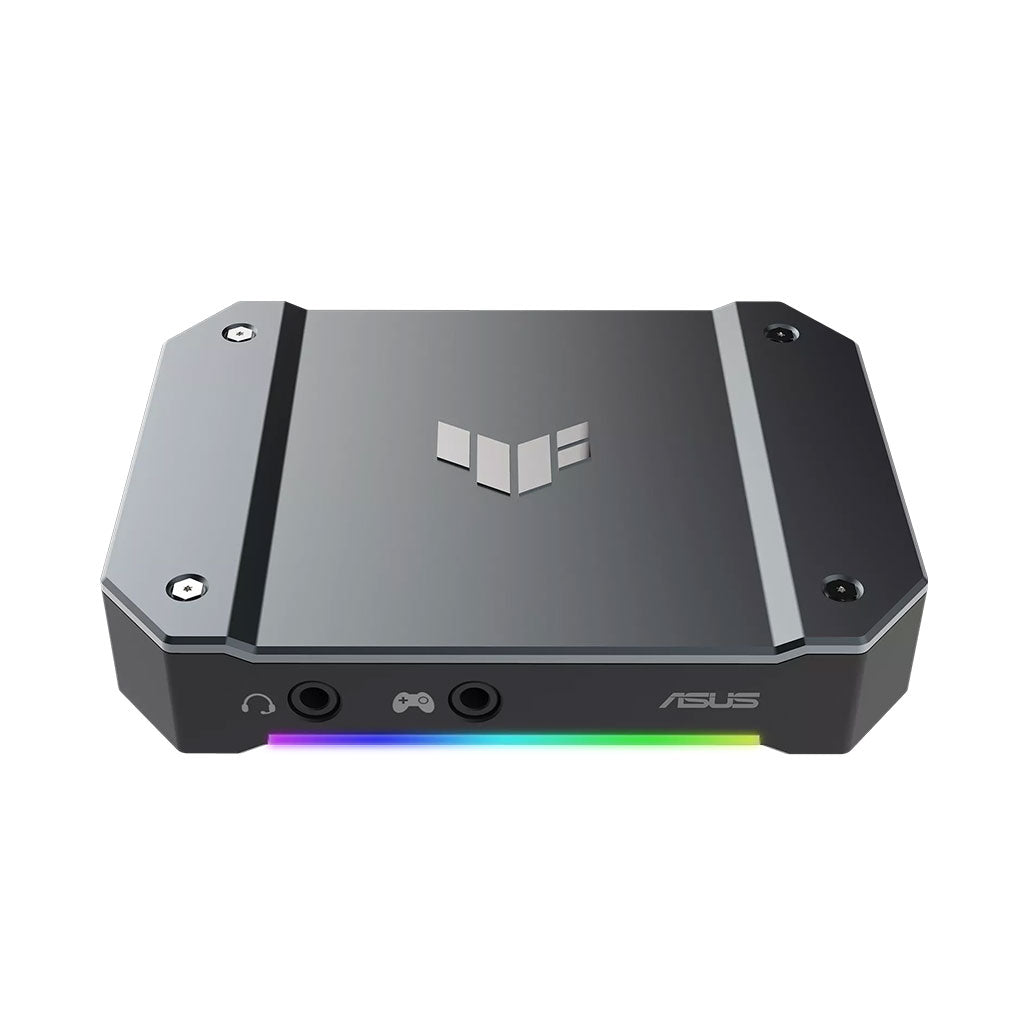

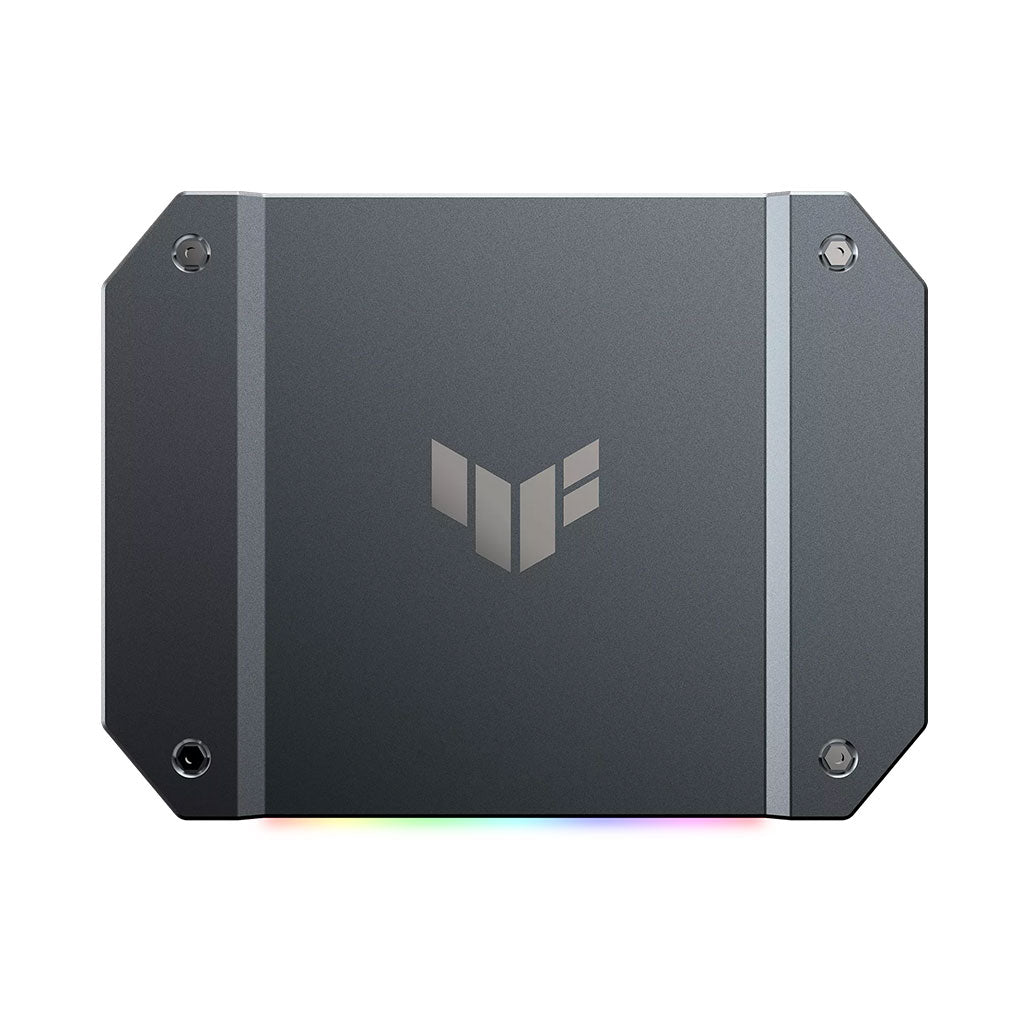

ASUS TUF Gaming Capture Box-CU4K30

The ASUS TUF Gaming Capture Box-CU4K30 is your ultimate solution for streaming high-quality gaming content. Compact yet powerful, this capture box delivers stunning 4K30 video with near-zero latency, ensuring your gameplay remains smooth and captivating for your audience.

Designed for versatility, it supports passthrough video of 4K up to 60 Hz, 2K up to 144 Hz, and Full HD up to 240 Hz. Stream with ease at 4K up to 30 fps, 2K up to 60 fps, and Full HD up to 120 fps. The device also features two 3.5 mm jacks for seamless connection with a controller and headset, enabling game console party mode.

Certified for OBS Studio™ compatibility, the TUF Gaming Capture Box ensures optimal performance across various streaming platforms. Its compact design helps maintain a tidy workspace, and the plug-and-play setup supports USB video class for a hassle-free experience. An RGB lighting exterior signals the device’s operating status.

Key Features:

• Incredible Video Quality: Supports passthrough video of 4K up to 60 Hz, 2K up to 144 Hz, and Full HD up to 240 Hz. Stream video in 4K up to 30 fps, 2K up to 60 fps, and Full HD up to 120 fps.
• Dual 3.5 mm Jacks: Connect a controller and headset for game console party mode.
• Certified OBS Studio™ Compatibility: Ensures optimal usage on a wide variety of streaming platforms.
• Compact Design: Half-palm-size design helps maintain a neat workspace.
• Plug-and-Play: Supports USB video class for a seamless experience.
• RGB Lighting: Indicates the device’s operating status.

Specifications:

• Model: TUF GAMING CAPTURE BOX-CU4K30
• Product Name: ASUS TUF Gaming Capture Box-CU4K30
• Interface: USB 3.2 Gen1x1 Type-C®
• Video Input: HDMI 2.0
• Video Output (Passthrough): HDMI 2.0
• Audio Input: HDMI 2.0
• Audio Output (Passthrough): HDMI 2.0
• Video Resolution (Input): 4K60Hz HDR, 1440p144Hz HDR, 1080p240Hz HDR
• Max Video Resolution (Passthrough): 4K60Hz HDR, 1440p144Hz HDR, 1080p240Hz HDR
• HDMI® VRR Passthrough: Yes (48 Hz - 120 Hz depending on resolution)
• Max Video Resolution (Recording):
  • USB 3.2 Gen 1x1 Type-C®: Uncompressed 2160p30, 1440p60, 1080p120, 1080p60, 1080p30, 720p60, 720p30, 576p, 480p
  • USB 2.0: Uncompressed 720p30
• Video Format (Recording): NV12, YUV2
• Audio Mix Input: 3.5mm headset, 3.5mm gamepad
• Game Console Compatibility: PlayStation, Xbox, Switch
• Indicator: LED RGB full color lighting effect
• Dimensions (W x D x H): 10.5 x 8 x 2.1 cm
• Weight: 173g

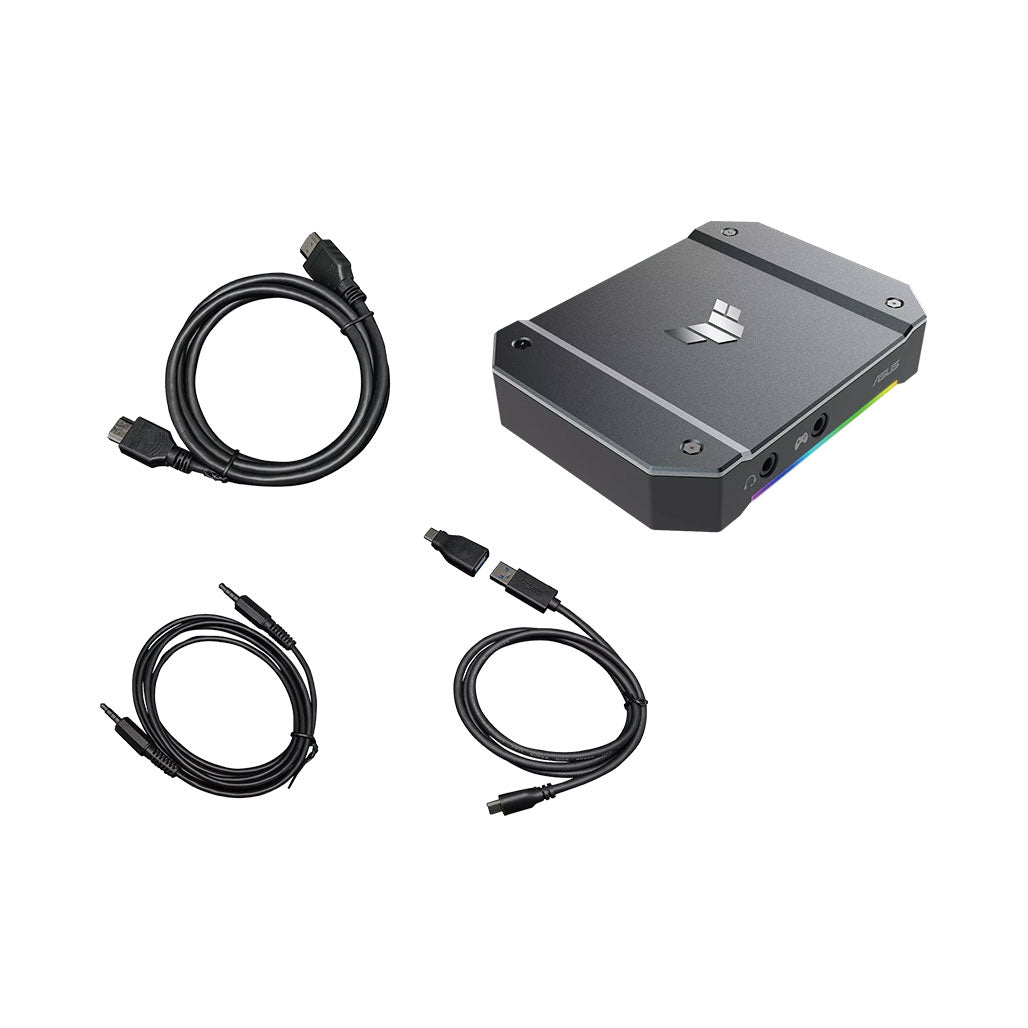

Package Contents:

• Quick Start Guide
• HDMI 2.0 cable
• USB 3.2 Gen1x1 Type-C® to Type A cable
• USB Type-A to Type-C® adapter
• 3.5 mm to 3.5mm audio cable

Notes:

• Does not support viewing/recording/streaming of HDCP protected signals.
• Download the latest firmware from the ASUS official website for video capture support up to 120 fps in Full HD.

System Requirements:

Desktop:

• Processor: Intel® Core™ i5-6XXX or above, AMD® Ryzen™ 5 1XXX or above (Recommended: Intel® Core™ i7-6XXX or above, AMD® Ryzen™ 7 1XXX or above)
• Memory: 8GB or above (Recommended: 16GB or above, Dual-channel mode)
• Graphics: NVIDIA® GeForce® GTX660 or above, AMD® Radeon™ HD7870 or above (Recommended: NVIDIA® GeForce® GTX 1060 or above, AMD® Radeon™ RX570 or above)
• USB: Requires USB 3.2 Gen1x1

Laptop:

• Processor: Intel® Core™ i7-4810MQ or above, AMD® Ryzen™ 5 3500U or above (Recommended: Intel® Core™ i7-7700HQ or above, AMD® Ryzen™ 5 3550H or above)
• Memory: 8GB or above (Recommended: 16GB or above, Dual-channel mode)
• Graphics: NVIDIA® GeForce® GTX 870M or above, AMD® Radeon™ HD8970M or above (Recommended: NVIDIA® GeForce® GTX 1050 Ti or above, AMD® Radeon™ RX570 or above)
• USB: Requires USB 3.2 Gen1x1
