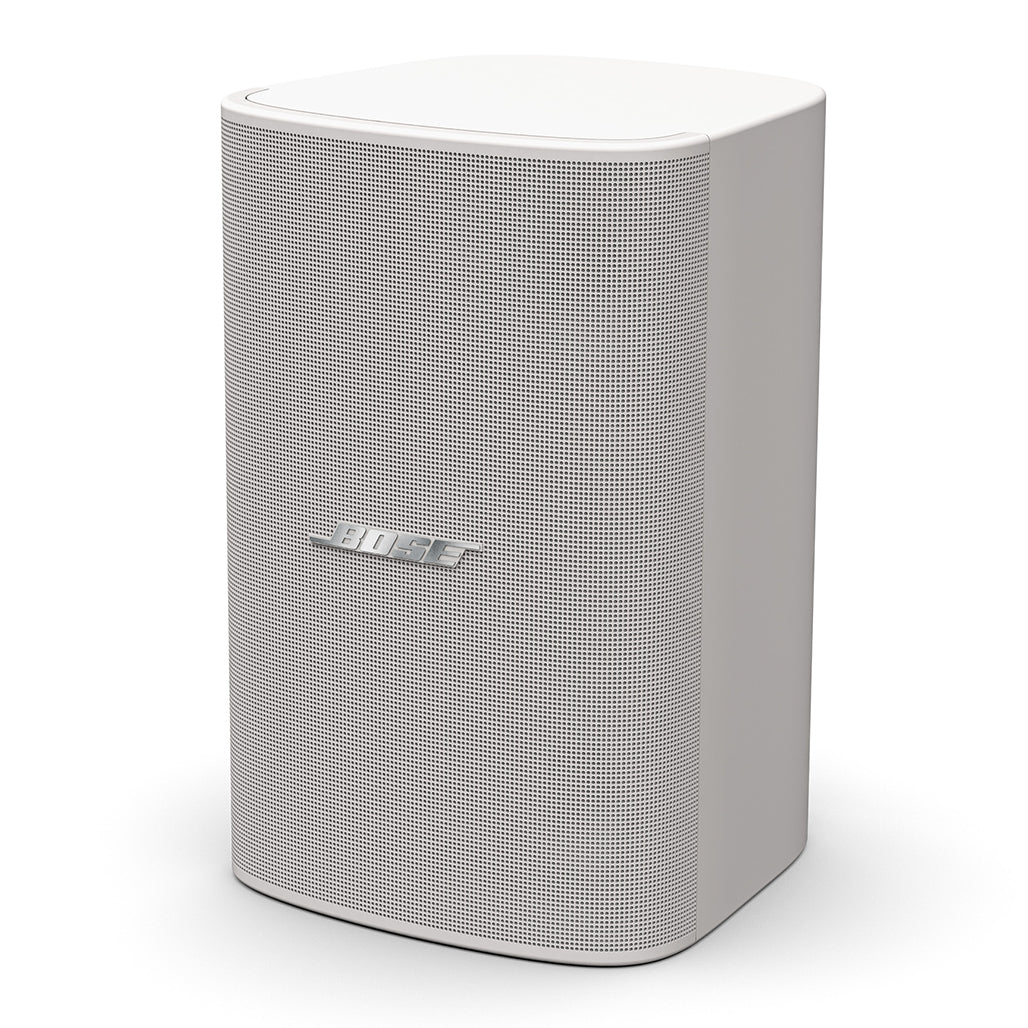

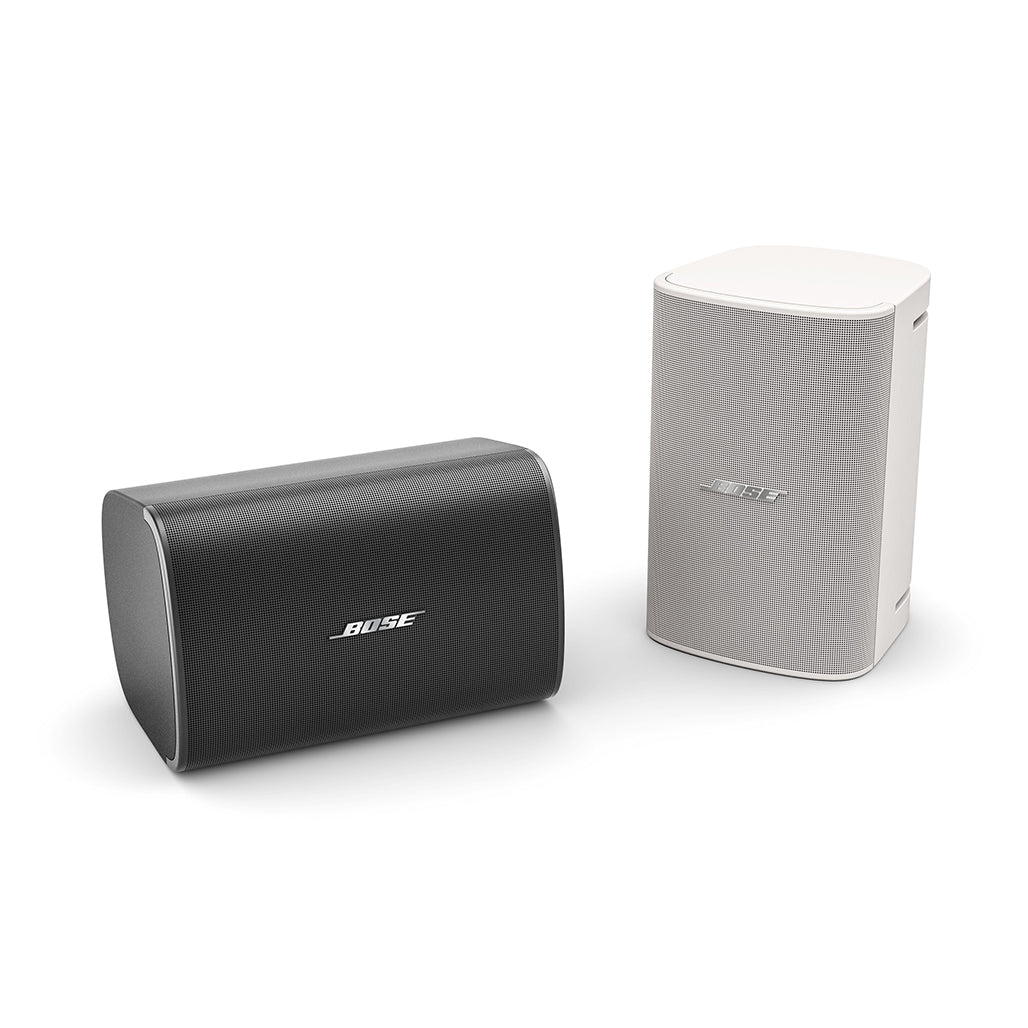

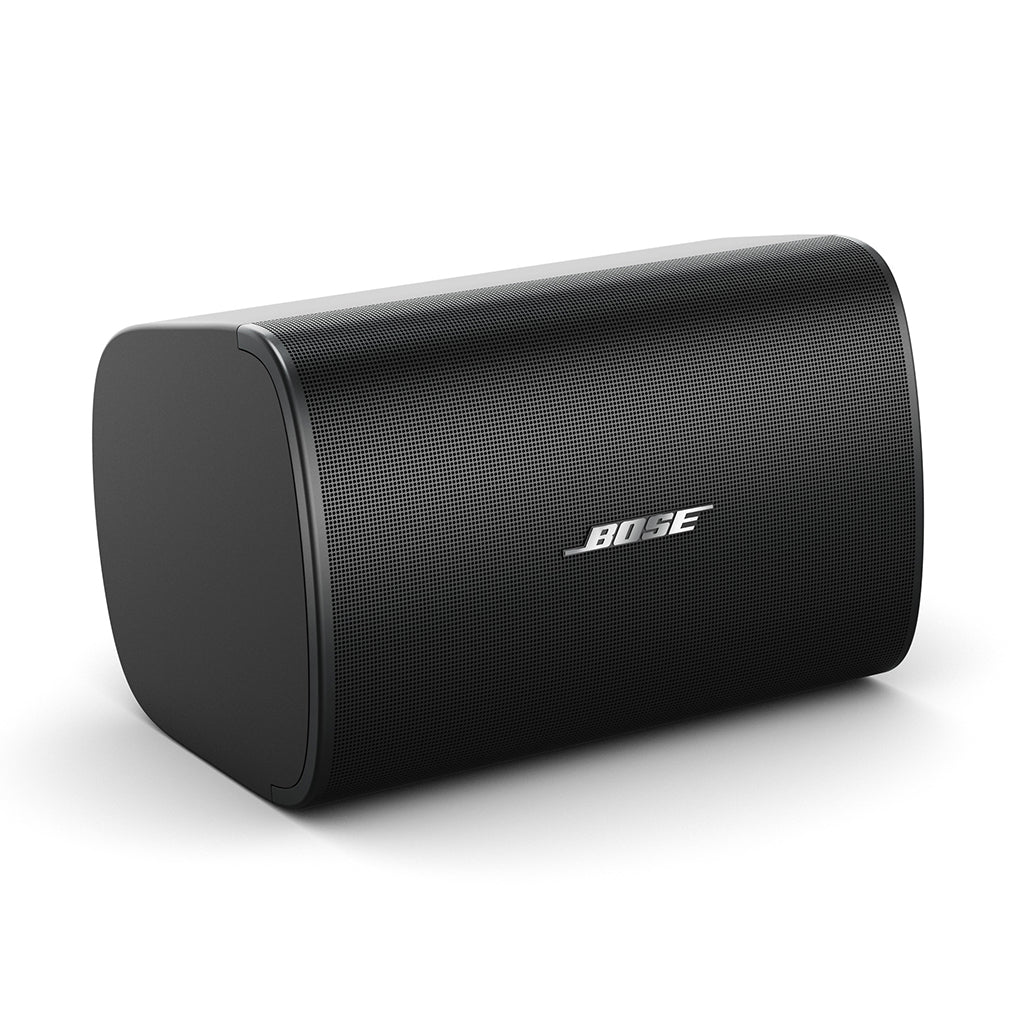

BOSE DesignMax DM6SE Surface-Mount Outdoor Loudspeakers (Pair)– 125W Commercial Audio

Engineered to deliver superior sound clarity and durability, the BOSE DesignMax DM6SE loudspeakers are built for professional commercial environments. Each unit is equipped with a coaxial two-way driver system, combining a 6.5-inch woofer and a 1.25-inch coaxial tweeter. This advanced configuration produces rich bass and detailed high frequencies across a wide 59 Hz – 20 kHz frequency range. Designed for ease of installation and long-lasting performance, the DM6SE is IP55-rated for outdoor use and features a tamper-resistant aluminum grille with a paintable finish to seamlessly match any venue décor.

Whether installed in restaurants, retail spaces, performance venues, or hospitality locations, these BOSE loudspeakers ensure consistent audio coverage with a 125° conical dispersion pattern. Enhanced by the Dispersion Alignment system, sound is evenly distributed for a balanced listening experience across any space. The QuickHold U-bracket enables fast, secure mounting, minimizing setup time and reducing the risk of product damage. Ideal for integrators and venue managers, the DesignMax DM6SE pair delivers reliable, high-performance audio while maintaining a refined aesthetic.

Key Features:

• Coaxial Two-Way Drivers:
  Integrated 6.5" woofer and 1.25" neodymium dome tweeter work together to deliver full-range sound with high fidelity—no external DSP or EQ required.

• Dispersion Alignment System:
  Matches the tweeter's dispersion pattern to that of the woofer, creating consistent, room-wide audio coverage without acoustic dead zones.

• QuickHold Mounting System:
  A patented bracket design enables quick, secure installations while reducing physical strain and risk of damage during setup.

• IP55 Outdoor Rating:
  Built with a weather-resistant aluminum grille and protective input cover, these speakers are rated for reliable outdoor use in wet conditions.

• Elegant, Customizable Design:
  Sleek enclosures with a minimum-bezel grille in either black or white (paintable) allow for seamless integration into any architectural setting.

• Compatibility Across Systems:
  Part of the BOSE DesignMax family, allowing integration with up to 12 model variants to support installations of any size or acoustic requirement.

Technical Specifications:

Compliance:

• UL 1480A, NFPA 70, CE-compliant

Physical:

• Colors: Black (RAL 9005), White (similar to RAL 9003), both paintable

• Material: Engineered UV-resistant plastic

• Environmental Rating: IEC 529 IP55 outdoor use

• Grille: Powder-coated, perforated aluminum, tamper-resistant, paintable

• Logo: Rotatable, removable

• Operating Temperature: -25 °C to 70 °C (-13 °F to 158 °F)

• Dimensions (H × W × D): 13.4" × 8.7" × 9.0" (340 mm × 222 mm × 229 mm), or 9.7" depth with bracket

• Net Weight (Single): 13.1 lb (5.9 kg)

• Shipping Weight (Pair): 32.5 lb (14.7 kg)

Performance:

• Frequency Range: 59 Hz – 20,000 Hz (-10 dB)

• Coverage: 125° conical (horizontal and vertical)

• Max SPL @ 1 m: 111 dB

• Nominal Impedance: 8 Ω (bypass)

• Power Handling (Continuous): 125 W

• Power Handling (Peak): 500 W

• Sensitivity (1 W @ 1 m): 90 dB

• Transformer Taps:

  • 100V: 5, 10, 20, 40, 80 W, bypass

  • 70V: 2.5, 5, 10, 20, 40, 80 W, bypass

Transducers:

• High-Frequency Driver: 1 × 1.25" (32 mm) neodymium dome tweeter, weather-treated

• Low-Frequency Driver: 1 × 6.5" (165 mm) woofer, weather-treated

• Crossover Frequency: 1.7 kHz, passive 2-way

• Driver Protection: Recommended high-pass filter at 60 Hz, 24 dB/octave

Conclusion:
Designed for demanding commercial environments, the BOSE DesignMax DM6SE loudspeakers deliver professional-grade audio with outdoor-ready durability and installation-friendly features. With their elegant design, wide dispersion, and compatibility with various mounting and sound systems, these speakers offer a reliable solution for high-quality sound in both indoor and outdoor venues.
