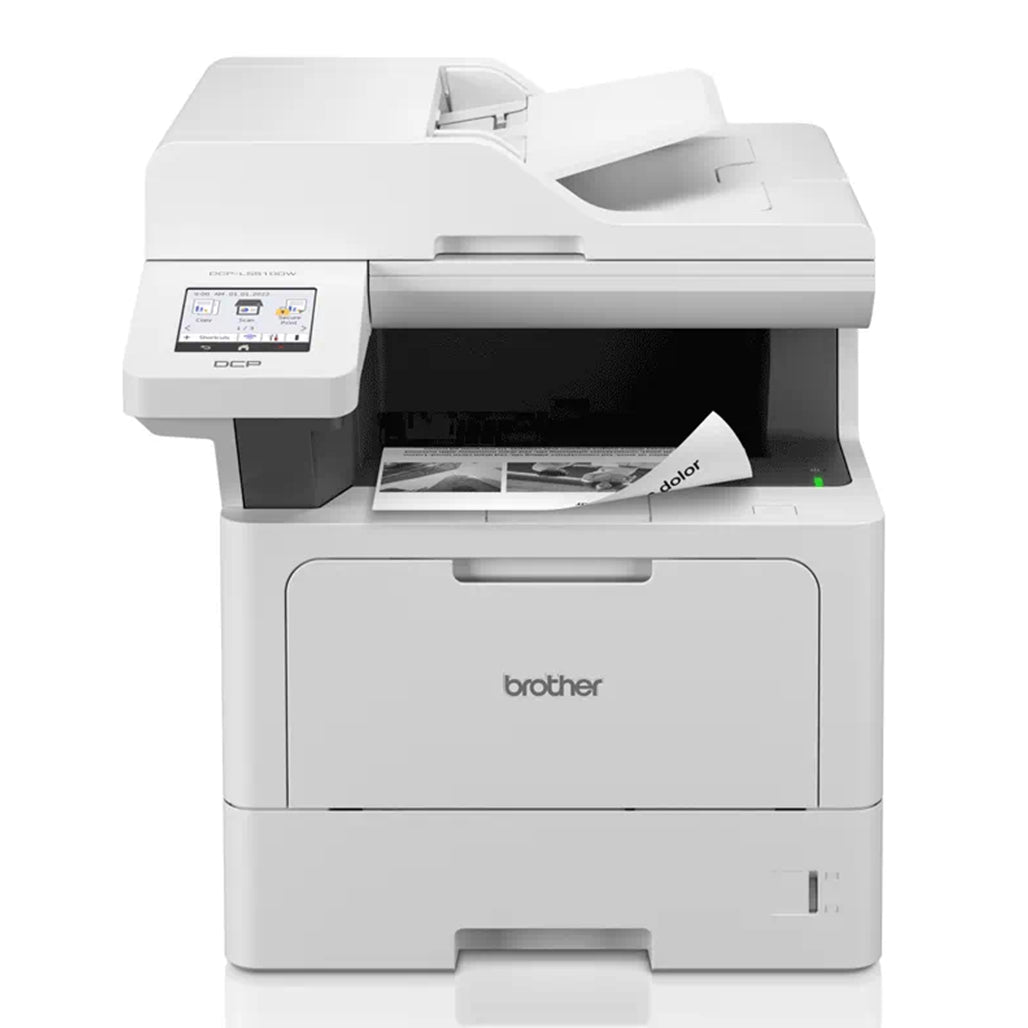

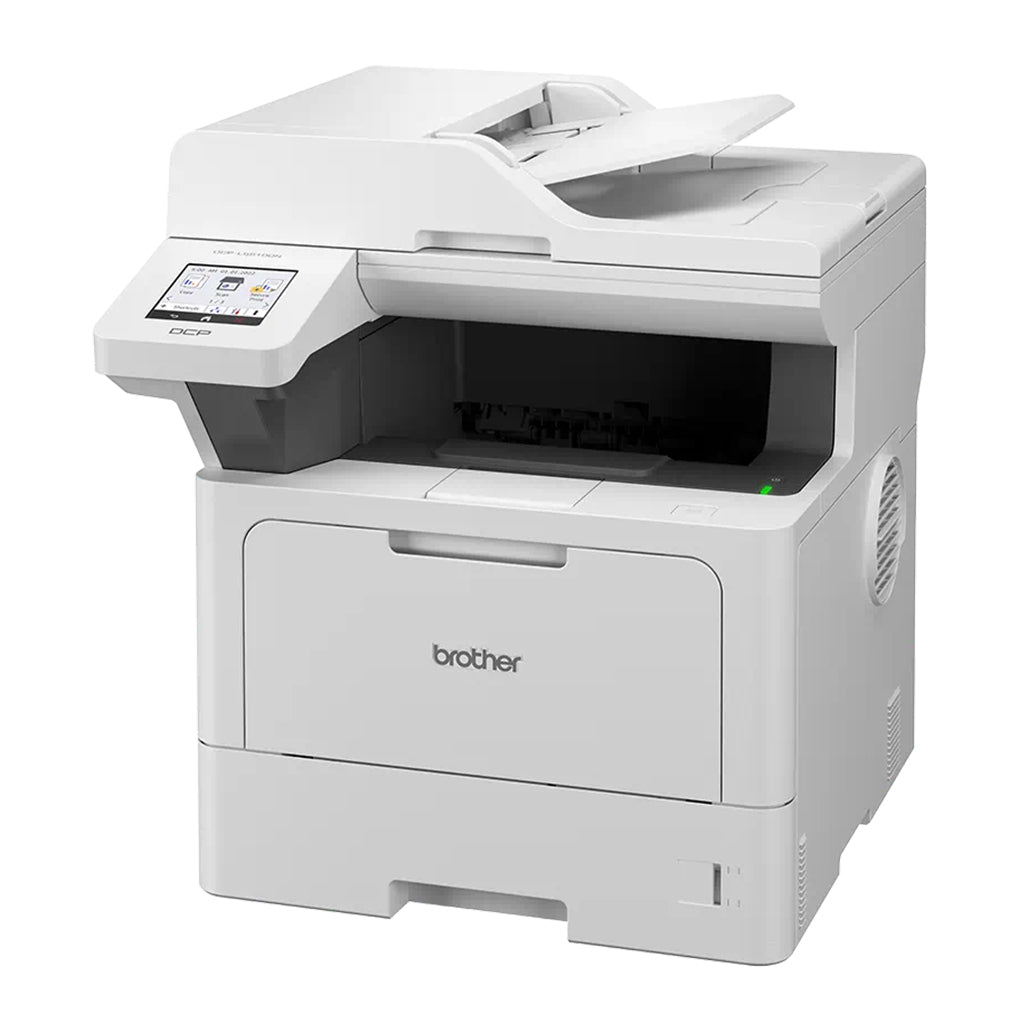

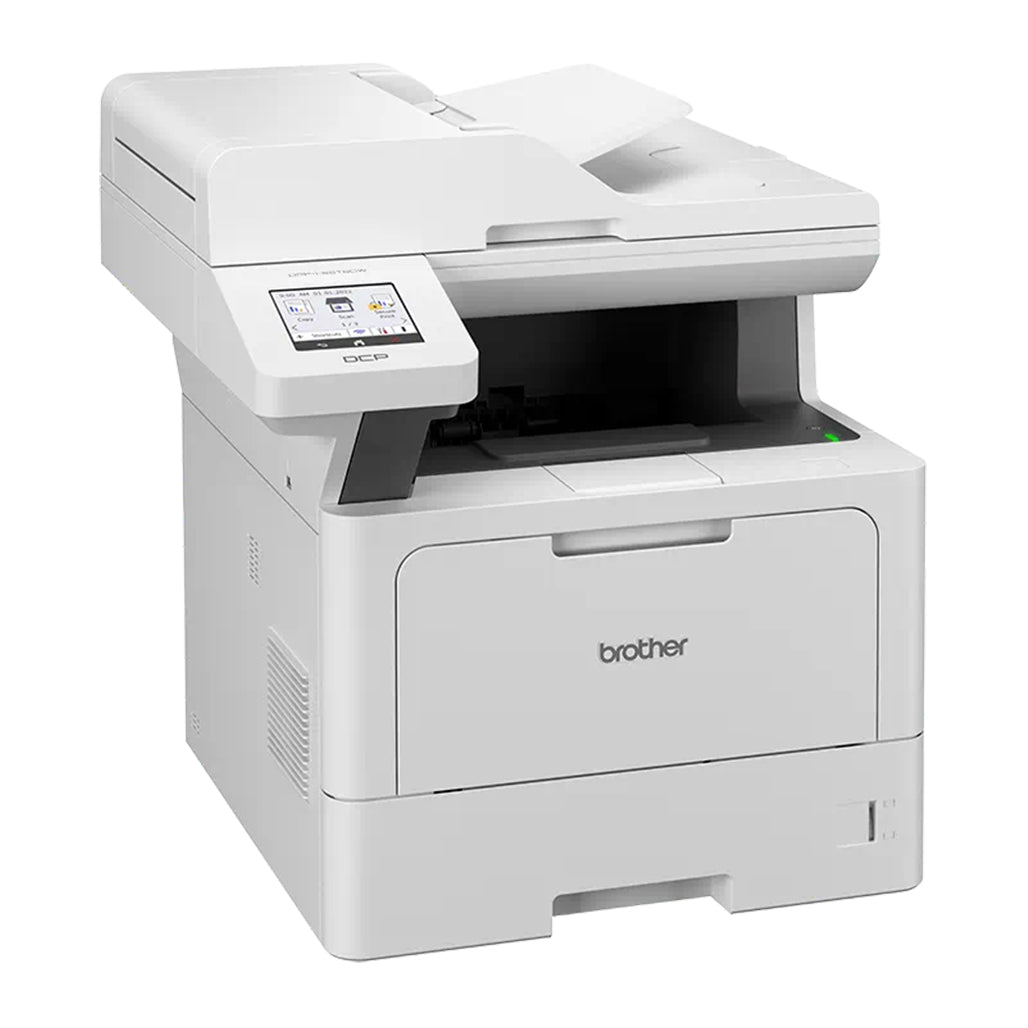

The Brother DCP-L5510DW is a versatile, high-performance mono laser printer designed for professional use. It combines printing, scanning, and copying functions in one efficient device, offering fast speeds, high-quality outputs, and robust connectivity options.

Key Features

• High-Speed Printing: Print at speeds of up to 48 pages per minute (ppm), and perform automatic 2-sided printing at up to 24 sides per minute.
• Efficient Scanning: Scan up to 28 images per minute (ipm), providing quick and accurate document digitization.
• Gigabit Ethernet & Wi-Fi: Connect via Gigabit Ethernet or dual-band Wi-Fi (2.4GHz and 5GHz) for flexible networking and high-speed data transfer.
• Expandable Paper Capacity: Start with a 250-sheet paper tray, expandable up to 1,290 sheets with optional trays.
• High-Yield Toner Options: Includes a 3,000-page yield toner with optional 6,000 and 11,000-page toners for cost-effective, high-volume printing.

Specifications

General

• Printer Type: Mono Laser
• Functions: Print, Copy, Scan
• Display: 8.9 cm Color Touchscreen
• Max Paper Size: A4
• Memory: 1 GB Internal Memory
• Technology: Laser

Connectivity

• Wired Network: Gigabit Ethernet
• Wireless Network: 2.4GHz and 5GHz Wi-Fi, Wi-Fi Direct™
• Local Interface: Hi-Speed USB 2.0, USB 2.0 Host (Front)
• Network Security: Various options including WEP, WPA-PSK, WPA2-PSK, WPA3-SAE, SSL/TLS, and more.

Copying

• 2-Sided Copy: No
• Mono A4 Copy Speed: 48 copies per minute
• Resolution: Up to 1,200 x 600 dpi

Dimensions & Weights

• With Carton: 549 (W) x 497 (D) x 580 (H) mm - 20.50 kg
• Without Carton: 417 (W) x 461 (D) x 448 (H) mm - 16.90 kg

Environmental

• Power Consumption:
  • Copying: 680W
  • Copying in Quiet Mode: 430W
  • Printing: 670W
  • Printing in Quiet Mode: 430W
  • Ready: 31W
  • Sleep: 5.9W
  • Deep Sleep: 0.6W
  • Power Off: 0.05W
• Sound Power:
  • Printing: 7.02B(A)
  • Ready: 4.90B(A)
  • Quiet Mode: 6.54B(A)
  • Deep Sleep: Inaudible
• Sound Pressure:
  • PC Printing (Mono): Approx. 54.0 dB(A)
  • Ready: 35.0 dB(A)
  • Quiet Mode: 50.0 dB(A)
• Environmental Accreditations: Blue Angel, Nordic Swan
• Typical Electrical Consumption: 0.63 kWh/week

In the Box

• Contents: Device, Inbox Toners, Drum, Power Supply Cord, Quick Set-Up Guide, Warranty Card

Media Specifications

• Types and Sizes:
  • Standard Tray: A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, A4 Short (270 mm), Folio, 16K
  • Multi-Purpose Tray: Width 69.8 to 215.9 mm, Length 127 to 355.6 mm; Envelope: COM-10, DL, C5, Monarch
  • ADF: Width 105 to 215.9 mm, Length 147.3 to 355.6 mm
  • Scanner Glass: Up to A4/Letter
• Weights:
  • Standard Tray: 60-163 gsm
  • Multi-Purpose Tray: 60-230 gsm
  • ADF: 64-90 gsm

Paper Handling

• Paper Input:
  • Standard Tray: 250 Sheets
  • Multi-Purpose Tray: 100 Sheets
  • Automatic Document Feeder (ADF): 50 Sheets
• Paper Output: 150 Sheets

Printing

• 2-Sided Print Speed: Up to 24 images per minute (A4)
• Resolution: Up to 1,200 x 1,200 dpi
• Standard Mono Print Speed: 48 pages per minute
• Automatic 2-Sided Print: Yes
• Emulations: PCL6, BR-Script3, IBM Proprinter XL, Epson FX-850, PDF Version 1.7
• First Print Out Time: Less than 6.7 seconds
• Recommended Monthly Volume: Up to 5,000 pages

Scanning

• 2-Sided Scan: No
• Resolution: 1,200 x 1,200 dpi
• Scan To: USB, E-mail, OCR, Image and File Network Scanning, Network Folder (SMB), FTP, SFTP, Email Server, SharePoint (On Premise)
• Speed: 1-Sided: 28 ipm (Mono), 20 ipm (Color)
• Scanner Type: CIS

Security Features

• 802.1x: Yes
• Active Directory LDAP Authentication: Yes
• Automatic Intrusion Detection: Yes
• Digitally-Signed Firmware: Yes
• IP Filter: Yes
• Port-Based Network Access Control: Yes
• Restrict Network Protocols: Yes
• Secure Function Lock v3: Yes
• Secure Key Management: Yes
• Secure Print: Yes
• Setting Lock: Yes
• Store Print Log: Yes
• SysLog: Yes

Solutions

• Email Print: Yes
• Supported: Compatible with Order Supplies, Remote Panel, Request Help, ThinPrint Client, SecurePrint Plus, Secure Print Advanced, Barcode Print Plus, Email Print, Barcode Utility, Custom UI

Supplies and Accessories

• Accessories:
  • CH1000: Holder for external NFC Cards
  • LT5505: 250 sheets paper tray
  • LT6505: 520 sheet paper tray
  • ZUNTL6000W: Cabinet
• Supplies:
  • Inbox Toner: 1 x 3,000 pages (BK)
  • Standard Yield Toner: TN3600 - 3,000 pages
  • High Yield Toner: TN3600XL - 6,000 pages
  • Super High Yield Toner: TN3600XXL - 11,000 pages
  • Drum Unit: DR3600, approx. 75,000 pages at 3 pages per job

Direct Printing/Scanning

• Print From: USB flash memory drive (formats: PDF 1.7, JPEG, Exif JPEG, PRN, TIFF)

The Brother DCP-L5510DW is an efficient and feature-rich mono laser printer that meets the needs of modern office environments, offering high-speed printing, versatile paper handling, and robust connectivity options.
