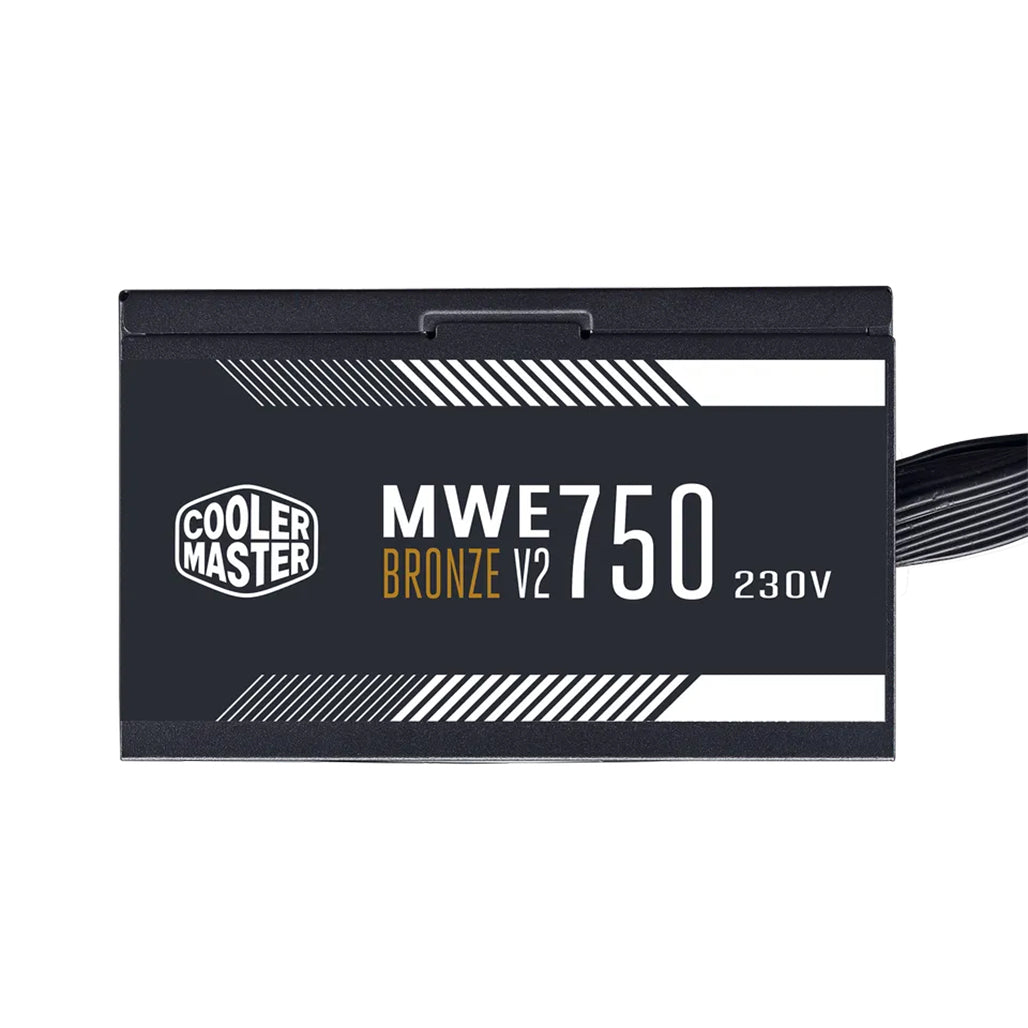

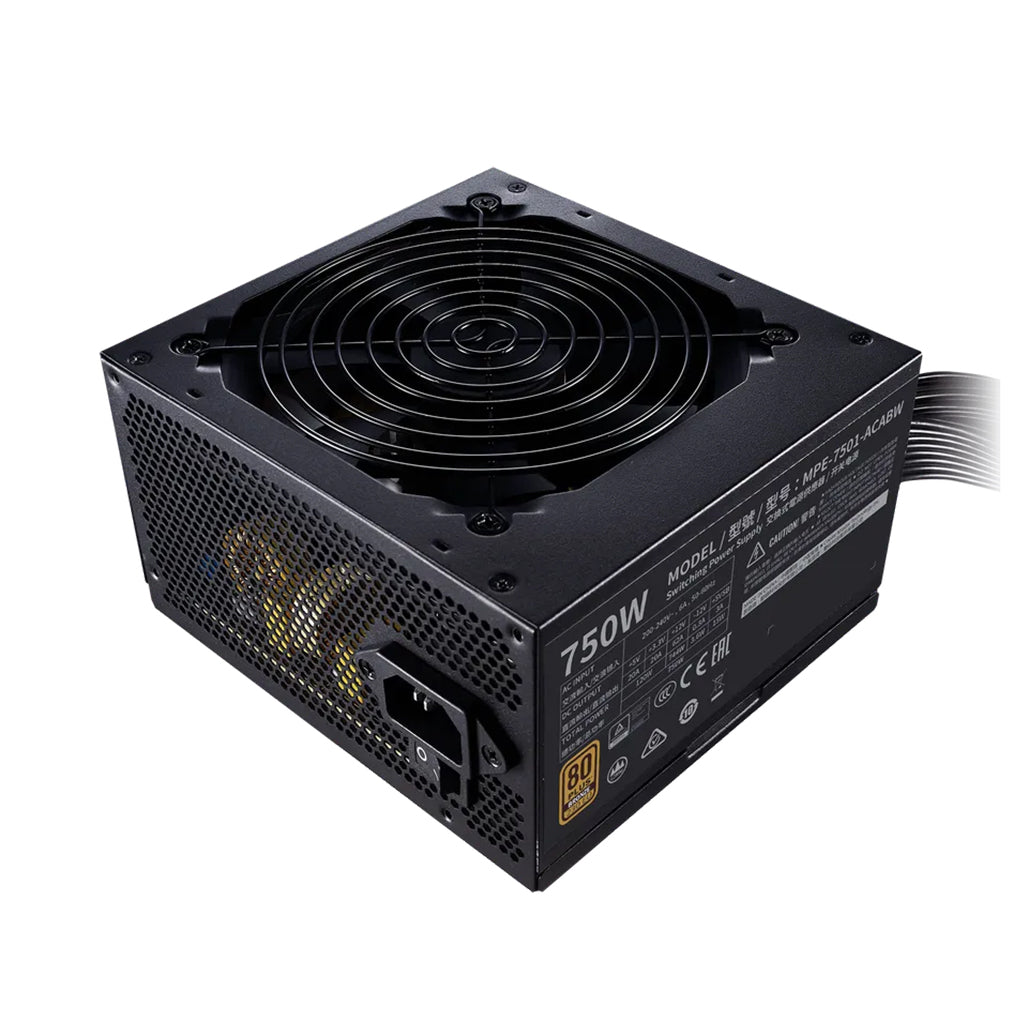

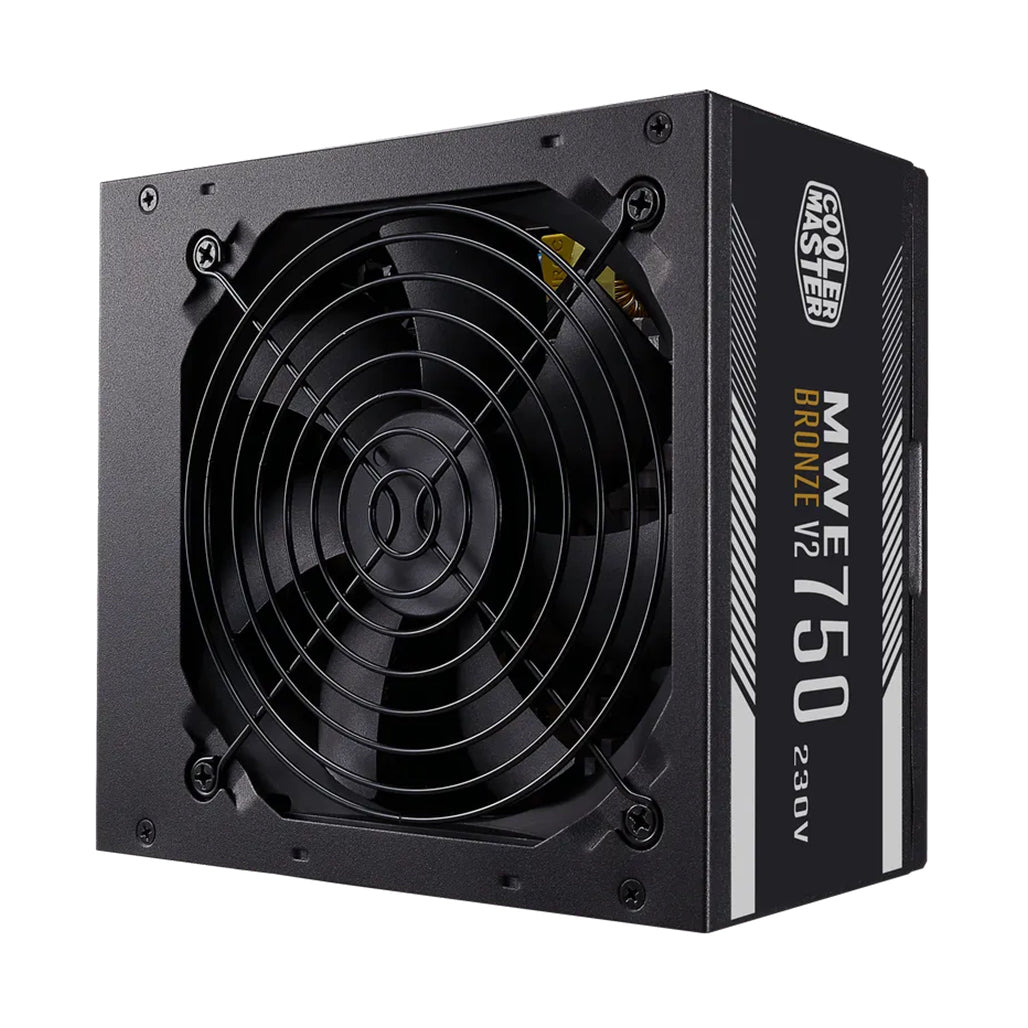

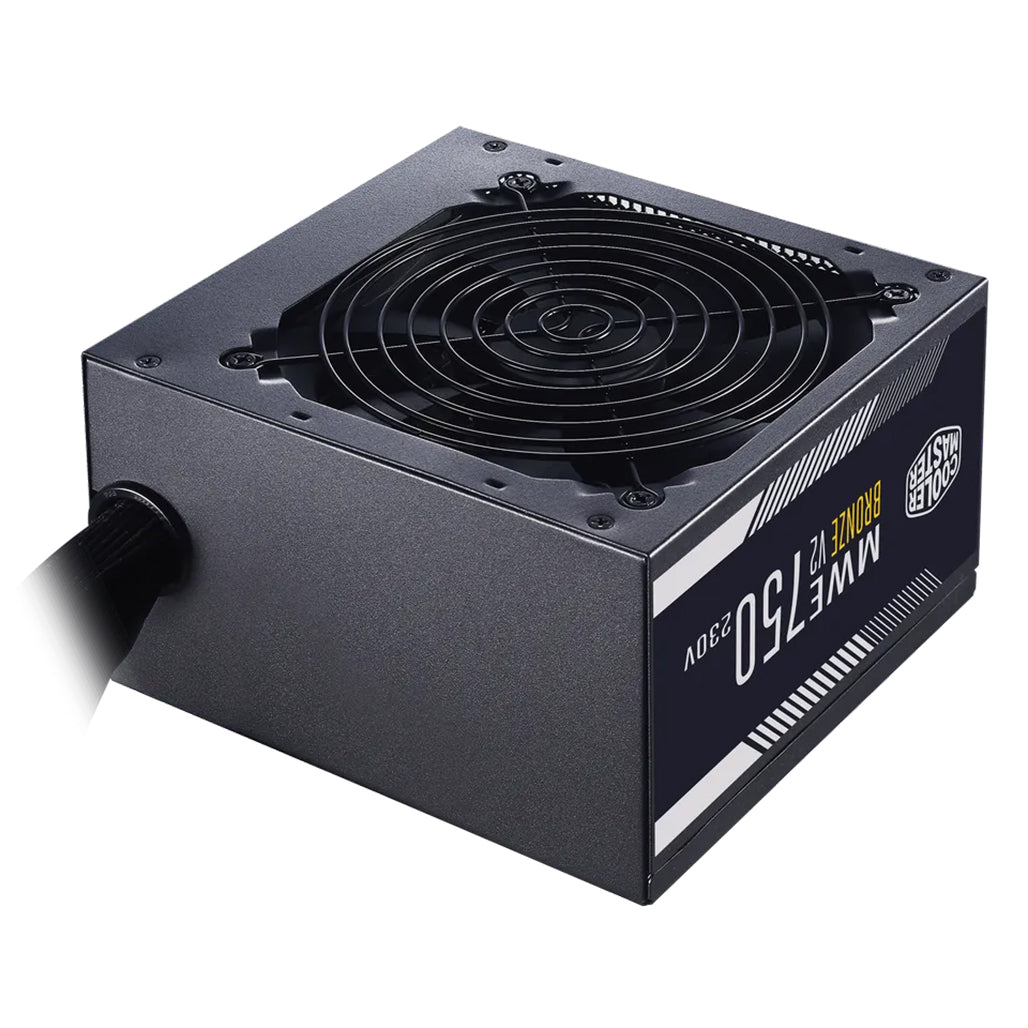

Cooler Master MWE 750 Bronze V2 – Reliable 750W 80 PLUS Bronze PSU

The Cooler Master MWE 750 Bronze V2 230V power supply is designed to deliver reliable and efficient power for gaming and high-performance PC builds. With an 80 PLUS Bronze certification, this PSU achieves up to 88% efficiency, ensuring reduced energy waste and stable performance.

Equipped with Active PFC, the power supply automatically adjusts voltage for consistent operation across 200-240V power sources. A 120mm HDB fan provides efficient cooling while maintaining low noise levels, ensuring silent operation even under moderate loads. Fan speeds reach 2400 RPM, adjusting dynamically to temperature demands for optimal cooling.

Multiple PCIe (6+2-pin) connectors allow compatibility with modern GPUs, while six SATA connectors ensure seamless integration with storage devices. A range of built-in protection mechanisms, including OVP, OPP, SCP, UVP, and OTP, safeguard components from potential power fluctuations, enhancing durability and longevity.

With a non-modular design, the MWE 750 Bronze V2 offers easy installation and straightforward cable management, making it an excellent choice for budget-conscious builders who need reliable performance and long-term stability.

Specifications:

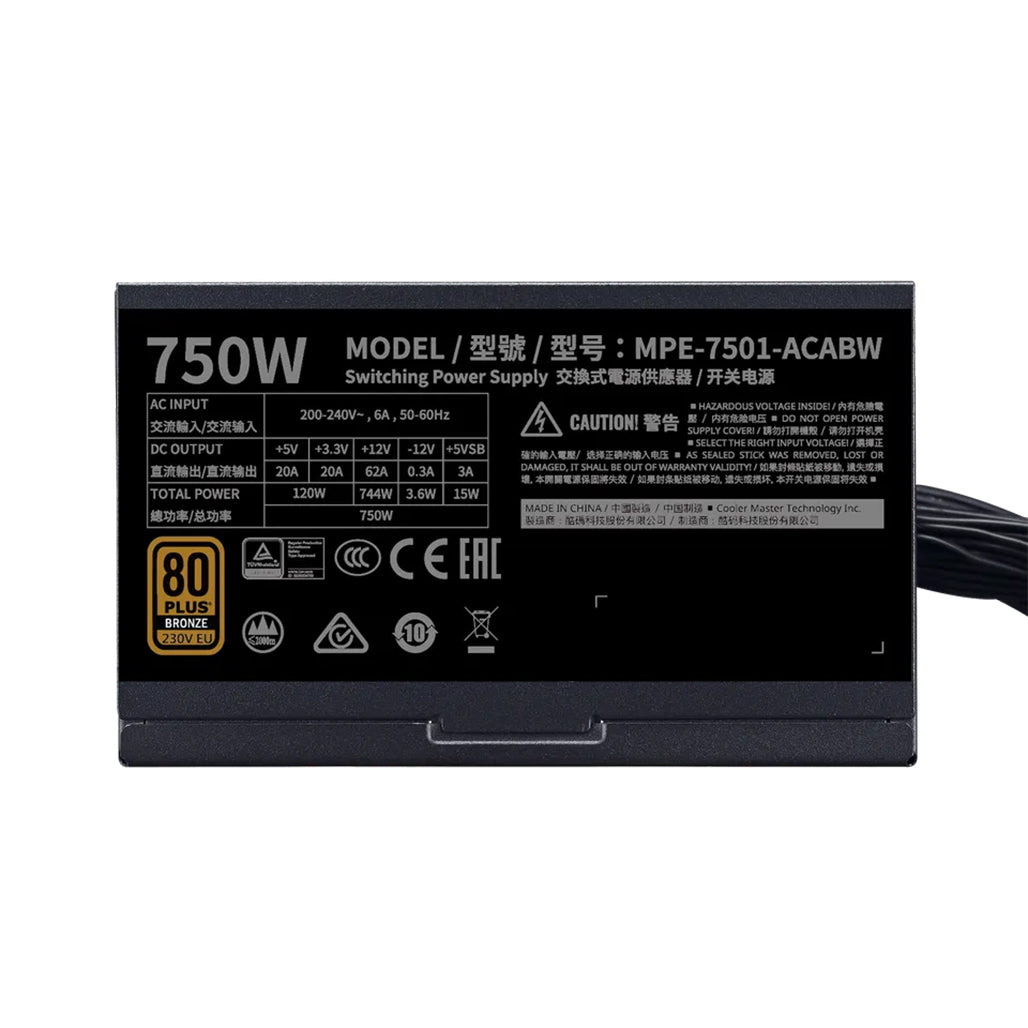

• Model: MPE-7501-ACABW-B
• Power Output: 750W
• Efficiency Rating: 80 PLUS Bronze (EU 230V)
• Efficiency: 88% typically
• Modular: Non-Modular
• PFC Type: Active PFC
• ATX Version: ATX 12V V2.52
• Fan Size: 120mm
• Fan Bearing: HDB (Hydrodynamic Bearing)
• Fan Speed: Up to 2400 RPM
• Noise Levels:
  • @ 20% Load: 11.12 dBA
  • @ 50% Load: 20.3 dBA
  • @ 100% Load: 39.5 dBA
• MTBF (Mean Time Between Failures): >100,000 Hours
• Hold Up Time: >14ms at 100% full load @ 230Vac
• Input Voltage: 200-240V
• Input Frequency: 50-60Hz
• Input Current: 10-6A
• Power Good Signal: 100 - 500 ms
• Connectors:
  • ATX (24-pin): 1
  • EPS (4+4-pin): 1
  • EPS (8-pin): 1
  • PCIe (6+2-pin): 4
  • SATA (15-pin): 6
  • Peripheral (4-pin): 3
• Protections: OVP, OPP, SCP, UVP, OTP
• Regulatory Certifications: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
• Dimensions (L x W x H): 140 x 150 x 86 mm
