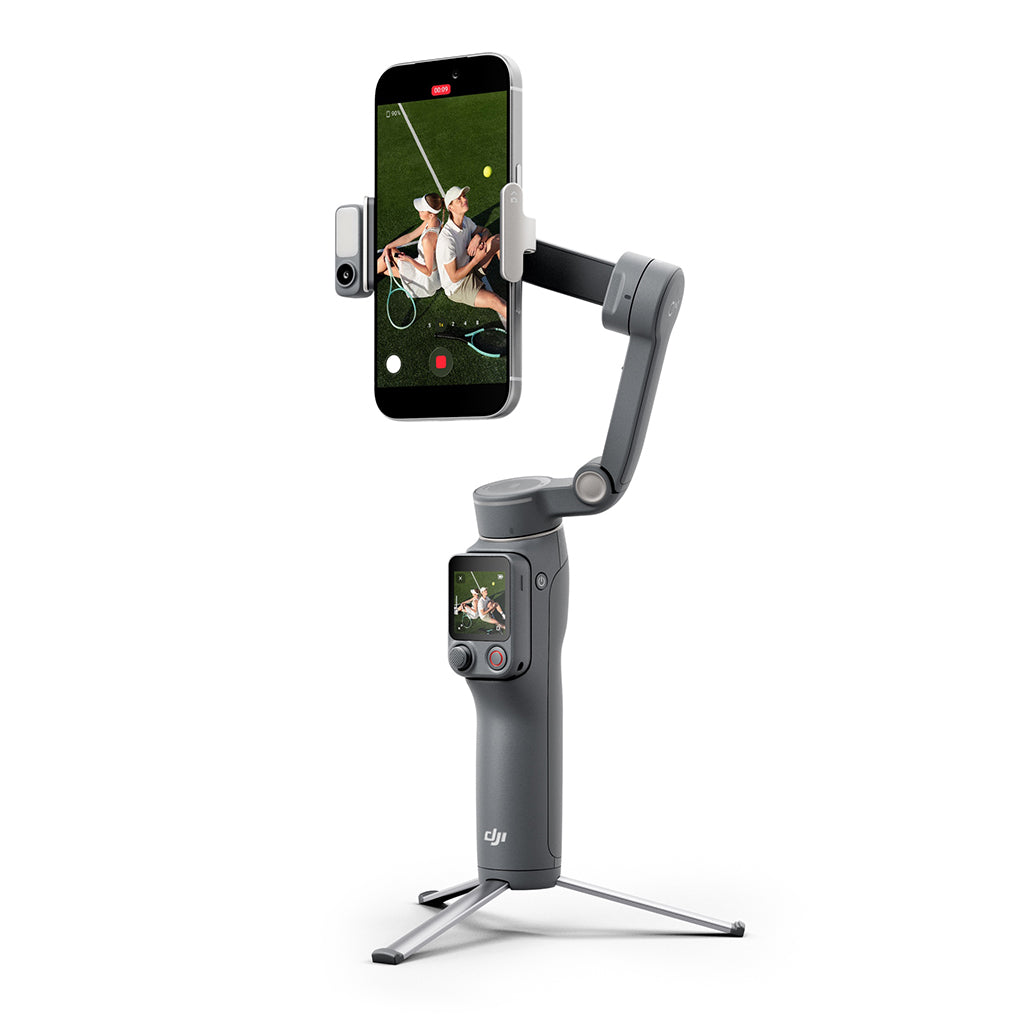

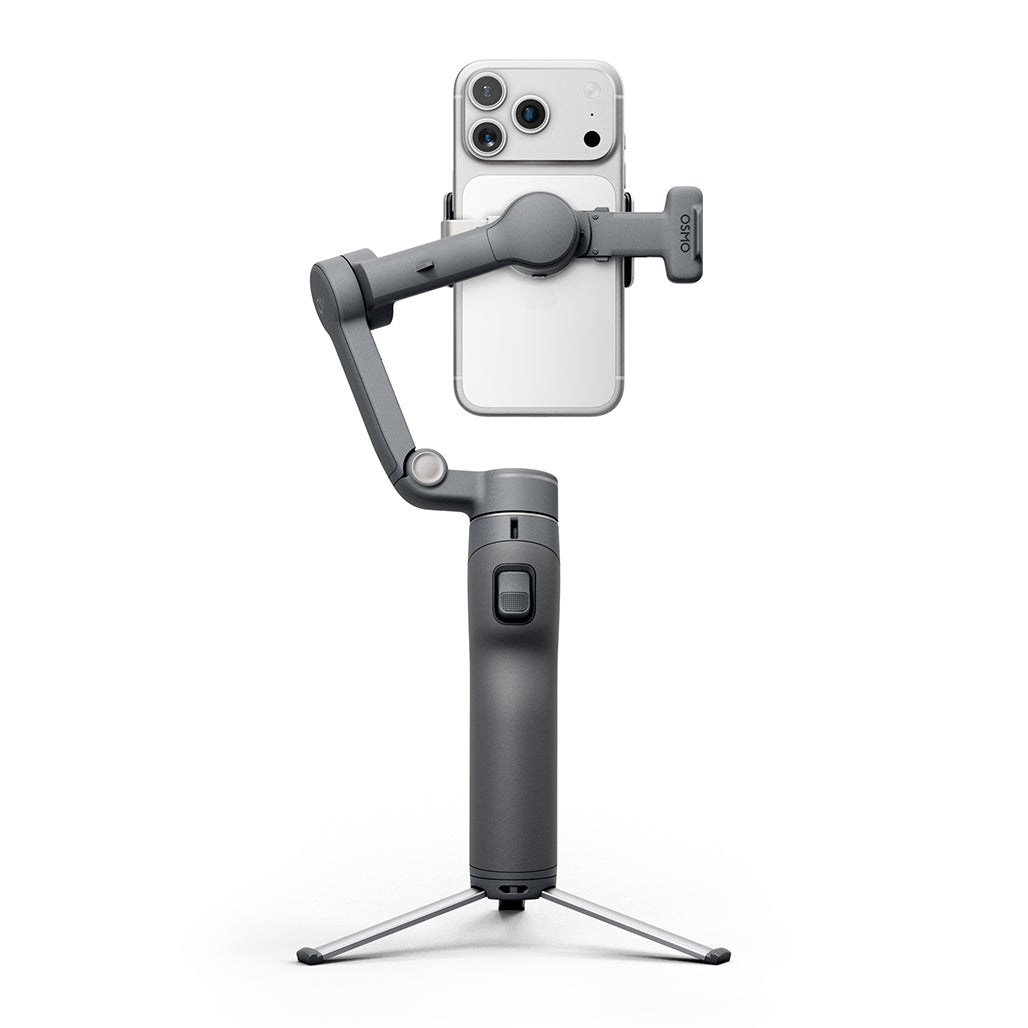

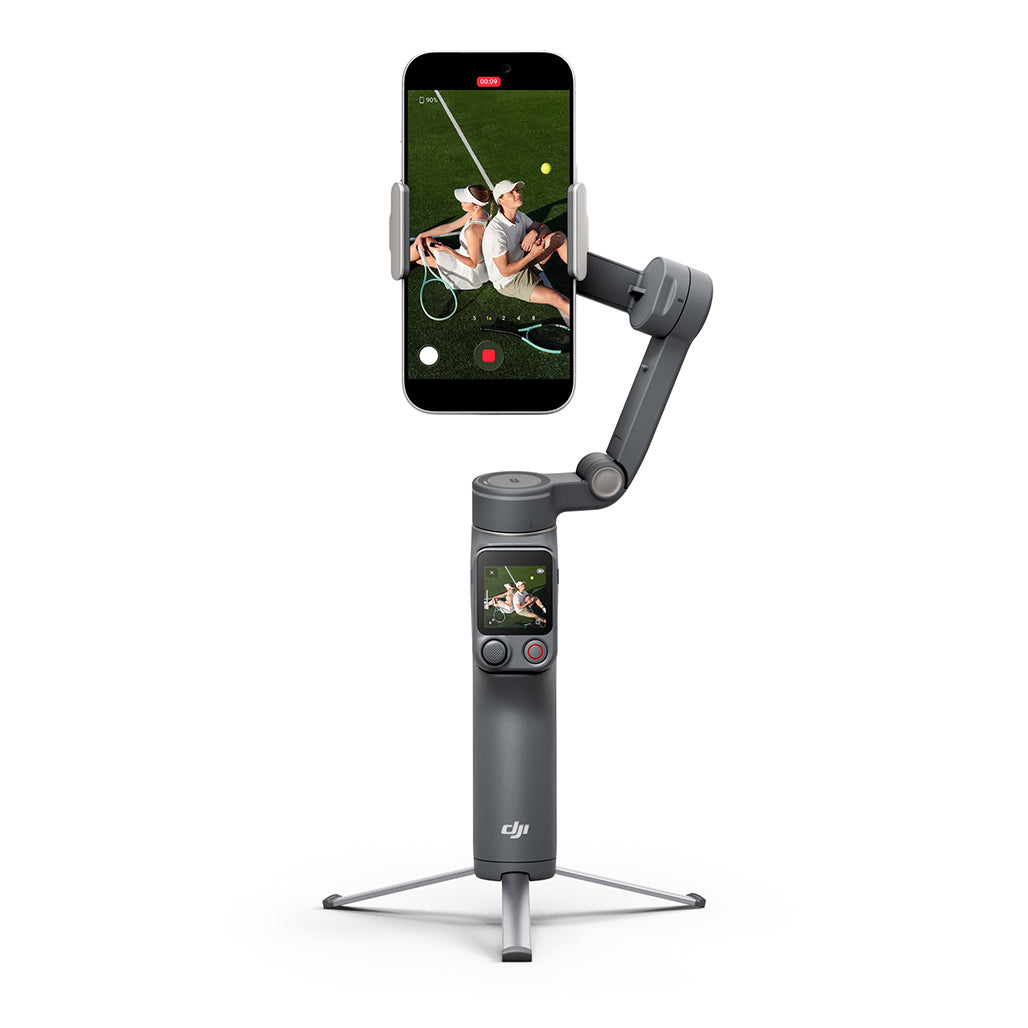

DJI Osmo Mobile 8P Advanced Tracking Combo

The DJI Osmo Mobile 8P Advanced Tracking Combo is a premium smartphone gimbal designed for content creators, vloggers, livestreamers, and mobile filmmakers who demand professional stabilization and intelligent subject tracking. Equipped with advanced 3-axis stabilization, ActiveTrack 8.0 technology, and the innovative Osmo FrameTap remote, smooth cinematic footage can be captured with remarkable precision. Enhanced tracking capabilities allow people, pets, vehicles, landmarks, and other objects to be followed effortlessly while remaining centered in the frame.

A detachable Osmo FrameTap remote is included for convenient remote composition, tracking control, and camera adjustments. Apple DockKit compatibility enables direct native tracking support across compatible iPhone applications, while the Multifunctional Module 2 expands tracking performance and lighting control. A built-in extension rod, integrated tripod, 360° pan rotation, and up to 10 hours of battery life provide the flexibility needed for travel content, social media videos, vlogs, interviews, and professional mobile productions.

---

Key Features

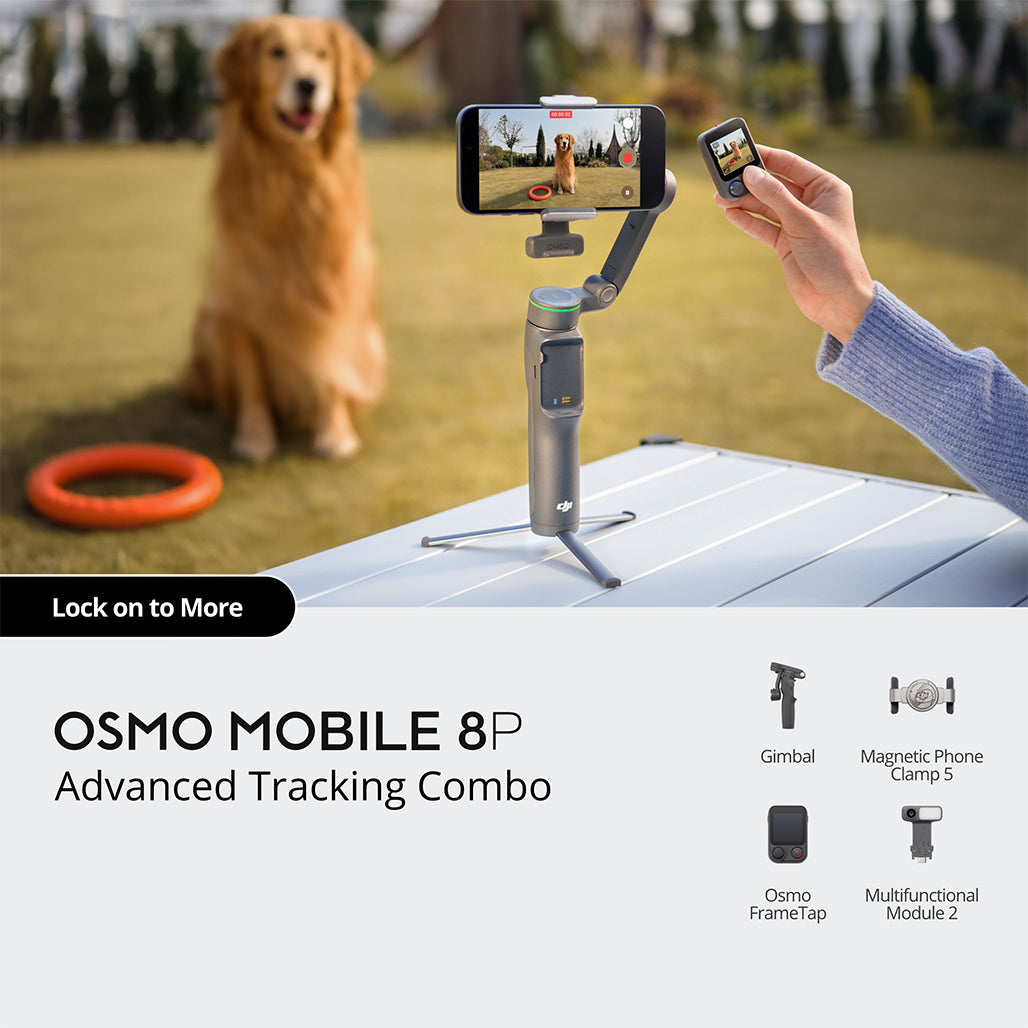

Detachable Osmo FrameTap Remote

Remote shooting and composition control are made easier with the included Osmo FrameTap. Framing can be monitored from a distance while tracking, zoom, gimbal movement, and lighting settings are adjusted directly from the remote touchscreen.

Advanced ActiveTrack 8.0 Technology

Subjects can be tracked with improved accuracy, even in crowded environments, busy events, exhibitions, concerts, and sporting venues. Smooth subject recognition and stable framing are maintained throughout movement.

Intelligent Object Tracking

More than people and pets can be tracked. Vehicles, collectibles, landmarks, and other objects can also be recognized and followed, making content creation more versatile.

Apple DockKit Compatibility

Native tracking support is provided for compatible iPhone applications through Apple DockKit integration, enabling seamless subject tracking without relying solely on dedicated camera apps.

Professional 3-Axis Stabilization

Unwanted camera shake is minimized through DJI’s advanced stabilization system, allowing smooth and cinematic footage to be captured while walking, moving, or recording dynamic scenes.

Built-In Extension Rod and Tripod

A built-in extension rod with a maximum length of 215 mm provides additional shooting angles, while the integrated tripod offers stable hands-free recording.

Adjustable Fill Light Control

The Multifunctional Module 2 supports fill-light adjustment with eight brightness levels and eight color temperature settings, helping natural-looking portraits and videos to be achieved in various lighting conditions.

Long Battery Life with Phone Charging

Up to 10 hours of operating time can be delivered under standard usage conditions. Smartphone charging is also supported directly from the gimbal when needed.

360° Pan Rotation

Unlimited 360° pan movement enables creative camera motions, immersive tracking shots, and dynamic cinematic content.

Foldable and Travel-Friendly Design

The compact folding construction allows convenient storage and transportation, making the gimbal suitable for travel, daily content creation, and on-the-go filming.

---

Specifications

General

Dimensions

• Unfolded: 291 × 110 × 101 mm (L × W × H)
• Folded: 196 × 105 × 38 mm (L × W × H)

Weight

• Gimbal + Built-in Tripod + Magnetic Phone Clamp 5 + Multifunctional Module 2 + Osmo FrameTap: Approx. 386 g

Extension Rod

• Built-in Extension Rod
• Maximum Extension Length: 215 mm

Compatible Phone Weight

• 170–300 g

Compatible Phone Thickness

• 6.9–11 mm

Compatible Phone Width

• 67–84 mm

Bottom Port

• 1/4″-20 UNC Port

---

Tripod

Built-in Tripod

• Length: 82 mm

---

Battery

Type

• Li-Po 1S

Capacity

• 3350 mAh

Energy

• 12.06 Wh

Charging Temperature

• 5°C to 40°C (41°F to 104°F)

Operating Temperature

• 0°C to 40°C (32°F to 104°F)

Operating Time

• Approx. 10 hours*
• Approx. 4.5 hours with DJI OM Multifunctional Module intelligent tracking enabled and fill light off**
• Approx. 3 hours with intelligent tracking enabled and fill light at maximum brightness**
• Approx. 5 hours with DJI OM Multifunctional Module 2 intelligent tracking enabled and fill light off
• Approx. 4 hours with intelligent tracking enabled and fill light at maximum brightness

Charging Time

• Approx. 2.5 hours

Gimbal Charging Port

• USB-C

Phone Charging

• Supported

* Measured with the gimbal balanced, level, and stationary, using only Osmo FrameTap and no other accessories.

** Actual battery life may vary depending on usage conditions.

---

Gimbal

Controllable Range

• Pan: 360° (Unlimited Rotation)
• Roll: -52° to 256°
• Tilt: -37° to 55°

Mechanical Range

• Pan: 360° (Unlimited Rotation)
• Roll: -77° to 255°
• Tilt: -224° to 100°

Maximum Control Speed

• 90°/s

---

Wireless Connectivity

Bluetooth

• Bluetooth 5.3

---

Software

App

• DJI Mimo

---

Multifunctional Module 2

Fill Light Illuminance

• 40 lux

Fill Light Color Temperature

• 2500–6500 K

---

Osmo FrameTap

Wi-Fi

Video Transmission Distance

• Up to 25 m

Wi-Fi Protocol

• 802.11 a/b/g/n/ac/ax

Wi-Fi Operating Frequency

• 2.400–2.4835 GHz
• 5.725–5.850 GHz

Wi-Fi Transmitter Power (EIRP)

• 2.4 GHz: < 20 dBm (CE/SRRC/MIC)
• 5.8 GHz: < 23 dBm (SRRC), < 14 dBm (CE)

Bluetooth

Video Transmission Distance

• 10 m

Bluetooth Protocol

• Bluetooth 5.4, BR/EDR

Bluetooth Operating Frequency

• 2.400–2.4835 GHz

Bluetooth Transmitter Power (EIRP)

• < 10 dBm

Touchscreen

• Size: 1.4 inches
• Resolution: 240 × 240
• Brightness: 800 cd/m² ±10%
• Refresh Rate: 60 Hz

FrameTap Battery

Type

• Li-Po 1S

Charging Time

• 2.5 hours

Operating Time

• Up to 4.5 hours (Standby Mode)

Operating Temperature

• 0°C to 40°C (32°F to 104°F)

Storage Temperature

• 10°C to 30°C (50°F to 86°F)

Charging Temperature

• 5°C to 40°C (41°F to 104°F)

GNSS

• GPS L1
• BeiDou B1
• Galileo E1
• QZSS L1
• GLONASS G1

Dimensions

• 53 × 37 × 19 mm (L × W × H)

Weight

• 29 g

Waterproof

• Not Waterproof

---

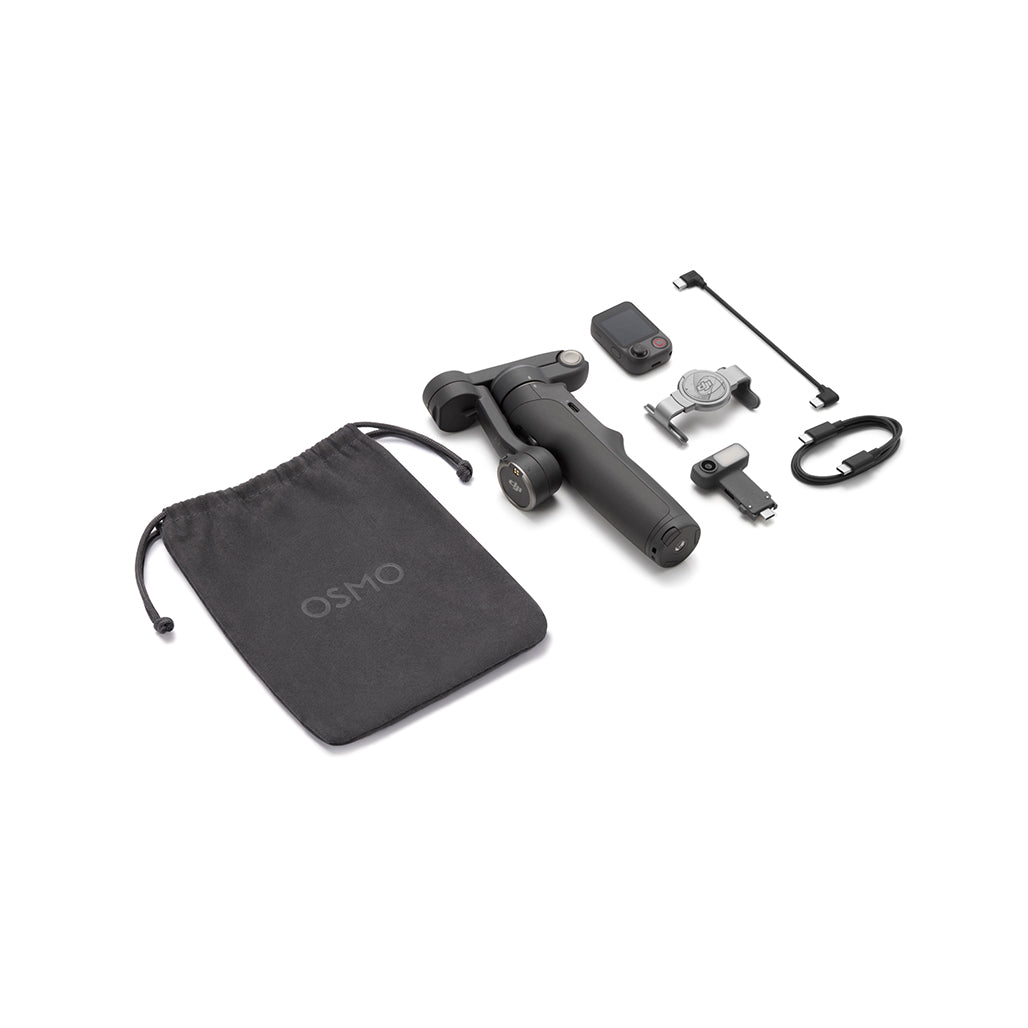

In the Box

• DJI Osmo Mobile 8P × 1
• DJI OM Magnetic Phone Clamp 5 × 1
• DJI OM Multifunctional Module 2 × 1
• Osmo FrameTap × 1
• Power Cable (USB-C to USB-C, 50 cm) × 1
• Phone Charging Cable (USB-C to USB-C, 15 cm) × 1
• Storage Pouch × 1

---

Conclusion

The DJI Osmo Mobile 8P Advanced Tracking Combo combines professional smartphone stabilization, intelligent AI-powered tracking, remote composition control, Apple DockKit compatibility, and versatile shooting tools in a compact foldable design. Advanced tracking performance, long battery life, integrated extension rod, built-in tripod, and the innovative Osmo FrameTap remote make it an excellent solution for mobile videography, vlogging, content creation, livestreaming, and cinematic smartphone filmmaking.
