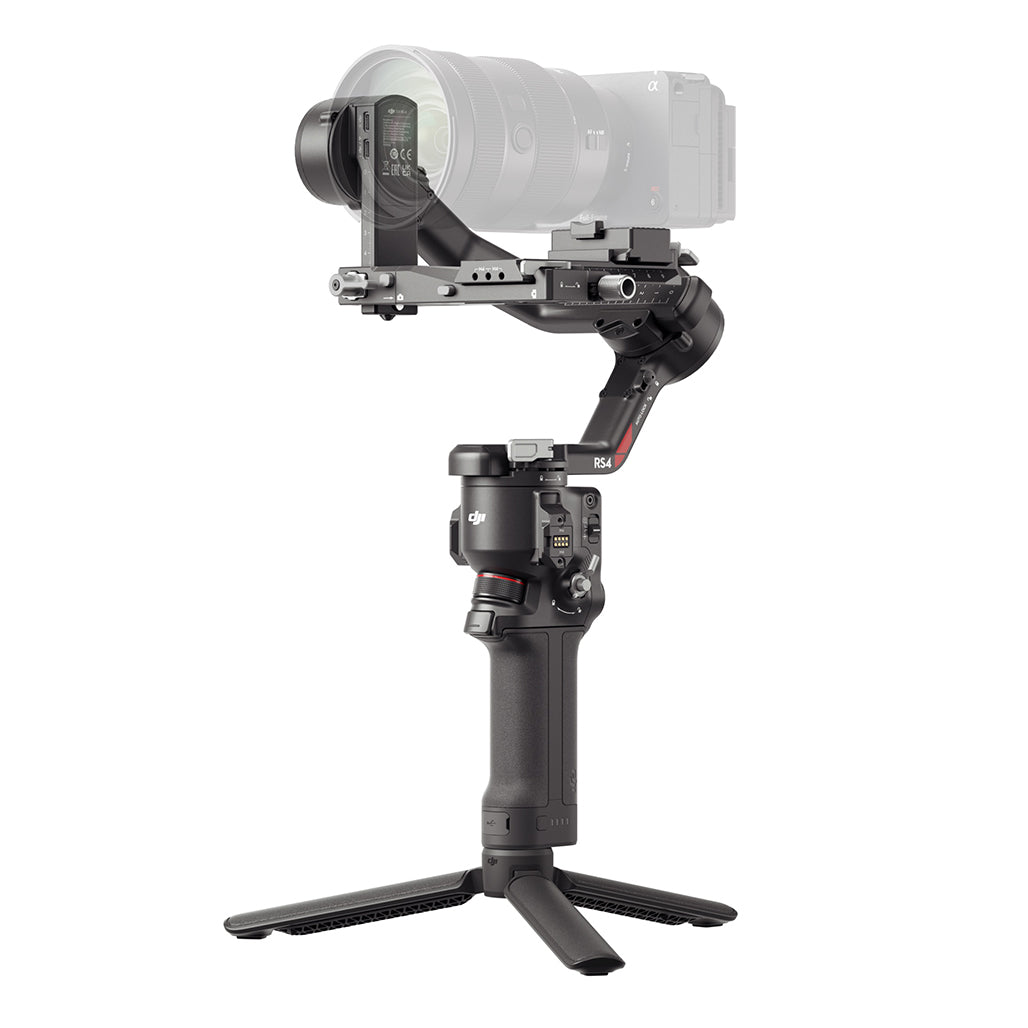

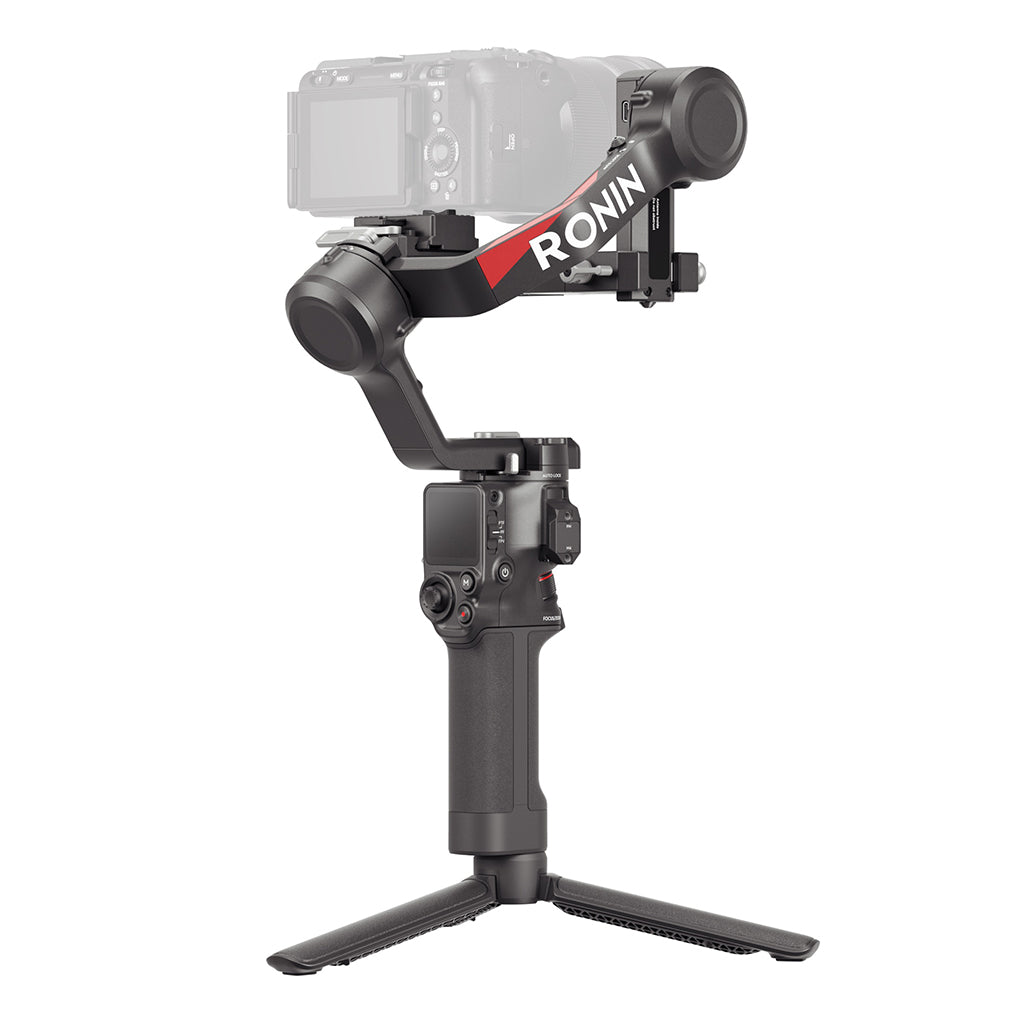

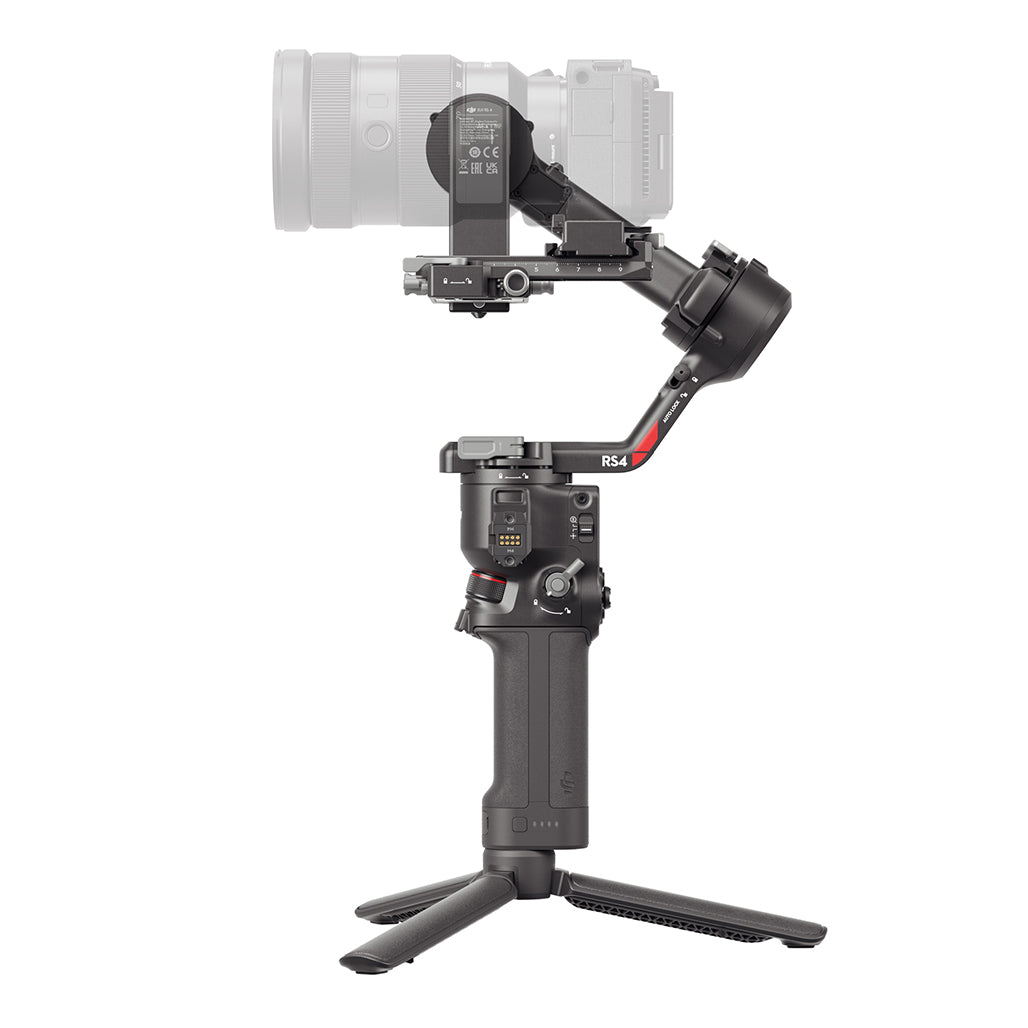

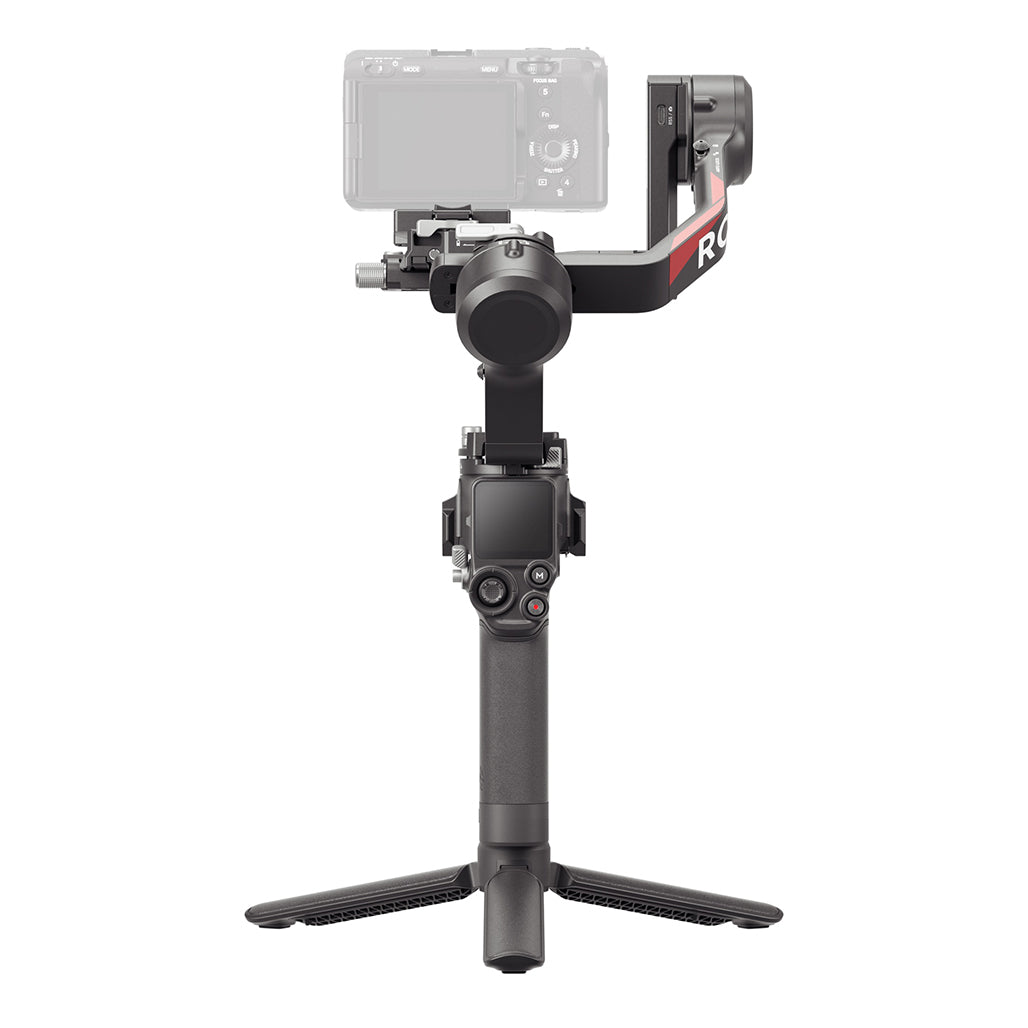

Introducing the DJI RS 4 Gimbal Stabilizer, a cutting-edge tool designed to redefine cinematic stabilization. Tailored for solo cinematographers, the RS 4 combines advanced features with a lightweight, professional-grade build to offer unmatched creative flexibility. This next-generation stabilizer introduces the second generation of native vertical shooting, allowing seamless transitions between horizontal and vertical modes without additional accessories, thanks to its innovative horizontal plate design.
The RS 4 is equipped with 2nd-Gen Automated Axis Locks, ensuring rapid startup and smooth transitions to sleep mode, while the Teflon™ coating on all three axes provides the smoothest balancing experience yet. The RS 4 also boasts an enhanced 4th-Gen RS Stabilization Algorithm, delivering impeccable stability for dynamic shots, whether you’re shooting horizontally or vertically.
The DJI RS 4’s lightweight frame supports a 6.6 lb payload, accommodating mainstream mirrorless cameras and lenses. With its versatile accessory ecosystem, including the DJI Ronin Image Transmitter and various RS series accessories, the RS 4 is the ultimate tool for capturing breathtaking visuals.
Key Features:
-
2nd-Gen Native Vertical Shooting: Seamlessly switch between horizontal and vertical shooting with the newly designed horizontal plate, enhancing operation efficiency.
-
2nd-Gen Automated Axis Locks: Enjoy quick startup and sleep mode activation with automated axis locks, minimizing gimbal shake for superior stability.
-
Smooth Balancing Experience: Teflon™ coating on all three axes reduces friction, allowing for precise millimeter-level adjustments and secure camera mounting.
-
Automatic Screen Lock: The OLED touchscreen includes an auto-lock feature to prevent accidental touches and conserve battery power.
-
Excellent Payload Capacity: Supports up to 6.6 lbs, ideal for mainstream mirrorless cameras and lens combinations.
-
4th-Gen RS Stabilization Algorithm: Optimized for various scenarios, providing superior stability and enhanced tactile camera movement.
-
Bluetooth Wireless Control: Dual-Mode Bluetooth enables remote control of camera functions, including shutter and lens zoom, with seamless camera pairing.
-
Trigger Function Customization: Customize the trigger function for FPV mode, ideal for rotational footage or POV shots.
-
Gimbal Mode Switch: Quickly switch between PF, PTF, and FPV modes, with customizable options to suit different shooting requirements.
-
RSA Communication Port: Connect to a range of accessories, including the DJI RS Tethered Control Handle, for expanded functionality.
-
DJI RS BG70 High-Capacity Battery Grip: Extends battery runtime to 29.5 hours, powering cameras and accessories via the USB-C port.
Specifications:
-
Accessory Ports: Ronin Series Accessories (RSA)/NATO Ports, 1/4"-20 Mounting Hole, Cold Shoe, USB-C Video Transmission Port, RSS Camera Control Port, Focus Motor Port
-
Battery:
-
Model: BHX711-3000-7.2V
-
Type: LiPo 2S
-
Capacity: 3000 mAh
-
Max Runtime: 12 hours
-
Charging Time: Approx. 2.5 hours
-
Suggested Charging Temperature: 41° to 104° F
-
Connections: Bluetooth 5.1, USB-C Charging Port, Ronin App (iOS 11.0/Android 8.0 or above)
-
Supported Languages: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
-
Payload Capacity: 6.6 lbs
-
Mechanical Range:
-
Pan Axis: 360° continuous rotation
-
Roll Axis: -95° to +240°
-
Tilt Axis: -112° to +214°
-
Operating Frequency: 400-2.4835 GHz
-
Operating Temperature: -4° to 113° F
-
Weight:
-
Gimbal: 2.35 lbs
-
Grip: 0.45 lbs
-
Extended Grip/Tripod: 0.4 lbs
-
Quick-Release Plates: 0.22 lbs
-
Dimensions:
-
Folded: 245×255×75 mm
-
Unfolded: 370×191×189 mm

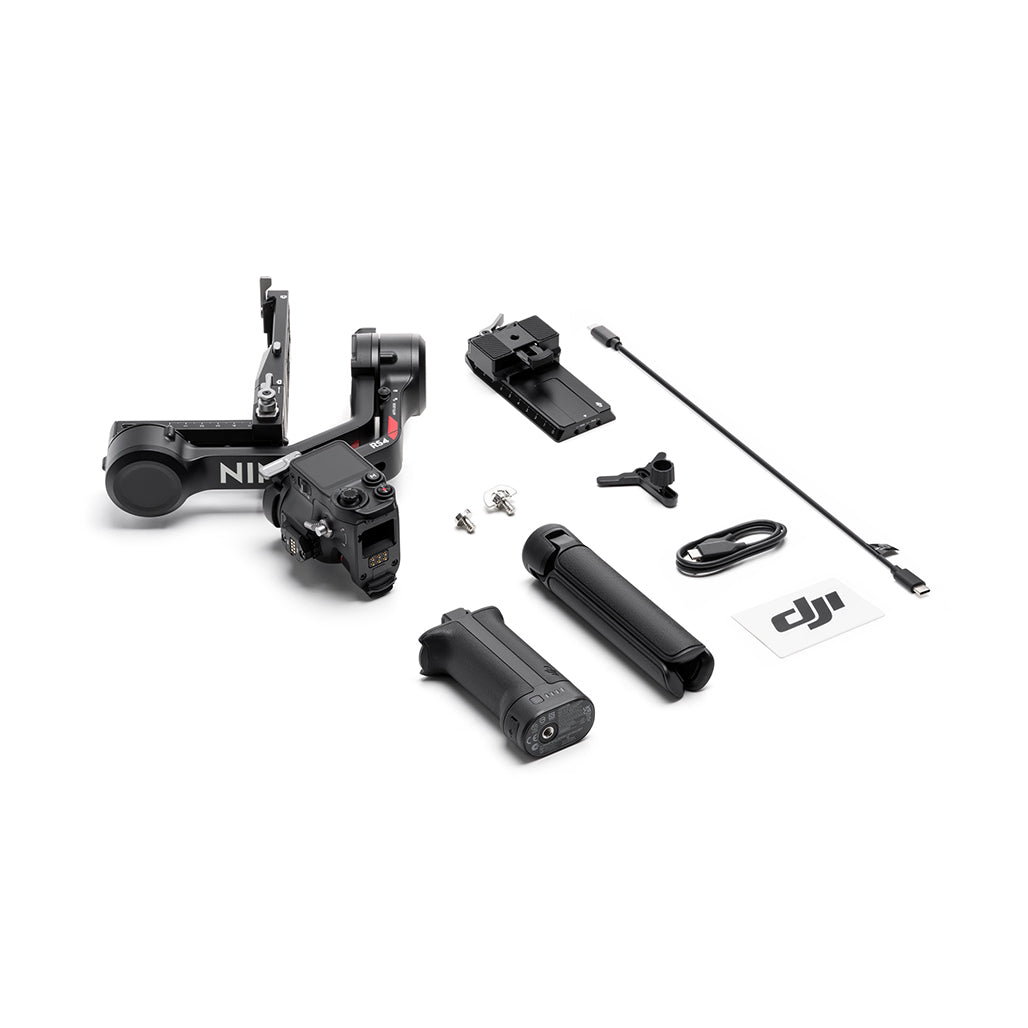

In the Box:
- DJI RS 4 Gimbal
- BG21 Battery Grip
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- Extended Grip/Tripod (Plastic)
- Lens-Fastening Support
- USB-C Charging Cable (40 cm)
- Multi-Camera Control Cable (USB-C, 30 cm)
- Screw Kit
- DJI Logo Sticker
The DJI RS 4 Gimbal Stabilizer is a powerful tool for filmmakers and content creators looking to elevate their work. With its innovative features, robust build, and extensive accessory ecosystem, the RS 4 provides a seamless and versatile shooting experience, allowing you to capture stunning visuals with professional-grade stability.
