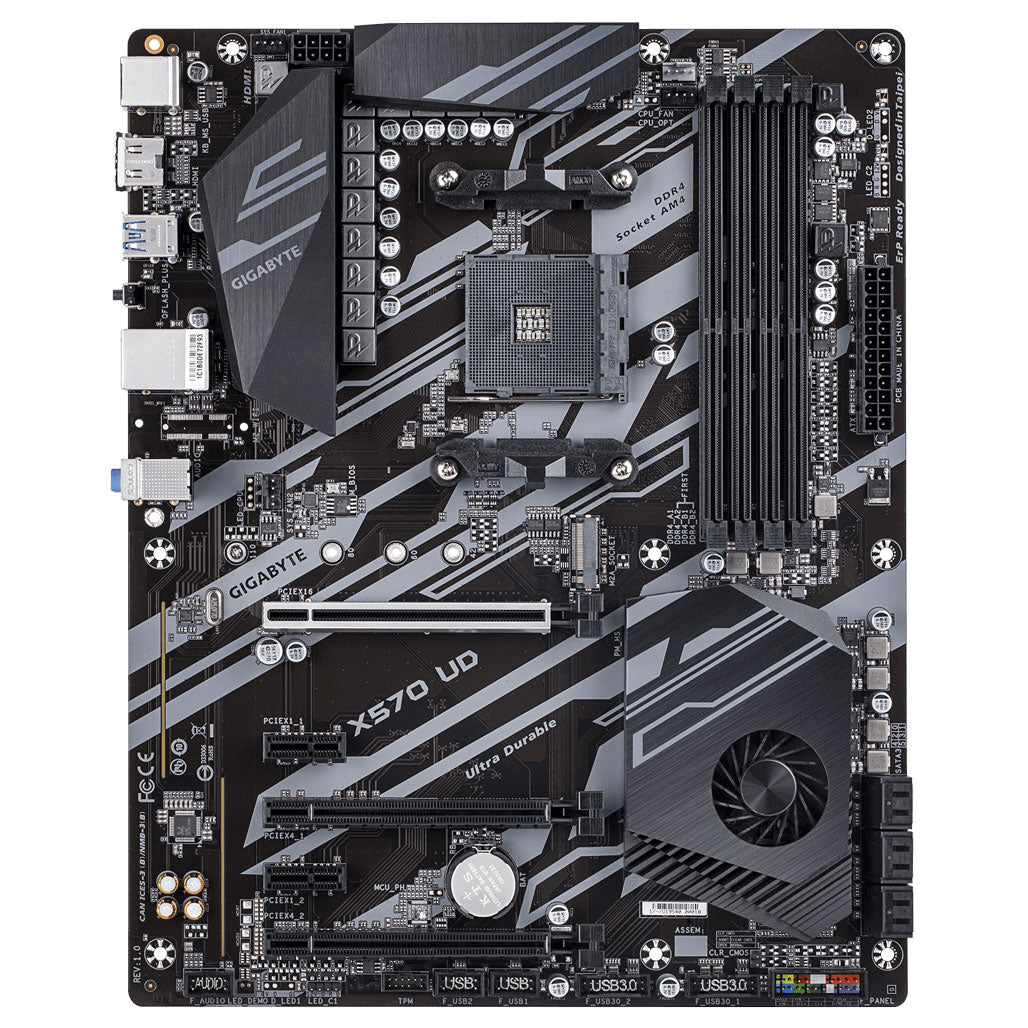

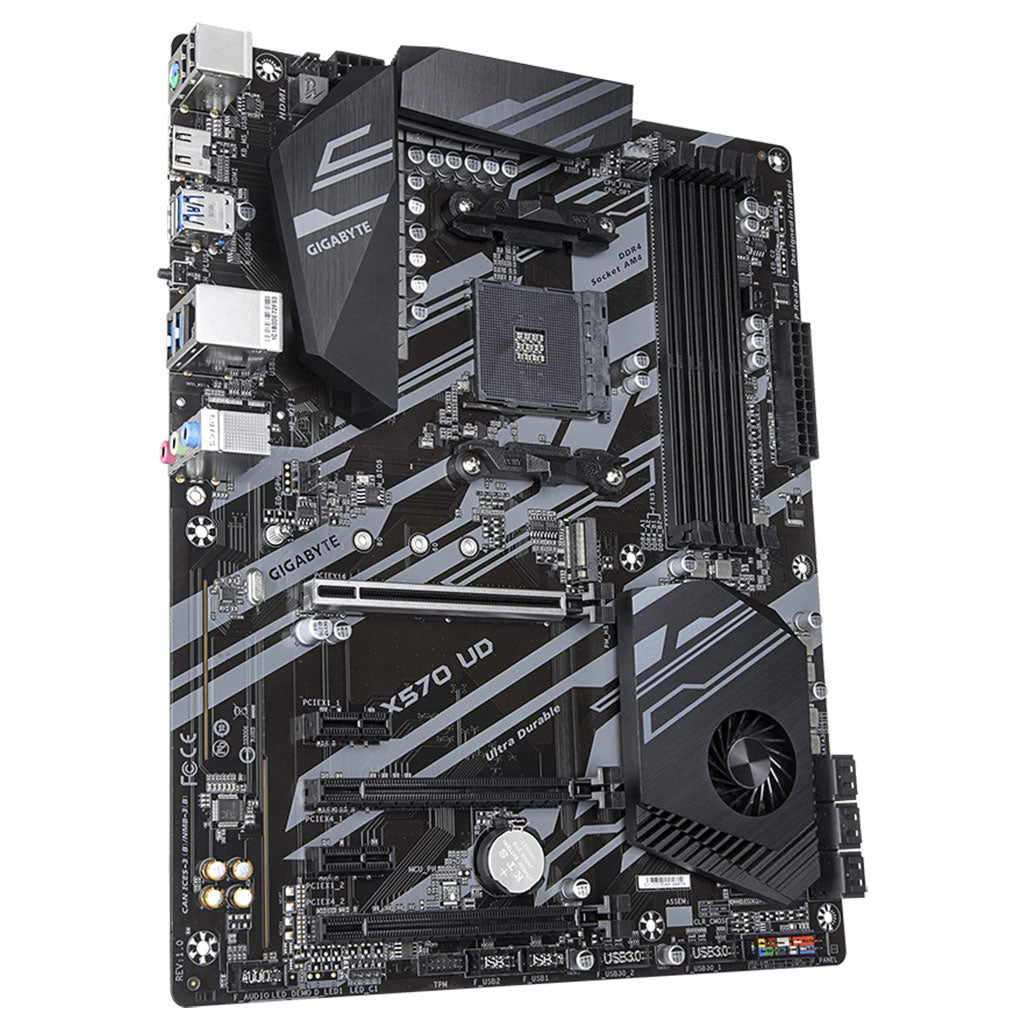

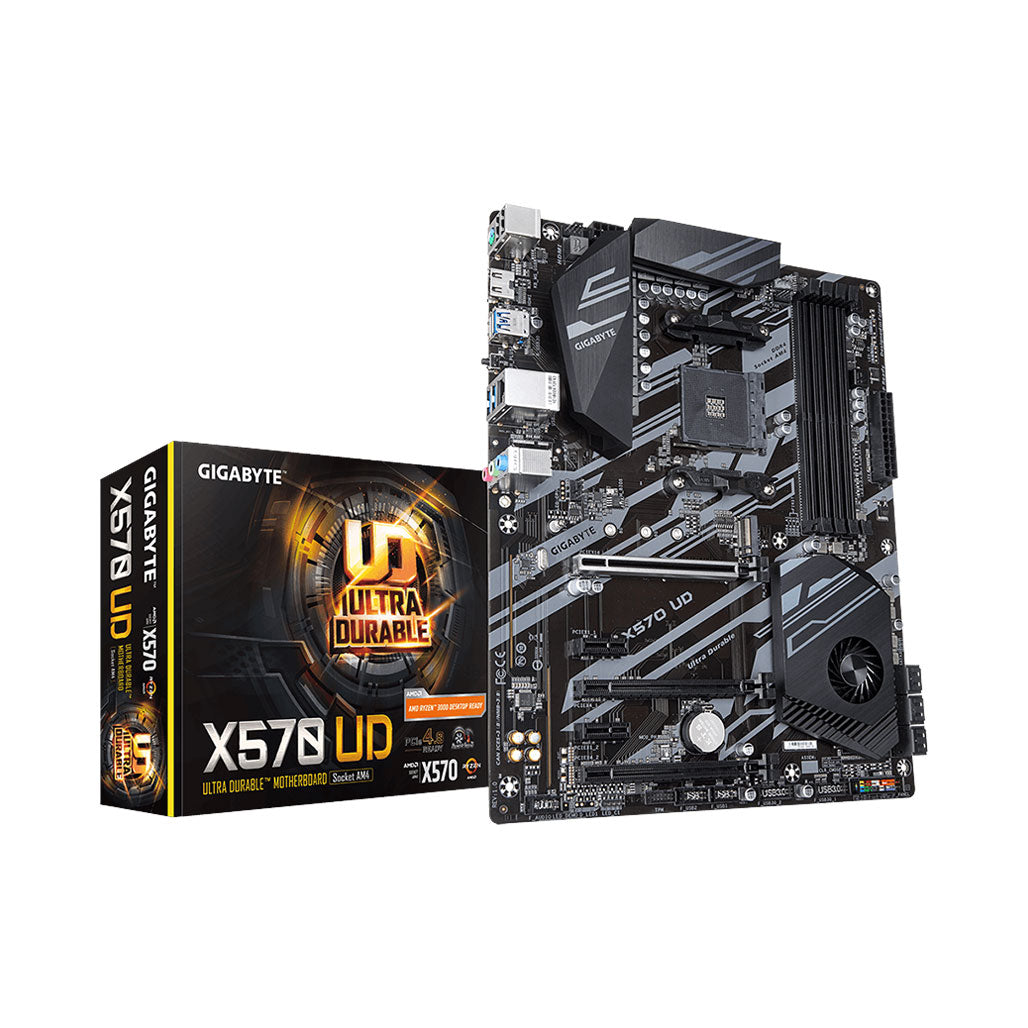

Gigabyte X570 UD (rev. 1.0) AM4 Motherboard - Reliable ATX Board for AMD Ryzen™ 5000/4000 Series with PCIe 4.0 and DDR4 Support

$180.00
$210.00
$180.00
Subtotal: $180.00
Order on Whatsapp
Vendor: Gigabyte
SKU: 14727-R6-J
Availability: Many In Stock
Product Type: Computer Components

Excluding VAT



The Gigabyte X570 UD (rev. 1.0) AM4 motherboard is designed to deliver robust performance and comprehensive features for AMD Ryzen™ processors. Equipped with the AMD X570 chipset, this motherboard provides exceptional support for Ryzen™ 5000 Series, Ryzen™ 4000 Series, and earlier Ryzen™ processors. Ideal for gaming, content creation, and high-performance computing, this motherboard ensures stability and reliability across various applications.

Featuring four DDR4 DIMM slots, the X570 UD supports up to 128 GB of memory with speeds up to 4733 MHz (overclocked), allowing for significant performance boosts. The PCIe 4.0 support ensures faster data transfer rates for SSDs and GPUs, while the extensive connectivity options, including USB ports and M.2 slots, provide ample expansion possibilities. The integrated Realtek® ALC887 codec delivers high-definition audio, enhancing your overall computing experience.

Key Features:

  • AMD X570 Chipset: Offers support for AMD Ryzen™ 5000 Series/4000 Series/3rd Gen/2nd Gen Ryzen™ processors, ensuring compatibility with the latest AMD CPUs.
  • High-Speed Memory Support: Supports up to 128 GB of DDR4 memory with speeds ranging up to 4733 MHz (overclocked) for improved system performance.
  • PCIe 4.0 and PCIe 3.0 Support: Includes PCIe 4.0 slots for enhanced SSD and GPU performance, along with PCIe 3.0 slots for additional expansion.
  • Comprehensive Connectivity: Features multiple USB ports, including USB 3.2 Gen 2 Type-A and Type-C™, HDMI output, and several SATA 6Gb/s connectors.
  • Advanced Audio: Realtek® ALC887 codec provides high-definition audio output with support for 2/4/5.1-channel audio setups.
  • Efficient Cooling and Monitoring: Equipped with headers for CPU and system fans, water cooling, and robust hardware monitoring for temperature and fan speed.

Specifications:

  • CPU: AMD Socket AM4, supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors (Please refer to the CPU Support List for more information.)
  • Chipset: AMD X570
  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules (Please refer to the Memory Support List for more information.)
  • Onboard Graphics: Integrated Graphics Processor:
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • Maximum shared memory of 16 GB
  • Audio: Realtek® ALC887 codec
    • High Definition Audio
    • 2/4/5.1-channel
  • LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots:
    • Integrated in the CPU (PCIEX16):
      • AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:
        • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
      • AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™ Processors:
        • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
      • 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
        • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
    • Integrated in the Chipset (PCIEX4/PCIEX1):
      • 2 x PCI Express x16 slots, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)
      • 2 x PCI Express x1 slots, supporting PCIe 4.0/3.0
  • Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™ Processors only.
  • Storage Interface:
    • Integrated in the CPU (M2A_SOCKET):
      • AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:
        • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
      • AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors:
        • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    • Integrated in the Chipset (M2B_SOCKET):
      • 6 x SATA 6Gb/s connectors
    • Support for RAID 0, RAID 1, and RAID 10
  • USB:
    • Integrated in the CPU:
      • 4 x USB 3.2 Gen 1 ports on the back panel
    • Chipset:
      • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
      • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors:
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 1 x water cooling CPU fan header
    • 2 x system fan headers
    • 1 x RGB LED strip header
    • 6 x SATA 6Gb/s connectors
    • 1 x M.2 Socket 3 connector
    • 1 x front panel header
    • 1 x front panel audio header
    • 2 x USB 3.2 Gen 1 headers
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    • 1 x Clear CMOS jumper

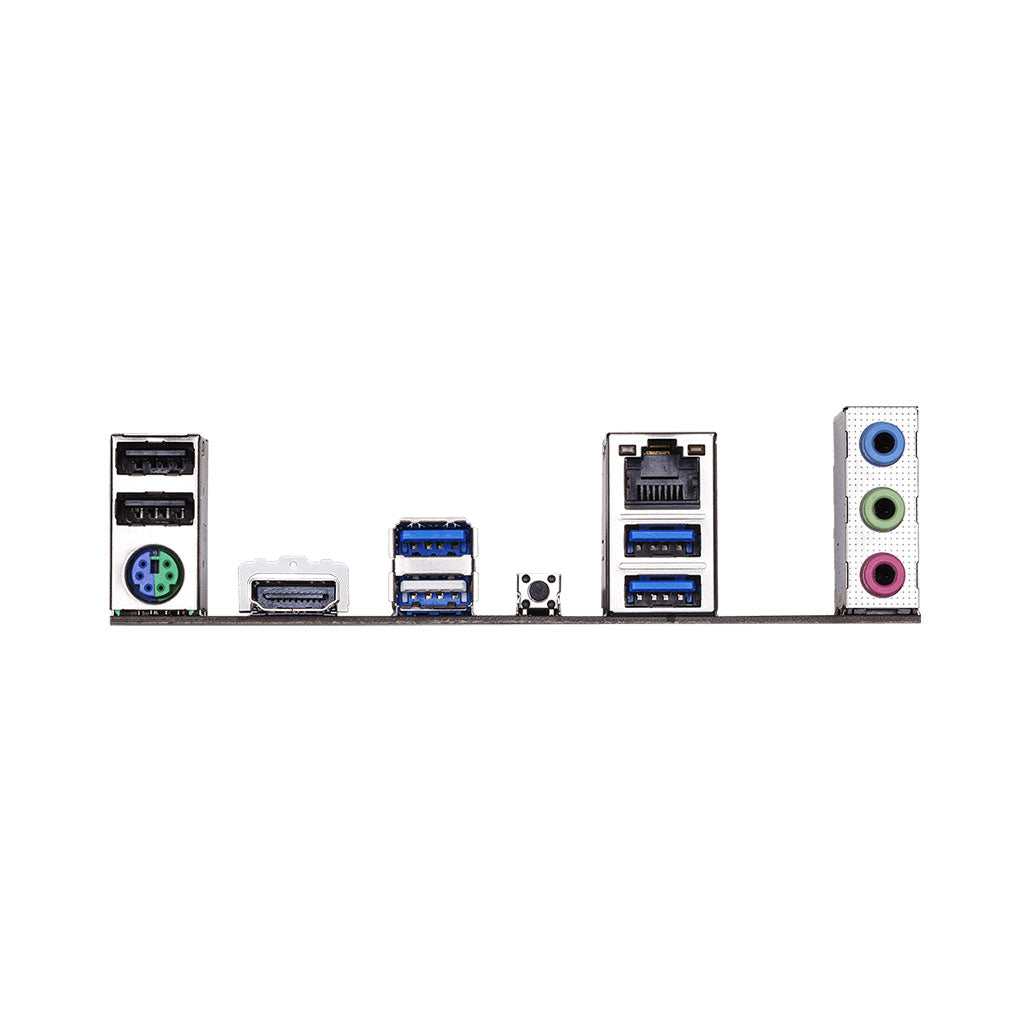

  • Back Panel Connectors:
    • 1 x PS/2 keyboard/mouse port
    • 1 x HDMI port
    • 4 x USB 3.2 Gen 1 ports
    • 2 x USB 2.0/1.1 ports
    • 1 x Q-Flash Plus button
    • 1 x RJ-45 port
    • 3 x audio jacks
  • I/O Controller: iTE® I/O Controller Chip
  • H/W Monitoring:
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Overheating warning
    • Fan fail warning
    • Fan speed control
  • BIOS:
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
