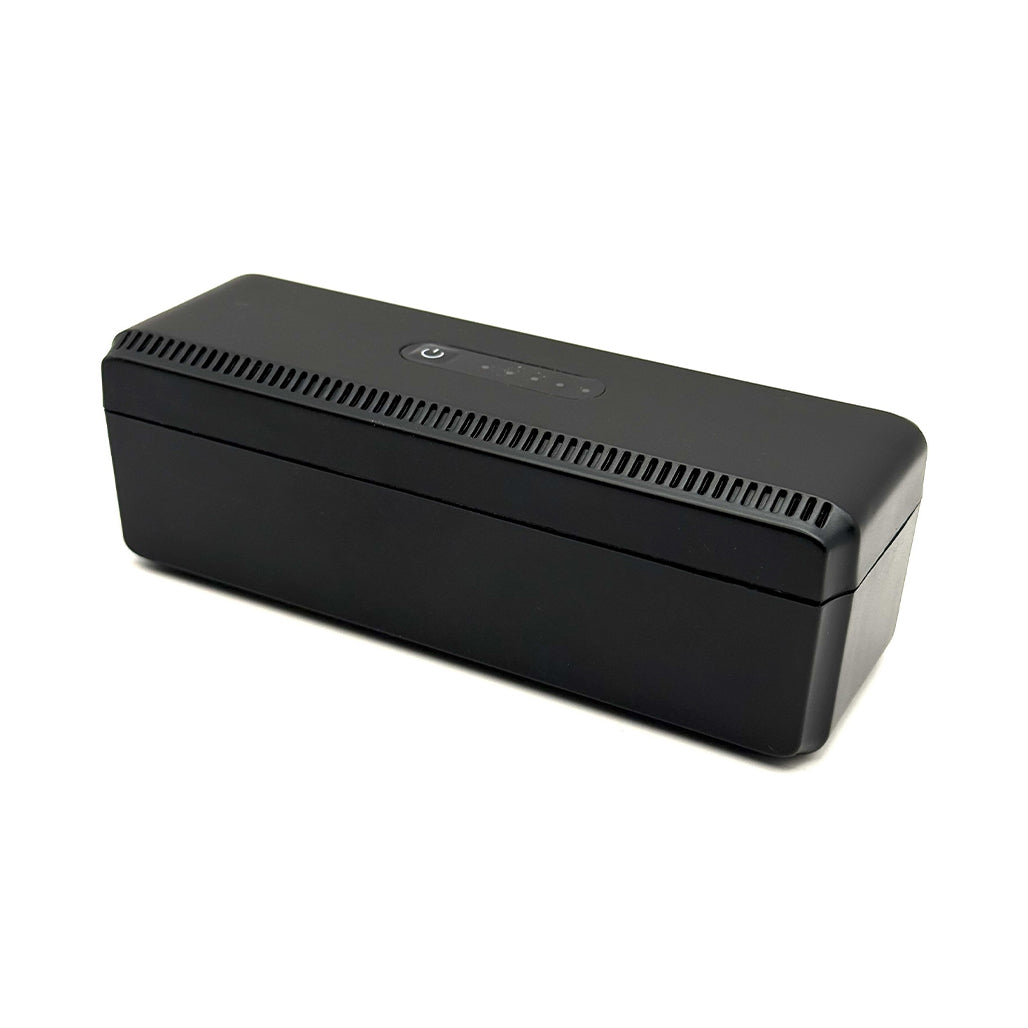

Hero Mini DC UPS 10400mAh – Backup Power for Routers, Cameras, and Network Devices

Designed for uninterrupted performance during power outages, the Hero Mini DC UPS 10400mAh ensures continuous operation of essential devices such as routers, modems, CCTV systems, and VoIP equipment. Engineered with a high-capacity 10400mAh lithium battery, this compact and versatile uninterruptible power supply delivers stable output voltages of 9V, 12V, 15V, and 24V, catering to a wide range of low-voltage electronics. The unit supports multiple outputs including USB, Type-C, DC, and POE, offering reliable power backup with a maximum output of 18W. It’s ideal for home offices, smart home setups, and small business environments where constant connectivity is crucial.

Enhanced with intelligent features like selectable POE output and status indicators for real-time monitoring, the Hero Mini DC UPS provides both functionality and user-friendly operation. The built-in LED indicators clearly display battery levels in 25% increments, helping users plan usage and charging efficiently. Its compact form factor and wide operating temperature range make it suitable for various indoor environments. The unit supports 100-240V AC input and operates effectively under humidity levels of 10% to 90% RH, making it a reliable solution in variable conditions

Key Features:

• Wide Voltage Compatibility: Supports DC 9V/1A, DC 12V/1A, POE 15V/0.6A, and POE 24V/0.4A outputs to match diverse device requirements.

• High Capacity Battery: Configurable with either 2 or 4 lithium 18650 cells, providing up to 10400mAh capacity for extended uptime.

• Multiple Output Options: Equipped with USB, Type-C, and multiple DC output ports, allowing simultaneous support for multiple devices.

• Smart POE Selector: Adjustable POE output via voltage selector switch (15V or 24V) for flexible network device compatibility.

• Clear Battery Monitoring: LED indicators display charge status at 25%, 50%, 75%, and 100% levels for easy monitoring.

• Compact & Portable: Small footprint (146mm x 51mm x 48mm) allows for easy placement in tight spaces without clutter.

Product Specifications:

• Model: DCL-18W

• Input:

  • AC 100-240V / 50-60Hz

  • USB 5V/2A

  • TYPE-C 5V/2A

  • DC 5V/2A

• Output:

  • DC 9V/1A

  • DC 12V/1A

  • POE 15V/0.6A

  • POE 24V/0.4A

• Maximum Output Power: 18W

• Battery Type: 18650

• Battery Quantity: 2 or 4 cells

• Battery Capacity Range: 4000mAh to 10400mAh

• Operating Temperature: 0°C ~ 45°C

• Operating Humidity: 10% ~ 90% RH

• Dimensions: 146mm x 51mm x 48mm

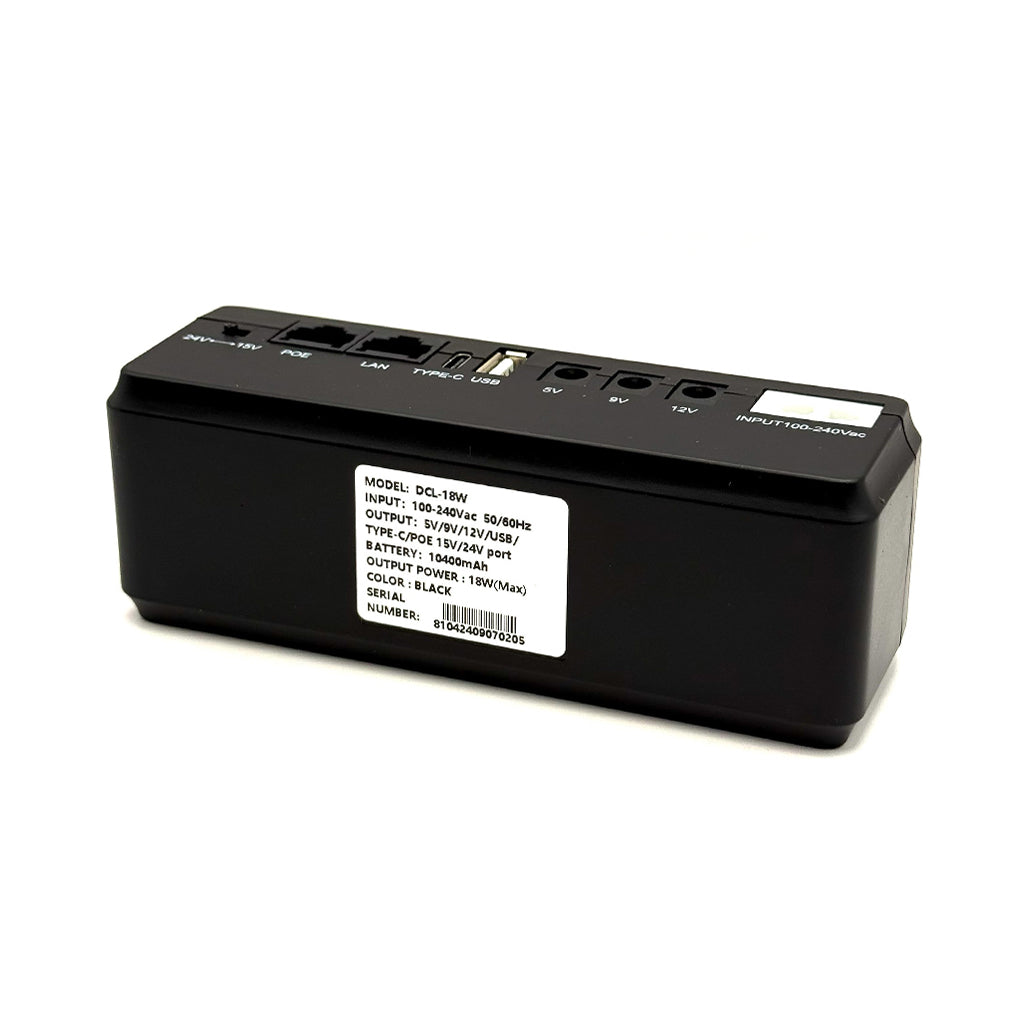

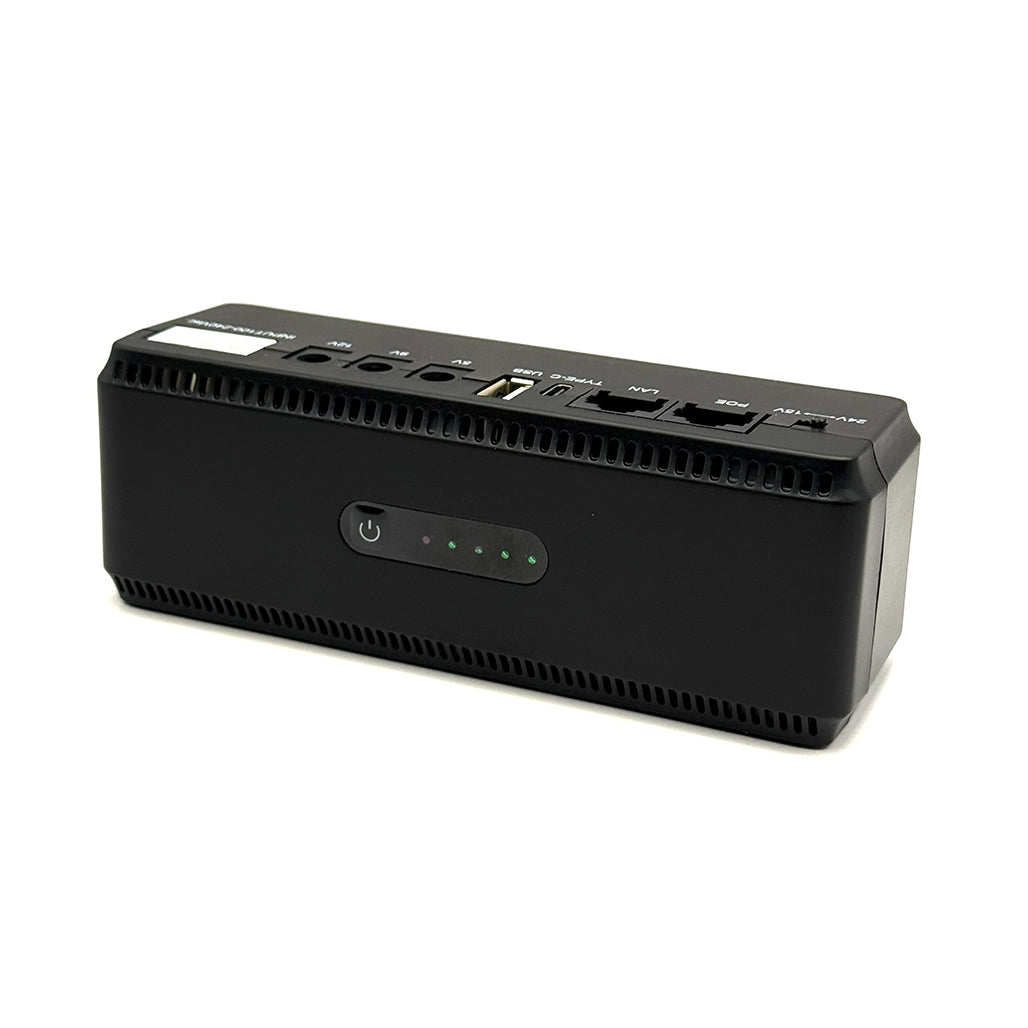

Component Instructions:

1. Output voltage selector (for POE: 15V / 24V)

2. Ethernet output interface (POE output: 15V / 24V)

3. LAN Ethernet interface

4. TYPE-C (DC 5V) output port

5. USB (DC 5V) output port

6. DC 5V output port

7. DC 9V output port

8. DC 12V output port

9. AC power input

10. ON/OFF switch
    11–15. Status and battery capacity indicators (25%, 50%, 75%, 100%)

Conclusion:
The Hero Mini DC UPS 10400mAh has been purpose-built to provide consistent, high-efficiency power backup for low-voltage electronics. Its adaptable voltage outputs, long battery life, and intuitive status indicators make it a dependable choice for maintaining network stability during outages. With its compact design and robust feature set, this unit is suited for anyone requiring portable, uninterrupted power for their connected devices.
