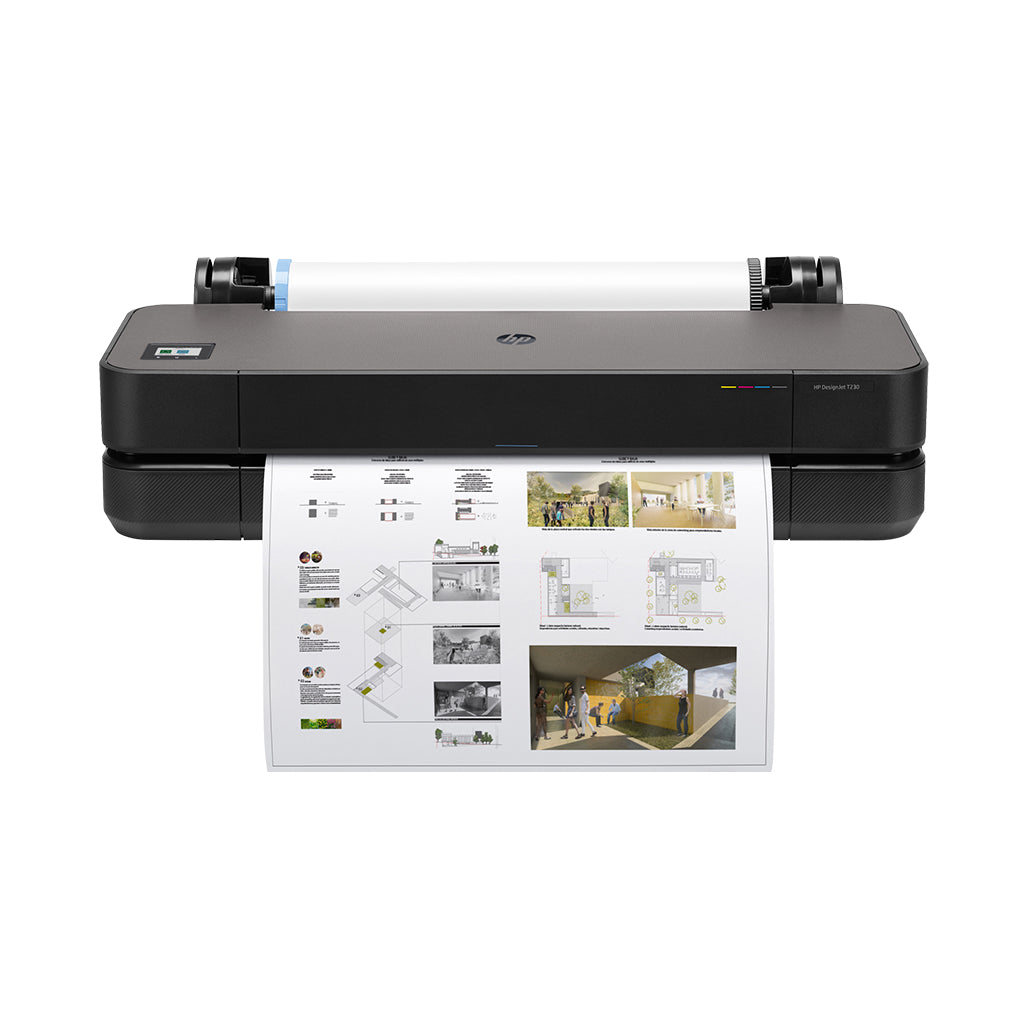

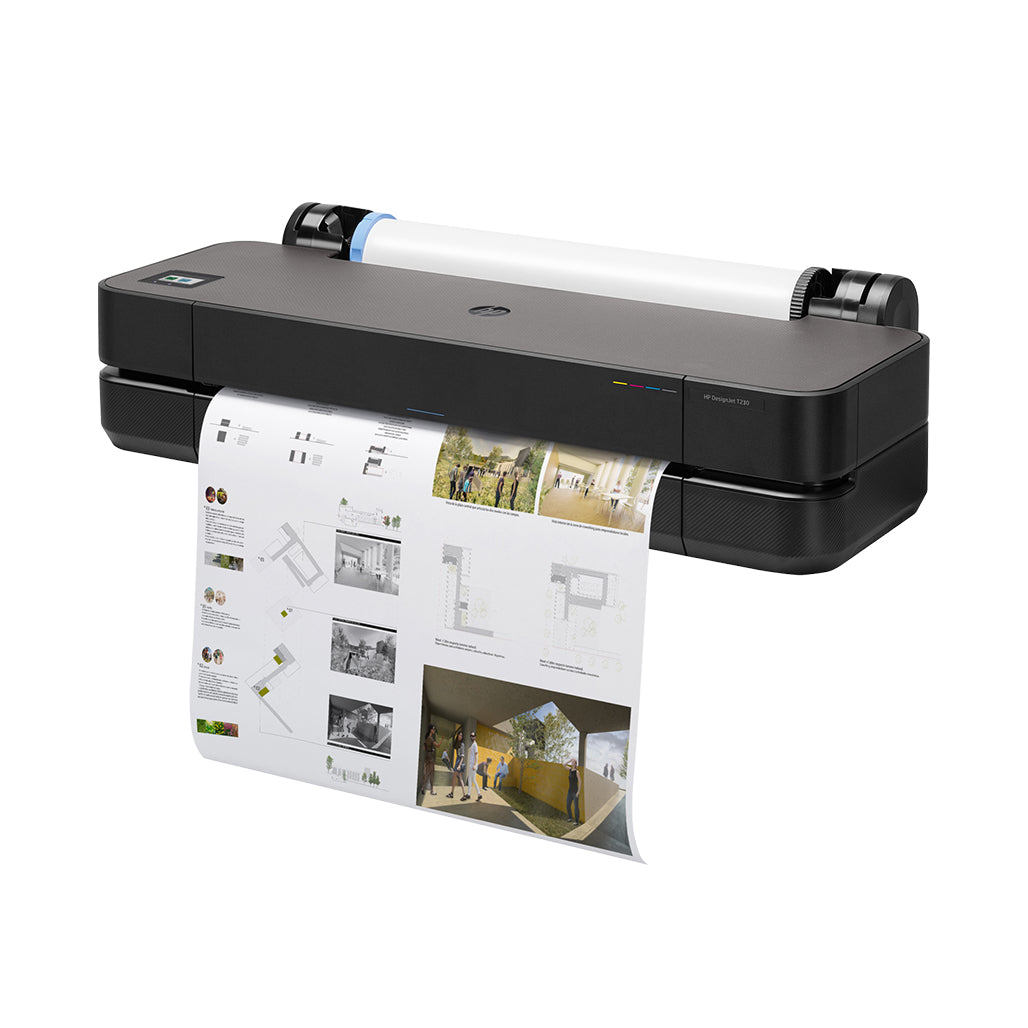

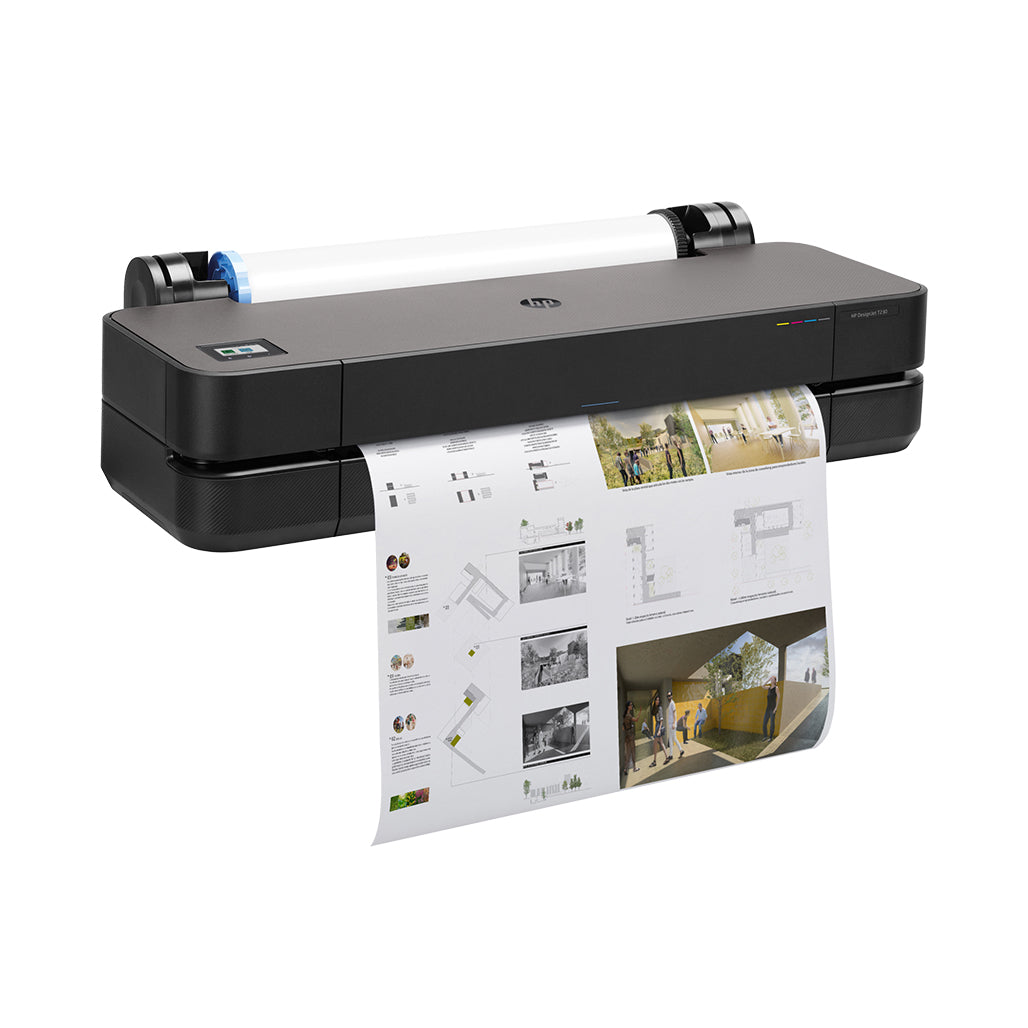

HP DesignJet T230 - 24" Large Format Compact Wireless Plotter Printer with Mobile Printing

The HP DesignJet T230 is a compact and efficient large-format plotter printer designed to fit seamlessly into your office environment while delivering exceptional print quality. Ideal for AEC, GIS, and MCAD professionals, this plotter is perfect for producing high-precision maps, technical drawings, posters, and renders with vivid colors and sharp lines. Its compact size and streamlined design make it an excellent choice for space-constrained offices, offering both performance and sustainability.

With the ability to print an A1/D plot in as fast as 35 seconds, the HP DesignJet T230 ensures that you can handle your largest projects quickly and efficiently. The printer's intuitive HP Click software and HP Smart app enable easy job submission and management from virtually anywhere, saving time and improving productivity. The use of HP Bright Office Inks ensures up to 31% more line accuracy and up to 65% more color gamut, providing high-quality results for every print job.

Key Features:

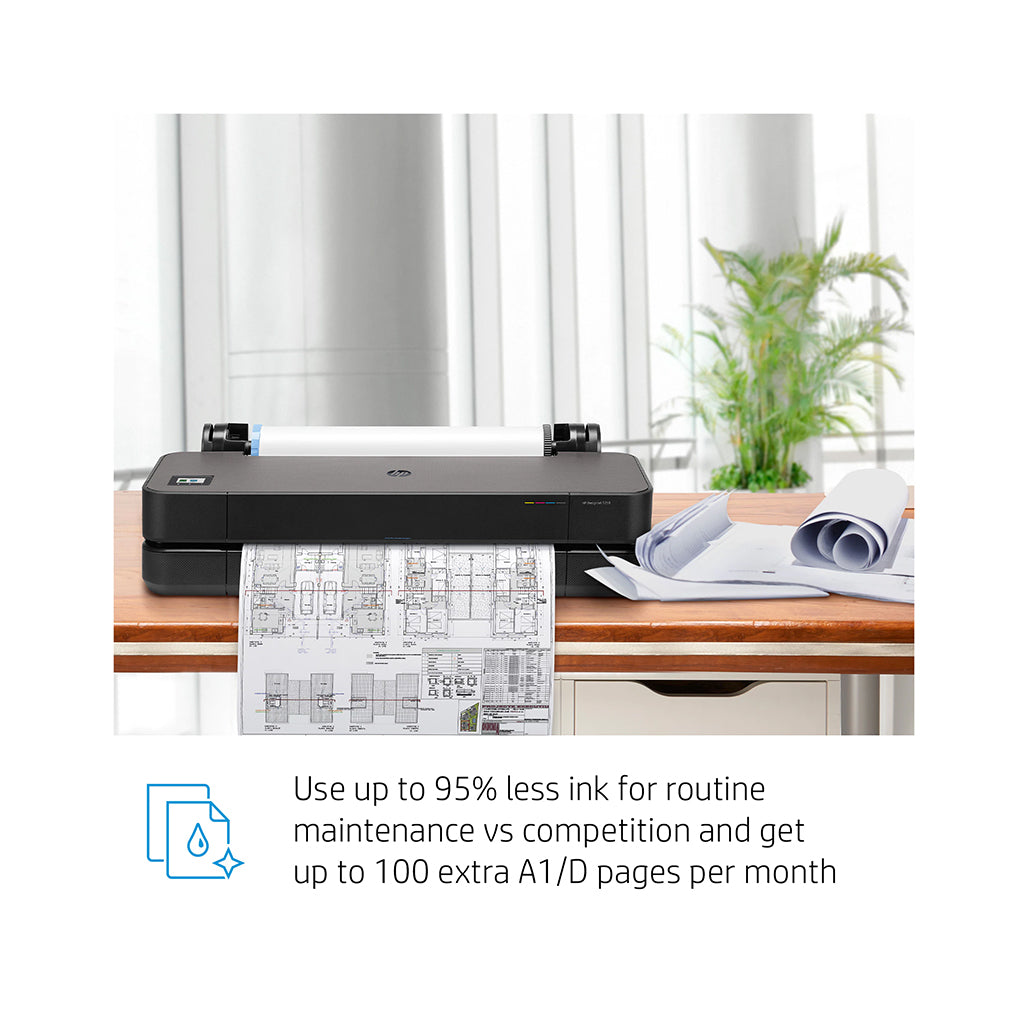

• Compact and Efficient Design: The smallest plotter in its class, designed to save space and fit easily in office settings. It uses up to 95% less ink for routine maintenance compared to competitors and includes a more sustainable design, utilizing up to 30% recycled plastic.
• High-Speed Printing: Print A1/D plots as fast as 35 seconds, with a printing speed of up to 68 D-size prints per hour, allowing for quicker turnaround on large-format projects.

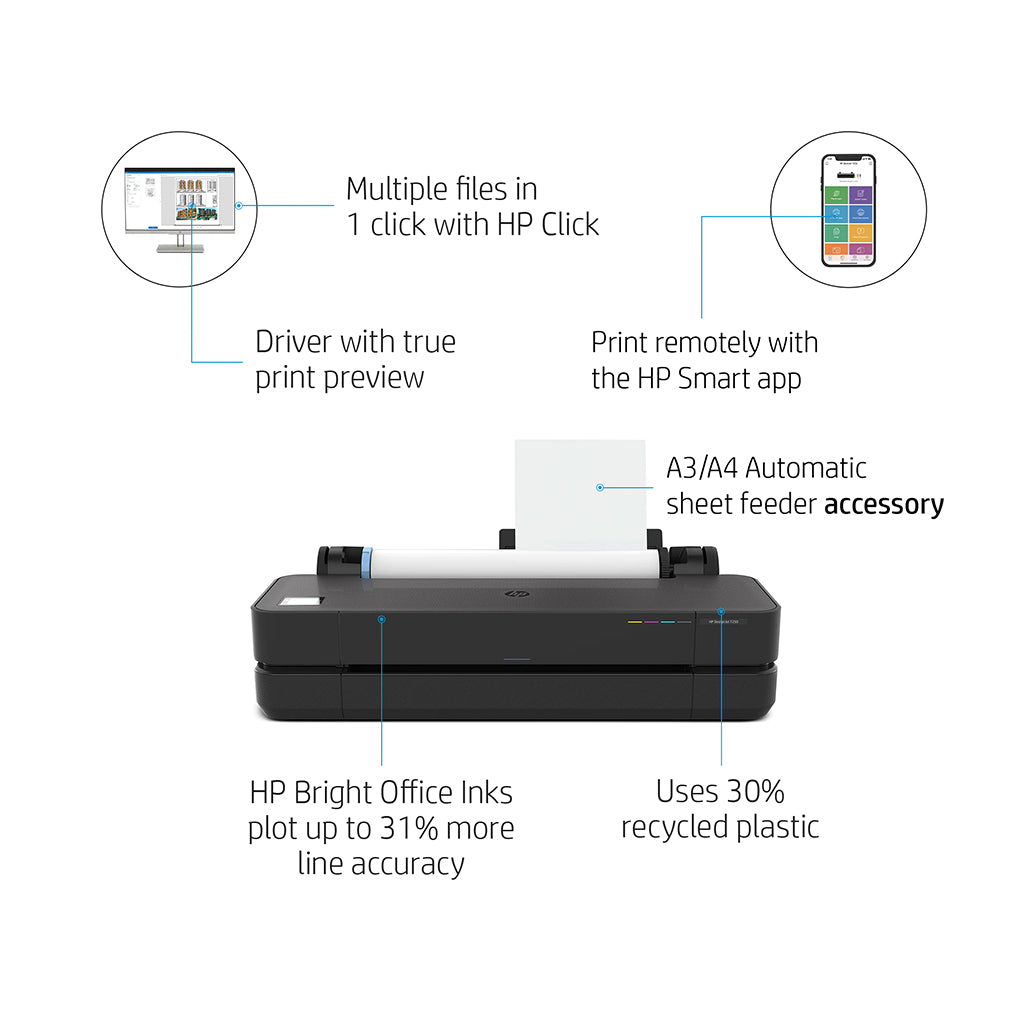

• Simplicity and Connectivity: Easily submit multiple files in a single click with HP Click. Manage and print jobs remotely via the HP Smart app. Connectivity options include Gigabit Ethernet, Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, and Wi-Fi Direct.
• Enhanced Print Quality: Achieve up to 2400 x 1200 optimized dpi resolution with HP Thermal Inkjet technology and HP Bright Office Inks, ensuring accurate lines and vibrant colors.

Specifications:

• Functions: Print
• Print Speed: 35 seconds per page on D-size prints; 68 D-size prints per hour
• Resolution (Color): Up to 2400 x 1200 optimized dpi
• Print Technology: HP Thermal Inkjet
• Number of Print Cartridges: 4 (Cyan, Magenta, Yellow, Black)
• Compatible Ink Types: Dye-based (Cyan, Magenta, Yellow); Pigment-based (Black)
• Print Languages: JPEG, URF

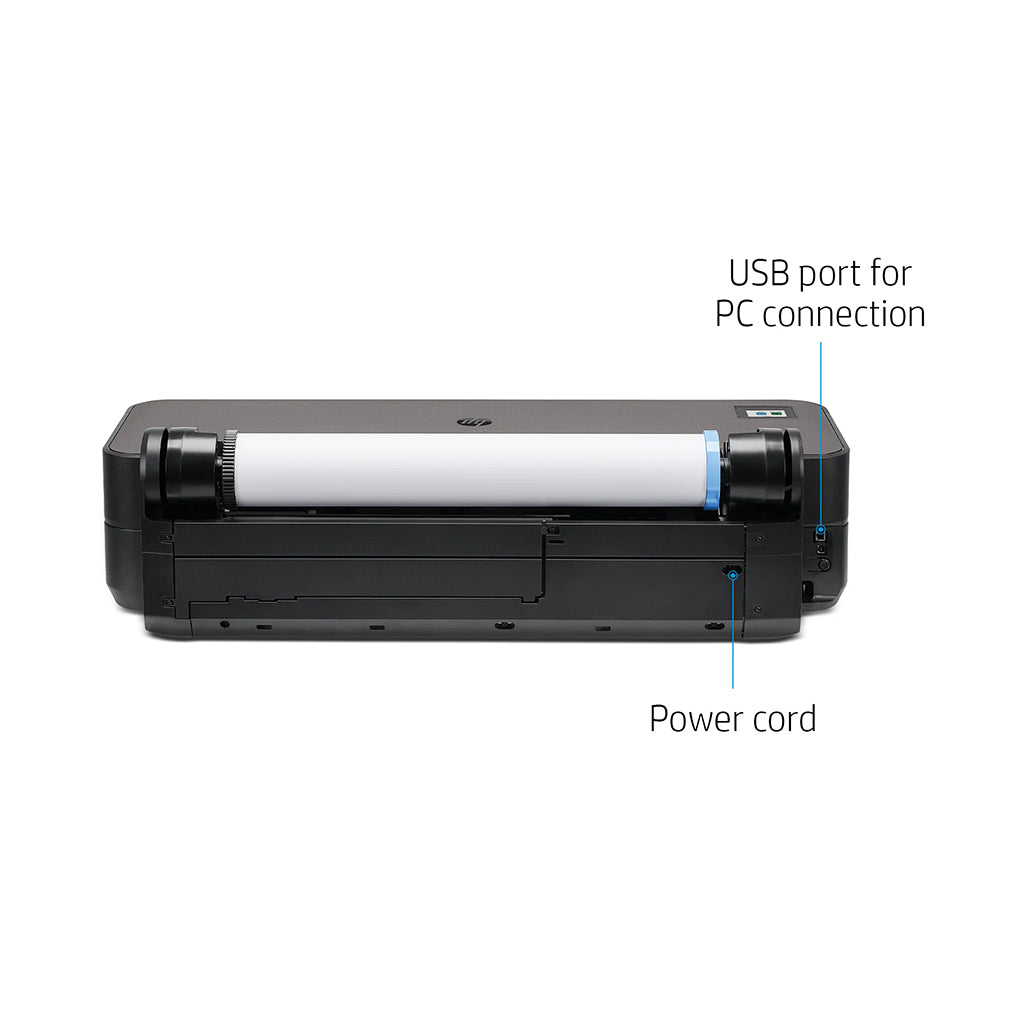

• Connectivity: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
• Memory: 512 MB
• Hard Disk: None
• Non-Printable Area (Cut-Sheet): 0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)
• Line Accuracy: ±0.1%
• Maximum Optical Density (Black): 8 L* min/2.10 D
• Finished Output Handling: Sheet feed, roll feed, automatic horizontal cutter
• Media Sizes Supported: A, B, C, D; A4, A3, A2, A1
• Media Sizes (Imperial): 8.3 x 11 to 24 x 74.7 in
• Media Sizes (Metric): 210 x 297 to 610 x 1898 mm
• Media Types: Bond and coated paper, technical paper, film, photographic paper, self-adhesive
• Media Sizes (Roll): 11 to 24 in
• Roll External Diameter: 3.9 in
• Media Thickness: Up to 11.8 mil
• Power:
  • Input Voltage: 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
  • Power Consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
• Operating Temperature Range: 41 to 104ºF
• Dimensions (W x D x H): 39.9 x 17.3 x 11.2 in
• Weight: 47.4 lb
• Package Weight: 61.7 lb

What's in the Box:

• HP DesignJet T230 24-in Printer
• Printhead
• Introductory ink cartridges
• Spindle
• Quick reference guide
• Setup poster
• Power cord

Software Included:

• HP Click
• HP Smart app
• HP Print Preview for Windows
• HP Easy Start
• HP DesignJet Utility for Windows
• HP Support Assistant

The HP DesignJet T230 is engineered to meet the demands of professionals who require reliable, high-quality large-format printing with minimal fuss. Its compact design, high-speed performance, and intuitive management options make it an excellent choice for any office setting.
