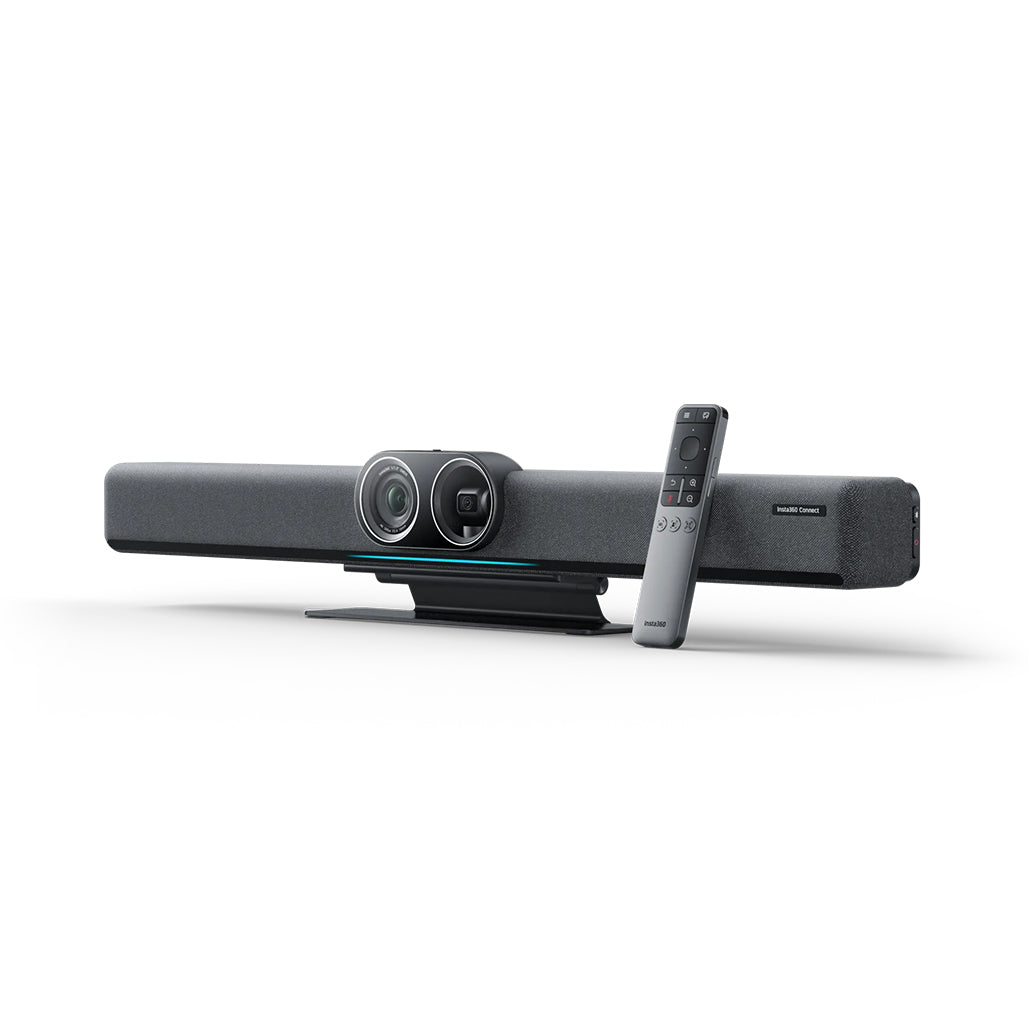

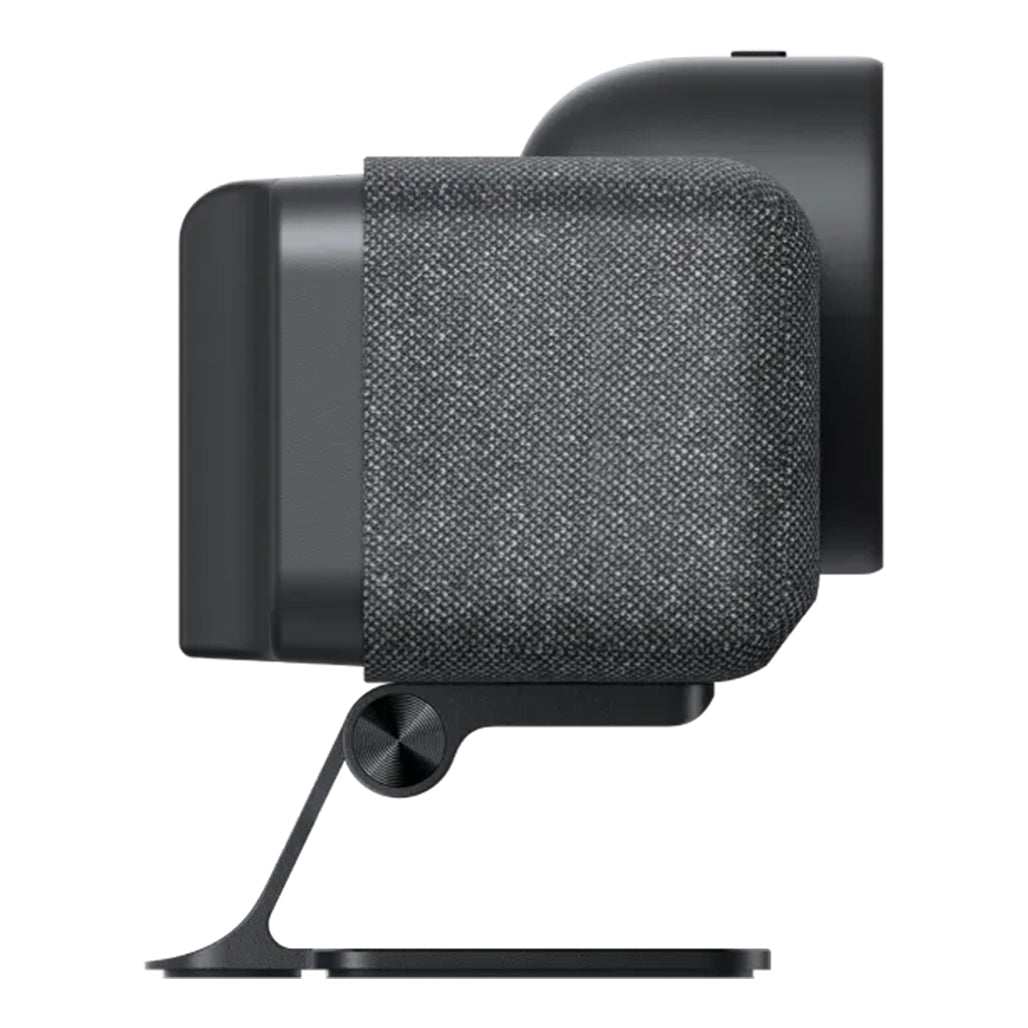

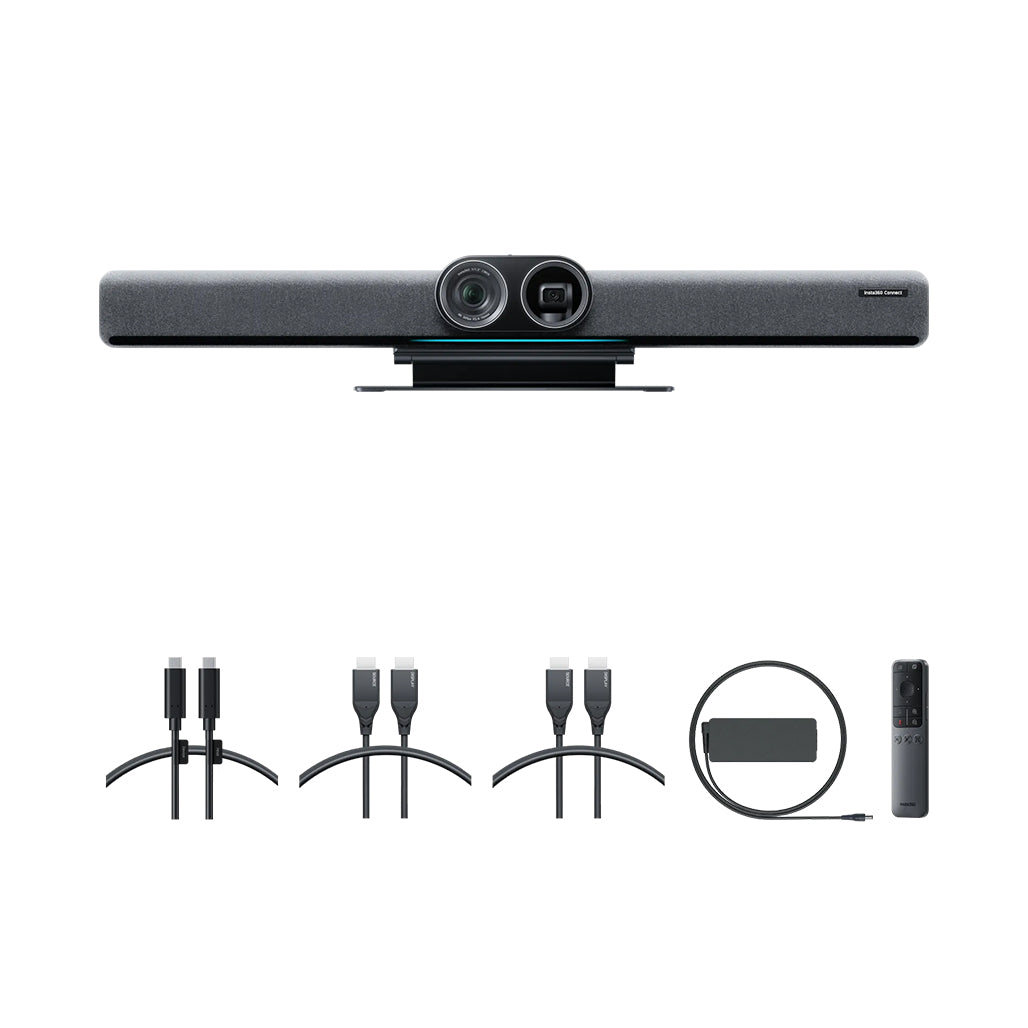

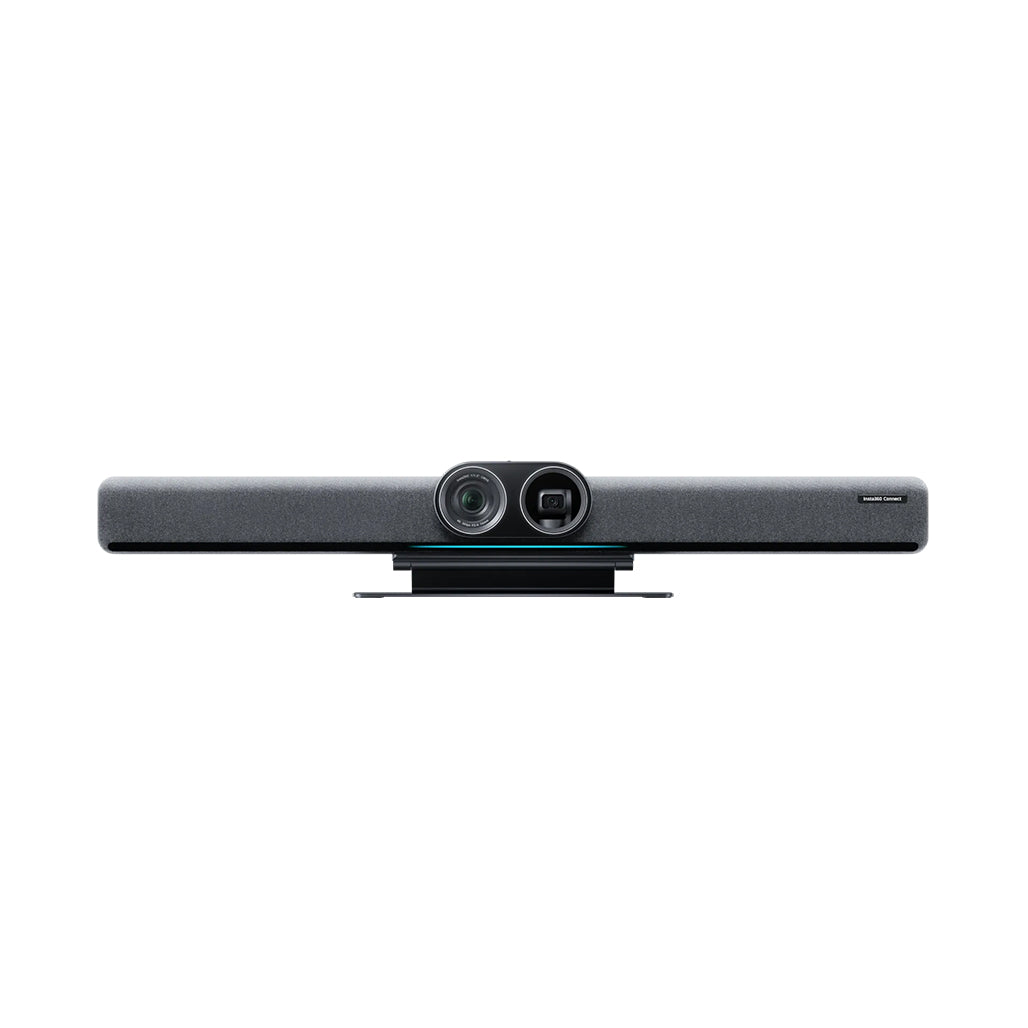

Insta360 Connect - Dual-Camera AI Video Bar

The Insta360 Connect redefines video conferencing with its cutting-edge AI-powered dual-camera system, delivering an immersive and professional-grade meeting experience. Designed for seamless integration, this plug-and-play solution connects instantly via USB, making it compatible with all major video conferencing platforms. With an industry-leading 14-microphone array and advanced AI tracking features, the Insta360 Connect ensures crystal-clear audio and high-resolution visuals, whether for corporate meetings, remote collaborations, or hybrid workspaces.

Equipped with a 1/1.3" wide-angle sensor and a 1/2.8" telephoto gimbal camera, the system captures true-to-life 4K visuals with precision. AI Framing dynamically adjusts to include all participants, while Speaker Tracking keeps the active speaker in focus, ensuring an engaging and professional communication experience. The Whiteboard Mode enhances presentation clarity by digitally framing whiteboards, even if partially obstructed. Additionally, a dedicated Privacy Mode conceals the wide-angle lens, tilts the gimbal camera downward, and mutes the microphone for security-conscious users.

Key Features

• Dual-4K Camera System – A combination of wide-angle and telephoto cameras captures detailed and lifelike visuals with AI-powered enhancement.
• AI Framing & Speaker Tracking – Ensures all participants are visible while intelligently tracking the active speaker for seamless transitions.
• Crystal-Clear Audio – A 14-microphone array with a 33ft pickup range, advanced noise reduction, and Bluetooth speakerphone functionality.
• Plug-and-Play Connectivity – Simple USB connection for instant setup and compatibility with leading video conferencing software.
• Whiteboard Mode – Digitally enhances and squares off whiteboards, even when partially blocked.
• Privacy Mode – Protects confidentiality by concealing the camera and muting the microphone when needed.
• Versatile Mounting Options – Compact and adaptable installation options to suit various meeting environments.

Specifications

Wide-Angle Camera

• Max. Resolution and Frame Rate: 4K30fps
• Field of View: 110º HFOV
• Digital Zoom: 3x
• CMOS Pixel: 48MP
• CMOS Sensor Size: 1/1.3"

Telephoto Gimbal Camera

• Max. Resolution and Frame Rate: 4K30fps
• Field of View: 40º HFOV
• Digital Zoom: 3x
• CMOS Pixel: 48MP
• CMOS Sensor Size: 1/2.8"
• Max. Pan-Tilt Range: Pan: +/- 35°, Tilt: +/- 20°

Video

• Video Coding: H.265, H.264 SVC, H.264 High Profile, H.264 AVC

Audio

• Microphone: 14-Microphone Array
• Pickup Range: 33ft
• Speakers: 1
• Max. Speaker Output Power: 25W
• Rated Speaker Power: 20W

Network & Connection

• LAN: 10/100/1000 Mbps Ethernet
• Wi-Fi: 2.4 GHz, 5 GHz
• Network Protocol: IPv4, IPv6
• Bluetooth: Bluetooth 5.1

Ports

• HDMI Input: 1
• HDMI Output: 2
• USB-A: USB-A 2.0, USB-A 3.0
• USB-C: USB-C 3.0
• Power: DC Port 12V/7A
• Ethernet: Gigabit Ethernet
• Security Slot: 1

Basics & Environment

• Dimensions (W x H x D): 685x76x85mm (27x3x3.3in)
• Weight: 2.27kg (80oz)
• Operating Temperature: 32ºF–104ºF (0°C-40°C)
• Storage Temperature: -40°F to 158ºF (-40°C to 70°C)
• Humidity: <90%

Conclusion

The Insta360 Connect is an advanced AI-driven video conferencing solution designed to enhance remote collaboration with superior video and audio quality. Featuring dual 4K cameras, intelligent speaker tracking, and an industry-leading microphone array, this all-in-one system delivers a professional meeting experience with minimal setup. With enhanced privacy features, versatile mounting options, and seamless integration with major platforms, it provides an ideal solution for businesses, educators, and hybrid work environments.
