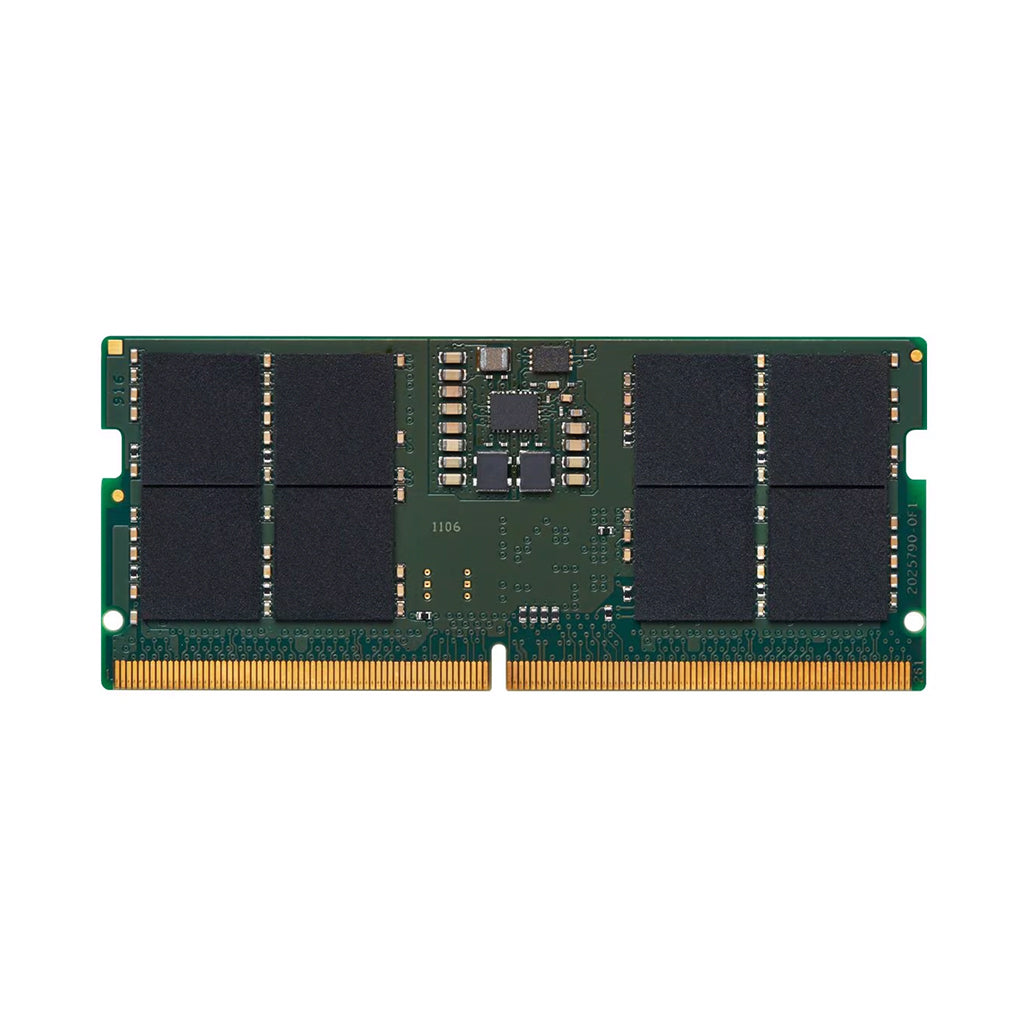

The Kingston KVR56S46BS8-16 16GB DDR5 SODIMM module delivers next-generation memory performance for laptops and compact systems requiring high bandwidth and energy efficiency. Designed with a 262-pin configuration, this memory stick supports DDR5-5600 speeds with CL46 latency, offering enhanced responsiveness for multitasking, gaming, and content creation. Compatibility with JEDEC standard timing ensures seamless integration into a wide range of systems that support DDR5 memory, while the 1Rx8 architecture and 2G x 64-bit configuration provide dependable performance for modern computing tasks.
Manufactured with premium components and gold contact fingers, this Kingston ValueRAM module ensures durability and long-term stability. It operates at a typical voltage of 1.1V and features integrated On-Die ECC (Error Correction Code) for real-time data integrity, reducing the risk of system crashes. With compliance to RoHS and halogen-free standards, this memory module supports environmentally conscious computing. Whether for system upgrades or new builds, this DDR5 module is a reliable choice for power users and professionals seeking faster memory throughput and superior reliability.
Key Features:
-
High-Speed Performance:
DDR5-5600 speed enables quicker data transfers and higher memory bandwidth compared to DDR4, optimizing performance in demanding applications. -
Low Power Consumption:
Operates at a typical voltage of 1.1V, contributing to energy efficiency and reduced heat output in laptops and compact systems. -
On-Die ECC Technology:
Provides built-in error correction to improve data integrity and system reliability, ideal for both consumer and professional environments. -
JEDEC Standard Compliance:
Ensures wide compatibility and stability across systems supporting DDR5 memory specifications. -
Compact SODIMM Format:
262-pin form factor with a low-profile height of 1.18” (30.00mm) fits easily into space-constrained systems like laptops and mini-PCs. -
Environmentally Friendly:
RoHS compliant and halogen-free construction supports sustainability and reduces the use of harmful substances.
Specifications:
-
Model Number: KVR56S46BS8-16
-
Capacity: 16GB
-
Data Rate: DDR5-5600
-
CAS Latency: CL46
-
Memory Architecture: 1Rx8 (Single Rank)
-
Component Density: 2G x 64-bit
-
Memory Type: SDRAM (Synchronous DRAM)
-
Form Factor: 262-Pin SODIMM
-
Contact Material: Gold Fingers
-
Timing (JEDEC Standard): 46-45-45
-
Voltage Requirements:
-
VDD = 1.1V
-
VDDQ = 1.1V
-
VPP = 1.8V
-
VDDSPD = 1.8V to 2.0V
-
-
Thermal Rating:
-
Operating Temperature: 0°C to +85°C
-
Storage Temperature: -55°C to +100°C
-
-
Row Cycle Time (tRCmin): 48ns (min)
-
Refresh Command Time (tRFCmin): 295ns (min)
-
Row Active Time (tRASmin): 32ns (min)
-
UL Rating: 94 V - 0
-
PCB Height: 1.18” (30.00mm)
-
Compliance: RoHS and Halogen-Free
Conclusion:
Engineered for next-level speed and efficiency, the Kingston KVR56S46BS8-16 16GB DDR5 SODIMM memory module has been built with precision to meet the evolving needs of high-performance laptops and compact systems. With its fast data rates, reduced power usage, and robust error correction, it ensures a smooth and stable computing experience for both everyday users and professionals.
