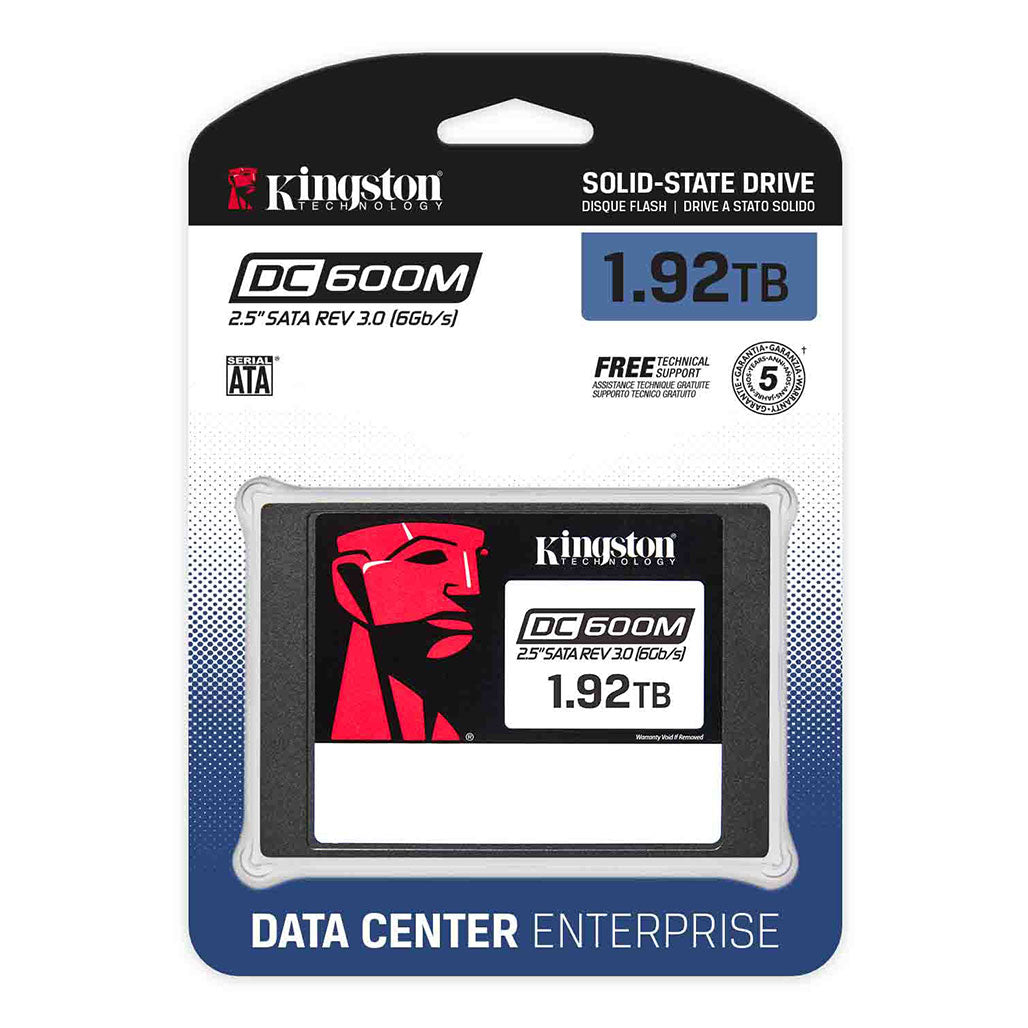

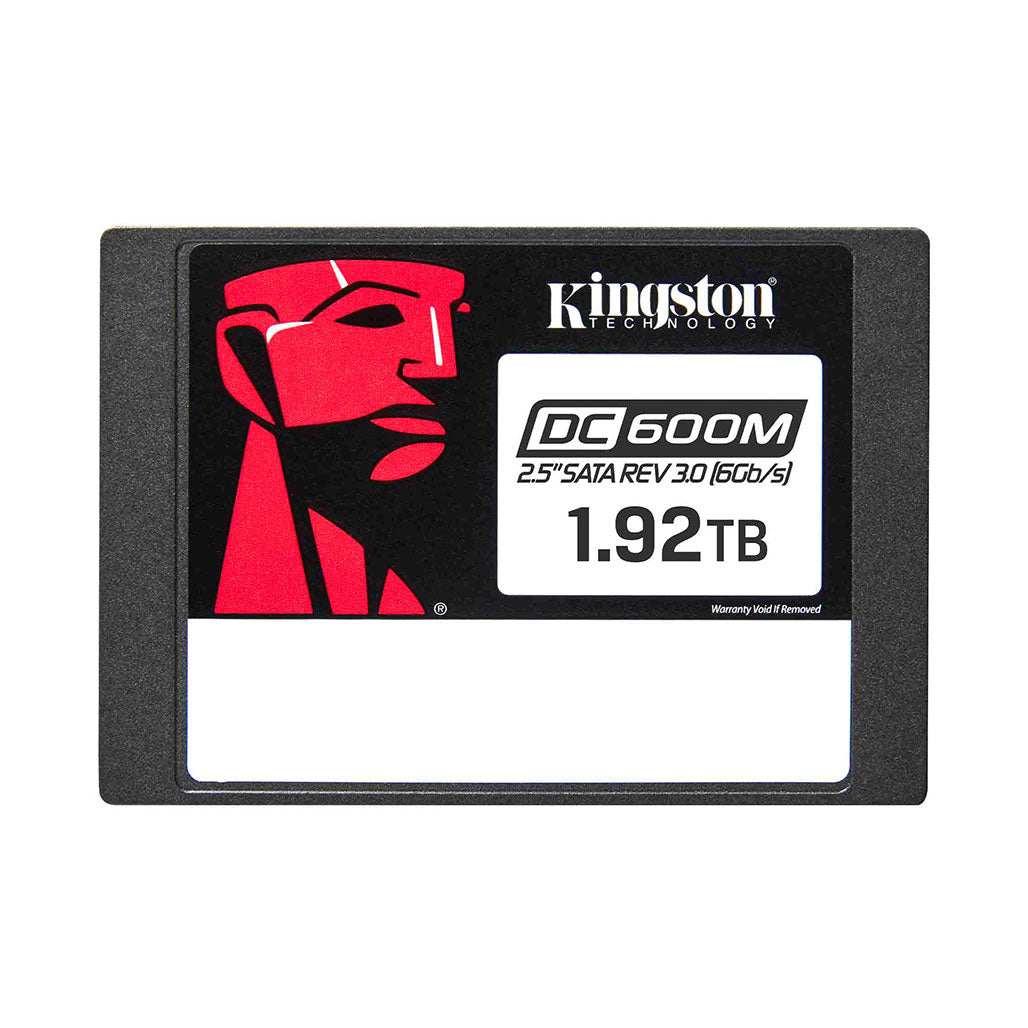

The Kingston DC600M 1920GB 2.5” SATA Enterprise SSD is engineered to meet the rigorous demands of modern data center environments. Utilizing the advanced SATA 3.0, 6Gbps interface and 3D TLC NAND technology, this SSD delivers exceptional performance for mixed-use workloads. The DC600M ensures consistent latency and IOPS, making it ideal for high-volume rack-mount servers, hyperscale data centers, and cloud service providers. With capacities ranging from 480GB to 7680GB, it provides a scalable solution for extensive data storage requirements.

Designed with durability and reliability in mind, the DC600M features hardware-based power loss protection (PLP) through integrated power loss capacitors. This safeguards data against unexpected power failures, reducing the risk of data loss and ensuring successful system re-initialization. The SSD’s optimised performance, along with its ability to meet stringent service-level agreements (SLAs), makes it a reliable choice for critical applications that demand high performance and quality of service.

Key Features:

• Advanced SATA 3.0 Interface: Utilizes 6Gbps SATA 3.0 with backward compatibility to SATA 2.0 for high-speed data transfer and flexibility.
• Hardware-Based Power Loss Protection: Power loss capacitors protect data during unexpected power interruptions, enhancing reliability.
• Consistent Performance: Delivers low latency and high IOPS, with steady-state 4K random read/write speeds up to 94,000/78,000 IOPS for the 1920GB model.
• Wide Capacity Range: Available in sizes from 480GB to 7680GB to accommodate various storage needs and future upgrades.
• Optimized for Data Centers: Designed for high-volume server RAID applications with a focus on performance predictability and quality of service.

Specifications:

• Form Factor: 2.5 inch
• Interface: SATA Rev. 3.0 (6Gb/s) – Backward compatible with SATA Rev. 2.0 (3Gb/s)
• Capacities: 480GB, 960GB, 1920GB, 3840GB, 7680GB
• NAND: 3D TLC
• Sequential Read/Write:
  • 480GB: 560MB/s read, 470MB/s write
  • 960GB: 560MB/s read, 530MB/s write
  • 1920GB: 560MB/s read, 530MB/s write
  • 3840GB: 560MB/s read, 530MB/s write
  • 7680GB: 560MB/s read, 530MB/s write
• Steady-State 4K Random Read/Write:
  • 480GB: 94,000/41,000 IOPS
  • 960GB: 94,000/65,000 IOPS
  • 1920GB: 94,000/78,000 IOPS
  • 3840GB: 94,000/59,000 IOPS
  • 7680GB: 94,000/34,000 IOPS
• Quality of Service (Latency) (99.999%):
  • 480GB: Read 180 µs, Write 110 µs
  • 960GB: Read 200 µs, Write 300 µs
  • 3840GB: Read 200 µs, Write 300 µs
  • 7680GB: Read 240 µs, Write 170 µs
• Typical Latency: Read <200 µs, Write <30 µs
• Hot-Plug Capable: Yes
• Enterprise SMART Tools: Reliability tracking, usage statistics, life remaining, wear leveling, temperature
• Endurance:
  • 480GB: 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 960GB: 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 1920GB: 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 3840GB: 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 7680GB: 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• Power Consumption:
  • Idle: 1.30W
  • Average: 1.45W
  • Max Read: 1.6W
  • Max Write: 3.6W
• Storage Temperature: -40°C to 85°C
• Operating Temperature: 0°C to 70°C
• Dimensions: 69.9mm x 100mm x 7mm
• Weight: 92.34g
• Vibration Operating: 2.17G Peak (7–800Hz)
• Vibration Non-Operating: 20G Peak (10–2000Hz)
• MTBF: 2 million hours
• UBER: ≤10^-17

Conclusion:

The Kingston DC600M 1920GB 2.5” SATA Enterprise SSD offers exceptional performance and reliability for data center and server applications. Its high-speed capabilities, combined with advanced features such as hardware-based power loss protection and robust performance consistency, make it an ideal solution for handling demanding mixed-use workloads. The extensive capacity range and durable design further ensure that the DC600M meets the evolving storage needs of enterprise environments.
