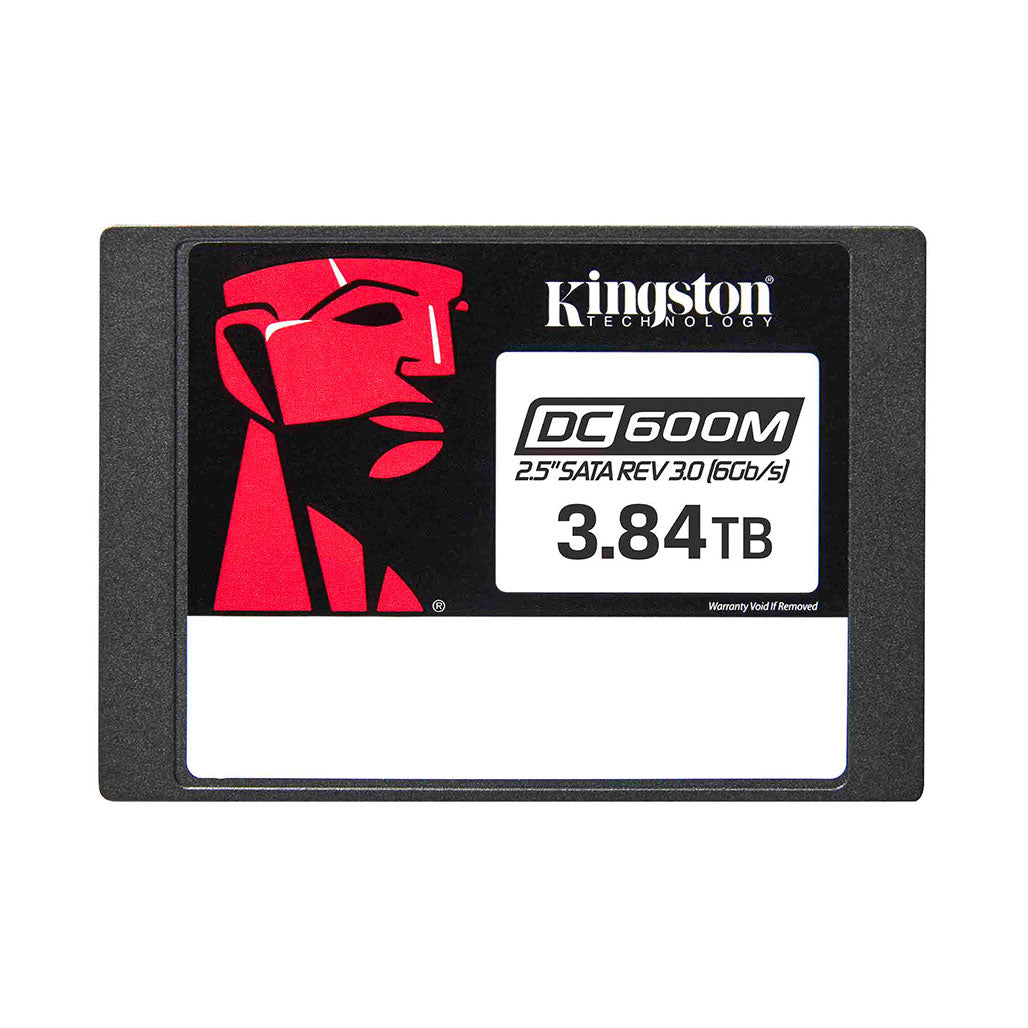

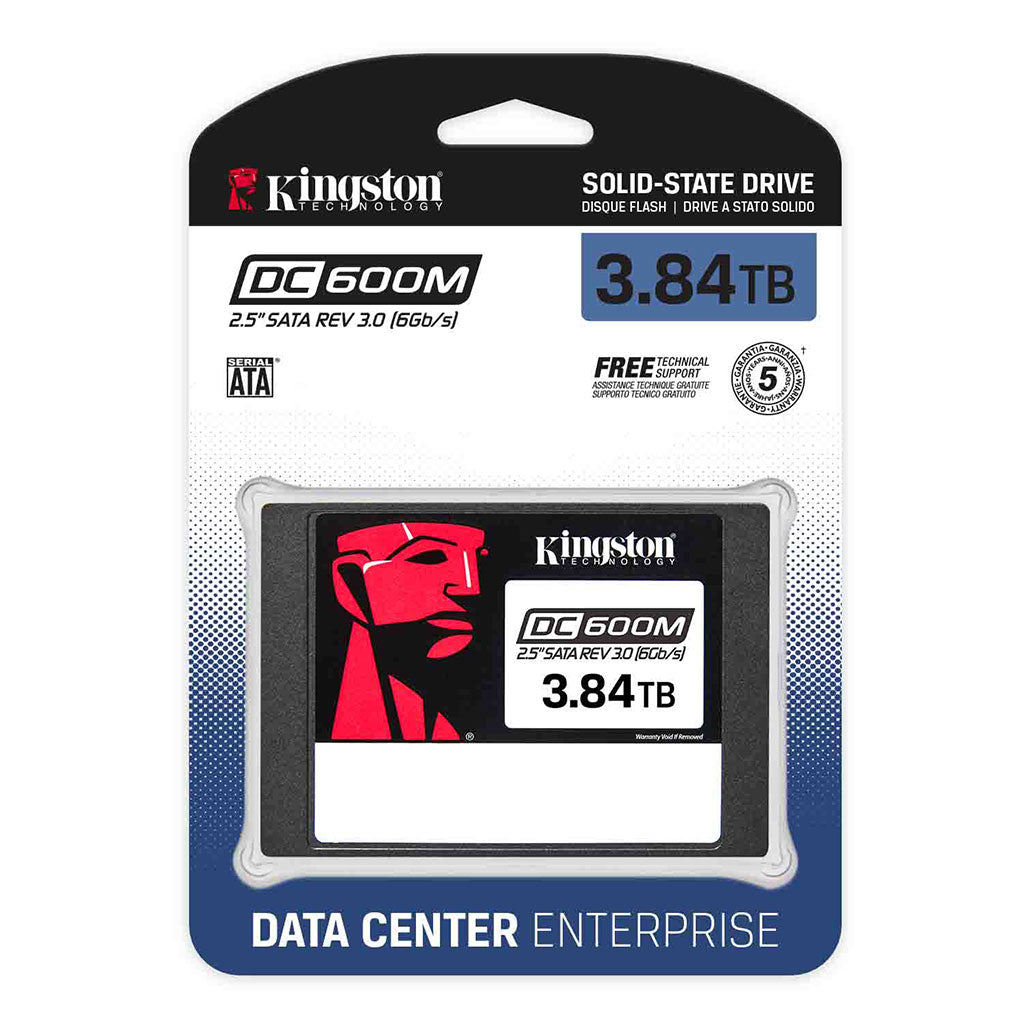

Kingston DC600M 3840GB 2.5” SATA Enterprise SSD – High-Performance Storage for Data Centers

The Kingston DC600M 3840GB 2.5” SATA Enterprise SSD is a robust solution tailored for demanding data center environments. Featuring the SATA 3.0, 6Gbps interface and 3D TLC NAND technology, this fourth-generation SSD is designed to handle mixed-use workloads with exceptional reliability and performance. The DC600M provides consistent latency and IOPS, making it an ideal choice for high-volume rack-mount servers, hyperscale data centers, and cloud service providers. With capacities ranging from 480GB to 7680GB, it offers flexible storage options to meet diverse data requirements.

The DC600M includes advanced hardware-based power loss protection (PLP), utilizing power loss capacitors to safeguard data against unexpected power interruptions. This feature ensures data integrity and successful system re-initialization, reducing the risk of data loss. The SSD’s optimized performance is crucial for meeting service-level agreements (SLAs) and maintaining high-quality service.

Key Features:

• Advanced SATA 3.0 Interface: Utilizes 6Gbps SATA 3.0 with backward compatibility to SATA 2.0 for high-speed data transfer and versatility.
• Hardware-Based Power Loss Protection: Integrated power loss capacitors prevent data loss during power failures, enhancing reliability.
• Consistent Performance: Delivers low latency and high IOPS, with steady-state 4K random read/write speeds up to 94,000/59,000 IOPS for the 3840GB model.
• Extensive Capacity Range: Available in sizes from 480GB to 7680GB, providing scalable storage solutions for evolving needs.
• Optimized for Data Centers: Designed for high-demand server RAID applications, focusing on performance consistency and quality of service.

Specifications:

• Form Factor: 2.5 inch
• Interface: SATA Rev. 3.0 (6Gb/s) – Backward compatible with SATA Rev. 2.0 (3Gb/s)
• Capacities: 480GB, 960GB, 1920GB, 3840GB, 7680GB
• NAND: 3D TLC
• Sequential Read/Write:
  • 480GB: 560MB/s read, 470MB/s write
  • 960GB: 560MB/s read, 530MB/s write
  • 1920GB: 560MB/s read, 530MB/s write
  • 3840GB: 560MB/s read, 530MB/s write
  • 7680GB: 560MB/s read, 530MB/s write
• Steady-State 4K Random Read/Write:
  • 480GB: 94,000/41,000 IOPS
  • 960GB: 94,000/65,000 IOPS
  • 1920GB: 94,000/78,000 IOPS
  • 3840GB: 94,000/59,000 IOPS
  • 7680GB: 94,000/34,000 IOPS
• Quality of Service (Latency) (99.999%):
  • 480GB: Read 180 µs, Write 110 µs
  • 960GB: Read 200 µs, Write 300 µs
  • 1920GB: Read 200 µs, Write 300 µs
  • 3840GB: Read 200 µs, Write 300 µs
  • 7680GB: Read 240 µs, Write 170 µs
• Typical Latency: Read <200 µs, Write <30 µs
• Hot-Plug Capable: Yes
• Enterprise SMART Tools: Reliability tracking, usage statistics, life remaining, wear leveling, temperature
• Endurance:
  • 480GB: 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 960GB: 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 1920GB: 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 3840GB: 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
  • 7680GB: 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
• Power Consumption:
  • Idle: 1.30W
  • Average: 1.45W
  • Max Read: 1.6W
  • Max Write: 3.6W
• Storage Temperature: -40°C to 85°C
• Operating Temperature: 0°C to 70°C
• Dimensions: 69.9mm x 100mm x 7mm
• Weight: 92.34g
• Vibration Operating: 2.17G Peak (7–800Hz)
• Vibration Non-Operating: 20G Peak (10–2000Hz)
• MTBF: 2 million hours
• UBER: ≤10^-17

Conclusion:

The Kingston DC600M 3840GB 2.5” SATA Enterprise SSD offers high-performance and reliability tailored for enterprise storage needs. Its advanced features, including hardware-based power loss protection and consistent performance metrics, ensure it meets the demands of data-intensive applications. With a wide range of capacities and durable design, the DC600M is an excellent choice for data centers seeking robust storage solutions.
