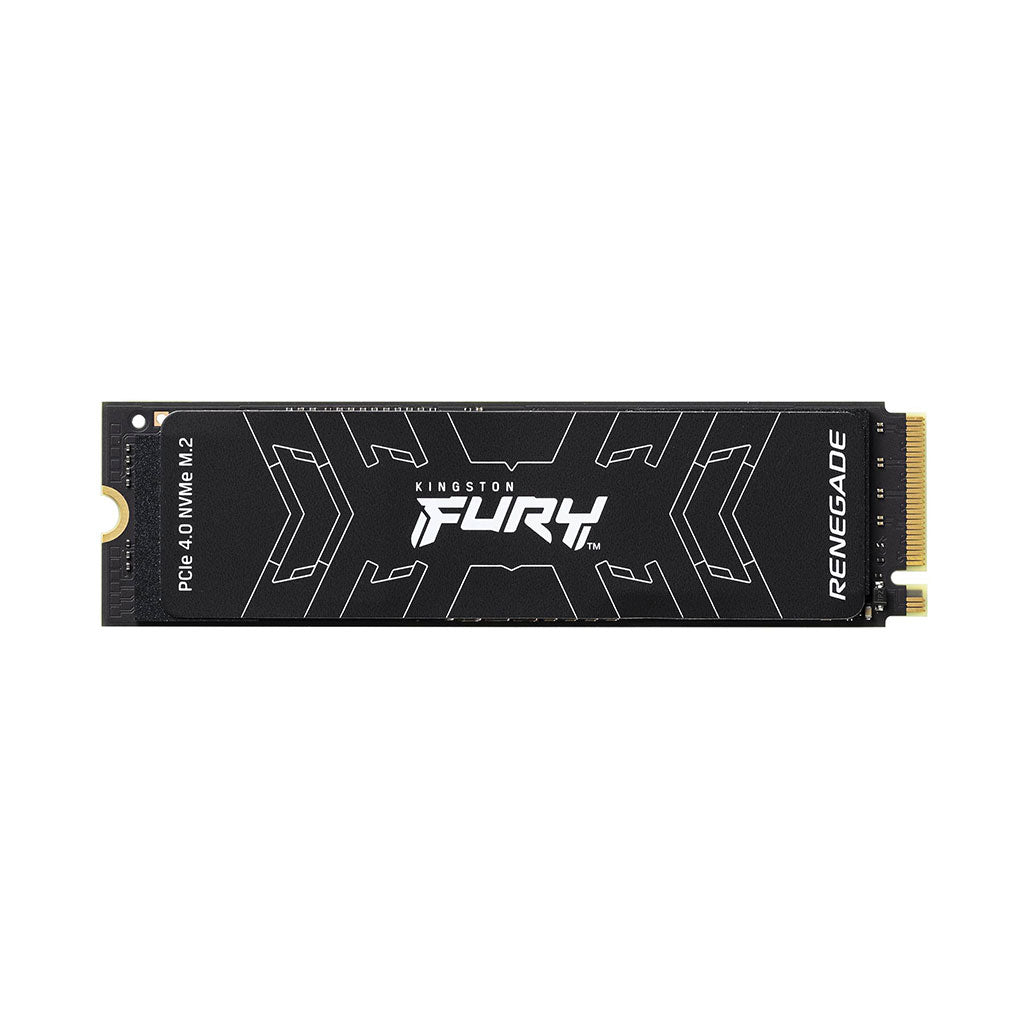

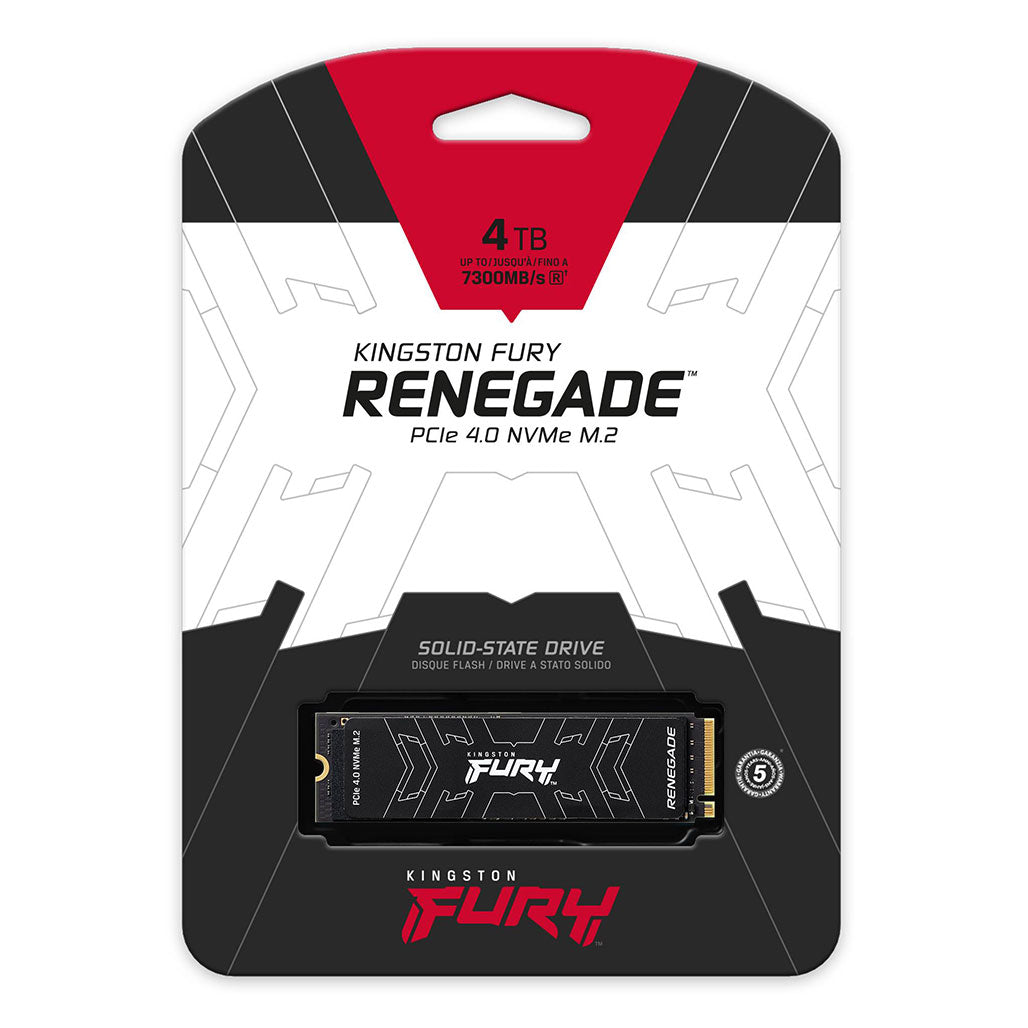

Kingston FURY Renegade 4TB PCIe 4.0 NVMe M.2 SSD – Ultimate Performance for Gamers and Enthusiasts

The Kingston FURY™ Renegade 4TB PCIe 4.0 NVMe M.2 SSD delivers top-of-the-line performance for gamers, hardware enthusiasts, and high-power users seeking exceptional speed and capacity for their PC builds and upgrades. Equipped with the latest Gen 4x4 NVMe controller and 3D TLC NAND technology, this SSD provides blazing read speeds of up to 7,300MB/s and write speeds of up to 7,000MB/s, coupled with up to 1,000,000 IOPS for outstanding consistency and performance. Whether you're loading games, streaming, or capturing high-definition content, this SSD enhances your system’s responsiveness and overall experience.

The Kingston FURY Renegade SSD features a slim M.2 design with a low-profile graphene aluminum heat spreader, ensuring efficient heat management and stability during intense use. For even better thermal performance, the optional heatsink model provides an additional layer of cooling, making it an ideal choice for gaming laptops, desktops, and PS5™ consoles.

Available in capacities ranging from 500GB to 4TB, this SSD offers ample space for your extensive library of games and media. Its high performance is matched by its sleek design, providing both power and style.

Key Features:

• Exceptional PCIe 4.0 NVMe Performance: Enjoy Gen 4x4 speeds with up to 7,300MB/s read and 7,000MB/s write, and up to 1,000,000 IOPS for superior gaming and application performance.
• Advanced Thermal Management: The low-profile graphene aluminum heat spreader and optional heatsink model ensure optimal cooling and stability, even during extended gaming sessions.
• Generous Storage Capacity: Available in 500GB, 1TB, 2TB, and 4TB to accommodate a vast library of games and media.
• PS5™ Compatible: Designed to enhance gaming with optional integrated heatsink for additional thermal dispersion, keeping your PS5™ console cool.

Specifications:

• Form Factor: M.2 2280
• Interface: PCIe 4.0 x4 NVMe
• Capacities: 500GB, 1TB, 2TB, 4TB
• Controller: Phison E18
• NAND: 3D TLC
• Sequential Read/Write:
  • 500GB: 7,300/3,900MB/s
  • 1TB: 7,300/6,000MB/s
  • 2TB: 7,300/7,000MB/s
  • 4TB: 7,300/7,000MB/s
• Random 4K Read/Write:
  • 500GB: Up to 450,000/900,000 IOPS
  • 1TB: Up to 900,000/1,000,000 IOPS
  • 2TB: Up to 1,000,000/1,000,000 IOPS
  • 4TB: Up to 1,000,000/1,000,000 IOPS
• Total Bytes Written (TBW):
  • 500GB: 500TBW
  • 1TB: 1.0PBW
  • 2TB: 2.0PBW
  • 4TB: 4.0PBW
• Power Consumption:
  • 500GB: 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write
  • 1TB: 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write
  • 2TB: 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write
  • 4TB: 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write
• Storage Temperature: -40°C to 85°C
• Operating Temperature: 0°C to 70°C
• Dimensions:
  • Heat Spreader: 80mm x 22mm x 2.21mm (500GB-1TB), 80mm x 22mm x 3.5mm (2TB-4TB)
  • Heatsink: 80mm x 23.67mm x 10.5mm
• Weight:
  • Heat Spreader: 500GB-1TB – 7g, 2TB-4TB – 9.7g
  • Heatsink: 500GB-1TB – 32.1g, 2TB-4TB – 34.9g
• Vibration Operating: 2.17G peak (7-800Hz)
• Vibration Non-Operating: 20G peak (20-1000Hz)
• MTBF: 2,000,000 hours

Conclusion:

The Kingston FURY Renegade 4TB PCIe 4.0 NVMe M.2 SSD combines high-speed performance with large storage capacity, making it an excellent choice for gamers and enthusiasts who demand the best. Its advanced thermal management and high performance ensure your system remains responsive and cool, providing a superior experience for all your gaming and high-performance needs.
