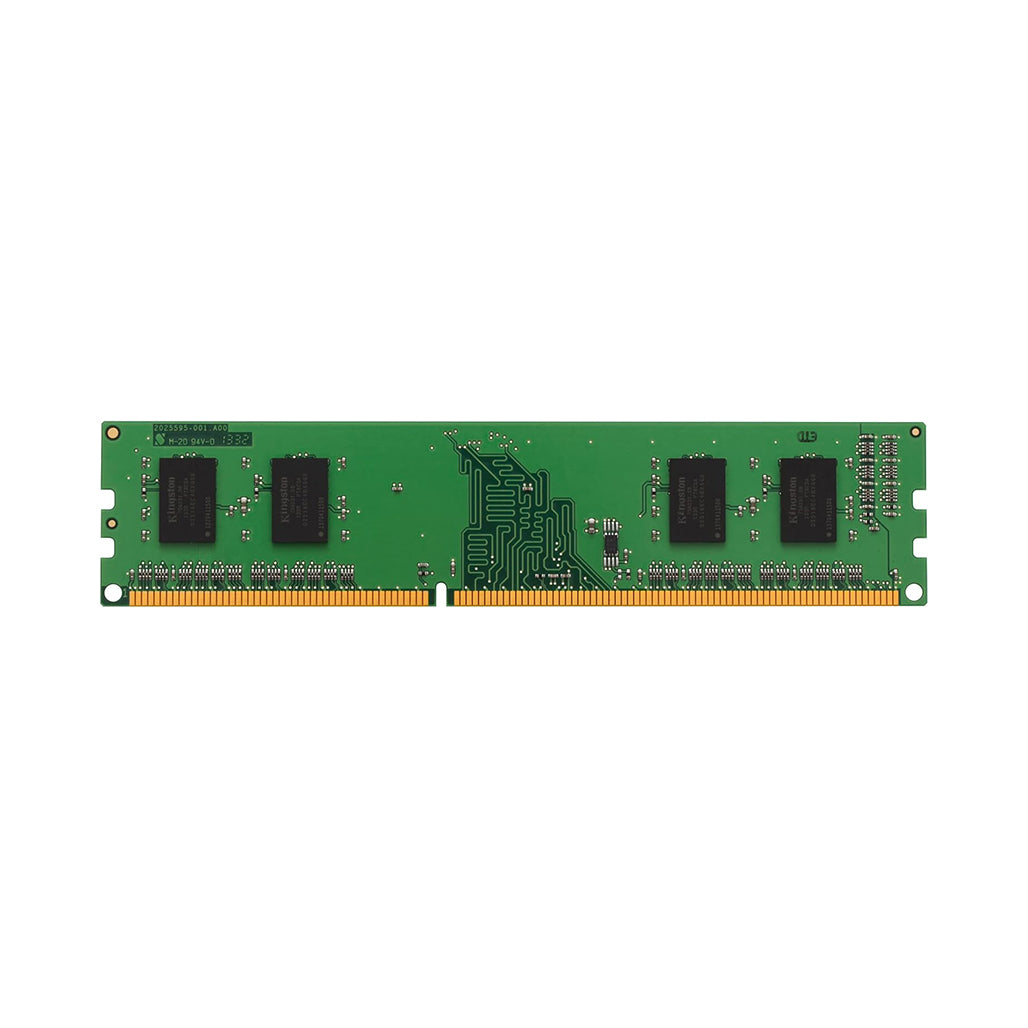

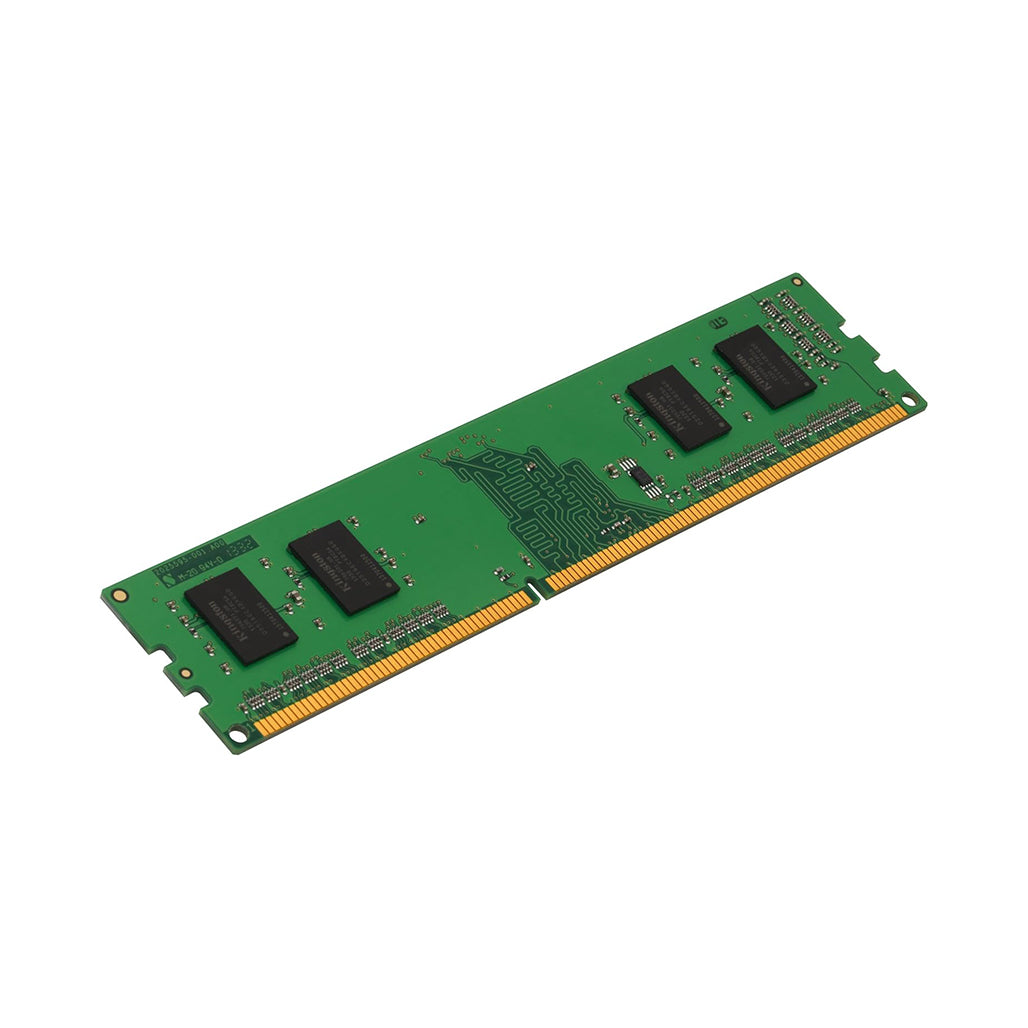

Kingston ValueRAM DDR4 3200MHz Desktop Memory – 8GB & 16GB CL22 288-Pin DIMM Modules

The Kingston ValueRAM DDR4 3200MHz series delivers dependable desktop memory upgrades for system builders and IT professionals. Available in both 8GB (KVR32N22S6/8) and 16GB (KVR32N22S8/16) modules, this memory is designed to provide consistent performance with low power consumption. Assembled with JEDEC-standard latency timings of 22-22-22 at 1.2V, these CL22 modules are optimized for stability in demanding environments. Manufactured using high-quality FBGA components and featuring a single-rank architecture, they support faster data throughput and improved multitasking capabilities for desktops and workstations.

Engineered with features such as low-power auto self-refresh, on-die VREFDQ calibration, and data bus inversion, Kingston’s ValueRAM series supports efficient data handling while minimizing energy usage. The modules utilize a 288-pin DIMM format and gold-plated contacts, ensuring durable electrical connections. Compatibility with a wide range of motherboards and compliance with RoHS and halogen-free standards make this memory ideal for system integrators and PC users looking to upgrade or build reliable computers.

Key Features

• Performance-Driven DDR4: Clocked at 3200MHz with CL22 latency for stable and efficient performance under workload-intensive conditions.

• Power Efficient: Operates at only 1.2V, reducing power consumption without compromising speed.

• Enhanced Reliability: Equipped with on-die termination, fly-by topology, and data bus inversion for robust signal integrity.

• Versatile Compatibility: Standard 288-pin UDIMM format with gold contact fingers ensures wide motherboard support and long-lasting durability.

• JEDEC Compliant: Factory-programmed SPD settings ensure seamless plug-and-play installation with JEDEC standard 22-22-22 timings.

• Built for Stability: Features such as low-power auto self-refresh (LPASR), VREFDQ calibration, and onboard SPD EEPROM ensure stable operation.

• Eco-Friendly Design: Manufactured RoHS-compliant and halogen-free to meet environmental standards.

Technical Specifications

Kingston KVR32N22S6/8 – 8GB DDR4 Module

• Capacity: 8GB

• Organization: 1G x 64-bit (1Rx16)

• Chip Configuration: 1G x 16-bit FBGA x4

• Speed: DDR4-3200

• CAS Latency: CL22

• Voltage: 1.2V Typical

• Pins: 288-pin DIMM

• Burst Length: Fixed BC4 or BL8 via MRS; Selectable BC4/BL8 OTF

• Banks: 8 internal (2 groups of 4)

• Operating Temp: 0°C to +85°C

• Storage Temp: -55°C to +100°C

• PCB Height: 1.23” (31.25mm)

• Compliance: RoHS Compliant, Halogen-Free

Kingston KVR32N22S8/16 – 16GB DDR4 Module

• Capacity: 16GB

• Organization: 2G x 64-bit (1Rx8)

• Chip Configuration: 2G x 8-bit FBGA x8

• Speed: DDR4-3200

• CAS Latency: CL22

• Voltage: 1.2V Typical

• Pins: 288-pin DIMM

• Burst Length: Fixed BC4 or BL8 via MRS; Selectable BC4/BL8 OTF

• Banks: 16 internal (4 groups of 4)

• Operating Temp: 0°C to +85°C

• Storage Temp: -55°C to +100°C

• PCB Height: 1.23” (31.25mm)

• Compliance: RoHS Compliant, Halogen-Free

Conclusion
Designed for users seeking dependable, power-efficient memory, the Kingston ValueRAM DDR4-3200 modules offer consistent speed and reliability for modern desktops. With advanced on-die features and support for standard JEDEC specifications, these modules are well-suited for business PCs, home systems, and DIY builds requiring trusted performance without unnecessary extras.
