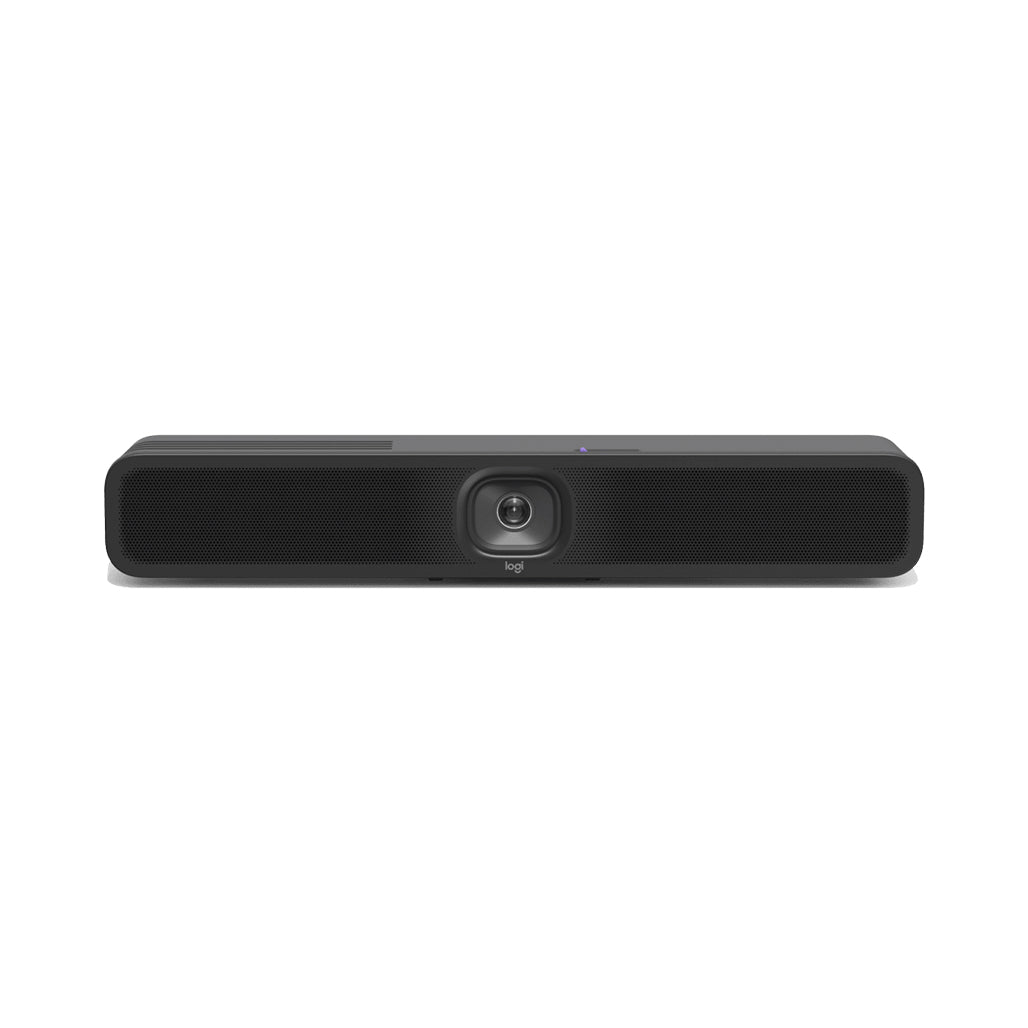

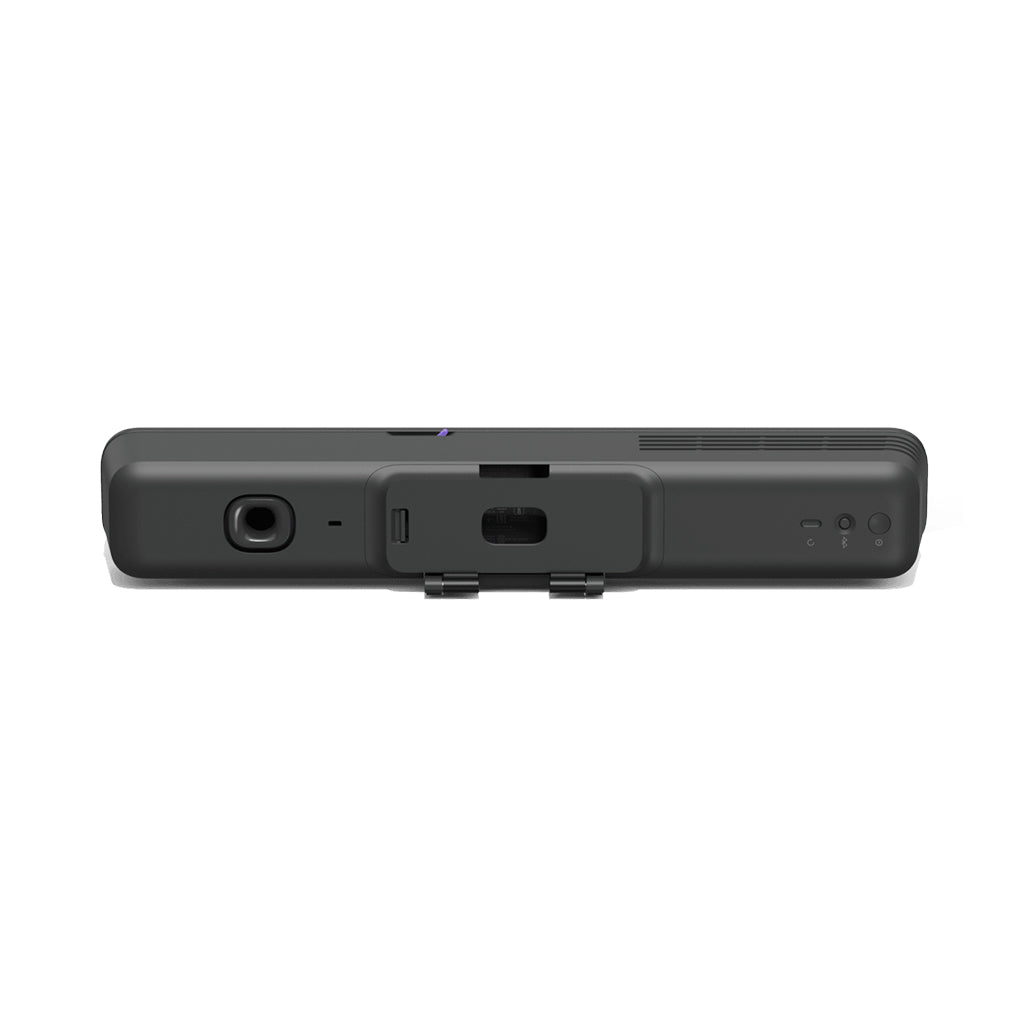

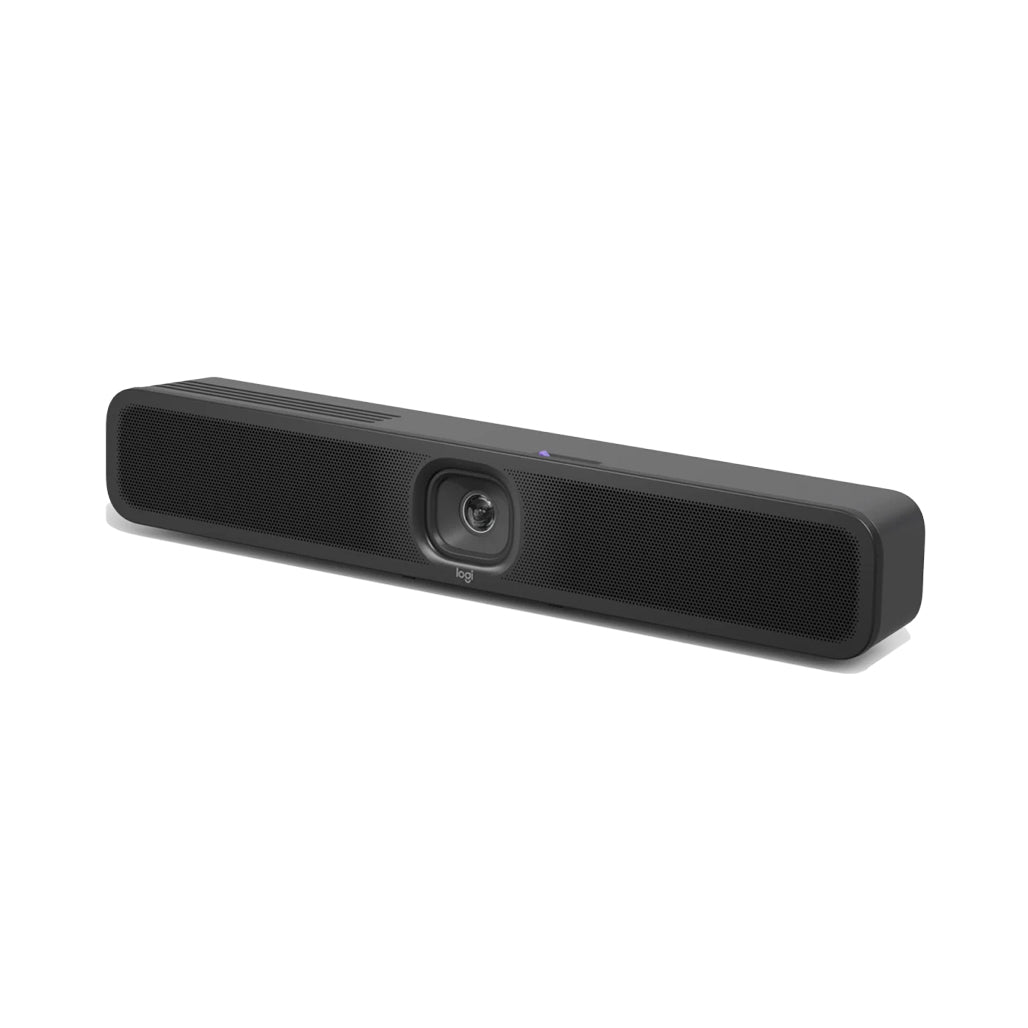

Logitech MeetUp 2 USB Conference Camera for Small Meeting Rooms

Small meeting rooms are upgraded with Logitech MeetUp 2, a USB conference camera designed to simplify collaboration for both employees and IT teams. An all in one design is used to combine a 4K camera, integrated speakers, and an advanced microphone array in a single compact unit. AI powered features are built in to enhance video framing and audio clarity, creating a consistent and professional meeting experience in small spaces.

Advanced collaboration capabilities are supported through the Logitech CollabOS platform, along with intelligent audio and video technologies. Flexible deployment is enabled through PC and BYOD modes, while centralized device management is provided through Logitech Sync. Reliable connectivity options and secure system architecture are included to support modern workplace requirements and hybrid meeting environments.

Key Features
• All in one conference camera design is used to combine video, audio, and computing features in a single device.
• AI powered video and audio technologies are integrated to enhance framing, voice clarity, and meeting focus.
• Wide angle 4K camera is included to capture participants clearly in small meeting rooms.
• Integrated microphone array and speaker are used to deliver clear voice pickup and room filling sound.
• Flexible deployment is supported through PC and BYOD modes for simplified room setups.
• Centralized device management is enabled through Logitech Sync for easier monitoring and updates.
• Secure system architecture is implemented to support enterprise level protection and device access.

Specifications
• Part Number: 960-001681
• Height: 73.3 mm
• Width: 469.2 mm
• Depth: 73 mm
• Weight: 1.8 kg
• Built-in Components: 6 DMIC microphone array, Digital PTZ camera, 1 full range ported speaker, Cable management & retention system, Multi-mount, Logitech CollabOS platform, Logitech RightSight 2, Logitech RightSound 2
• Enclosure: All-in-one enclosure
• Device Management: Logitech Sync
• Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
• Display Resolution: 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
• RoomMate Compatibility: Not compatible with Logitech RoomMate, MeetUp 2 can be deployed in PC and BYOD mode only.
• Digital pan: ±48° at 4x zoom
• Digital Tilt: ±32° at 4x zoom
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80°
• Resolution: 4K
• Driver: 55 mm with bass reflex enclosure and patented suspension design
• Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
• Rated Power: 8W THD at 1W, 1kHz : <2%
• Speaker Sampling Rate: 48KHz
• Impedance: 4 Ohms
• Frequency Response: 90Hz – 16kHz
• Sensitivity: -36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48 kHz
• Pickup Range: Up to 7m
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm
• HDMI Out: 1
• HDMI In: 1
• USB: 1 x Type C USB 3.1
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac/ax
• Bluetooth: Bluetooth® Low Energy
• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 2.1A
• Power Supply Dimensions: 114 x 47 mm x 32.3 mm
• DC Cable: 3 m
• USB C to USB C 3.0 Cable: 3 m
• Operating temperature: 0 to 40°C
• Storage temperature: -25-70°C
• Humidity: 10 to 90%
• File Based Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP
• Physical Security: Kensington security slot

Conclusion
Logitech MeetUp 2 is well suited for small meeting rooms that require simple deployment, intelligent collaboration features, and reliable performance. Clear video, natural audio pickup, and centralized management are combined to support everyday meetings, hybrid collaboration, and streamlined IT operations in modern workspaces.
