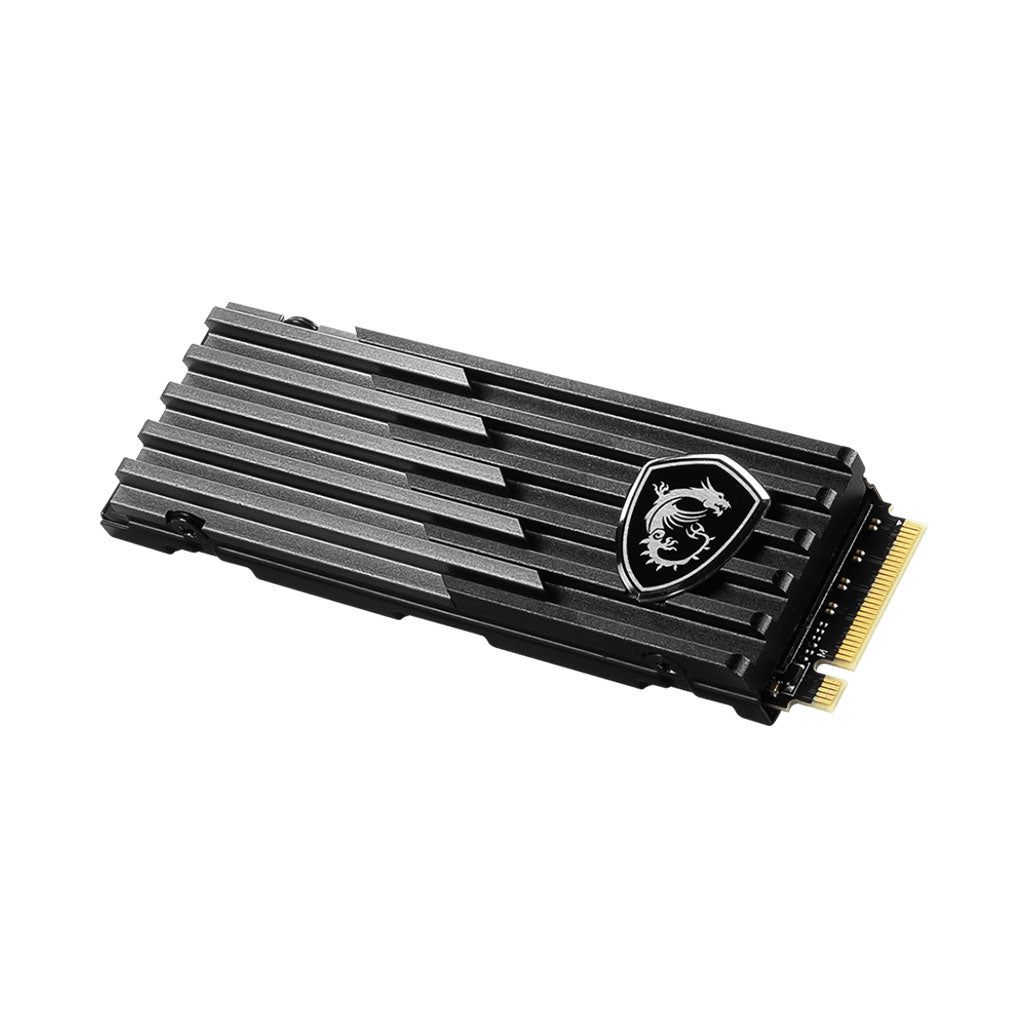

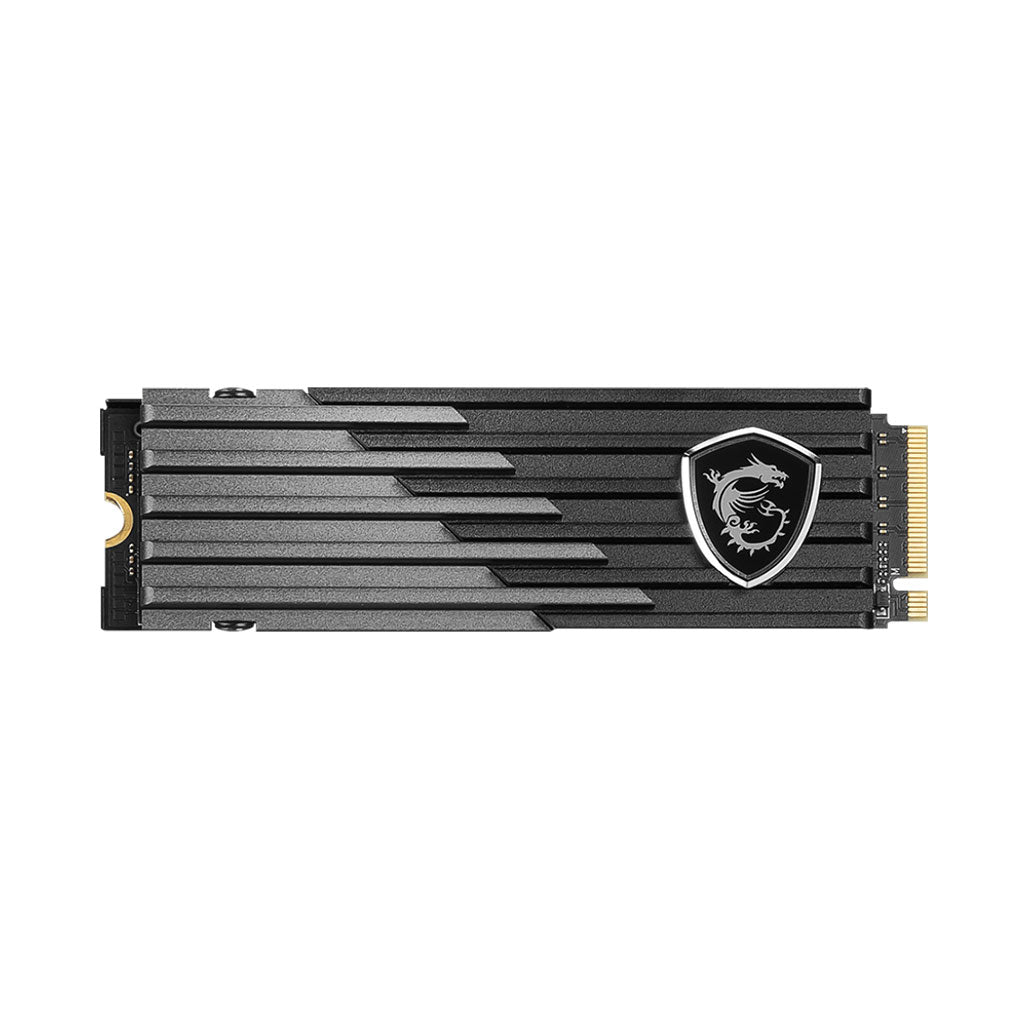

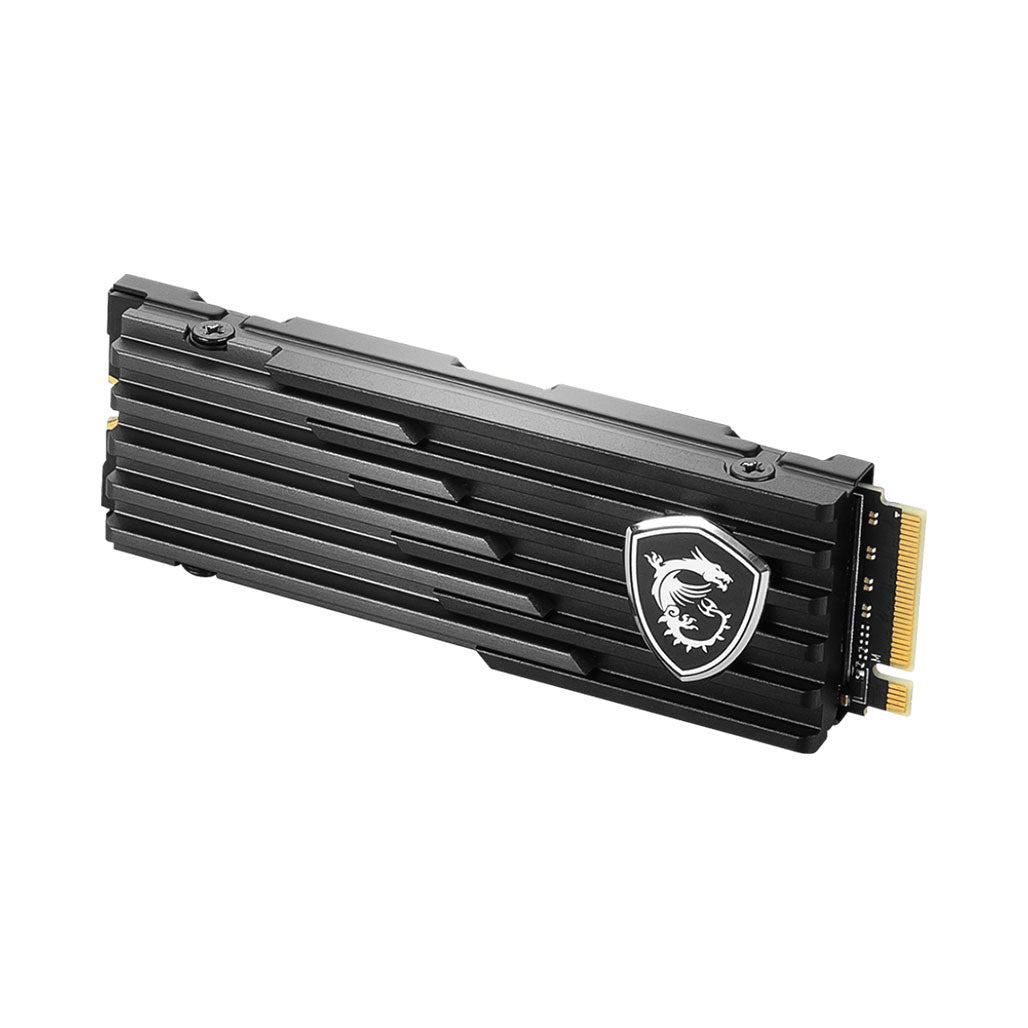

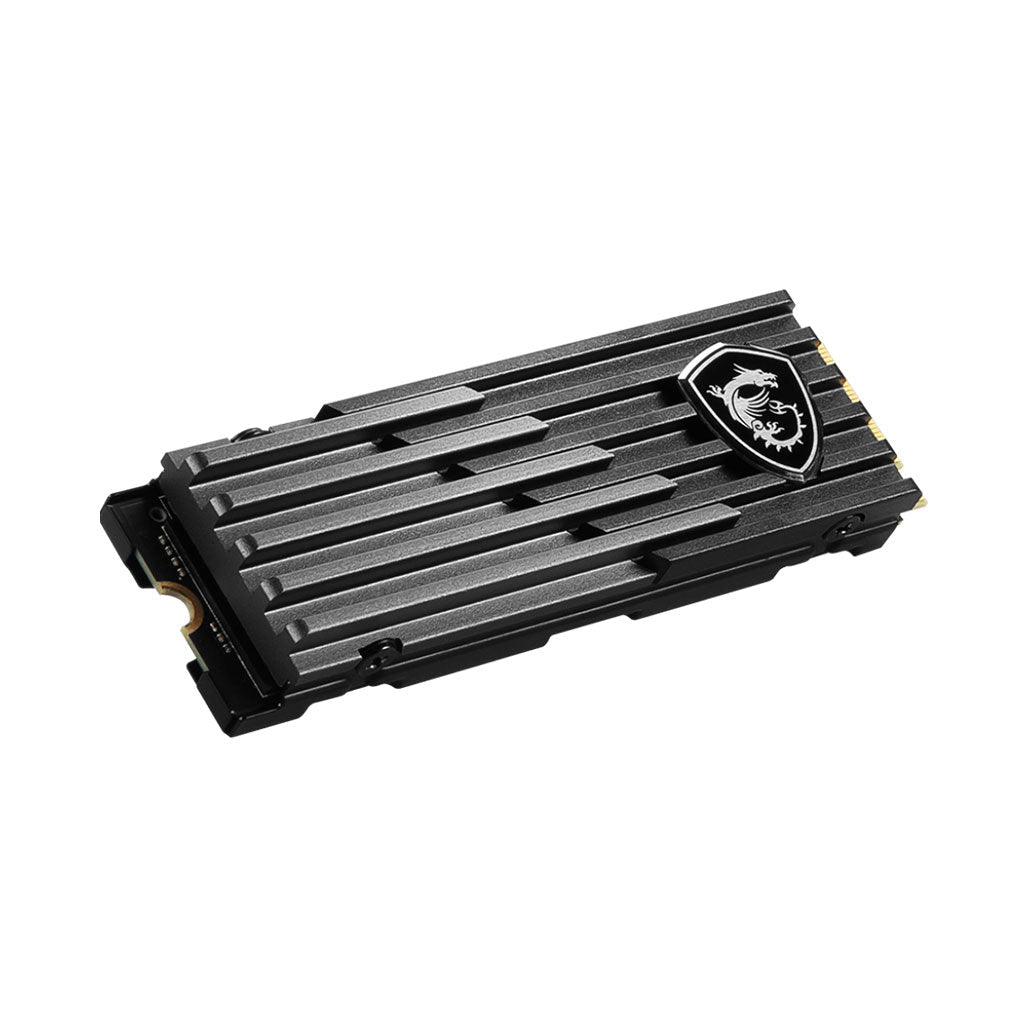

MSI Spatium M480 2TB Play PCIe 4.0 NVMe M.2 SSD - High-Speed Storage for Gaming and High-Performance PCs

Experience top-tier storage performance with the MSI Spatium M480 2TB Play PCIe 4.0 NVMe M.2 SSD, engineered to enhance both PlayStation®5 and high-performance PC systems. With read speeds up to 7000 MB/s and write speeds up to 6800 MB/s, this SSD offers exceptional data transfer speeds, reducing game load times and boosting overall system responsiveness. The 2TB capacity provides ample space for storing a vast array of games, multimedia, and applications.

The Spatium M480 Play SSD features a sophisticated dual-finish aluminum heatsink that ensures efficient heat dissipation, maintaining peak performance during extended gaming sessions or intensive tasks. Leveraging cutting-edge 3D NAND flash technology, this SSD delivers not only substantial storage but also reliable and long-lasting performance. The built-in data security and error-correction capabilities enhance the durability of the SSD, making it a dependable choice for high-demand environments.

Key Features:

• Exceptional Speed: Sequential read speeds up to 7000 MB/s and write speeds up to 6800 MB/s ensure rapid data transfer and efficient load times.
• Advanced Cooling: Equipped with a dual-finish aluminum heatsink for effective heat dissipation, ensuring optimal performance during heavy use.
• High Capacity: Available in capacities from 500GB to 4TB, with the 2TB model offering ample space for extensive game libraries and applications.
• Robust Data Protection: Features TRIM, SMART, LDPC ECC, and AES256/Pyrite for enhanced data security and prolonged drive life.
• Efficient Power Management: Optimized for low power consumption, with maximum operating power of 8.2W and idle power of 22mW.

Specifications:

• Model Name: SPATIUM M480 PCIe 4.0 NVMe M.2 PLAY
• Capacity: 2TB
• Controller: PHISON E18
• Flash Memory: 3D NAND
• DRAM Cache: 2GB DDR4
• Form Factor: M.2 2280
• Interface: PCIe Gen4x4, NVMe 1.4
• Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1
• Dimensions: 80.40mm (L) x 24.00mm (W) x 10.70mm (H), PS5 Compatible
• Sequential Read Up To (MB/S): 7000
• Sequential Write Up To (MB/S): 6800
• Random Read 4KB Up To (IOPS): 650,000
• Random Write 4KB Up To (IOPS): 700,000
• Maximum Operating Power (W): 8.2
• Idle Power PS3 (MW): 22
• Low Power L1.2 (MW): 3
• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C
• Terabytes Written (TBW): 1400
• Mean Time Between Failure (MTBF): Up to 1,600,000 Hours
• Limited Warranty: 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
• Advanced Features: TRIM (Performance Optimization, OS support required), SMART (Self-Monitoring, Analysis and Reporting Technology), LDPC (Low Density Parity Check) ECC Algorithm, End to End Data Path Protection, APST (Autonomous Power State Transition), AES256/Pyrite (Encryption, Data Security)

Conclusion:

The MSI Spatium M480 2TB Play PCIe 4.0 NVMe M.2 SSD offers high-speed performance and substantial storage capacity, making it an excellent choice for gamers and professionals alike. With its advanced cooling system, robust data protection features, and efficient power management, this SSD provides a reliable and high-performance storage solution for demanding applications and extensive data storage needs.
