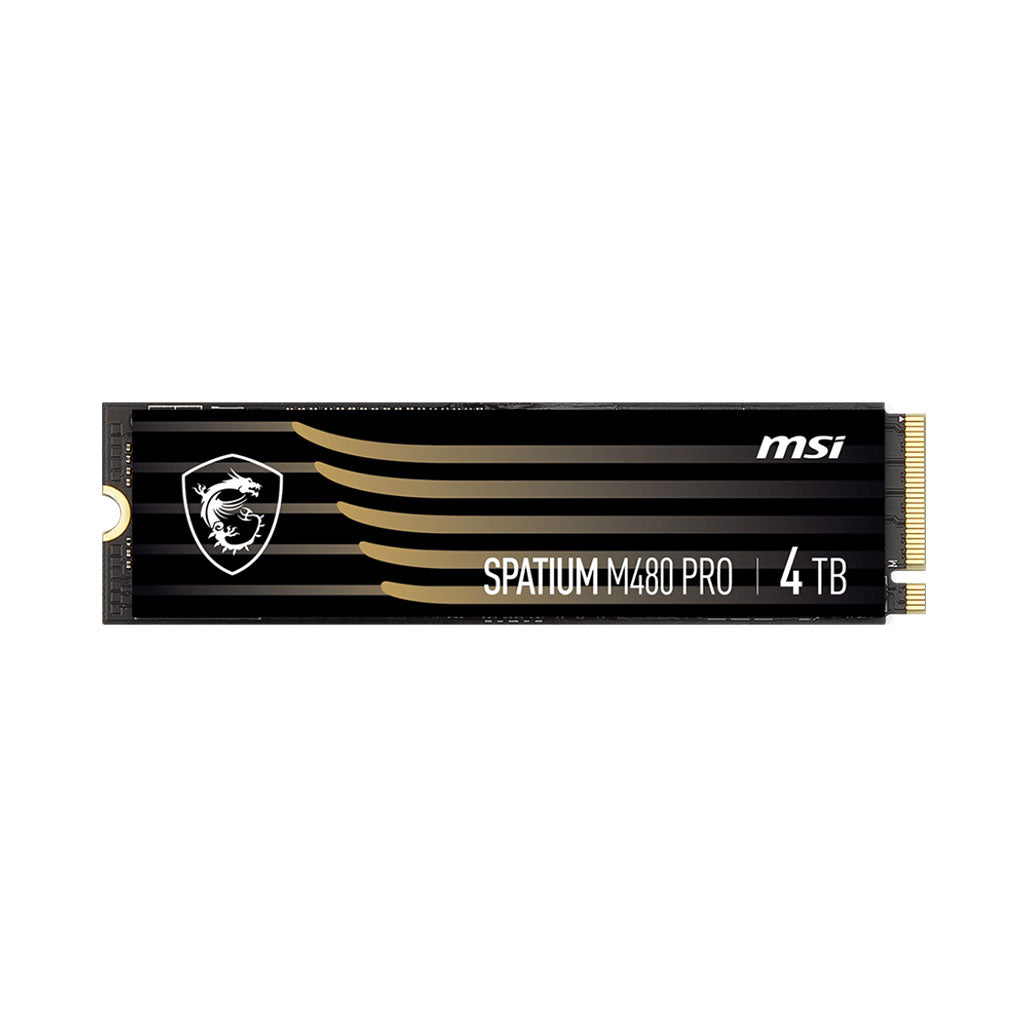

MSI Spatium M480 PRO 4TB PCIe 4.0 NVMe M.2 SSD - High-Speed Storage with Advanced Aluminum Heatsink

The MSI Spatium M480 PRO 4TB PCIe 4.0 NVMe M.2 SSD provides exceptional performance and speed for demanding computing tasks. Designed for PCIe Gen4, this SSD achieves read speeds up to 7400 MB/s and write speeds up to 7000 MB/s, ensuring rapid data transfer and significantly reduced load times for games and applications. The large 4TB capacity offers ample space for extensive storage needs while maintaining a compact form factor.

Equipped with a high-efficiency bronze-colored aluminum heatsink, the Spatium M480 PRO keeps the SSD cool under heavy workloads, allowing it to maintain optimal performance. Utilizing the latest 3D NAND flash technology, this SSD is built for endurance and longevity, with advanced data security and error-correction features to protect your data. The drive is designed to meet the demands of high-performance computing and gaming, ensuring minimal latency and fast access to your files and applications.

Key Features:

• Blazing-Fast Speed: Sequential read speeds of up to 7400 MB/s and write speeds of up to 7000 MB/s for quick data transfer and reduced load times.
• Efficient Cooling: Features a bronze-colored aluminum heatsink with a stacked fin design for effective heat dissipation and sustained high performance.
• High Capacity: 4TB storage capacity with advanced 3D NAND flash technology, providing dense storage in a compact design.
• Robust Data Protection: Equipped with TRIM, SMART, LDPC ECC, and AES256/Pyrite encryption for reliable data security and durability.
• Power Efficiency: Maximum operating power of 11.3W and idle power of 50mW, designed to be energy efficient.

Full Specifications:

• Model Name: SPATIUM M480 PRO PCIe 4.0 NVMe M.2 HS
• Capacity: 1TB / 2TB / 4TB
• Controller: PHISON E18
• Flash Memory: 3D NAND
• DRAM Cache: 1GB DDR4 (1TB model), 2GB DDR4 (2TB and 4TB models)
• Form Factor: M.2 2280
• Interface: PCIe Gen4 x4, NVMe 1.4
• Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1
• Dimensions: 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
• Sequential Read Up To (MB/S): 7400
• Sequential Write Up To (MB/S): 6000 (1TB model), 7000 (2TB and 4TB models)
• Random Read 4KB Up To (IOPS): 750,000 (1TB model), 1,000,000 (2TB and 4TB models)
• Random Write 4KB Up To (IOPS): 1,000,000
• Maximum Operating Power (W): 9.5 (1TB model), 10.5 (2TB model), 11.3 (4TB model)
• Idle Power PS3 (mW): 40 (1TB model), 45 (2TB model), 50 (4TB model)
• Low Power L1.2 (mW): 3
• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C
• Terabytes Written (TBW): 700 (1TB model), 1400 (2TB model), 3000 (4TB model)
• Mean Time Between Failure (MTBF): Up to 1,600,000 Hours
• Advanced Features:
  • TRIM: Performance optimization (OS support required)
  • SMART: Self-Monitoring, Analysis, and Reporting Technology
  • LDPC ECC: Low-Density Parity Check Error Correction Algorithm
  • End-to-End Data Path Protection
  • APST: Autonomous Power State Transition
  • AES256/Pyrite: Encryption and data security

Conclusion:

The MSI Spatium M480 PRO 4TB PCIe 4.0 NVMe M.2 SSD is engineered to provide high-speed performance and large storage capacity for demanding applications. With advanced cooling, robust data protection, and efficient power usage, this SSD meets the high-performance needs of gamers and professionals alike.
