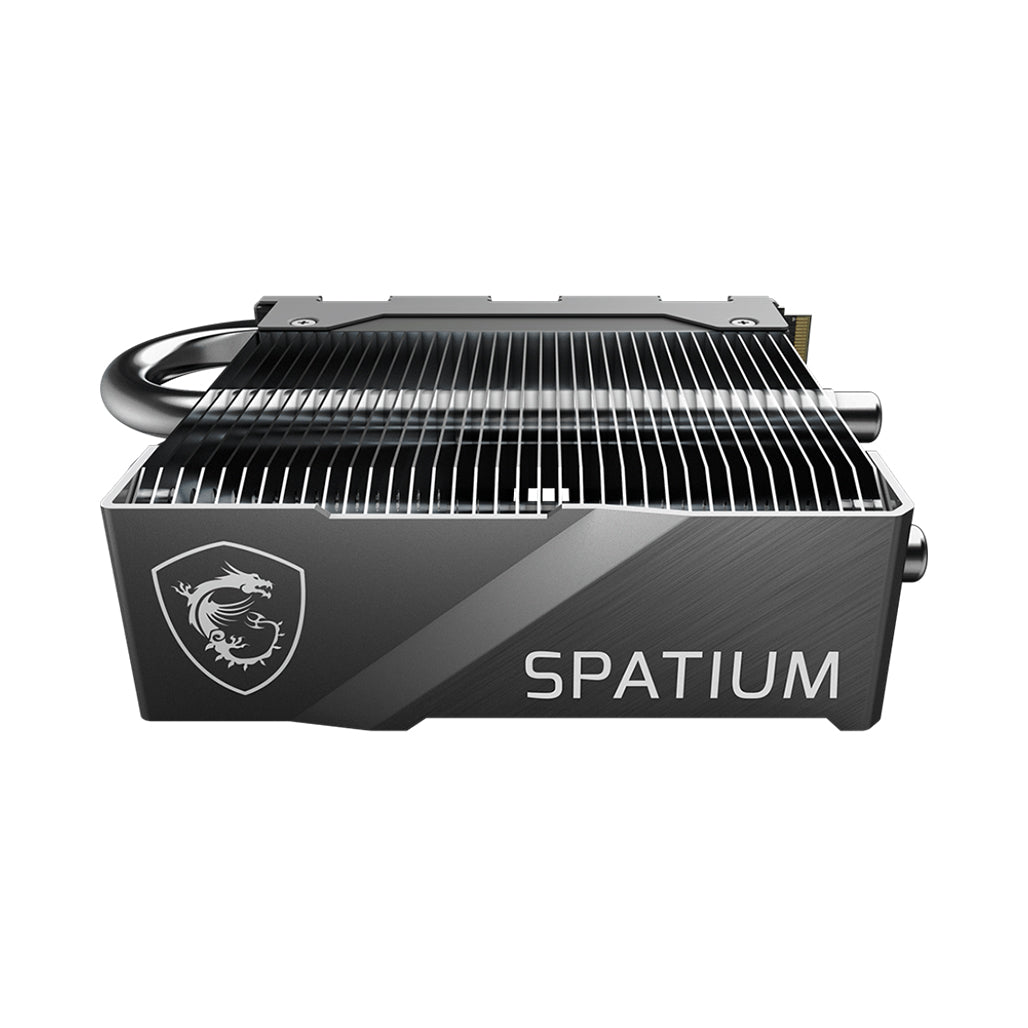

MSI Spatium M570 Pro Frozr 2TB PCIe 5.0 NVMe M.2 SSD - Extreme Performance with Advanced Cooling

Unlock the full potential of your system with the MSI Spatium M570 Pro Frozr 2TB PCIe 5.0 NVMe M.2 SSD. Engineered for unparalleled speed, this SSD integrates cutting-edge PCIe Gen 5 technology and high-density 3D NAND flash to deliver read speeds up to 12,400 MB/s and write speeds up to 11,800 MB/s. Achieving up to 1.8 times faster performance than previous generation SSDs, the M570 Pro Frozr ensures rapid data transfer and significantly improved load times for demanding applications and games.

The M570 Pro Frozr features a sophisticated thermal management solution with a passive heatsink designed to maintain peak performance. Its advanced cooling system includes triple core pipes and an optimized heatsink with a well-pathed design to reduce temperatures by up to 20°C. This allows the SSD to operate efficiently even under heavy loads, ensuring consistent performance without throttling.

Key Features:

• Extreme Speed: Sequential read speeds up to 12,400 MB/s and write speeds up to 11,800 MB/s for ultra-fast data transfer and minimized load times.
• Advanced Cooling: Equipped with a passive FROZR heatsink featuring triple core pipes, an optimized heatsink design, and elevated aluminum fins for effective heat dissipation.
• High Capacity: 2TB of storage space utilizing state-of-the-art 3D NAND flash technology for substantial data storage in a compact form.
• Robust Data Protection: Features include TRIM for performance optimization, S.M.A.R.T for drive health monitoring, LDPC ECC for error correction, End-to-End Data Path Protection, and AES 256-bit encryption for data security.
• Enhanced System Performance: DirectStorage support accelerates loading times and high-resolution rendering by enabling hardware decompression directly from NVMe drives to GPUs, freeing CPU resources for multitasking.

Full Specifications:

• Model Name: SPATIUM M570 PRO PCIe 5.0 NVMe M.2 FROZR
• Capacity: 2TB
• Controller: PHISON E26
• Flash Memory: 3D NAND
• DRAM Cache: 4GB LPDDR4
• Form Factor: M.2 2280
• Interface: PCIe Gen5 x4, NVMe 2.0
• Compatibility: PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
• Dimensions:
  • 94.80mm (L) x 24.00mm (W) x 71.65mm (H)
  • Recommended installation space: up to 22 x 110 mm available
• Sequential Read Up To (MB/S): 12,400
• Sequential Write Up To (MB/S): 11,800
• Maximum Operating Power (W): 11.5
• Idle Power PS3 (mW): 144
• Low Power L1.2 (mW): 85
• Operating Temperatures: 0°C – 70°C
• Storage Temperatures: -40°C – 85°C
• Terabytes Written (TBW): 1400
• Mean Time Between Failure (MTBF): Up to 1,600,000 Hours
• Limited Warranty: 5 Years, or the coverage for the maximum TBW as stated, whichever comes first
• Advanced Features:
  • TRIM: Performance Optimization (OS Support required)
  • SMART: Self-Monitoring, Analysis, and Reporting Technology
  • LDPC ECC: Low-Density Parity Check Error Correction Algorithm
  • End-to-End Data Path Protection
  • APST: Autonomous Power State Transition
  • AES256/OPAL 2.0: Encryption and Data Security

Conclusion:

The MSI Spatium M570 Pro Frozr 2TB PCIe 5.0 NVMe M.2 SSD represents the pinnacle of storage technology with its impressive speed, advanced cooling, and comprehensive data protection features. Designed for high-performance computing and extreme gaming, this SSD ensures maximum efficiency and reliability while maintaining optimal temperatures under demanding conditions.
