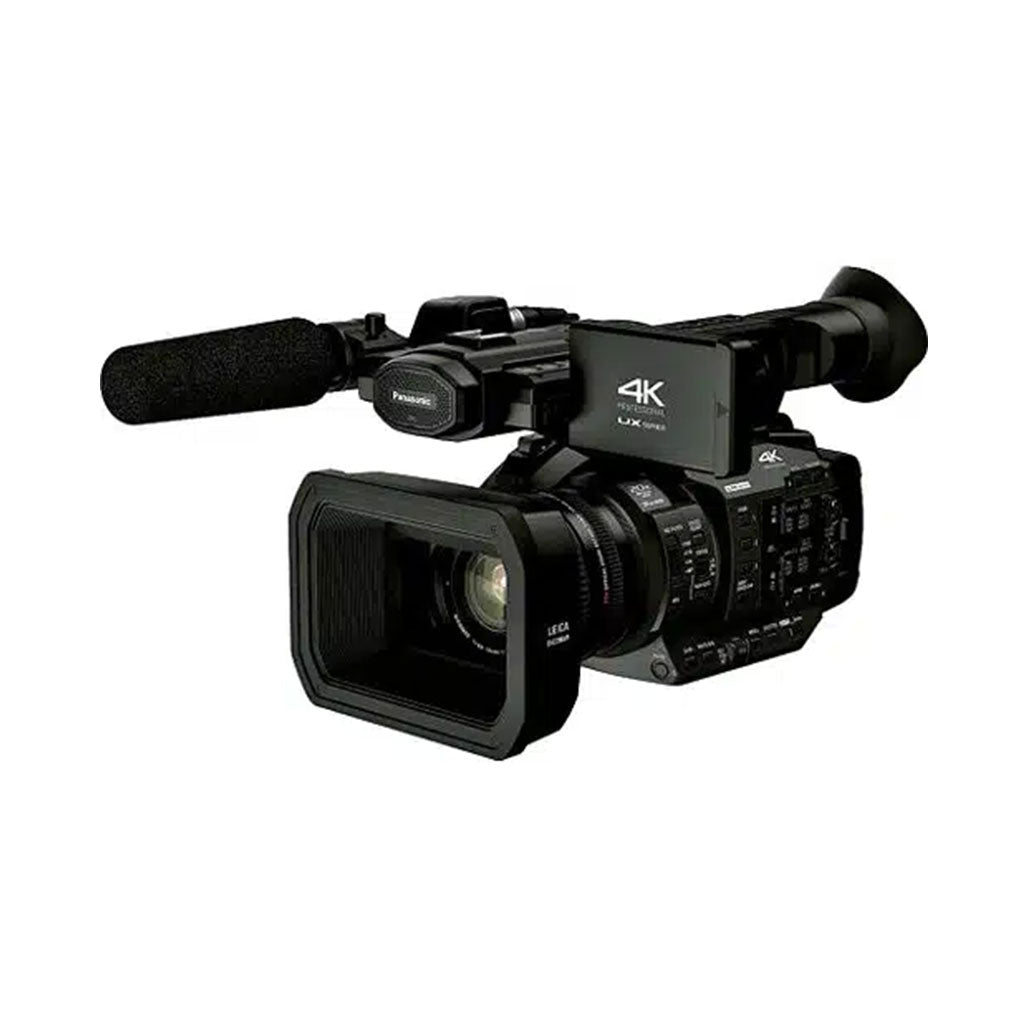

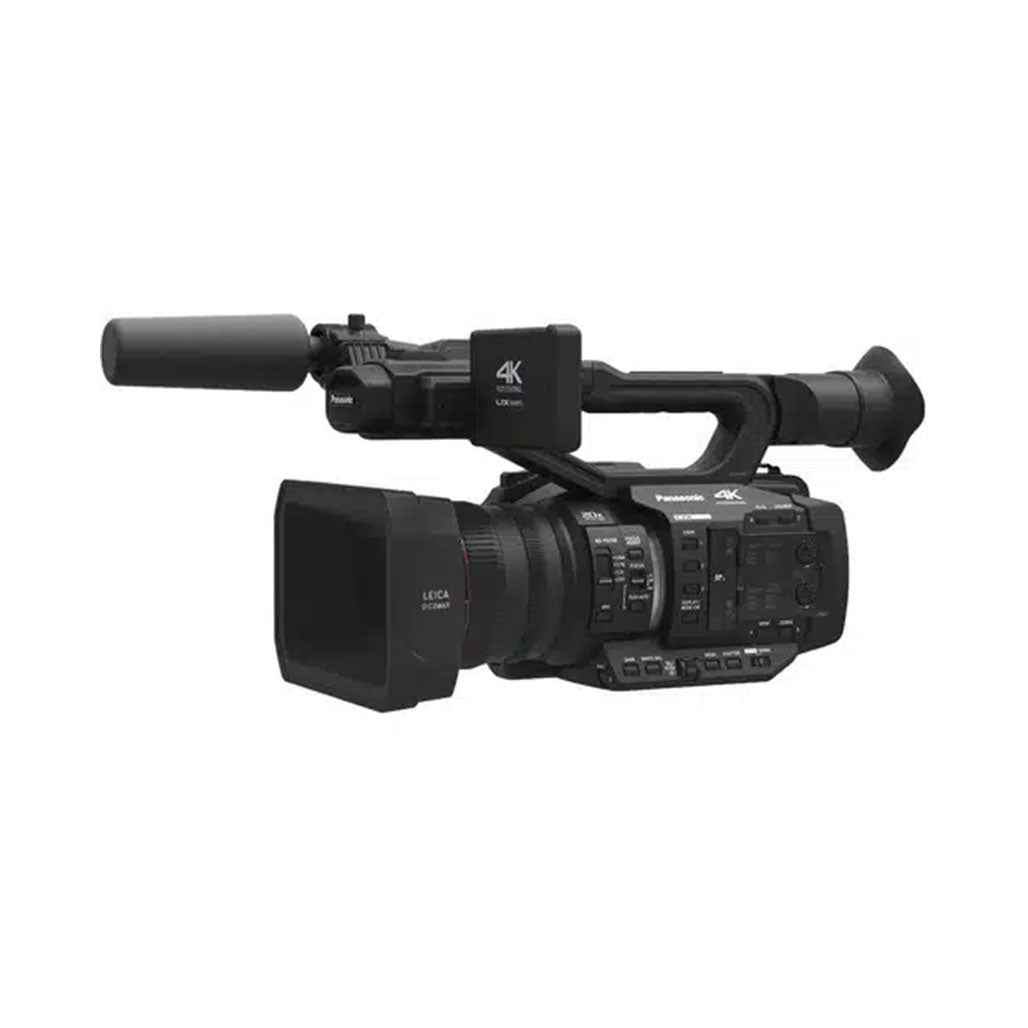

The Panasonic AG-UX180 4K Premium Professional Camcorder is engineered for high-caliber video production, providing exceptional quality in various formats. This advanced camcorder records in DCI 4K at 24p, UHD 4K up to 60p, and FHD up to 120p, accommodating diverse broadcast and cinematic needs. With a switchable 59.94 and 50 Hz frame format, the AG-UX180 seamlessly integrates into both NTSC and PAL systems, ensuring global compatibility.
The camcorder features an integrated Leica Dicomar 20x optical zoom lens and a 1” type sensor, supporting precise and vibrant recording in MOV, MP4, and AVCHD formats. The 16-axis color correction and advanced manual controls enhance image quality and flexibility, while dual SD card slots enable simultaneous, relay, and dual-codec recording options. With a high-resolution OLED touchscreen and full-color LCoS viewfinder, the AG-UX180 offers superior monitoring and control, making it an ideal choice for professional video production.
Key Features:
- High-Resolution Recording: Records in DCI 4K at 24p, UHD 4K up to 60p, and FHD up to 120p, offering versatile recording options for various professional applications.
- Integrated Zoom Lens: Equipped with a Leica Dicomar 20x optical zoom lens, providing a 24-480mm equivalent zoom range with Optical Image Stabilization (OIS) and 5-Axis Hybrid stabilization for HD recording.
- Intelligent Zoom and Digital Zoom: Includes i.Zoom for extending zoom range to 30x in FHD, and digital zoom options up to 300x without affecting exposure.
- Manual Control Rings: Features mechanical rings for direct control of zoom, focus, and iris adjustments, allowing for precise manual operation.
- Advanced Autofocus: Offers high-speed focusing with customizable settings for AF speed, sensitivity, and area width, and manual focus assist features for accurate adjustments.
- 16-Axis Color Correction: Enables detailed color adjustment across 16 phases for precise color matching and creative image rendering.
- Professional AVCHD Recording: Utilizes the AVCHD format with PH mode for high-quality image recording and Linear PCM audio for superior sound.
- Dual-Slot SD Card System: Supports continuous, relay, and simultaneous recording with two SD cards, providing flexibility and data security.
- SMPTE Timecode: Built-in timecode generator for synchronization and recording consistency.
Specifications:
-
Recording Formats:
- DCI 4K (24p)
- UHD 4K (up to 60p)
- FHD (up to 120p)
- HD in AVCHD format
-
Lens:
- Leica Dicomar 20x optical zoom
- Focal Length: 24mm (wide end) to 480mm (35mm equivalent)
- Optical Image Stabilization (OIS)
- 5-Axis Hybrid stabilization in HD
-
Zoom Functions:
- i.Zoom: Up to 30x
- Digital Zoom: 2x, 5x, 10x
-
Manual Controls:
- Mechanical zoom, focus, and iris rings
-
Autofocus:
- Intelligent Auto Focus
- Customizable AF settings
- Focus Assist (Expand and Peaking)
- One-Push AF
- Manual Focus Assist
- Focus Transition
-
Color Correction:
- 16-Axis independent color correction
- Skin Detail adjustment
- Eight-mode gamma settings
-
Recording Modes:
- AVCHD PH Mode
- Linear PCM audio recording
- 59.94/50 Hz switchable
-
SD Card System:
- Dual slots
- Relay recording
- Simultaneous recording
-
Display:
- 3.5” OLED touchscreen
- 0.45” LCoS viewfinder (1,770,000 dots)
-
Audio:
- XLR inputs with 48V phantom power
- Internal stereo microphone
-
Other Features:
- SMPTE timecode recording
- Pre-Rec, Interval Rec, Rec Check, and Last Clip Delete functions
- Scene File / User File settings
- Simplified waveform and vectorscope
- Three user buttons
- Tally lamps
- USB 2.0 and remote terminal
Conclusion:
The Panasonic AG-UX180 4K Premium Professional Camcorder delivers a comprehensive suite of features for high-quality video production. Its 4K recording capabilities, advanced zoom functions, and extensive manual controls cater to professionals seeking flexibility and precision. With its robust build, dual SD card recording system, and exceptional color correction options, the AG-UX180 is well-suited for a variety of broadcasting and cinematic applications. Whether capturing high-definition video or managing complex shooting scenarios, this camcorder ensures reliable performance and superior image quality.
