Pioneer DM-50D-BT - 5-Inch Desktop Monitor System with Bluetooth® Functionality

The Pioneer DM-50D-BT is a high-performance 5-inch desktop monitor system that combines robust audio features with modern Bluetooth® connectivity. Designed for both professional and casual use, this monitor system delivers powerful, punchy bass and crystal-clear sound across various applications. With its advanced Class D amplifier and precise DSP settings, the DM-50D-BT adapts seamlessly between DJ and Production modes, ensuring optimal sound quality tailored to your needs.

The DM-50D-BT features enhanced audio technologies such as DECO convex diffusers and time alignment, which contribute to a wide sweet spot and accurate frequency reproduction. Whether you’re mixing tracks or creating music, these monitors provide a balanced audio experience with minimal distortion. The inclusion of Bluetooth® functionality allows for easy wireless audio streaming, making the DM-50D-BT a versatile addition to any setup.

Key Features

• Class D Amplifier: Each monitor in the DM-50D-BT series is powered by a Class D amplifier, equipped with 96kHz sampling DSP. This technology ensures that both bass and treble are delivered with clarity and balance, even at high volumes.

• DECO Convex Diffusers: Updated from the DM-40 model, the DECO convex diffusers enhance the dispersion of high frequencies, providing a wide and immersive soundstage. This design allows for clear and consistent audio across the entire room.

• Time Alignment: The precise alignment of the woofer and tweeter ensures that sound frequencies are accurately represented, resulting in clear and cohesive audio.

• Grooved Ducts: The grooved design of the ducts reduces air friction, producing tight and punchy bass. The curved front edges of the enclosure minimize resonance and maintain clean audio performance, even when positioned against walls.

• 5-Inch Woofer: The 5-inch fiberglass cone woofer delivers powerful sound with minimal distortion, even at high volumes, making it ideal for both music production and playback.

• 2-Way Sound Mode: The DM-50D-BT monitors feature a switchable 2-way sound mode, allowing users to select between DJ mode and Production mode. Each mode is optimized with specific DSP settings to enhance performance based on the task at hand.

• Bluetooth® Connectivity: Integrated Bluetooth® technology enables easy pairing with smartphones, tablets, or PCs/Macs, allowing for wireless streaming of high-quality audio.

• Flexible Connectivity: The monitors come with RCA, mini jack, and TRS input terminals, providing compatibility with various audio equipment. A front-panel headphone socket and level knob add to the system’s user-friendliness.

Specifications

• Type: 2-way bass reflex, active monitor speakers
• Tweeter: 3/4” (19 mm) soft dome
• Woofer: 5" (127 mm) fiberglass cones
• Dimensions:
  • Left Channel: 175 x 262 x 257 mm (6.89” x 10.32” x 10.12”)
  • Right Channel: 175 x 262 x 247 mm (6.89” x 10.32” x 9.72”)
• Weight:
  • Left Channel: 3.9 kg (8.6 lbs.)
  • Right Channel: 3.5 kg (7.7 lbs.)
• Amplifier Output:
  • Class D with DSP
  • Lch: 25 W / 4 Ω
  • Rch: 25 W / 4 Ω
• Impedance: 10 kΩ
• Power Supply: AC 100-240 V, 50 Hz / 60 Hz
• Enclosure: Bass reflex
• Enclosure Material: MDF vinyl laminate
• Power Consumption: 25 W
  • Standby mode: 0.3 W or less

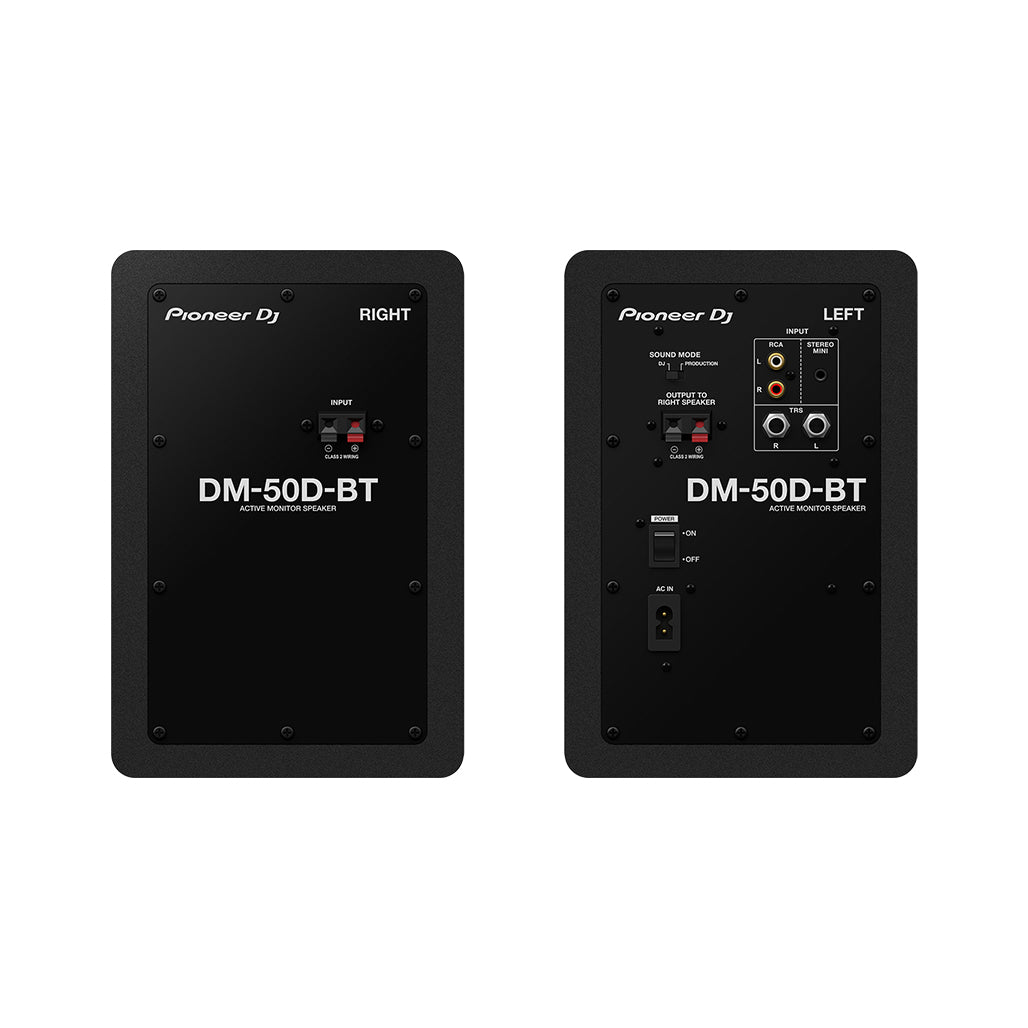

• Terminals:
  • Inputs:
    • 1/4” TRS jack x 1 (balanced input)
    • RCA pin jack x 1 (unbalanced input)
    • 3.5 mm stereo mini jack x 1 (unbalanced input)
  • Outputs:
    • 3.5 mm stereo mini jack x 1

Conclusion

The Pioneer DM-50D-BT offers a blend of advanced audio technology and modern connectivity features, making it a valuable asset for both professional and home audio setups. Its powerful 5-inch woofer and Class D amplifier ensure rich, balanced sound, while the Bluetooth® functionality adds convenience for wireless streaming. With its robust construction and versatile connectivity options, the DM-50D-BT delivers exceptional performance for a variety of audio applications.
