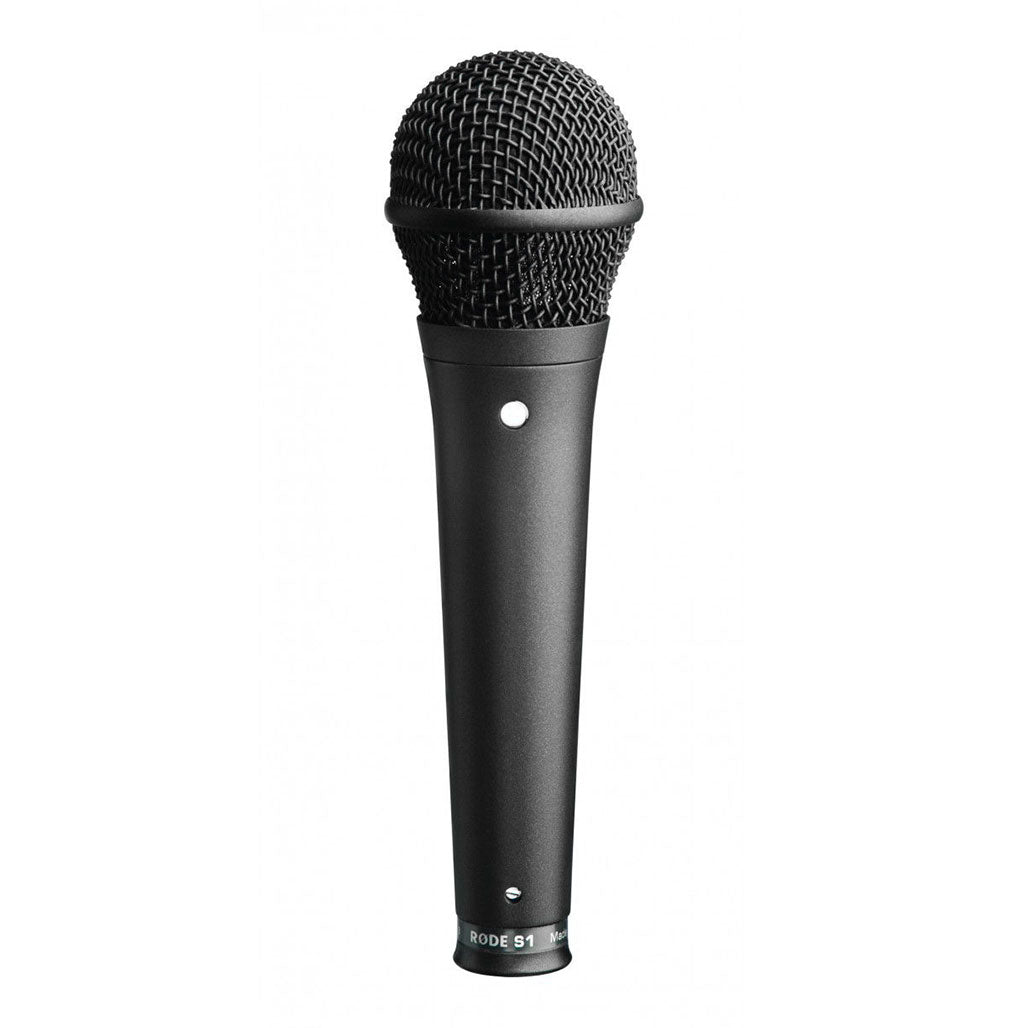

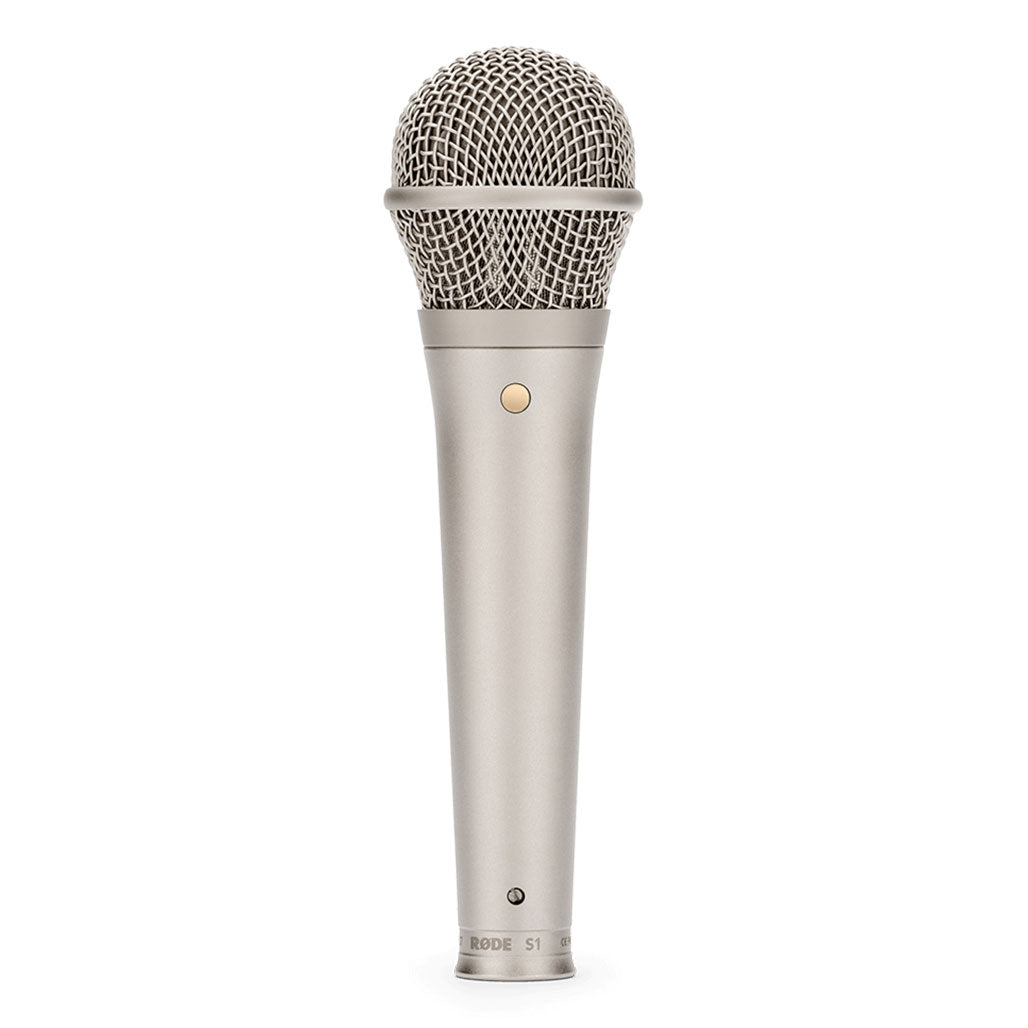

Rode S1 Supercardioid Condenser Microphone – Live Vocal Studio Quality

The Rode S1 is a high-performance live vocal condenser microphone designed to deliver exceptional studio-quality audio for stage applications. Featuring a ¾-inch true-condenser capsule and a supercardioid polar pattern, the S1 excels in capturing clear and precise vocal performances while minimizing unwanted background noise and handling noise. Its robust build includes internal shock mounting and an integrated high-pass filter, ensuring reliable and professional audio capture in dynamic live environments.

Key Features:

• Studio-Quality Audio: Equipped with a ¾-inch true-condenser capsule for high-fidelity sound reproduction.
• Supercardioid Polar Pattern: Captures sound from the front and sides while rejecting noise from the rear, providing excellent isolation.
• Built-in Shock Mounting: Reduces vibrations and handling noise for clearer audio.
• Integrated High-Pass Filter: Eliminates low-frequency noise and rumble for cleaner vocal recording.
• Durable Construction: Designed for live stage use with a robust and reliable build.

Acoustic & Electrical Specifications:

• Acoustic Principle: Pressure Gradient
• Active Electronics: JFET impedance converter with bipolar output buffer
• Capsule: 0.75 inches
• Polar Pattern: Supercardioid (picks up from the front and sides, rejects 150° to the rear)
• Frequency Range: 20Hz – 20kHz
• Output Impedance: 50Ω
• Maximum SPL: 151dB SPL (@ 1kHz, 1% THD into 1KΩ load)
• Maximum Output Level: 12.5mV
• Sensitivity: -46.0dB re 1 Volt/Pascal (5.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise (A-weighted): 18dB-A
• Power Options: +48V phantom power required from mixer or interface
• Output Connection: XLR

Mechanical Specifications:

• Weight: 308 g
• Dimensions: 183 (H) x 52 (W) x 52 (D) mm

Box Contains:

• 1 x Rode S1 Supercardioid Condenser Microphone

Conclusion:

The Rode S1 offers a superior audio experience for live vocal performances, combining advanced technology with a durable design. Its supercardioid pattern, high-pass filter, and internal shock mounting ensure clear, professional sound quality while minimizing background noise. Ideal for stage use, the S1 stands out for its exceptional performance and reliability.
