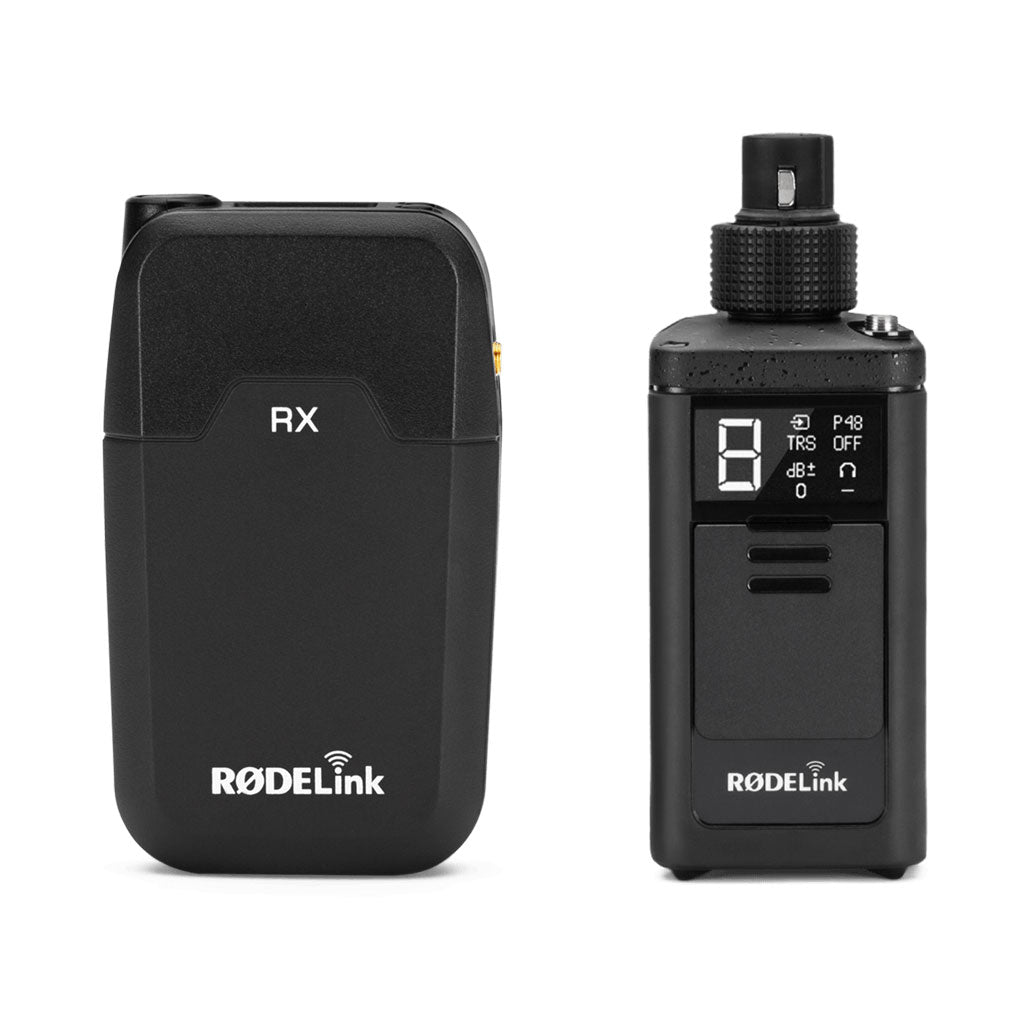

RodeLink Newsshooter Kit Plug-in XLR Digital Wireless System

The RodeLink Newsshooter Kit is a cutting-edge digital wireless system designed to streamline your video production workflow with XLR microphones. Featuring Series II 2.4GHz digital transmission with 128-bit encryption, this system ensures a reliable and secure signal over a range of up to 100 meters* (over 100 yards). The kit includes both a camera-mounted receiver and an XLR transmitter, providing a complete solution for wireless audio capture.

The RX-CAM receiver boasts an OLED display that offers real-time information on signal level, battery status, mute, and channel selection. It can be mounted on a standard camera shoe mount, 3/8" thread, or belt clip, with the shoe mount adjustable for added flexibility. The TX-XLR transmitter features a locking XLR input and a headphone output, and it connects effortlessly to handheld and shotgun microphones via a 3.5mm input.

This versatile system supports multiple power options and ensures easy operation with one-touch pairing and five-level gain control.

Key Features

• Series II 2.4GHz Digital Transmission: Provides secure and stable wireless performance.
• 128-bit Encryption: Ensures secure signal transmission.
• Up to 100 Metres Range: Offers flexibility in various shooting environments.
• OLED Display on Receiver: Displays level, battery status, mute, and channel information.
• Versatile Mounting Options: Camera shoe mount, 3/8" thread, and belt-clip options.
• Locking XLR Input and Headphone Output on Transmitter: Suitable for various microphone types.
• Multiple Power Options: Supports AA batteries, NP-F batteries, or USB power.

Specifications

• Transmission Type: 2.4GHz Fixed Frequency Agile System
• System Dynamic Range: 112dB
• Range (Distance): Up to 100m
• Frequency Range: 35Hz - 22kHz
• Maximum Output Level: 1v Rms (2.8v P-p)
• Maximum Input Signal Level: 1v Rms (2.8v P-p)
• Maximum Latency: 4ms
• Power Source:
  • RX-CAM: 2 x AA Battery or MicroUSB
  • TX-XLR: 2 x AA Battery, Sony NP-F Battery, or MicroUSB
• Antenna: Internal
• Output Connection:
  • RX-CAM: 3.5mm TRS Locking Jack Socket - Dual Mono
• Input Connection:
  • TX-XLR: XLR with Locking Collar, 3.5mm TRS Locking Jack Socket
• Output Impedance:
  • RX-CAM: 300Ω
• Input Impedance:
  • TX-XLR: 1kΩ (XLR), 10kΩ (3.5mm)
• Dimensions:
  • RX-CAM: 111 mm (L) x 65 mm (W) x 52 mm (H)
  • TX-XLR: 120 mm (L) x 45 mm (W) x 45 mm (H)
• Weight:
  • RX-CAM: 190g
  • TX-XLR: 222g

What's in the Box

• 1 x RodeLink TX-XLR Transmitter
• 1 x RX-CAM Receiver

Final Conclusion

The RodeLink Newsshooter Kit offers a robust and versatile solution for wireless audio capture with XLR microphones. Its advanced digital transmission technology, secure encryption, and extensive range make it an ideal choice for professional video production. With flexible mounting options and multiple power sources, this system provides both reliability and convenience in a compact design.
