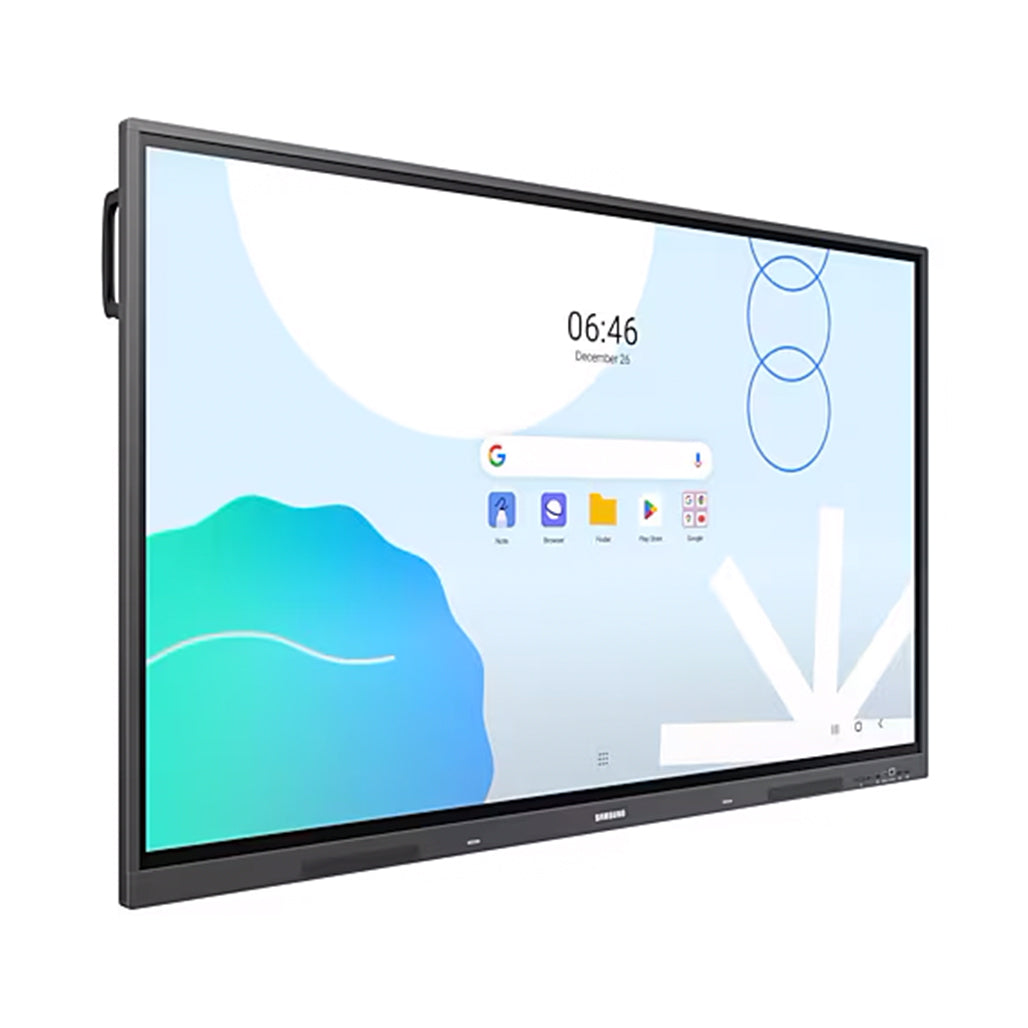

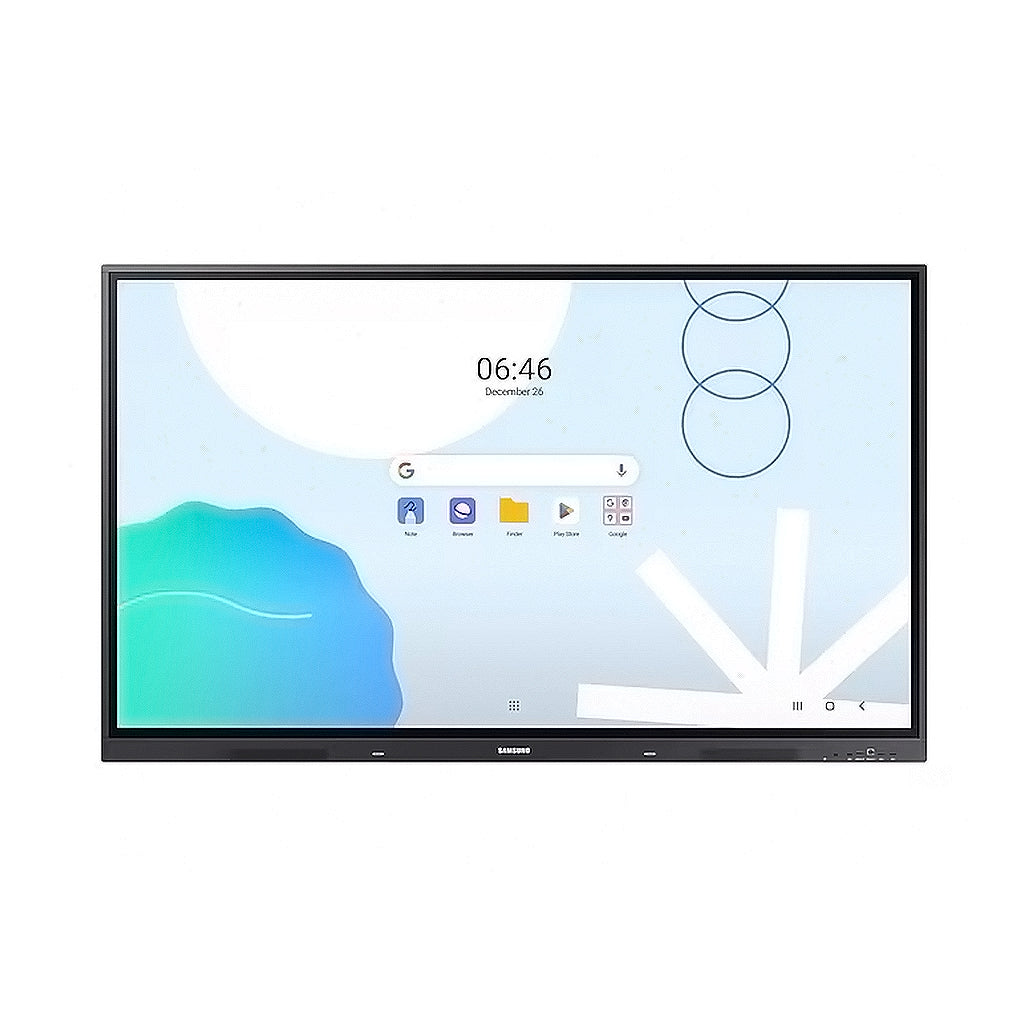

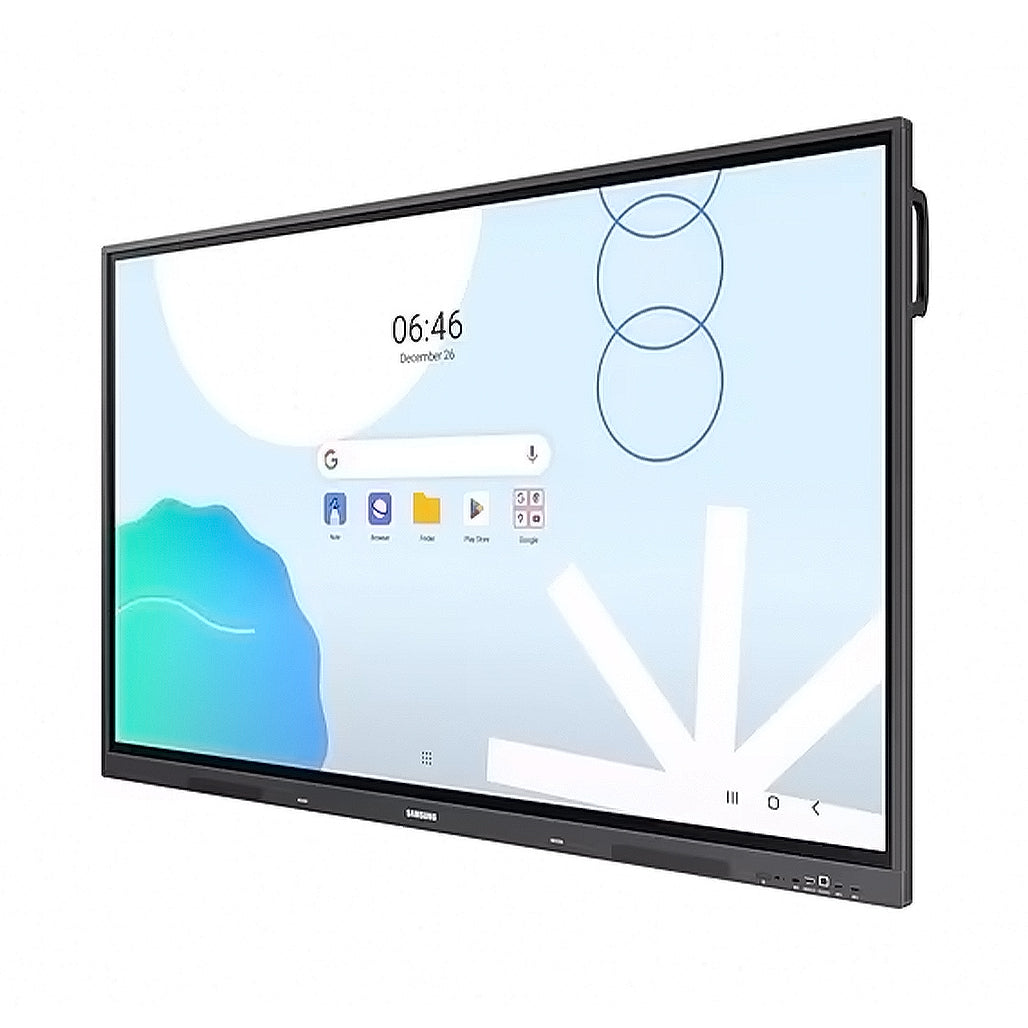

Samsung 86" WAD Series Interactive E-Board – Android Powered, Multi-Touch Display for Classrooms

The Samsung 86" WAD Series Interactive E-Board is designed to transform classroom learning through its powerful Android-powered interface and advanced multi-touch capabilities. Equipped with EDLA certification, this interactive display provides effortless access to educational apps like Google Classroom, YouTube, and Chrome, ensuring smooth communication between teachers and students. The intuitive interface and customizable home screen allow educators to tailor the display for various teaching needs, offering a familiar experience with enhanced flexibility.

This interactive e-board enables real-time collaboration with its multi-touch functionality, supporting up to 40 touchpoints, allowing multiple users to engage simultaneously. The WAD Series offers superior multitasking through multi-window and split-screen modes, enabling the display of up to nine screens at once. Additionally, its 3-in-1 USB-C port streamlines connectivity, providing touch control, screen mirroring, and device charging in one convenient solution. Designed with classroom durability in mind, the WAD Series features an anti-glare panel, low blue light, and flicker-free technology to minimize eye strain during prolonged use.

Key Features:

• Powered by Android OS: Offers a familiar and intuitive interface with access to apps via Google Play, including YouTube and Chrome, for a seamless educational experience.

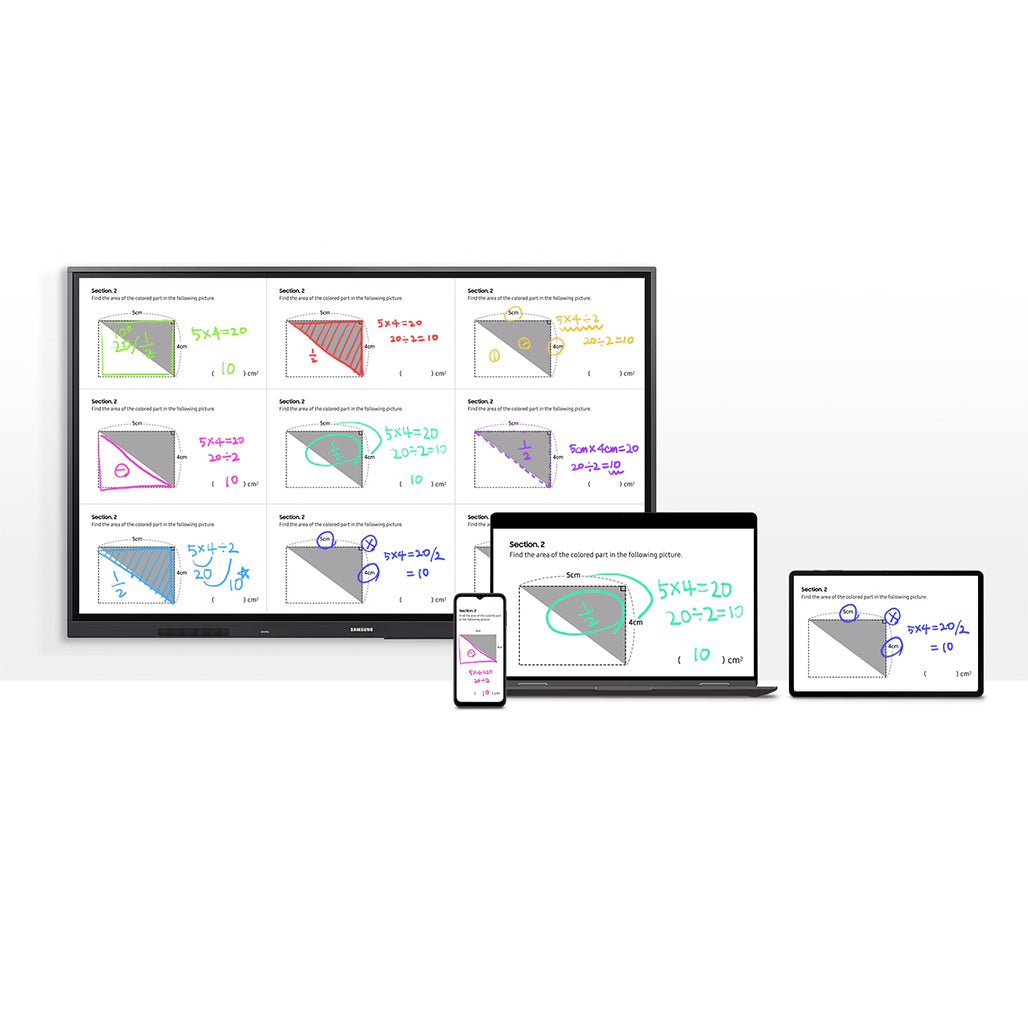

• Multi-Screen and Split-Screen Mode: Supports real-time display of up to nine screens, perfect for multitasking and engaging multiple students simultaneously.
• EDLA Certified: Ensures full integration with Google services such as Google Classroom, boosting efficiency and communication in educational settings.
• Multi-Touch Capability: Provides up to 40 touchpoints, allowing multiple users to interact simultaneously, making it ideal for group learning and collaboration.
• Dual Pen Feature: The dual-sided pen allows users to switch between two writing tools without changing settings, offering uninterrupted functionality.
• 3-in-1 USB-C Connectivity: Combines screen mirroring, touch control, and device charging (up to 65W) into a single port for simplified connectivity.
• Durable Design: Built to withstand various environments, featuring surge protection, anti-humidity treatment, and an anti-glare panel for optimal performance in any setting.

Specifications:

Display

• Diagonal Size: 86"
• Panel Type: IPS
• Resolution: 3,840 x 2,160
• Pixel Pitch (HxV): 429.6(H) × 429.6(V)
• Brightness (Typ): 400 nit
• Contrast Ratio: 1,200:1
• Viewing Angle (Horizontal/Vertical): 178°/178°
• Response Time: 8ms
• Color Gamut: 72%
• Glass Haze: 25%
• H-Scanning Frequency: 135 kHz
• Maximum Pixel Frequency: 78 MHz
• V-Scanning Frequency: 60Hz
• Operation Time Support: 12/7

Connectivity

• HDMI In: 3
• Version of HDMI: 2.0
• Version of HDCP: 2.1
• USB Ports: 5 (2.0 x 1, 3.0 x 4)
• IR In: Yes
• Audio In: Stereo Mini Jack
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• RS232 In/Out: Yes
• RJ45 In/Out: Yes
• WiFi: Yes
• Bluetooth: Yes

Power

• Power Supply: AC100-240V 50/60Hz
• Power Consumption (On Mode): 486W
• Power Consumption (Sleep Mode): 0.5W

Dimensions

• Set Dimension (WxHxD): 1957 x 1160 x 99 mm
• Package Dimension (WxHxD): 2110 x 1283 x 225 mm

Weight

• Set Weight: 56.5 kg
• Package Weight: 74.3 kg

Operation Conditions

• Temperature: 0°C ~ 40°C
• Humidity: 10% ~ 90%

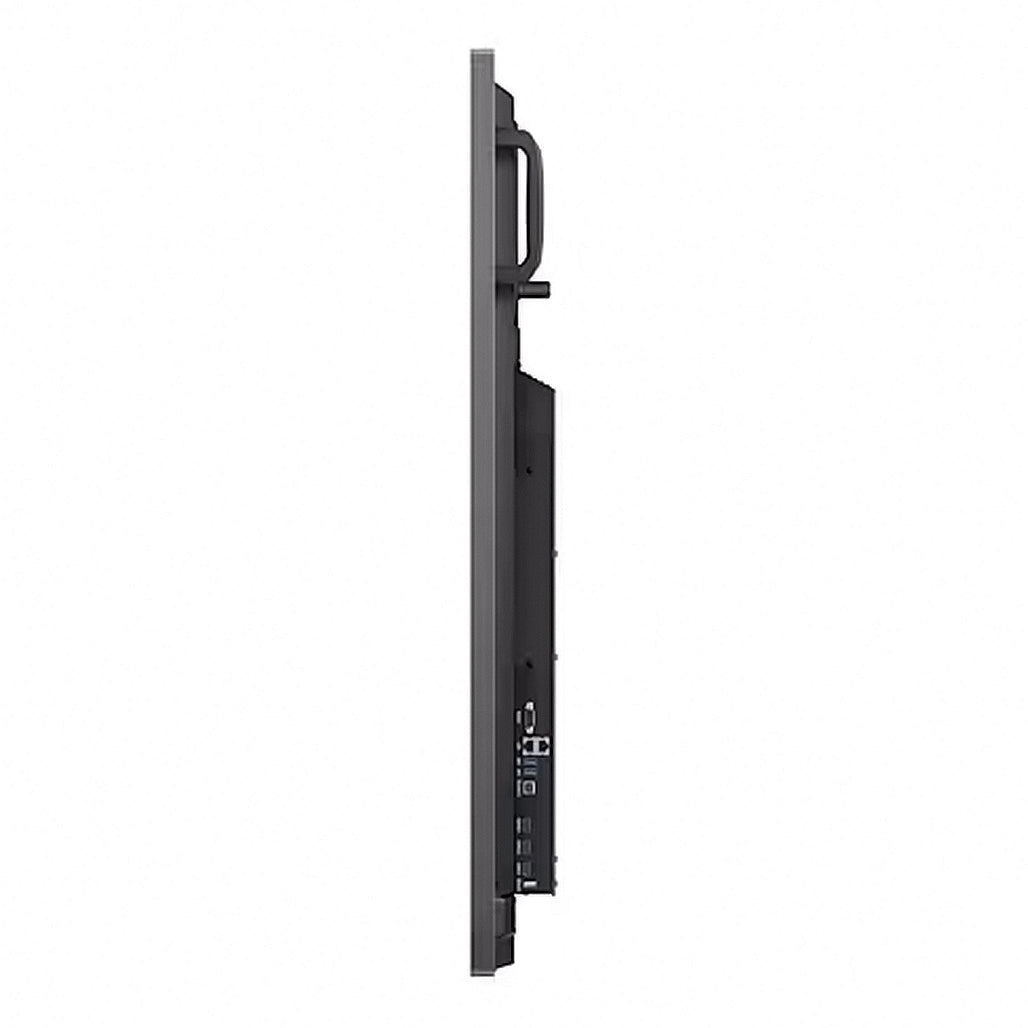

Mechanical Specifications

• VESA Mount: 800 x 600 mm
• Bezel Width: 16.4 mm (U), 16.4 mm (L/R), 44.9 mm (B)
• Bezel Color: Space Gray
• Frame Material: Non-Glossy

Optional Feature

• Touch Technology: IR Touch, supports up to 40 touchpoints
• SoC OS Version: Android-13
• Flash Memory Size: 64GB

Touch Features

• Multi-Touch Support: 40 touchpoints
• Dual Pen Functionality: Switch between two writing tools seamlessly

Conclusion:
The Samsung 86" WAD Series Interactive E-Board is a cutting-edge tool for modern classrooms, offering advanced multitasking, multi-touch collaboration, and seamless connectivity. With its Android-powered interface and durable design, it ensures an engaging and long-lasting learning environment. Whether through its multiple display modes, dual pen functionality, or real-time device sharing, this e-board empowers educators to deliver dynamic, interactive lessons across a variety of educational settings.
