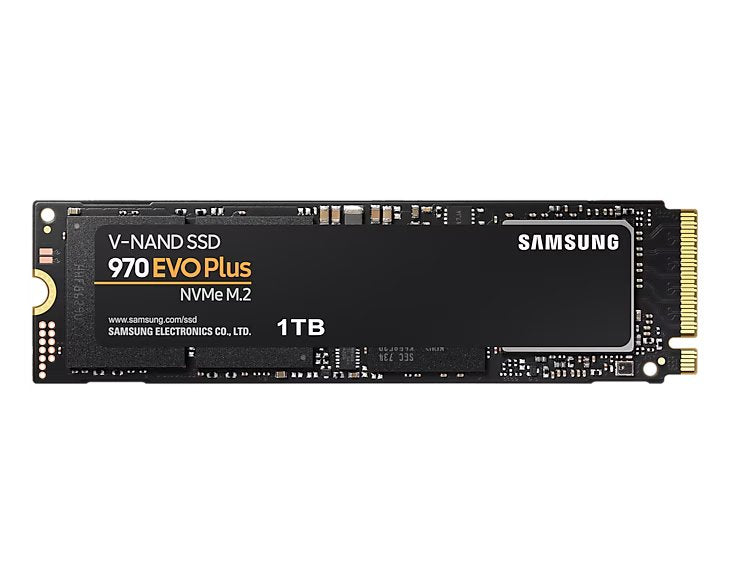

Samsung 970 Evo Plus 1TB NVMe M.2 SSD - High-Performance PCIe Gen 3.0 Solid State Drive

The Samsung 970 Evo Plus 1TB NVMe M.2 SSD stands out as a top-tier storage solution for high-performance computing. Designed for clients needing superior speed and reliability, this SSD leverages cutting-edge NVMe technology to deliver outstanding read and write speeds, making it ideal for both professional and personal use.

Featuring sequential read speeds up to 3,500 MB/s and sequential write speeds up to 3,300 MB/s, the 970 Evo Plus ensures rapid data transfer and quick access times. Its advanced Samsung Phoenix Controller and 1GB DDR4 cache memory enable impressive performance, while its support for AES 256-bit encryption provides enhanced data security. With its compact M.2 2280 form factor and compatibility with PCIe Gen 3.0 x 4, this SSD integrates seamlessly into modern systems, enhancing overall computing efficiency.

Key Features:

• High-Speed Performance: Achieve remarkable performance with sequential read speeds up to 3,500 MB/s and write speeds up to 3,300 MB/s. This enables quick data transfers and efficient system operations.
• Advanced Technology: Equipped with Samsung’s Phoenix Controller and 1GB DDR4 cache memory, the 970 Evo Plus delivers high-speed data processing and reliability.
• Enhanced Data Security: AES 256-bit encryption is supported, providing robust security for sensitive data. The SSD also features automatic garbage collection to maintain performance over time.
• Compact and Compatible: The M.2 2280 form factor and PCIe Gen 3.0 x 4 interface ensure broad compatibility with modern PC systems, facilitating easy integration into desktops and laptops.
• Efficient Power Usage: Operating power consumption is optimized with average usage around 6 W and idle power consumption as low as 30 mW, ensuring efficient energy use.

Specifications:

• General Feature:

  • Application: Client PCs
  • Rated Capacity: 1,000 GB (1 GB = 1 Billion bytes by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications, or otherwise)
  • Form Factor: M.2 (2280)
  • Interface: PCIe Gen 3.0 x 4, NVMe 1.3
  • Dimension (WxHxD): 80.15 x 22.15 x 2.38 mm
  • Weight: Max 8.0 g
  • Storage Memory: Samsung V-NAND 3-bit MLC
  • Controller: Samsung Phoenix Controller
  • Cache Memory: Samsung 1GB Low Power DDR4 SDRAM

• Special Feature:

  • TRIM Support: Supported
  • S.M.A.R.T Support: Supported
  • GC (Garbage Collection): Auto Garbage Collection Algorithm
  • Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
  • WWN Support: Not supported
  • Device Sleep Mode Support: Yes

• Performance:

  • Sequential Read: Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
  • Sequential Write: Up to 3,300 MB/s * Performance may vary based on system hardware & configuration
  • Random Read (4KB, QD32): Up to 600,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4KB, QD32): Up to 550,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
  • Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration

• Environment:

  • Average Power Consumption (system level): Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
  • Power Consumption (Idle): Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
  • Allowable Voltage: 3.3 V ± 5%
  • Reliability (MTBF): 1.5 Million Hours
  • Operating Temperature: 0 - 70 ℃
  • Shock: 1,500 G & 0.5 ms (Half sine)

• Accessories:

  • Installation Kit: Not Available

• Software:

  • Management SW: Magician Software for SSD management

Conclusion:

The Samsung 970 Evo Plus 1TB NVMe M.2 SSD offers exceptional performance and reliability for demanding applications. Its high read and write speeds, combined with advanced data security features, make it a valuable upgrade for anyone looking to enhance their computing experience. The SSD's efficient power usage and compact design ensure compatibility with a wide range of systems, delivering both speed and efficiency in a robust package.
