Dimensions

Dimensions (W x H x D)

Approx. 128.9mm x 96.9mm x 80.8mm, Approx. 128.9mm x 96.9mm x 69.7mm (FROM GRIP TO MONITOR)

inches. DIMENSIONS (W x H x D)

Approx. 5 1/8 x 3 7/8 x 3 1/4 inches, Approx. 5 1/8 x 3 7/8 x 2 3/4 inches (FROM GRIP TO MONITOR)

Weight

With battery and memory Card included

Approx. 699 g

oz. With battery and memory card included

approx. 1 lb 8.7 oz

Body only

Approx. 614 g

oz Body only

approx. 1 lb 5.7 oz

Power Consumption

With Viewfinder

Still images: approx. 4.3W (with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: approx. 7.6W (with FE 28-70mm F3.5-5.6 OSS lens attached)

With LCD screen

Still images: approx. 3.3W (with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: approx. 7.3W (with FE 28-70mm F3.5-5.6 OSS lens attached)

Flash

Flash Modes

Flash off Autoflash Fill-flash Slow Sync. Rear Sync. Red-eye reduction (on/off selectable) Wireless *8  Hi-speed sync. *8  *8 With compatible external flash

Flash compensation

+/- 3.0 EV (switchable between 1/3 and 1/2 EV steps)

Control

Pre-flash TTL *7  *7 A flash cannot be used when [Shutter Type] is set to [Electronic Shutter].

External flash

Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adaptor for flash compatible with Auto-lock accessory shoe

FE Level Lock

Yes

Wireless Control

Yes (Light signal: Available with Fill-flash, Slow Sync., Hi-speed sync. / Radio signal: Available with Fill-flash, Rear Sync., Slow Sync., Hi-speed sync.)

SteadyShot INSIDE (image stabilization)

Type

Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)

COMPENSATION EFFECT (STILL IMAGES)

5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50mm F1.4 ZA lens mounted. Long exposure NR off.)

Mode

[Still images] On / Off, [Movie] Active / Standard / Off

Digital zoom

Smart zoom (Still images)

35mm full frame: M: approx. 1.5x, S: approx. 2x APS-C: M:approx. 1.3x, S: approx. 2x

Digital zoom (Still images)

35mm full frame: L: approx. 4x, M: approx. 6.1x, S: approx. 8x APS-C: L: approx. 4x, M:approx. 5.2x, S: approx. 8x

Digital Zoom (Movie)

35mm full frame: approx. 4x APS-C: approx. 4x

Clear Image Zoom

Still images

Approx. 2x

Movies

Approx. 1.5x (4K), Approx. 2x (HD)

Face Detection

Modes

Face Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority

Exposure control

EXPOSURE MODES

AUTO (iAuto) Programmed AE (P) Aperture priority (A) Shutter-speed priority (S) Manual (M) Movie (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) / Flexible Exp. Mode) Slow & Quick Motion (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) / Flexible Exp. Mode)

METERING SENSITIVITY

EV-3 to EV20 (at ISO100 equivalent with F2.0 lens attached)

Metering Type

1200-zone evaluative metering

Metering Sensor

Exmor R CMOS sensor

Modes

Multi-segment Center-weighted Spot (Standard / Large) Spot Entire Screen Avg. Highlight

Exposure Compensation

+/- 5.0EV (1/3 EV, 1/2 EV steps selectable) (with exposure compensation dial: +/- 3EV (1/3 EV steps))

Bracketing

Bracket: Cont., Bracket: Single, 3/5/9 frames selectable. (Ambient light, Flash light)

AE Lock

Locked when shutter button is pressed halfway. Available with AE lock button. (On/Off/Auto)

ISO Sensitivity (Recommended Exposure Index)

Still images: ISO 80-102400 (ISO numbers up from ISO 40 to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80-12800, selectable lower limit and upper limit), Movies: ISO 80-102400 equivalent (ISO numbers up to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80-12800, selectable lower limit and upper limit)

Anti-Flicker Shoot.

*5 Anti-flicker Shooting is not available when the [Shutter Type] setting is set to [Electronic Shutter].

Focus system

Focus Area

Wide / Zone / Center / Flexible Spot / Expanded Flexible Spot / Tracking

FOCUS POINT

35mm full frame: 759 points (phase-detection AF), APS-C mode with FF lens: 345 points (phase-detection AF), with APS-C lens: 285 points (phase-detection AF) / 425 points (contrast-detection AF)

SENSITIVITY RANGE

EV-6 to EV20 (ISO100 equivalent with F2.0 lens attached)

Type

Fast Hybrid AF (phase-detection AF / contrast-detection AF)

Focus Sensor

Exmor R CMOS sensor

AF Mode

AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus

EYE AF

[Still images] Human (Right/Left Eye Select) / Animal, [Movie] Human (Right/Left Eye Select)

Other Features

Predictive control Focus lock AF Track Sens. (Still) AF Subj. Shift Sensitivity (Movie) AF Transition Speed (Movie) Switch V/H AF Area AF Area Regist. Circ. of Focus Point

AF illuminator

Yes (with Built-in LED type)

AF Illuminator range

Approx. 0.3m - approx. 3.0m (with FE 28-70mm F3.5-5.6 OSS lens attached)

Focus Type with LA-EA1 or LA-EA3 (Sold separately)

Phase-detection

Movie function

Audio Level Display

Yes

Audio Rec Level

Yes

PAL/NTSC Selector

Yes

Proxy Recording

Yes (1280 x 720 (Approx. 6Mbps), 1920 x 1080(Approx. 9Mbps), 1920 x 1080(Approx. 16Mbps))

TC/UB

Yes

Auto Slow Shutter

Yes

Gamma Disp. Assist

Yes

RAW Output

Yes (HDMI)

Slow & Quick Motion (S&Q)

Image frame rate

NTSC mode: 1fps,2fps,4fps,8fps,15fps,30fps,60fps,120fps, 240fps *4  PAL mode: 1fps,2fps,3fps,6fps,12fps,25fps,50fps,100fps, 200fps *4  *4 Number of effective pixels: 1420 x 804 at 240 or 200 fps. 240 or 200 fps not available when using [XAVC HS 4K], [XAVC S 4K], or [XAVC S-I 4K] file formats.

Movie recording system (XAVC S-I HD)

1920 x 1080 (4:2:2, 10bit, NTSC) (Approx.)

60p (222Mbps) 30p (111Mbps) 24p (89Mbps)

1920 x 1080 (4:2:2, 10bit, PAL) (Approx.)

50p (185Mbps) 25p (93Mbps)

Movie recording system (XAVC S-I 4K)

3840 x 2160 (4:2:2, 10bit, NTSC) (Approx.)

60p (600Mbps) 30p (300Mbps) 24p (240Mbps)

3840 x 2160 (4:2:2, 10bit, PAL) (Approx.)

50p (500Mbps) 25p (250Mbps)

Movie recording system (XAVC S HD)

1920 x 1080 (4:2:0, 8bit, NTSC) (Approx.)

120p (100Mbps / 60Mbps) 60p (50Mbps / 25Mbps) 30p (50Mbps / 16Mbps) 24p (50Mbps)

1920 x 1080 (4:2:0, 8bit, PAL) (Approx.)

100p (100Mbps / 60Mbps) 50p (50Mbps / 25Mbps) 25p (50Mbps / 16Mbps)

1920 x 1080 (4:2:2, 10bit, NTSC) (Approx.)

60p (50Mbps) 30p (50Mbps) 24p (50Mbps)

1920 x 1080 (4:2:2, 10bit, PAL) (Approx.)

50p (50Mbps) 25p (50Mbps)

Movie recording system (XAVC S 4K)

3840 x 2160 (4:2:0, 8bit, NTSC) (Approx.)

120p (200Mbps) 60p (150Mbps) 30p (100Mbps / 60Mbps) 24p (100Mbps / 60Mbps)

3840 x 2160 (4:2:0, 8bit, PAL) (Approx.)

100p (200Mbps) 50p (150Mbps) 25p (100Mbps / 60Mbps)

3840 x 2160 (4:2:2, 10bit, NTSC) (Approx.)

120p (280Mbps) 60p (200Mbps) 30p (140Mbps) 24p (100Mbps)

3840 x 2160 (4:2:2, 10bit, PAL) (Approx.)

100p (280Mbps) 50p (200Mbps) 25p (140Mbps)

Movie recording system (XAVC HS 4K)

3840 x 2160 (4:2:0, 10bit, NTSC) (Approx.)

120p (200Mbps) 60p (150Mbps / 75Mbps / 45Mbps) 24p (100Mbps / 50Mbps / 30Mbps)

3840 x 2160 (4:2:0, 10bit, PAL) (Approx.)

100p (200Mbps) 50p (150Mbps / 75Mbps / 45Mbps)

3840 x 2160 (4:2:2, 10bit, NTSC) (Approx.)

120p (280Mbps) 60p (200Mbps / 100Mbps) 24p (100Mbps / 50Mbps)

3840 x 2160 (4:2:2, 10bit, PAL) (Approx.)

100p (280Mbps) 50p (200Mbps / 100Mbps)

Recording system (movie)

Recording Format

XAVC S XVAVC HS

Video Compression

XAVC S: MPEG-4 AVC/H.264 XAVC HS: MPEG-H HEVC/H.265

Audio Recording Format

LPCM 2ch(48kHz 16bit), LPCM 2ch(48kHz 24bit) *2 , LPCM 4ch(48kHz 24bit) *2 , MPEG-4 AAC-LC 2ch *3  *2 When using accessories that support 4ch output / 24 bits with the Multi Interface Shoe. *3 Proxy movies

Creative Look

ST, PT, NT, VV, VV2, FL, IN, SH, BW, SE, Custom Look (1-6)

Picture Profile

Yes (Off / PP1-PP10) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset

Color Space

BT.2020 standard compatible with TRILUMINOS Color

Recording system (still image)

Recording Format

JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant)

Image Size (pixels) [3:2]

35mm full frame L: 4240 x 2832 (12M), M: 2768 x 1848 (5.1M), S: 2128 x 1416 (3.0M) APS-C L: 2768 x 1848 (5.1M), M: 2128 x 1416 (3.0M), S: 1376 x 920 (1.3M)

Image size (pixels) [4:3]

35mm full frame L: 3776 x 2832 (11M), M: 2464 x 1848 (4.6M), S: 1888 x 1416 (2.7M) APS-C L: 2464 x 1848 (4.6M), M: 1888 x 1416 (2.7M), S: 1232 x 920 (1.1M)

Image Size (pixels) [16:9]

35mm full frame L: 4240 x 2348 (10M), M: 2768 x 1560 (4.3M), S: 2128 x 1200 (2.6M) APS-C L: 2768 x 1560 (4.3M), M: 2128 x 1200 (2.6M), S: 1376 x 776 (1.1M)

Image size (pixels) [1:1]

35mm full frame L: 2832 x 2832 (8M), M: 1840 x 1840 (3.4M), S: 1408 x 1408 (2.0M) APS-C L: 1840 x 1840 (3.4M), M: 1408 x 1408 (2.0M), S: 912 x 912 (0.8M)

Image Quality Modes

RAW (Compressed / Uncompressed) JPEG (Extra fine / Fine / Standard) HEIF (4:2:0 / 4:2:2) (Extra fine / Fine / Standard) RAW & JPEG RAW & HEIF

14bit RAW

Yes

Creative Look

ST, PT, NT, VV, VV2, FL, IN, SH, BW, SE, Custom Look (1-6)

Picture Profile

Yes (Off / PP1-PP10) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset

Dynamic Range Functions

Off, Dynamic Range Optimizer

Color Space

sRGB standard (with sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS Color. BT.2020 standard. *1  *1 When [HLG Still Image] setting is set to [On].

General

CAMERA TYPE

Interchangeable lens digital camera

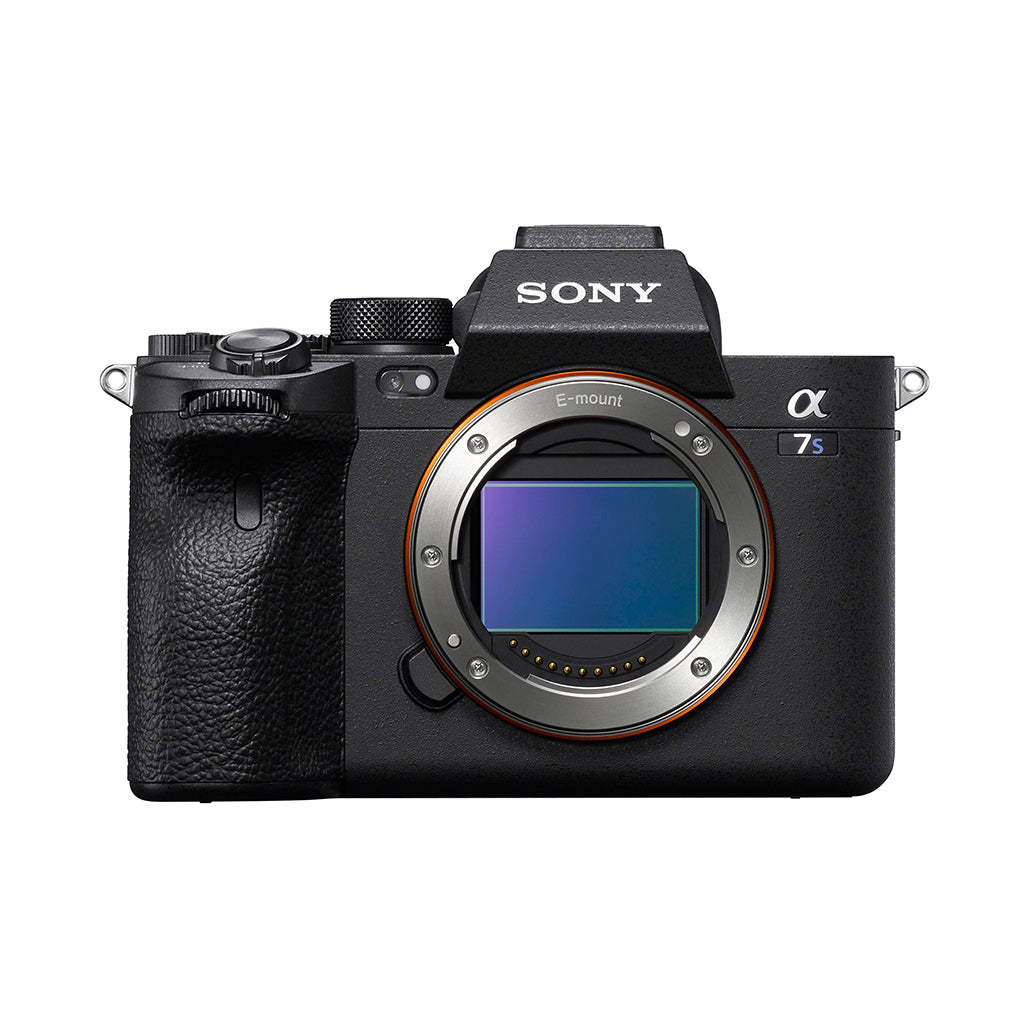

Lens mount

E-mount

Recording System

Location information Link from smartphone

Yes

Media

SD memory card SDHC memory card (UHS-I/II compliant) SDXC memory card (UHS-I/II compliant) CFexpress Type A memory card

Memory Card Slot

SLOT1: Multi slot for SD (UHS-I/II compliant) memory card / CFexpress Type A card, SLOT2: Multi slot for SD (UHS-I/II compliant) memory card / CFexpress Type A card

Recording mode on 2 memory cards

Simult. Rec, Sort, Auto Switch Media, Copy

File System

FAT12, 16, 32, exFAT

Noise Reduction

Long exposure NR: On/Off, available at shutter speeds longer than 1 sec. High ISO NR: Normal / Low / Off

Lens Compensation

LENS COMPENSATION

Peripheral Shading, Chromatic Aberration, Distortion

Image Sensor

Number of Pixels (Effective)

Approx. 12.1 megapixels

Number of Pixels (total)

Approx. 12.9 megapixels

Type

35mm full frame (35.6 x 23.8mm), Exmor R CMOS sensor

Image Sensor Aspect Ratio

03:02

Color filter

R, G, B primary color

Anti-Dust function

Yes (Charge protection coating on Optical Filter and ultrasonic vibration mechanism)

Custom function

Custom key settings

Yes

My Menu

Yes

My Dial Settings

Yes

Reg Cust Shoot Set

Yes

Programmable Setting

Yes (Body 3 sets /memory card 4 sets)

Operating temperature

Operating Temperature

32 - 104 degrees F / 0 - 40 degrees C

White Balance

Modes

Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2500 to 9900K) & color filter / Custom

Shutter AWB Lock

Yes (Shut. Halfway Down / Cont. Shooting / Off)

Viewfinder

Diopter adjustment

-4.0 to +3.0m-1

Eye Point

Approx. 25mm from the eyepiece lens, 21mm from the eyepiece frame at -1m-1 (CIPA standard)

Field Coverage

100%

Magnification

Approx. 0.90x (with 50mm lens at infinity, -1m-1)

Type

1.6 cm (0.64 type) electronic viewfinder (Quad-XGA OLED)

Finder Frame Rate Selection

NTSC mode: STD 60fps / HI 120fps, PAL mode: STD 50fps / HI 100fps

Number of Dots

9,437,184 dots

Control function

Brightness, Color temperature, Magnifi.

Display Function

Histogram, Real-time image-adjustment display, Digital level gauge, Grid line, Focus check, Peaking MF, Zebra, Movie marker, Emphasezed display during REC

Shutter

SHUTTER SPEED

Still images: 1/8000 to 30 sec, Bulb, Movies: 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode)

Silent Shooting

Yes (ON/OFF)

Type

Electronically-controlled, vertical-traverse, focal-plane type

Shutter Type

Mechanical shutter / Electronic shutter

Flash sync. speed *6 *6 With compatible Sony external flash

1/250 sec.

Electronic Front Shutter Curtain

Yes (ON/OFF)

Print

Compatible Standards

Exif Print, Print Image Matching III

Power

USB Power Supply

Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)

Internal Battery Charge

Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)

Battery

One rechargeable battery pack NP-FZ100

Still images *14 *14 The LCD screen is turned on, shot once every 30 seconds, operate zoom alternately between W and T ends, flash strobe once every two times, turn power off and on once every ten times.

Approx. 510 shots (Viewfinder) / approx. 600 shots (LCD monitor) (CIPA standard)

Movies (actual recording) *15 *15 Indication recording time, which is defined by repeating the cycle: Power on, start recording, zoom , stand-by and power off.

Approx. 80 min. (Viewfinder) / Approx. 95 min. (LCD monitor) (CIPA standard)

Movies (continuous recording)

Approx. 130 min. (Viewfinder) / Approx. 135 min. (LCD monitor) (CIPA standard)

Playback

Modes

Single (with or without shooting information Y RGB histogram & highlight / shadow warning) Index view Enlarged display mode (L: 10.6x, M: 6.92x, S: 5.32x) Auto Review Image orientation Folder selection (Date / Still / Movie) Protect Rating Display as Group

Photo Capture

Yes

Other Features

Zoom Ring Rotate

Yes

Interval recording

Yes

ISO AUTO Min. SS

Yes

Bright Monitoring

Yes

Copyright Info

Yes

Set File Name

Yes

Save/Import Settings

Yes

Help guide

Yes

Video Light Mode

Yes

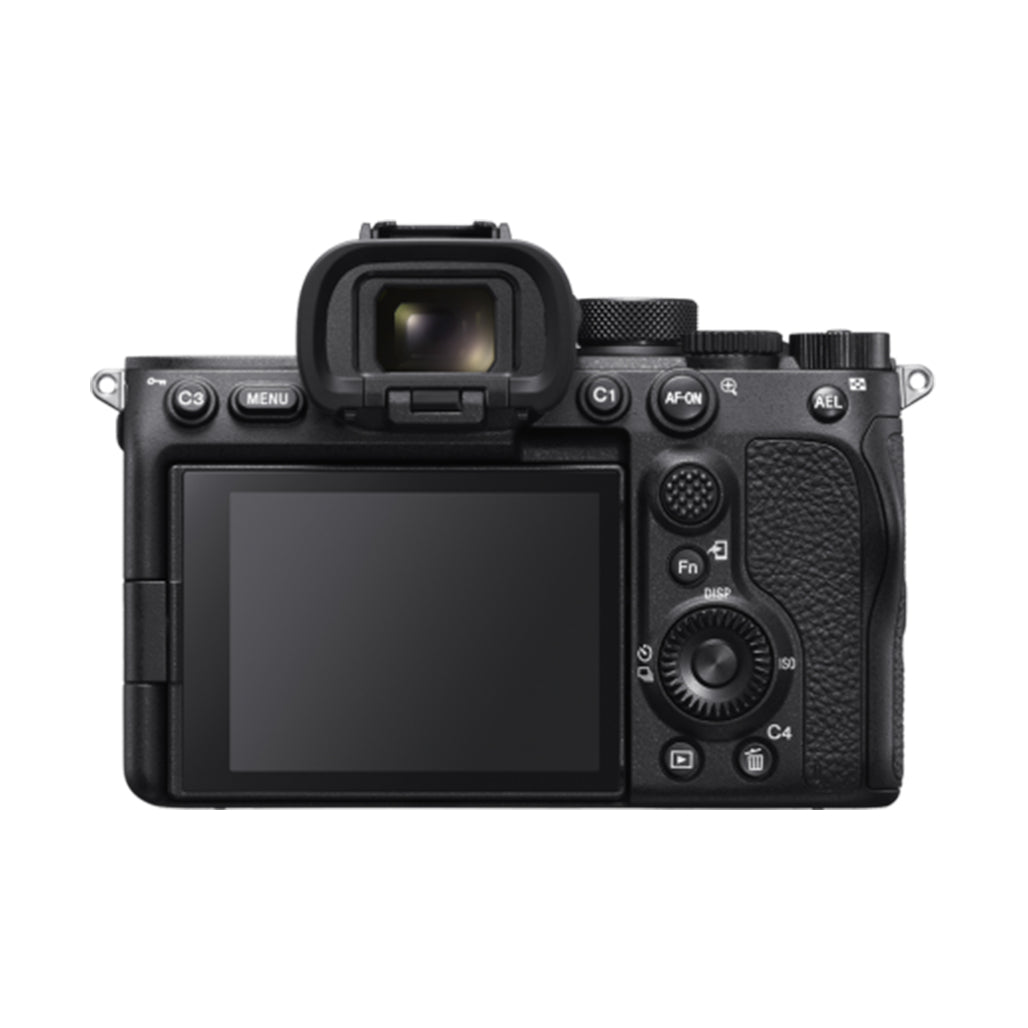

LCD Screen

Adjustable Angle

Opening Angle:Approx. 176 deg., Rotation Angle:Approx. 270 deg.

Brightness Control

Manual (5 steps between -2 and +2), Sunny Weather mode

Touch Panel

Yes

Type

7.5cm (3.0-type) type TFT

Number of dots (total)

1,440,000 dots

Display Function

Histogram, Real-time image-adjustment display, Digital level gauge, Grid line, Focus check, Peaking MF, Zebra, Movie marker, For viewfinder, Monitor Off, Emphasezed display during REC

Focus Check

Yes, Focus Magnifier (35mm full frame: 2.1x / 4.1x, APS-C: 1.5x / 3.0x)

Interface

NFC

Yes (NFC forum Type 3 Tag compatible)

Wireless LAN(built-in)

Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac (2.4GHz band/5GHz band)) *11 *12  *11 (Configuration method/Access method) WPS or manually /infrastructure mode. When connecting to smartphones, the camera can always work as a base without a wireless access point. (Security: WEP/WPA-PSK/WPA2-PSK) *12 Models sold in some countries/regions support IEEE 802.11b/g/n (2.4GHz) wireless LAN only.

Bluetooth

Yes (Bluetooth Standard Ver. 5.0 (2.4GHz band))

Headphone Terminal

Yes (3.5 mm Stereo minijack)

Mic Terminal

Yes (3.5 mm Stereo minijack)

PC Interface

Mass-storage / MTP

Vertical Grip Connector

Yes

Remote Control (Wireless)

Yes (IR remote control / Bluetooth remote control)

Multi / Micro USB Terminal *10 *10 Supports Micro USB compatible device.

Yes

USB Type-C® Terminal

Yes (SuperSpeed USB 5Gbps (USB 3.2) compatible)

HDMI connector

HDMI connector (Type-A) 3840 x 2160 (60p / 50p / 30p / 25p / 24p) / 1920 x 1080 (60p / 50p / 24p) / 1920 x 1080 (60i / 50i), YCbCr 4:2:2 10bit / RGB 8bit 4264 x 2408 (60p / 50p / 30p / 25p / 24p), Raw 16bit

Multi Interface Shoe *13 *13 Sony accessories for the Accessory Shoe can be attached.

Yes (with Digital Audio Interface)

Functions

FTP Transfer Func.(Wired LAN(USB-LAN), USB Tethering, Wi-Fi) View on Smartphone Remote control via Smartphone NFC One-touch remote PC Remote BRAVIA Sync (Control for HDMI) PhotoTV HD NFC One-touch sharing

Drive

Self-timer

10 sec. delay / 5 sec. delay / 2 sec. delay / Continuous self-time / Bracketing self-timer

DRIVE MODES

Single Shooting Continuous shooting (Hi+/Hi/Mid/Lo selectable) Self-timer Self-timer (Cont.) Bracket: Single Bracket: Cont. White Balance bracket DRO bracket

Speed (approx., max.) *9 *9 Varies according to shooting conditions or memory card used

Continuous shooting: Hi+: 10 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps

No. of frame recordable* (approx.) *9

JPEG Extra fine L: over 1000 frames JPEG Fine L: over 1000 frames JPEG Standard L: over 1000 frames RAW: over 1000 frames RAW & JPG: over 1000 frames RAW (Uncompressed): over 1000 frames RAW (Uncompressed) & JPG: over 1000 frames

Audio

Microphone

Built-in, stereo

Speaker

Built-in, monaural
