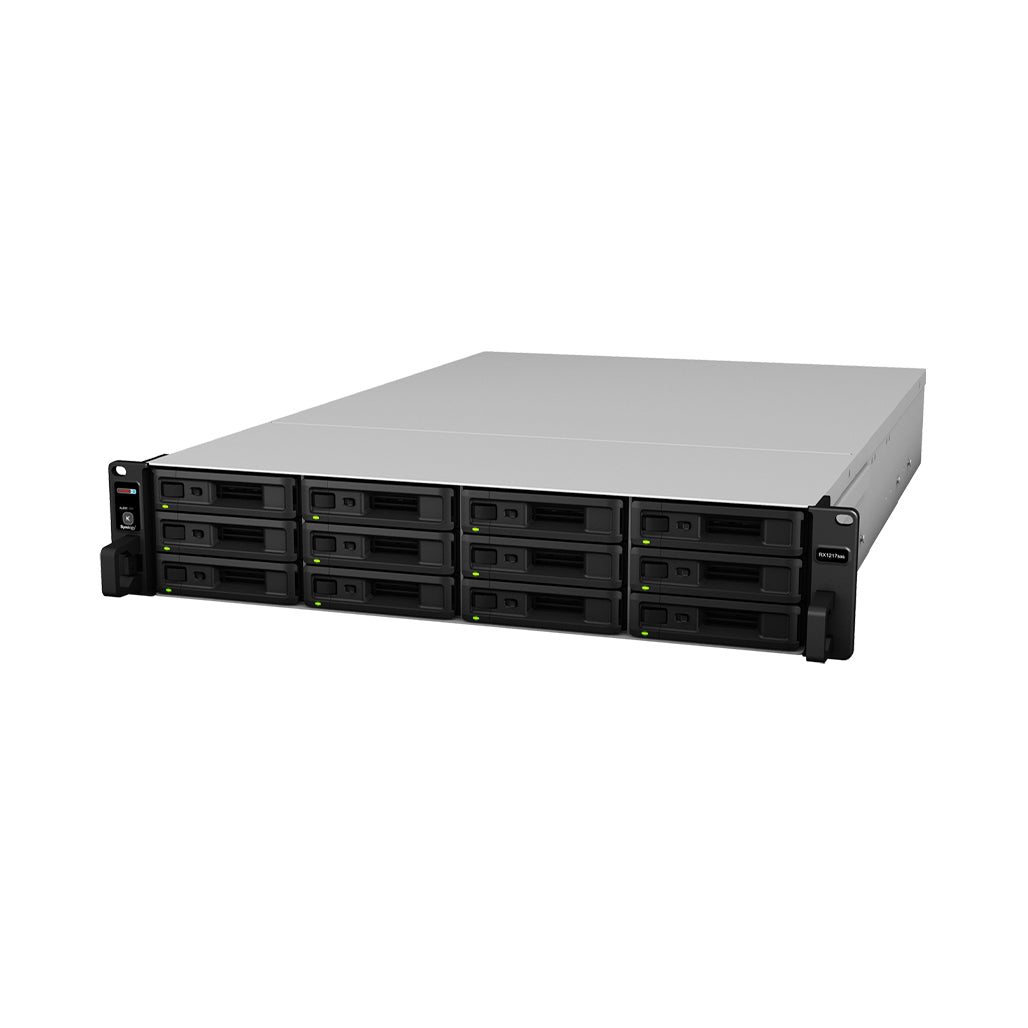

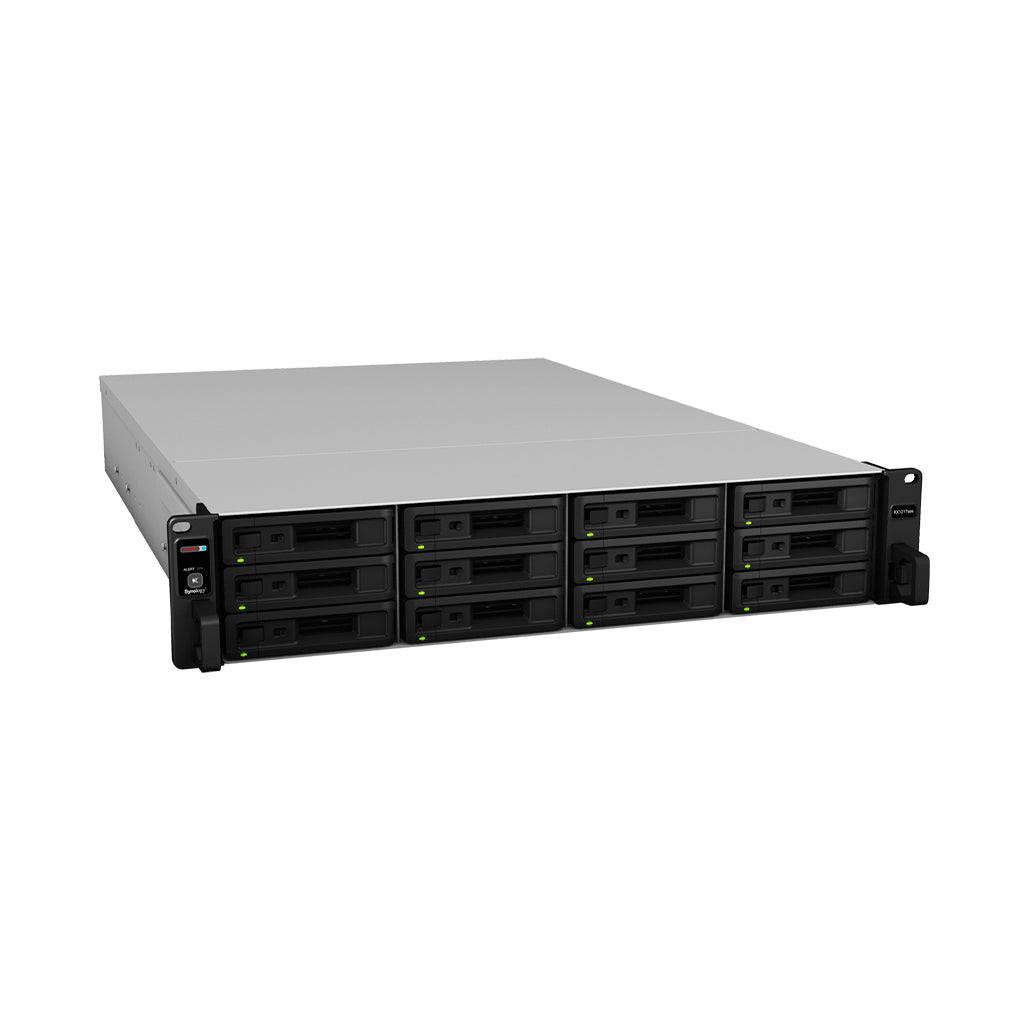

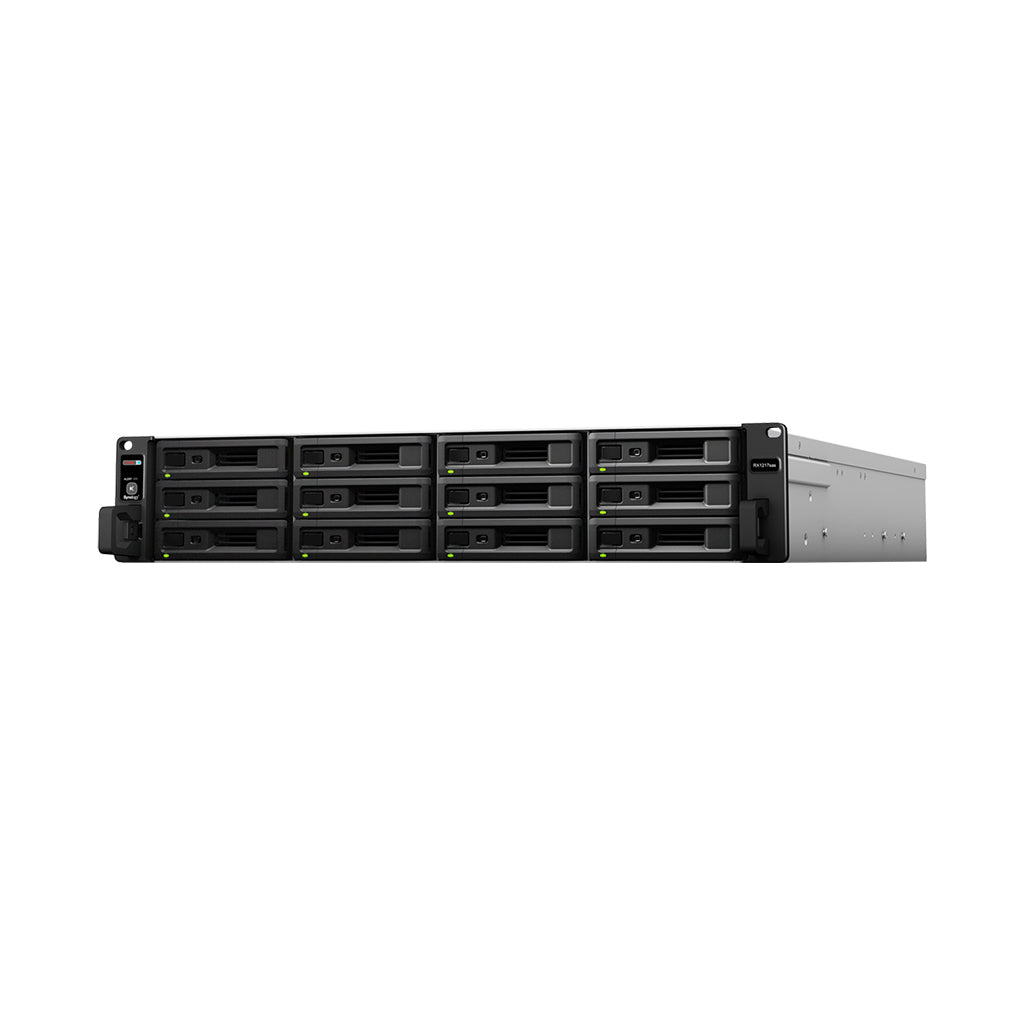

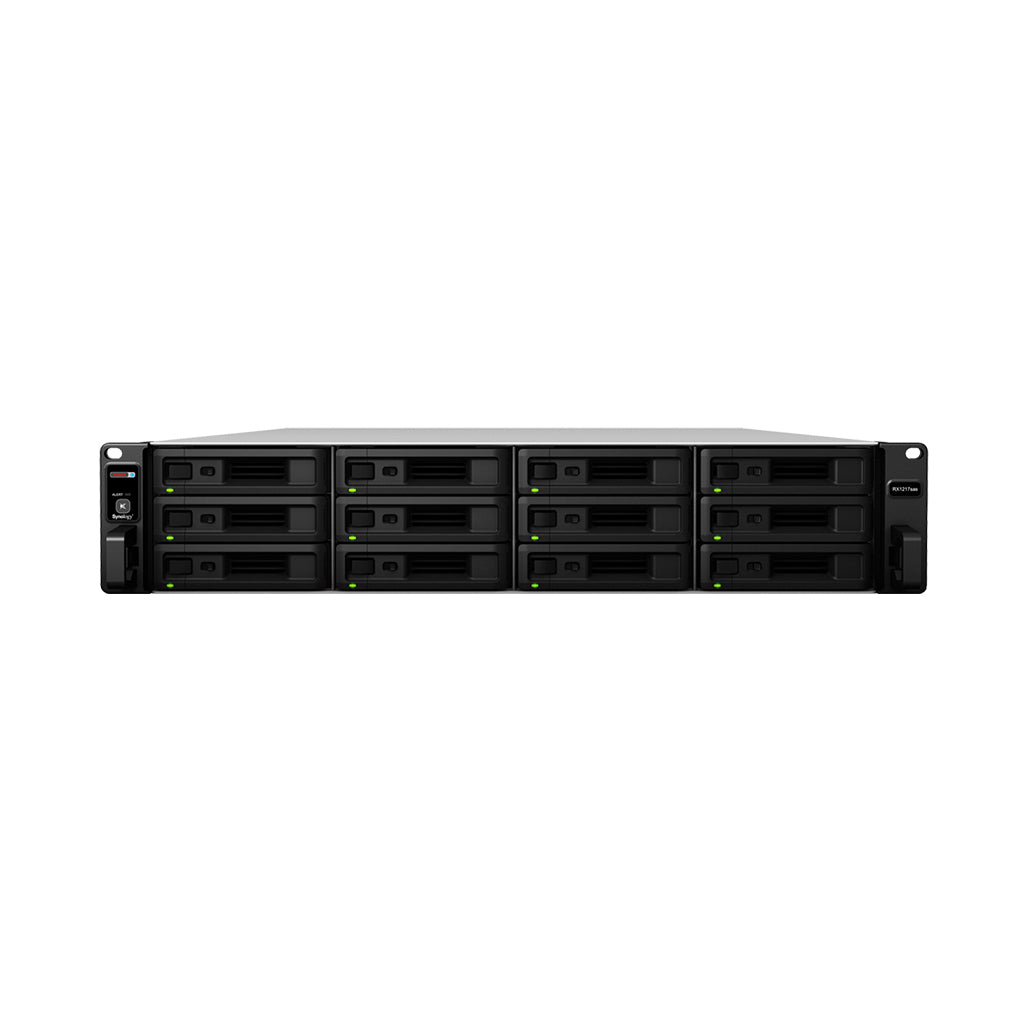

Effortless capacity expansion for Synology FlashStation and RackStation solutions on-the-fly.
Easily add 12 additional drive bays to Synology FlashStation or RackStation. Supporting both 2.5" and 3.5" SAS/SATA drives, the RX1217sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Hardware Specifications | ||
Applied Models |
Supports creating volumes across different units |
·FS series:FS6400, FS3600, FS3400, FS3017, FS2017 ·SA series:SA3600, SA3400 ·17 series:RS18017xs+ |
Notes |
·To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. ·Connecting to a Synology FlashStation FS3017 requires the optional FS3017 Expansion Card (FXC17) to be installed on the host device. FS3017 Expansion Card is sold separately. |
|
Storage |
Drive Bays |
12 |
Compatible Drive Type* (See all supported drives) |
·3.5" SAS HDD ·2.5" SAS HDD ·2.5" SAS SSD ·3.5" SATA HDD ·2.5" SATA SSD |
|
Hot Swappable Drive* |
Yes | |
RAID Management through Synology DSM |
Yes | |
Notes |
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. |
|
External Ports |

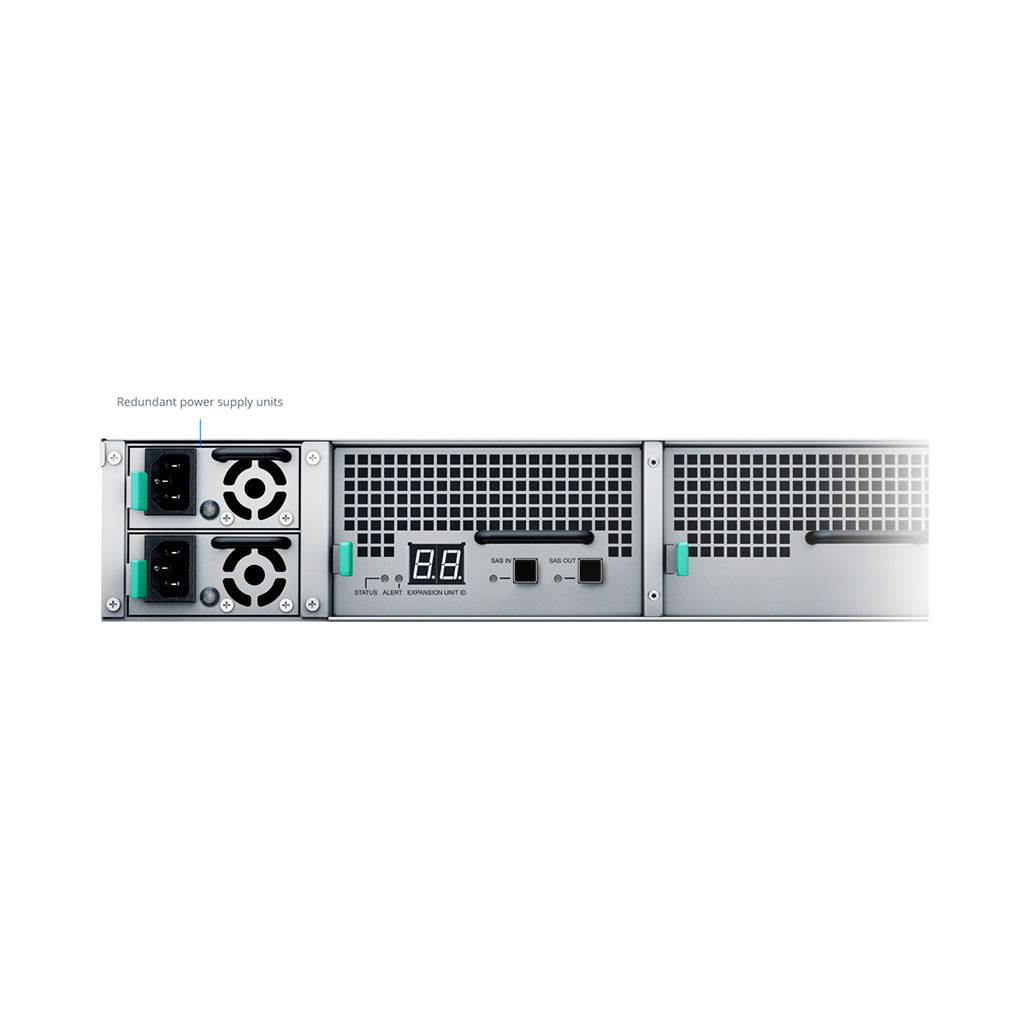

SAS IN-port |
1 |
SAS OUT-port |
1 |
|
Appearance |
Size (Height x Width x Depth) |
88 mm x 430.5 mm x 692 mm |
Size (Height x Width x Depth) (with server ears) |
88 mm x 482 mm x 724 mm |
|
Weight |
18 kg |
|
Rack Installation Support* |
4-post 19" rack (Synology Rail Kit - RKS-02) |
|
Notes |
The rail kit is sold separately |
|
Power |
Power Recovery |
Synchronized with the Synology RackStation |
Power Supply Unit / Adapter |
500 W |
|
AC Input Power Voltage |
100V to 240V AC |
|
Power Frequency |
50/60 Hz, Single Phase |
|
Power Consumption |
132.7 W (Access) |
|
British Thermal Unit |
452.79 BTU/hr (Access) |
|
Redundant Power Supply (for RP model) |
Yes | |
Notes |
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). |
|
Temperature |
Operating Temperature |
5°C to 35°C (40°F to 95°F) |
Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
|
Relative Humidity |
5% to 95% RH |
|
Others |
System Fan |
60 mm x 60 mm x 4 pcs |
Easy Replacement System Fan |
Yes | |
Noise Level* |
60.9 dB(A) |
|
Certification |
· UL · FCC · CE · BSMI · EAC · RCM · KC |
|
Warranty |
5 Years |
|
Notes |
The warranty period starts from the purchase date as stated on your purchase receipt. |
|
Environment & Packaging |
||
Environment |
RoHS Compliant |
|
Packaging Content |
· Main Unit X 1 · Accessory Pack X 1 · AC Power Cord X 2 · Expansion Cable: MiniSAS-HD X 1 · Quick Installation Guide X 1 |
|
Optional Accessories |
· Enterprise Series 3.5" SAS HDD: HAS5300 Series · Enterprise Series 3.5" SATA HDD: HAT5300 Series · Enterprise Series 2.5" SATA SSD: SAT5200 Series · Rail Kit Sliding: RKS-02 |
