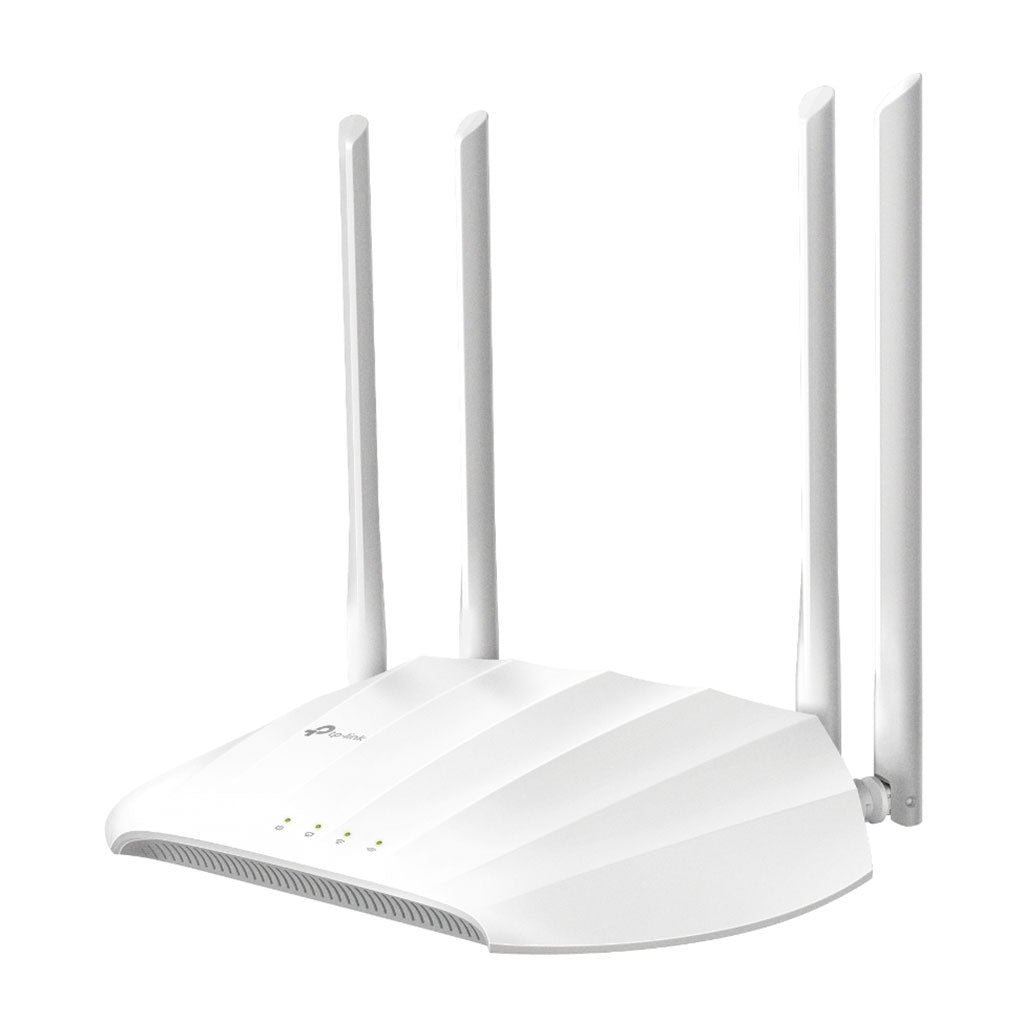

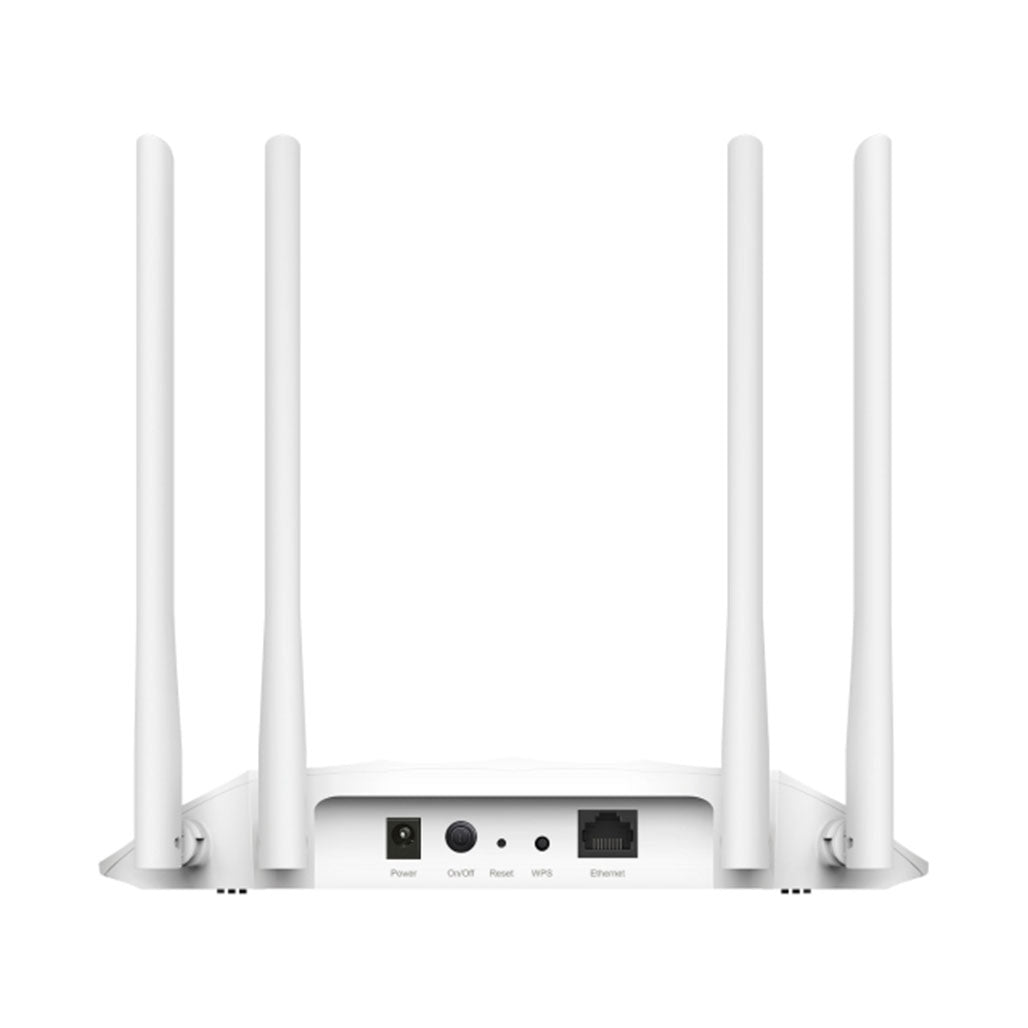

The TP-Link TL-WA1201 AC1200 Wireless Access Point is designed to deliver high-speed, reliable wireless connectivity for both home and office environments. This dual-band access point supports IEEE 802.11ac and offers a maximum wireless speed of 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. Its versatile design makes it suitable for various applications, including extending the range of your existing network or providing a new wireless network.

The access point features four fixed high-performance antennas that enhance signal strength and coverage, ensuring stable connections across a larger area. With support for Passive PoE, it simplifies installation by allowing the device to be powered through the Ethernet cable, reducing the need for a separate power source. The TP-Link TL-WA1201 supports multiple wireless modes, including Access Point, Range Extender, Client, and Multi-SSID, offering flexibility in different networking scenarios.

Key Features:

1. High-Speed Dual-Band Wi-Fi: The TP-Link TL-WA1201 supports dual-band wireless standards, providing speeds up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. This ensures fast and reliable connections for a wide range of devices.

2. Four High-Performance Antennas: Equipped with four fixed high-performance antennas, the access point improves signal coverage and enhances overall network stability, reducing dead zones and ensuring consistent connectivity.

3. Versatile Wireless Modes: The access point can be configured in various modes, including Access Point, Range Extender, Client, and Multi-SSID. This versatility allows it to adapt to different networking needs and environments.

4. Passive PoE Support: The TP-Link TL-WA1201 supports Passive PoE, allowing it to be powered through the Ethernet cable. This feature simplifies installation by eliminating the need for a separate power supply.

5. Robust Wireless Security: The access point supports multiple security protocols, including 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK, ensuring a secure wireless environment for your network.

6. Advanced Wireless Features: Features such as WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, and DHCP Server are included, enhancing network performance and management.

7. Captive Portal Support: The device supports Captive Portal, providing an additional layer of security and authentication for guest networks.

Specifications:

• Interface:

  • 1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
  • Power Adapter: 12V/1.5A

• Dimensions: 8.9 × 5.7 × 1.5 in (225×145.5×37 mm)

• Wireless Standards:

  • 2.4 GHz: IEEE 802.11b/g/n
  • 5 GHz: IEEE 802.11ac/n/a

• Frequency: 2.4 GHz and 5 GHz

• Signal Rate:

  • 5 GHz: 867 Mbps
  • 2.4 GHz: 300 Mbps

• Reception Sensitivity:

  • 5 GHz:
    • 11a 6 Mbps: -95 dBm
    • 11a 54 Mbps: -81 dBm
    • 11ac VHT20(MCS0): -94 dBm
    • 11ac VHT20(MCS8): -71 dBm
    • 11n HT40(MCS0): -91 dBm
    • 11n HT40(MCS7): -71 dBm
    • 11ac VHT80(MCS0): -88 dBm
    • 11ac VHT80(MCS9): -63 dBm
  • 2.4 GHz:
    • 11g 54 Mbps: -78 dBm
    • 11n HT20(MCS0): -92 dBm
    • 11n HT20(MCS7): -74 dBm
    • 11n HT40(MCS0): -88 dBm
    • 11n HT40(MCS7): -72 dBm

• Transmit Power: < 30 dBm

• Wireless Modes: Access Point, Range Extender, Client, Multi-SSID

• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

• DHCP: Server, DHCP Client List

• Quality of Service: WMM

• Advanced Functions: Captive Portal

• Certification: CE, FCC, RoHS

• Package Contents: Wireless Access Point TL-WA1201, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide, PoE Power Injector

• Environment:

  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing

• Protocol Support: IPv4, IPv6

The TP-Link TL-WA1201 AC1200 Wireless Access Point combines high-speed dual-band connectivity with flexible installation options and robust security features, making it a practical choice for enhancing your network’s performance and coverage.
