TP-Link TL-WPA7517 KIT AV1000 Gigabit Powerline ac Wi-Fi Kit – High-Speed Home Network Solution

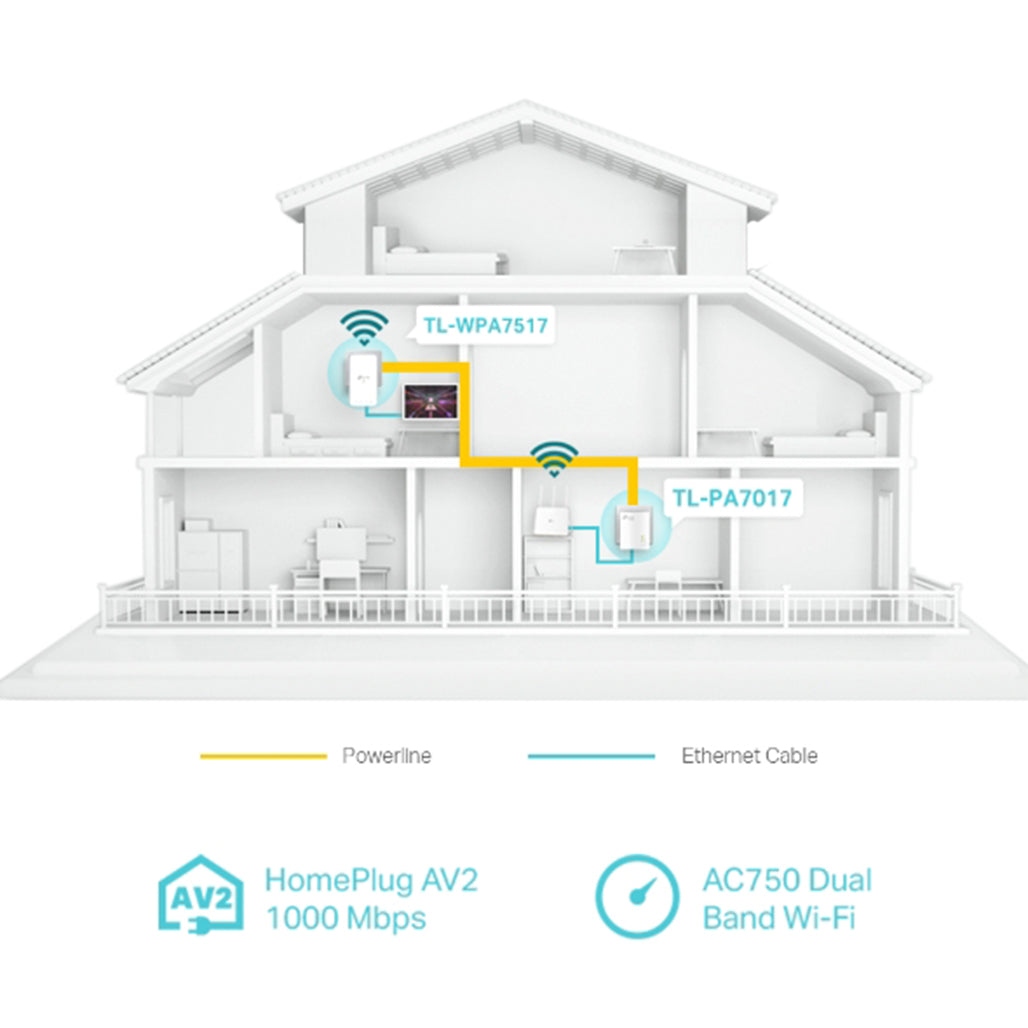

The TP-Link TL-WPA7517 KIT AV1000 Gigabit Powerline ac Wi-Fi Kit provides an efficient way to extend your home network using existing electrical wiring. This powerline kit turns your electrical circuit into a high-speed network, delivering both wired and wireless connections to any power outlet in your home.

With compliance to the HomePlug AV2 standard, the TL-WPA7517 KIT supports data transfer speeds up to 1000 Mbps over distances of up to 300 meters. This high-performance connectivity ensures smooth HD streaming, lag-free online gaming, and fast file downloads. The dual-band Wi-Fi (AC750) provides simultaneous 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, reducing interference and maximizing performance.

Setting up the TL-WPA7517 KIT is straightforward: simply plug in the adapters, pair them with a push of a button, and enjoy an extended network without the need for drilling or additional wiring. The Wi-Fi Auto-Sync feature allows you to replicate your router's settings to the extenders, ensuring a consistent network experience.

Key Features:

1. High-Speed Data Transfer: HomePlug AV2 technology provides up to 1000 Mbps over electrical wiring, supporting stable and high-speed connections for various online activities.

2. Dual-Band Wi-Fi: AC750 Wi-Fi delivers up to 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, offering robust performance for streaming, gaming, and browsing.

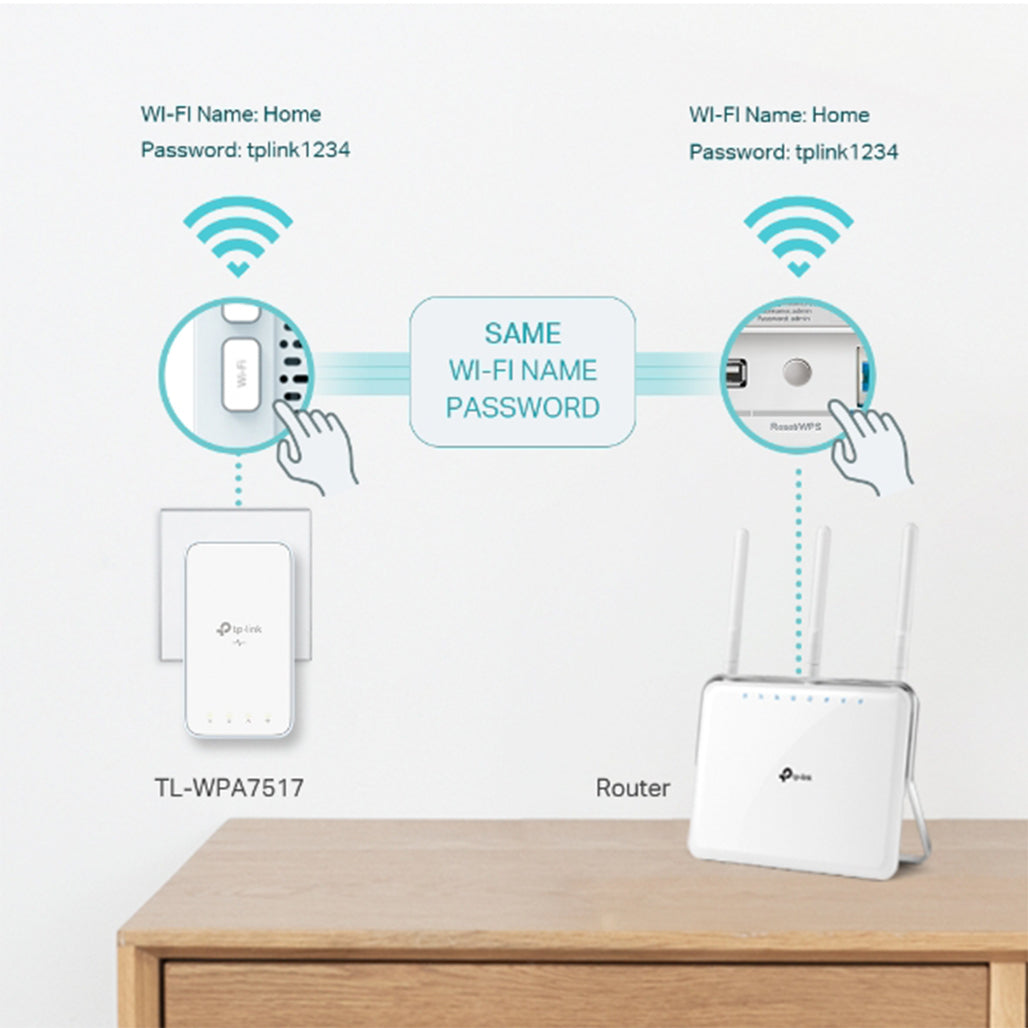

3. Easy Setup: Plug, pair, and play with a simple setup process. The Wi-Fi Clone button copies your existing wireless settings for a quick and seamless configuration.

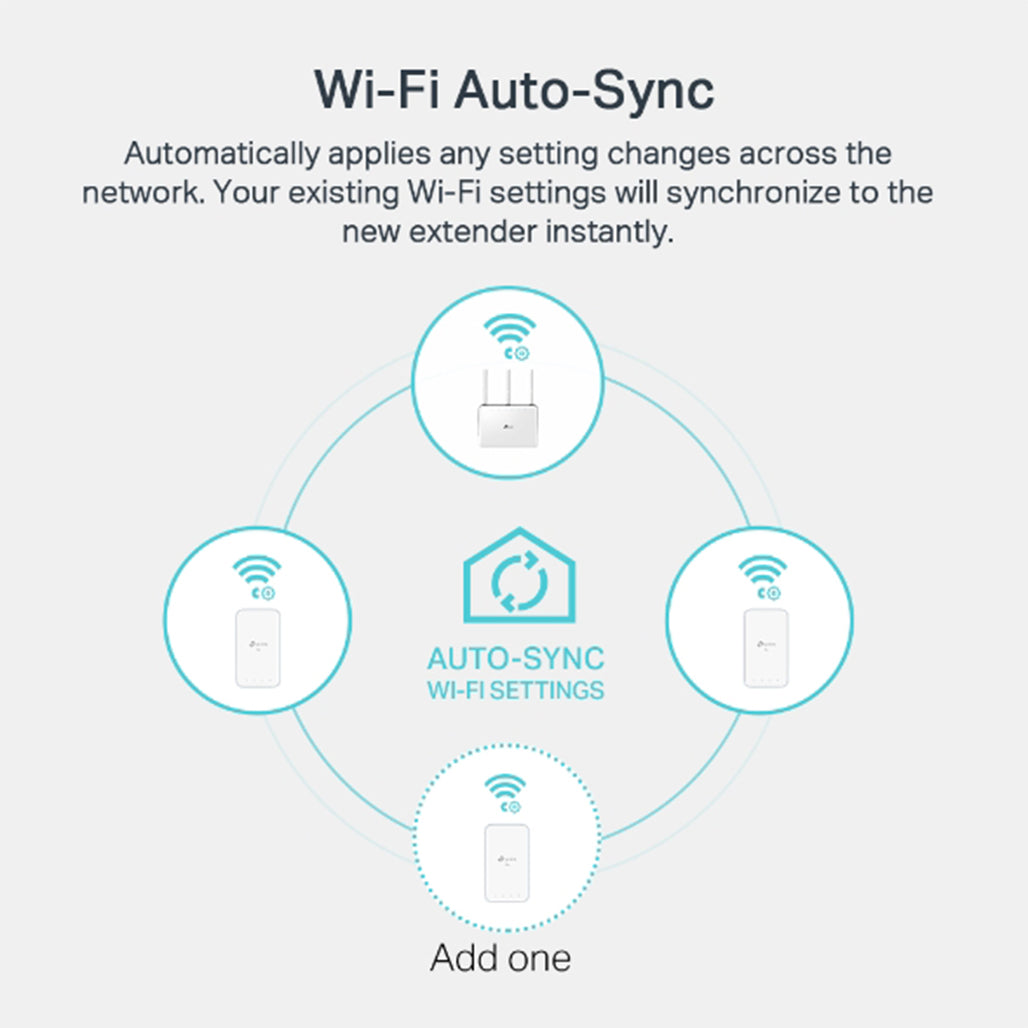

4. Wi-Fi Auto-Sync: Automatically applies changes made to your Wi-Fi settings across the entire network, ensuring consistent connectivity.

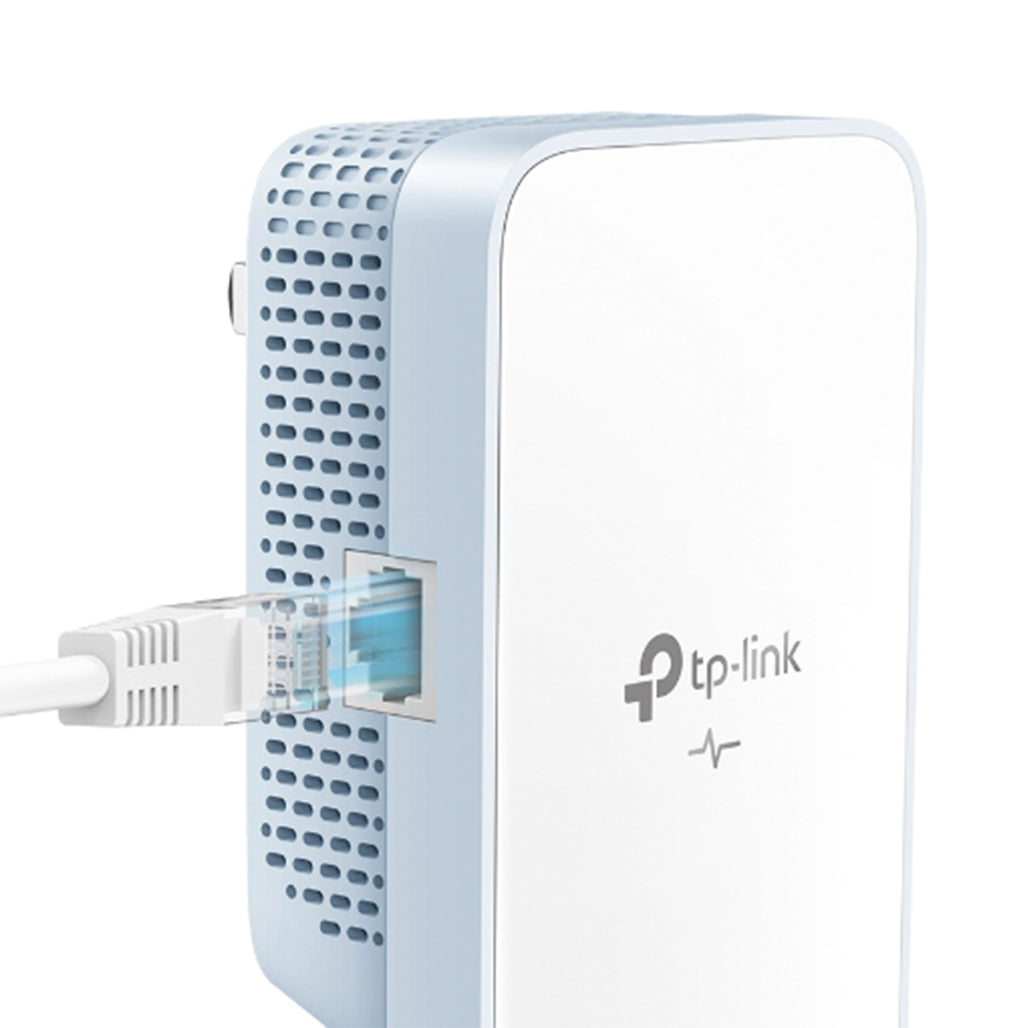

5. Gigabit Ethernet Ports: Each TL-WPA7517 unit features a Gigabit Ethernet port for high-speed wired connections, ideal for devices like smart TVs and game consoles.

6. Smartphone Management: Use the tpPLC app for real-time network management, including LED control, guest network configuration, and monitoring powerline speed.

Specifications:

• Hardware Features:

  • Transmission Speeds:
    • Powerline: Up to 1000 Mbps
    • Ethernet: 10/100/1000 Mbps
  • Standards and Protocols:
    • HomePlug AV2, HomePlug AV, IEEE 1901
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    • IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
  • Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
  • Plug Type: US
  • Interface:
    • TL-WPA7517: 1 Ethernet Port
    • TL-PA7017: 1 Ethernet Port
  • Button: Pair, Reset, Wi-Fi Clone, LED On/Off
  • Power Consumption:
    • TL-WPA7517: Maximum: 11W, Typical: 6.5W
    • TL-PA7017: Maximum: 2.9W, Typical: 2.6W
  • LED Indicator: Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
  • Dimensions:
    • TL-WPA7517: 2.7 × 1.4 × 4.9 in (69.5 × 35 × 124.1 mm)
    • TL-PA7017: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
  • Range: Up to 300 meters / 1000 feet over the existing household power circuit

• Wireless Features:

  • Wireless Standards:
    • TL-WPA7517: IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n/ax (2.4 GHz)
    • TL-PA7017: N/A
  • Frequency:
    • TL-WPA7517: 2.4 GHz and 5 GHz
    • TL-PA7017: N/A
  • Signal Rate:
    • TL-WPA7517: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
    • TL-PA7017: N/A
  • Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryption

• Software Features:

  • Mesh Technology: EasyMesh-Compatible
  • Management:
    • tpPLC app for smartphones
    • tpPLC Utility for PCs
  • Modulation Technology: OFDM (PLC)
  • Encryption:
    • Powerline: 128-bit AES Encryption
    • Wireless: WPA-PSK / WPA2-PSK, WEP Encryption

• Certification: CE, RoHS

• Package Contents:

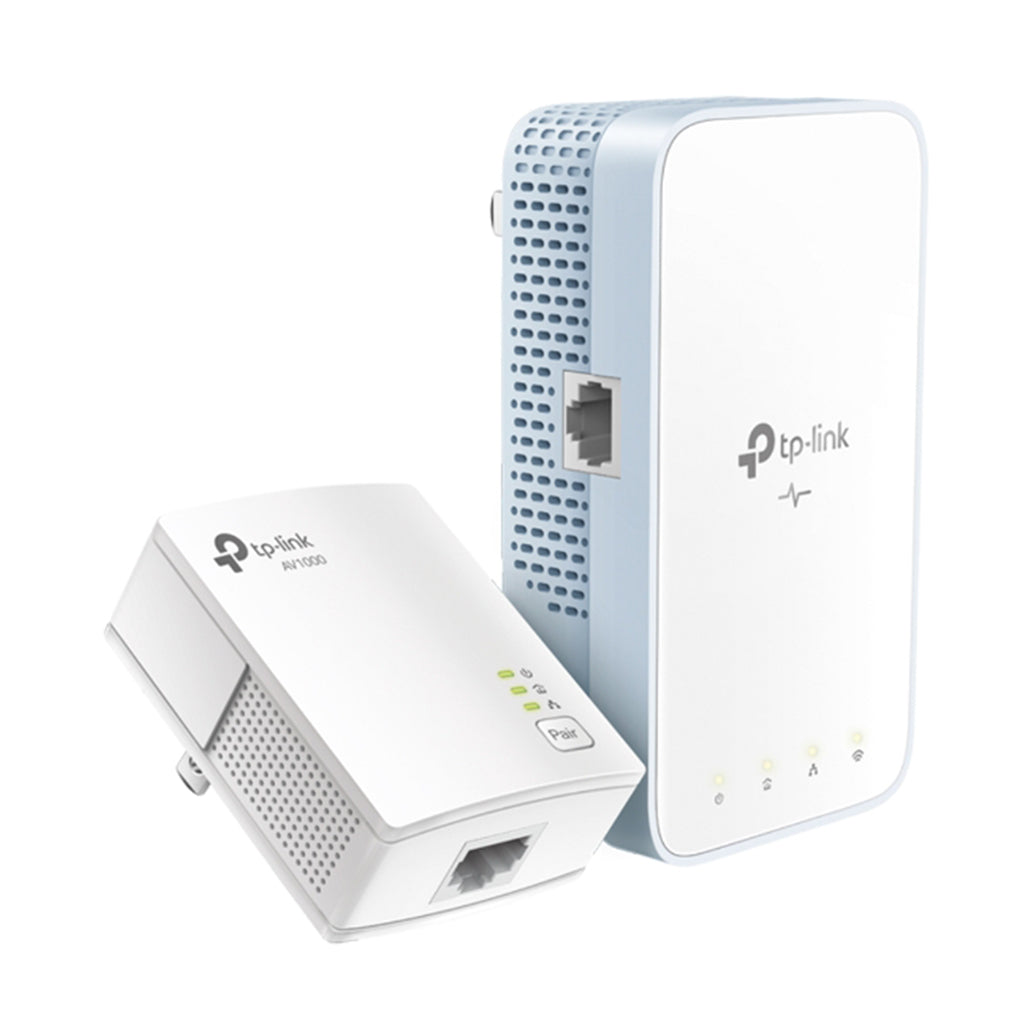

  • AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
  • 2× Ethernet Cables
  • 1× Quick Installation Guide

• System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux

• Environment:

  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Operating Humidity: 10%~90% non-condensing

The TP-Link TL-WPA7517 KIT AV1000 Gigabit Powerline ac Wi-Fi Kit is a powerful solution for extending your home network's range and performance. By leveraging your existing electrical system, it provides high-speed internet access to every corner of your home with minimal setup effort.
