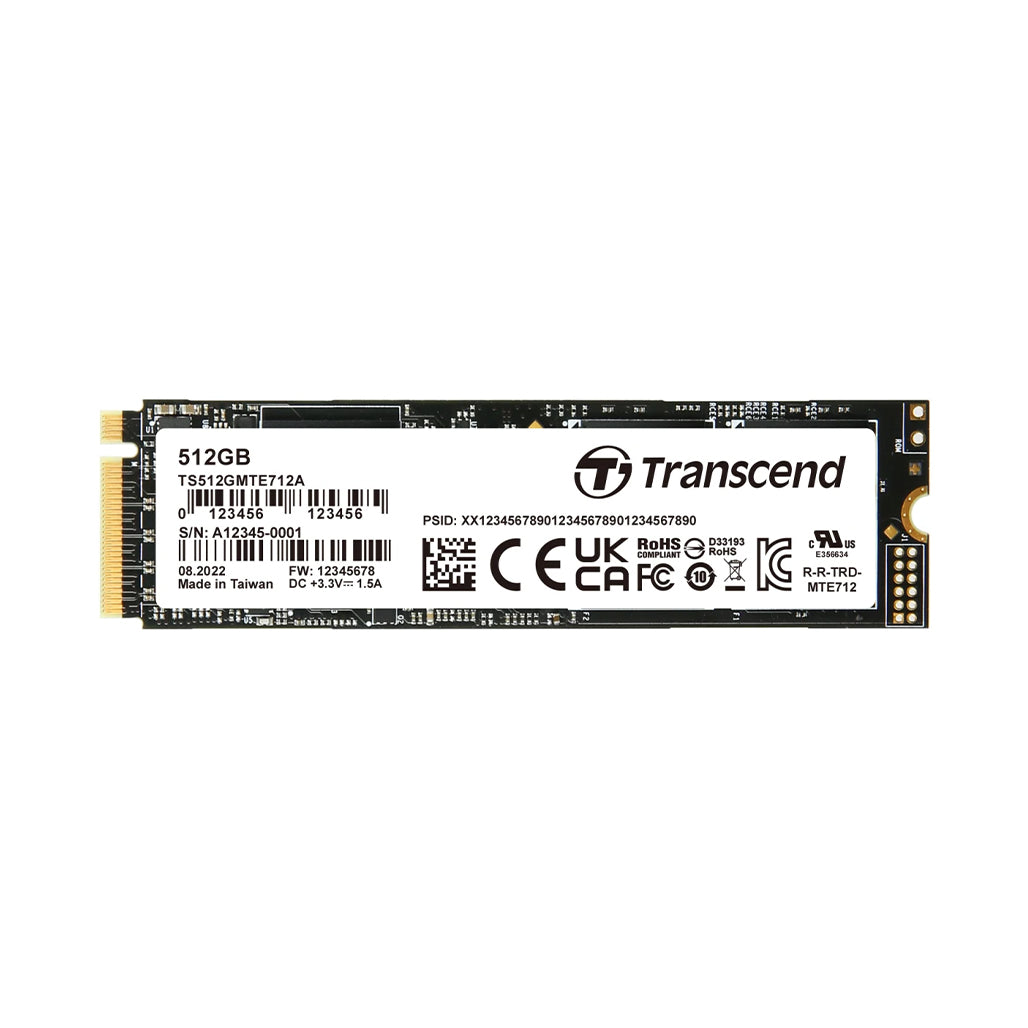

Transcend SSD M.2 2280 PCIe NVMe 512GB | MTE712A

Name: Transcend 512GB SSD M.2 2280 PCIe NVMe | MTE712A | Lebanon
Brand: Transcend
SKU: TS512GMTE712A-R12-K
Price: 110.0 USD
Availability: InStock

$110.00

$120.00

Quantity

Subtotal: $0.00

Due to high demand and limited stock, computer components may have variable availability and prices. Please contact us via WhatsApp to confirm stock before placing your order.

Add to wishlist

Vendor: Transcend
SKU: TS512GMTE712A-R12-K
Availability: In Stock
Product Type: Computer Components

VAT: Excluding VAT

Product images are for reference only. The actual item may differ in appearance & colour. Please refer to the product code, SKU, and description from manufacturer website for accurate specifications.

Transcend's M.2 SSD MTE712A is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards. Data is protected using the hardware-based AES 256-bit encryption and LBA (Logical Block Address)sector-specific permissions.

The MTE712A features the 112-layer 3D NAND flash and the PCI Express (PCIe) Gen 4 x4 interface, achieving never-before-seen transfer speeds. Its built-in DRAM cache allows faster random speeds while the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistor guarantee its reliability in harsh conditions. The MTE712A is fully tested in-house, operating stably in an extended operating temperature range (-20℃~75℃).

Firmware Features

Supports NVM command
SLC caching technology
Dynamic thermal throttling
Built-in LDPC ECC (Error Correction Code) functionality
Advanced Global Wear-Leveling and Block management for reliability
Advanced Garbage Collection
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
TRIM command for better performance
Full drive encryption with Advanced Encryption Standard (AES)
Compliant with TCG Opal specifications and IEEE 1667 standards

Hardware Features

Compliant with RoHS 2.0 standards
Compliant with NVM Express specification 1.4
Compliant with PCI Express specification 4.0
Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
PCIe Gen 4 x4 interface
DDR4 DRAM Cache embedded
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Key components fortified by default with Corner Bond technology
30µ" PCB gold finger
Anti-sulfur technology implemented to prevent sulfurization in the environment
Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
Supports Transcend Scope Pro software

Specifications

Appearance

Dimensions: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight: 9 g (0.32 oz)
M.2 Type: 2280-D2-M (Double-sided)
Form Factor: M.2 2280

Interface

Bus Interface: NVMe PCIe Gen4 x4

Storage

Capacity: 512 GB/1 TB/2 TB
Flash Type: 112-layer 3D NAND flash

Operating Environment

Operating Voltage: 3.3V±5%
Operating Temperature: Extended Temp. -20°C (-4°F) ~ 75°C (167°F) Wide Temp. -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature: -55°C (-67°F) ~ 85°C (185°F)
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)

Power

Power Consumption (Operation): 5.6 watt(s)
Power Consumption (IDLE): 1.28 watt(s)

Performance

Sequential Read/Write (CrystalDiskMark)

Read: Up to 3,800 MB/s
Write: Up to 3,200 MB/s

4K Random Read/Write (IOmeter)

Read: Up to 350,000 IOPS
Write: Up to 330,000 IOPS

Mean Time Between Failures (MTBF)

3,000,000 hour(s)

Terabytes Written (TBW)

Up to 4,000 TBW

Drive Writes Per Day (DWPD)

1.99 (3 yrs)

Note

• Speed may vary due to host hardware, software, usage, and storage capacity.

• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

• Terabytes Written (TBW) expresses the endurance under the highest capacity.
