Ubiquiti UniFi USW-Aggregation - 8-Port Layer 2 Switch

The Ubiquiti UniFi Aggregation USW-Aggregation is a robust, 8-port Layer 2 switch designed for high-speed 10G SFP+ connections. Built with a durable SGCC steel enclosure, this switch is engineered to deliver exceptional performance in environments requiring high data throughput. With a non-blocking 80 Gbps total throughput and a switching capacity of 160 Gbps, the USW-Aggregation ensures seamless, high-performance networking for demanding applications.

Equipped with a user-friendly 1.3" LCM color touchscreen display for easy management, this switch simplifies the control and monitoring of your network. Advanced Layer 2 features such as IGMP snooping, STP/RSTP, and port aggregation provide flexibility in managing traffic flow, while security features like DHCP snooping and MAC address blocking safeguard your network from potential threats.

Key Features:

• 8 x 10G SFP+ Ports: Supports high-speed connections for demanding network environments.
• 160Gbps Switching Capacity: Handles large volumes of data with ease, ensuring optimal performance.
• Advanced Layer 2 Management: Includes IGMP snooping, port mirroring, and voice VLAN support for efficient traffic handling.
• 1.3" LCM Touchscreen: Simplifies monitoring and configuration with a clear, user-friendly interface.
• Power-Efficient Design: Internal AC/DC power supply with a maximum power consumption of only 30W.
• Durable Construction: SGCC steel enclosure offers long-lasting durability in various operating conditions.
• Comprehensive Security Features: Features like DHCP snooping and MAC address blocking enhance network protection.

Specifications:

• Mechanical:

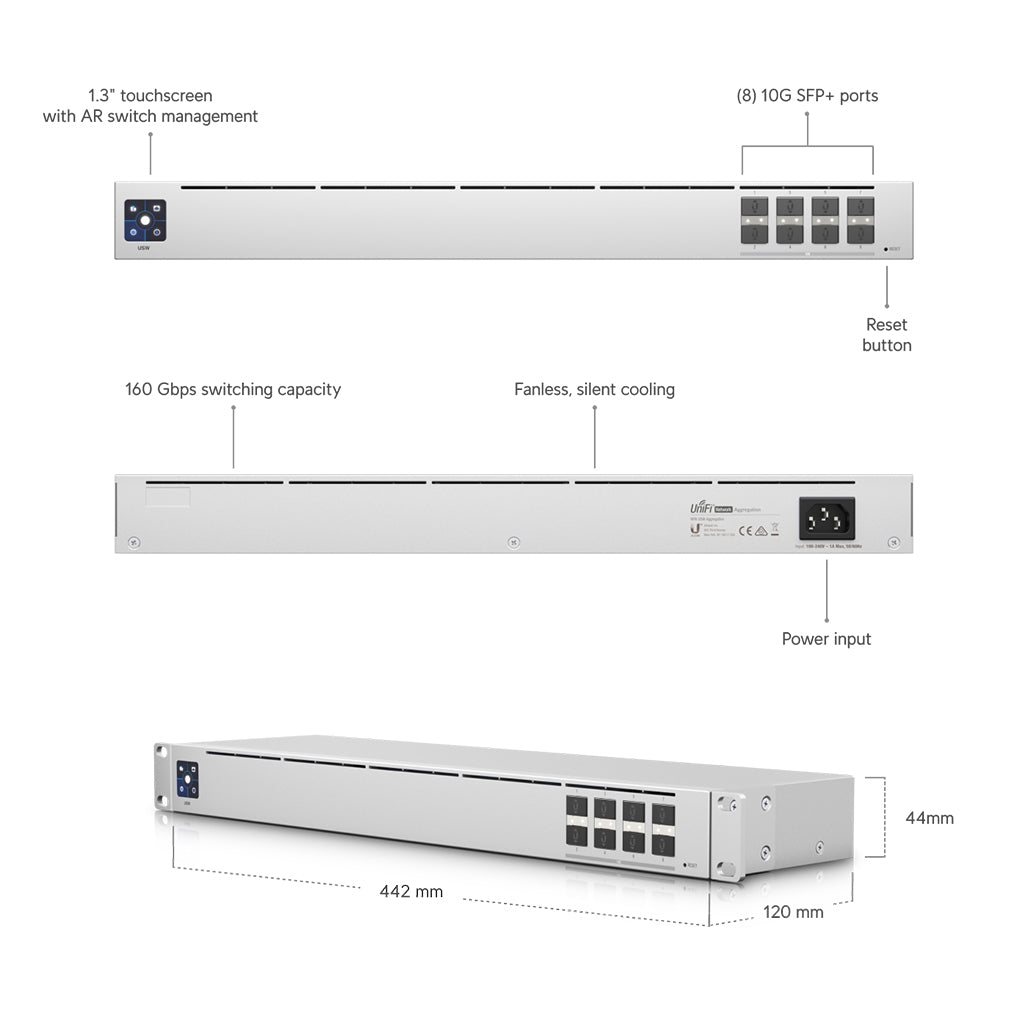

  • Dimensions: 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
  • Weight: Without mounting brackets: 2.6 kg (5.8 lb); With mounting brackets: 2.7 kg (6 lb)
  • Enclosure Material: SGCC steel
• Hardware:
  • Management Interface: Ethernet In-Band

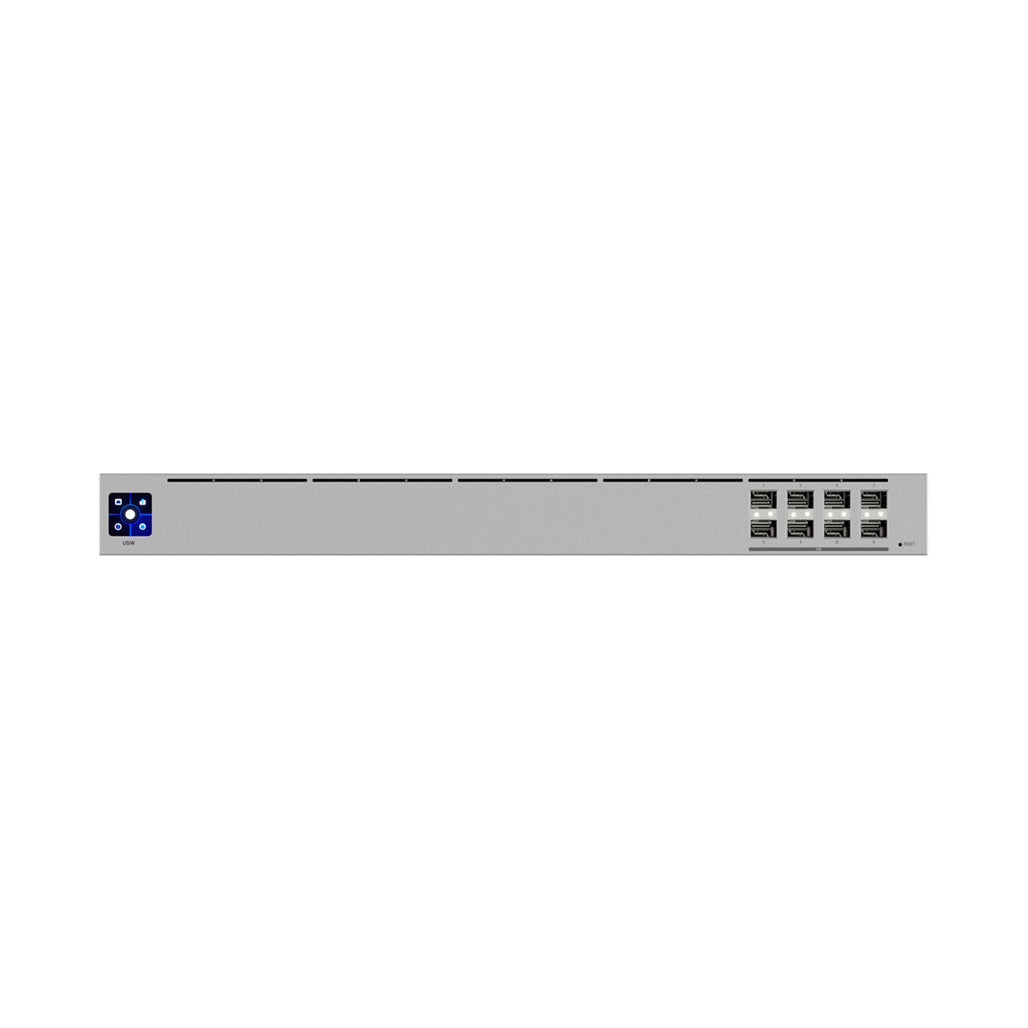

  • Networking Interface: (8) 10G SFP+ ports
  • Total Non-Blocking Throughput: 80 Gbps
  • Switching Capacity: 160 Gbps
  • Forwarding Rate: 119.04 Mpps

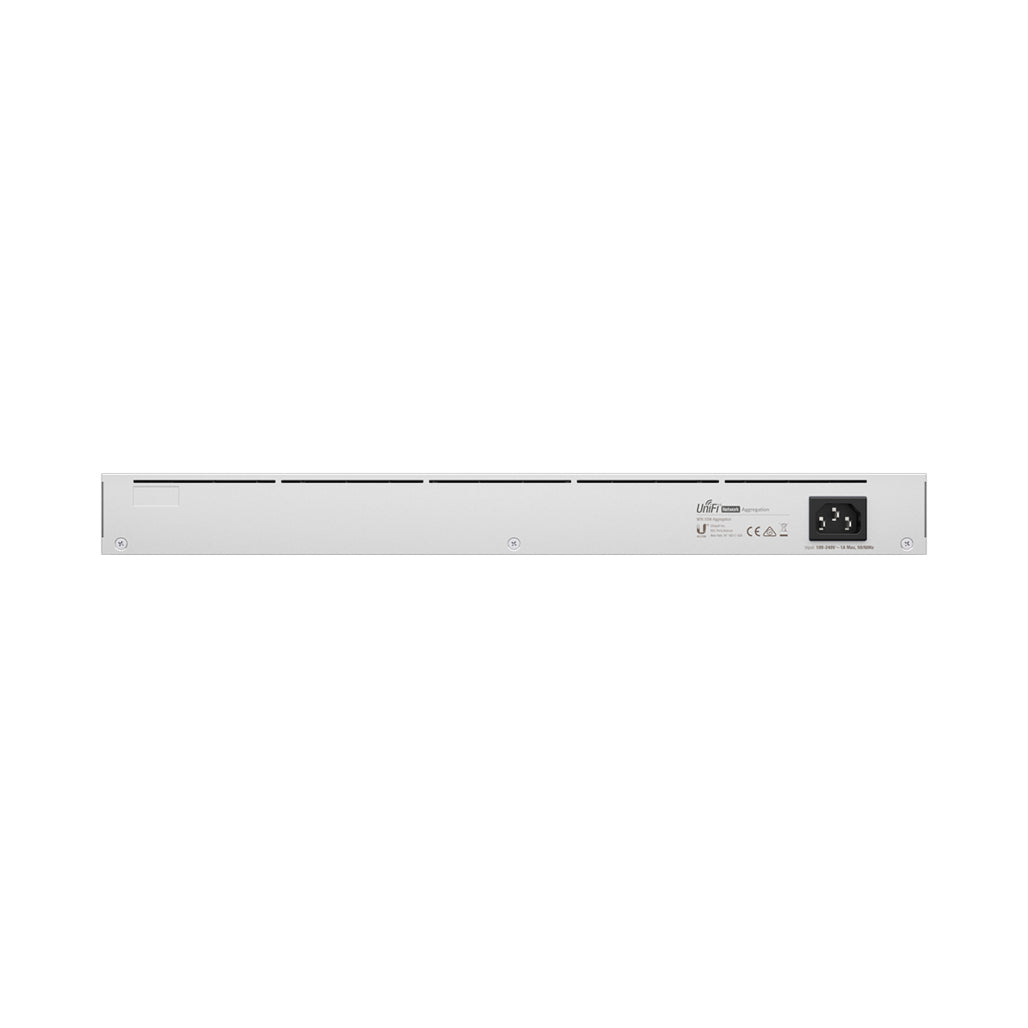

  • Power Method: Universal input, 100—240V AC, 50/60 Hz
  • Power Supply: AC/DC, internal, 36W
  • Supported Voltage Range: 100—240V AC
  • Max. Power Consumption: 30W
  • ESD/EMP Protection: Air: ±16kV, contact: ±12kV
  • Max. Number of Supported SFP+ Modules: UACC-OM-MM-10G: 8, UACC-OM-SM-10G: 8, UACC-CM-RJ45-10G: 4, UACC-CM-RJ45-MG: 4
• Services:
  • SMB Layer 2 GbE switch
  • LCM Display: 1.3" LCM color touchscreen
  • Button: Factory reset
• Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
• Ambient Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC
• Switching Features:
  • Layer 2 Features: IGMP snooping, STP/RSTP, port isolation, storm control, voice VLAN, port mirroring, LACP port aggregation, multicast/broadcast rate limiting, MAC address blocking, flow control, 802.1X control, jumbo frames, proprietary loop protection, DHCP snooping/guarding, egress rate limit, LLDP-MED, port restricted by MAC, device isolation with ACLs
  • Layer 3 Features: N/A
• LED Indicators:
  • System: Status
  • SFP+: Link/activity
• Application Requirements: UniFi Network Version 5.14.12 and later

Conclusion: Designed for modern networking environments, the Ubiquiti UniFi Aggregation USW-Aggregation offers a reliable solution for handling high-speed 10G SFP+ connections. Its comprehensive Layer 2 features, user-friendly interface, and robust security functions make it an ideal choice for businesses that require efficiency, performance, and control over their networks.
