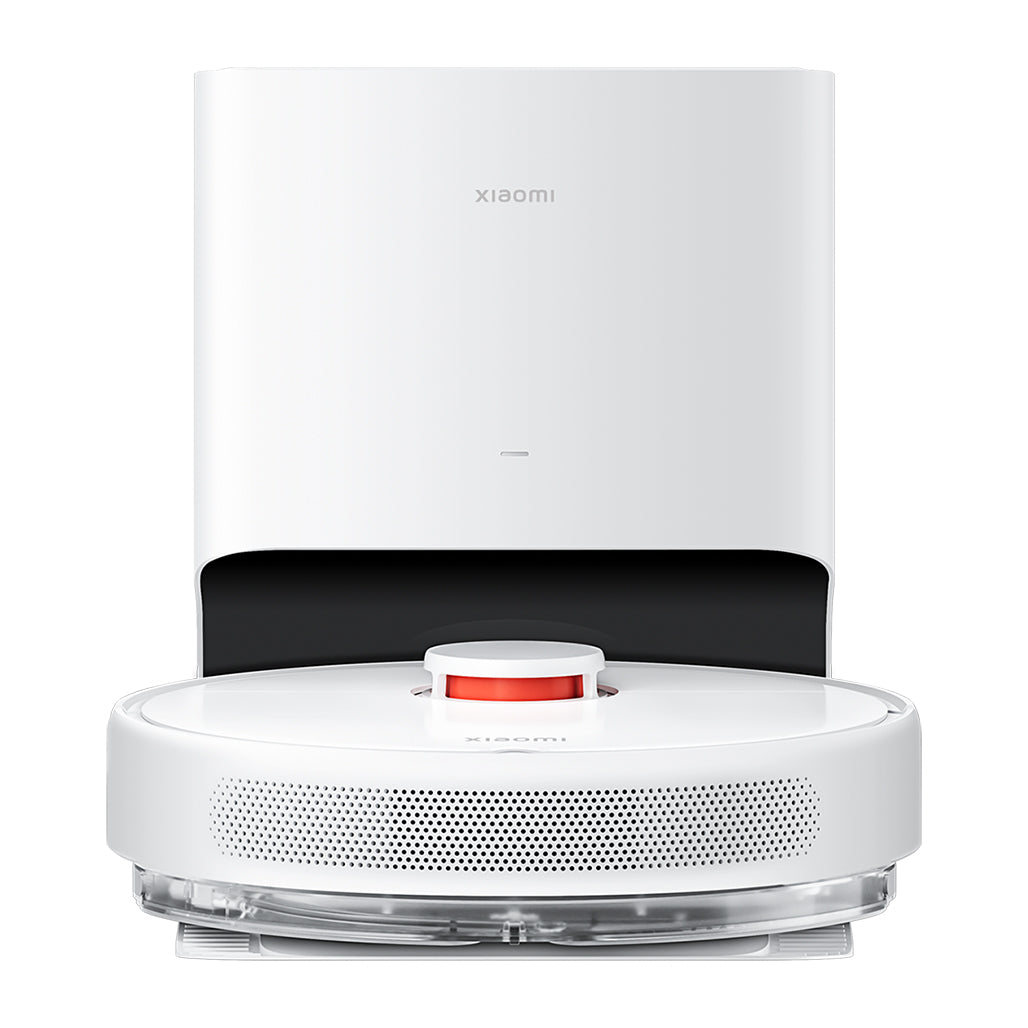

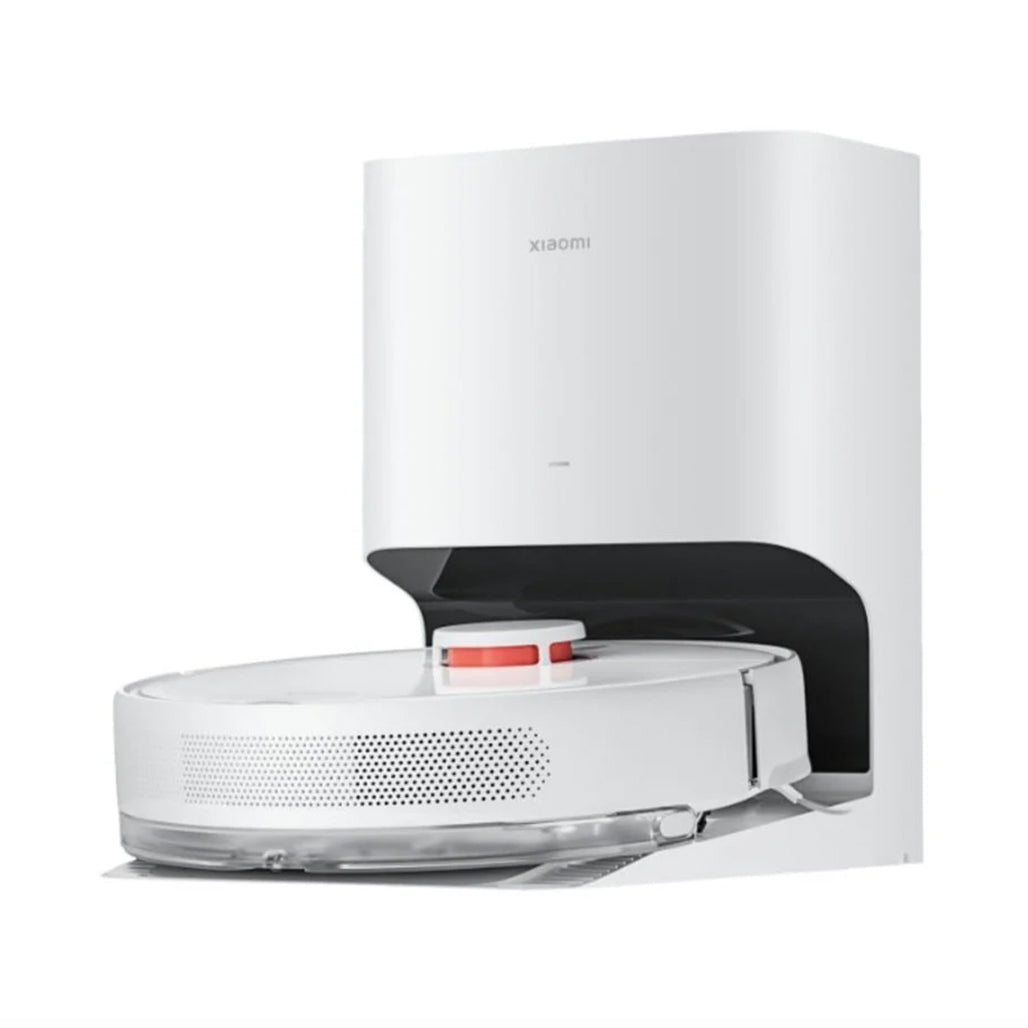

Xiaomi Robot Vacuum X10

The Xiaomi Robot Vacuum X10 is engineered to deliver fully automated home cleaning through advanced mapping, powerful suction, and intelligent dust disposal. A dual-channel auto-emptying system is utilized, allowing dust to be transferred into a sealed 2.5L disposable bag, which is capable of storing up to 60 full cleaning cycles. A high-performance 17000Pa suction system is integrated into the docking station to ensure instant dustbin emptying without manual intervention, while dust exposure is minimized through automatic sealing technology.

Advanced LDS laser navigation is employed to create precise real-time maps of the home environment, enabling efficient route planning even in low-light conditions. Strong cleaning performance is achieved through a 4000Pa suction fan blower combined with a 2-in-1 vacuum and mopping system. A long-lasting 5200mAh battery supports extended operation, while smart controls such as voice commands and customizable cleaning schedules are supported for enhanced user convenience.

Key Features

Automatic Dust Collection System
A fully automated dust disposal mechanism is implemented through dual-channel suction ducts delivering up to 17000Pa at the base station. Dust is securely stored in a 2.5L sealed bag designed to support up to 60 cleaning cycles, reducing maintenance frequency and preventing dust exposure.

Advanced LDS Laser Navigation
A high-precision LDS laser mapping system is used to scan and map the home environment accurately. Navigation is maintained even in darkness, while obstacle detection allows speed adjustment for safer movement and improved efficiency.

Powerful 4000Pa Cleaning Performance
Strong suction power is provided through a high-speed brushless motor, allowing dust, debris, and pet hair to be efficiently removed. A floating roller brush is incorporated to maintain consistent floor contact for deeper cleaning results.

2-in-1 Vacuum and Mop Function
Simultaneous vacuuming and mopping are supported through a 200ml electronically controlled water tank. Water distribution is regulated with three adjustable levels to ensure uniform cleaning without leakage.

Long Battery Operation
Extended cleaning cycles are enabled through a 5200mAh battery, allowing up to 180 minutes of continuous operation, making large-area cleaning possible in a single session.

Smart Control System
Voice control functionality and customizable cleaning schedules are supported, allowing personalized cleaning routines to be executed with ease.

Specifications

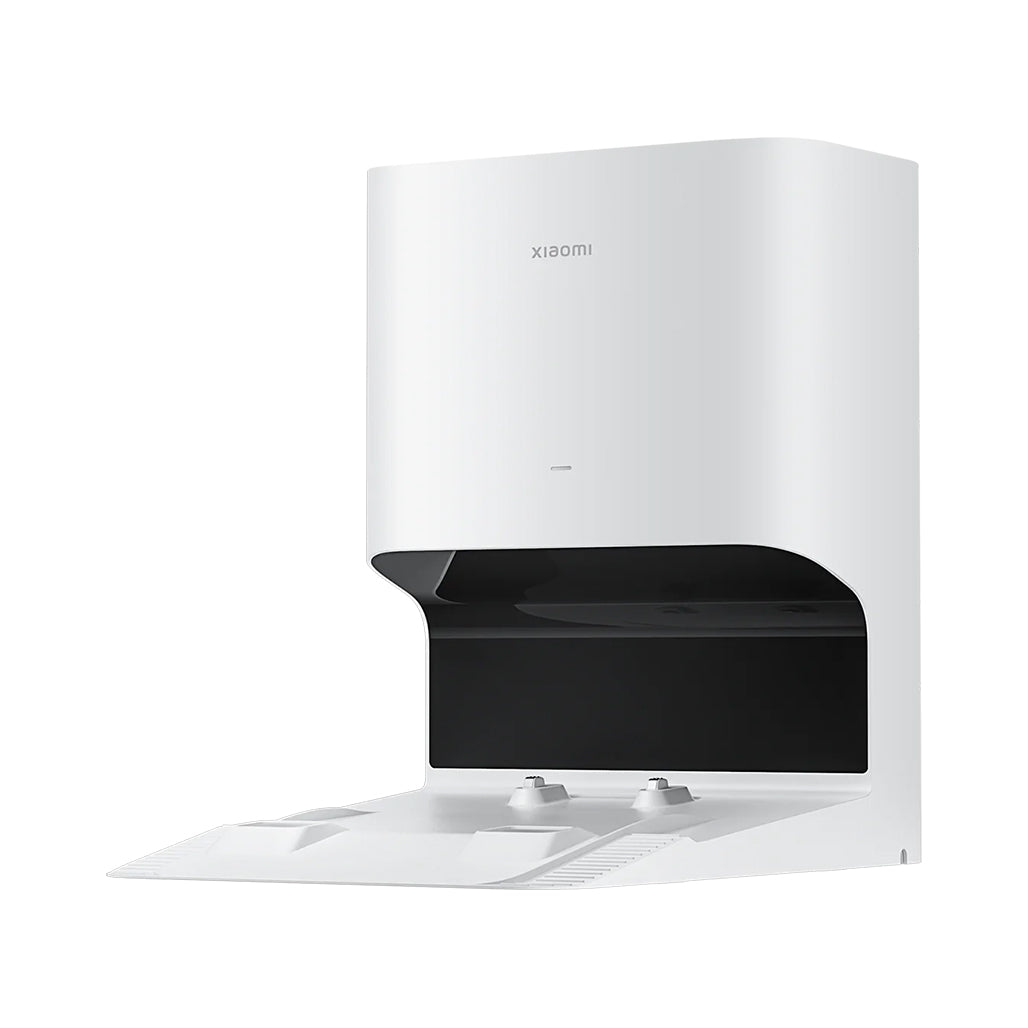

Auto-empty Station

Model: JCZ2201
Item Dimensions: 397 × 285 × 384 mm
Rated Input: 220–240 V ~ 50/60 Hz
Rated Output: 20.0 V ⎓ 1 A
Rated Power: 1000 W

Robot Vacuum

Name: Robotic Vacuum Cleaner
Model: B102GL
Item Dimensions: 353 × 350 × 98.8 mm
Battery: 4800 mAh (Rated Capacity) / 5200 mAh (Nominal Capacity)
Charging Time: Approx. 6 hours
Net Weight (Robot Vacuum): 3.3 kg
Net Weight (with Accessories): 7.4 kg
Rated Voltage: 14.4 V
Rated Power: 46 W

Package Contents

Robot vacuum x1
Dust collection dock x1 (With dust bag installed)
Main brush x1 (Installed)
Brush cover x1 (Installed)
Dust bag x1 (Replacement)
Dustbin x1 (Installed)
Mop pad x1
Water tank x1
Side brush x1
Cleaning tool x1
Power cable x1
User manual x1

Sensor List

LDS laser sensor
Distancing and mapping (360°, white material 0.1–6m, black material 0.1–4m)

IMU sensor
Motion status detection (Acceleration ranges ±2g/±4g/±8g/±16g; Gyroscope ranges from ±125°/s to ±200°/s)

Drop sensor
Detects steps and drops (Black/grey carpet >15mm; light grey tile >45mm; pure white >80mm)

Wheel suspension detection
Detects if the vacuum-mop is suspended (0&1)

Infrared sensor
Communication between the vacuum-mop and base (<10cm)

Infrared sensor
Vacuum-mop and charging dock positioning (<5m)

Air pressure sensor
Tests for dust collection capacity and blocked ducts (300–1250hPa)

Hall sensor
Tests whether dustbin, water tank and cloth are installed (Operating Point ±37Gs; Releasing Point ±25Gs)

Conclusion

A fully automated cleaning experience is delivered through intelligent mapping, strong suction power, and hands-free dust disposal. Efficient floor maintenance is ensured through combined vacuuming and mopping functions, while extended runtime and smart control features provide consistent usability across larger living spaces. Consistent performance and reduced manual maintenance are achieved through an integrated all-in-one cleaning system.
