Xigmatek Aqua Ultra Air | E-ATX Mid-Tower

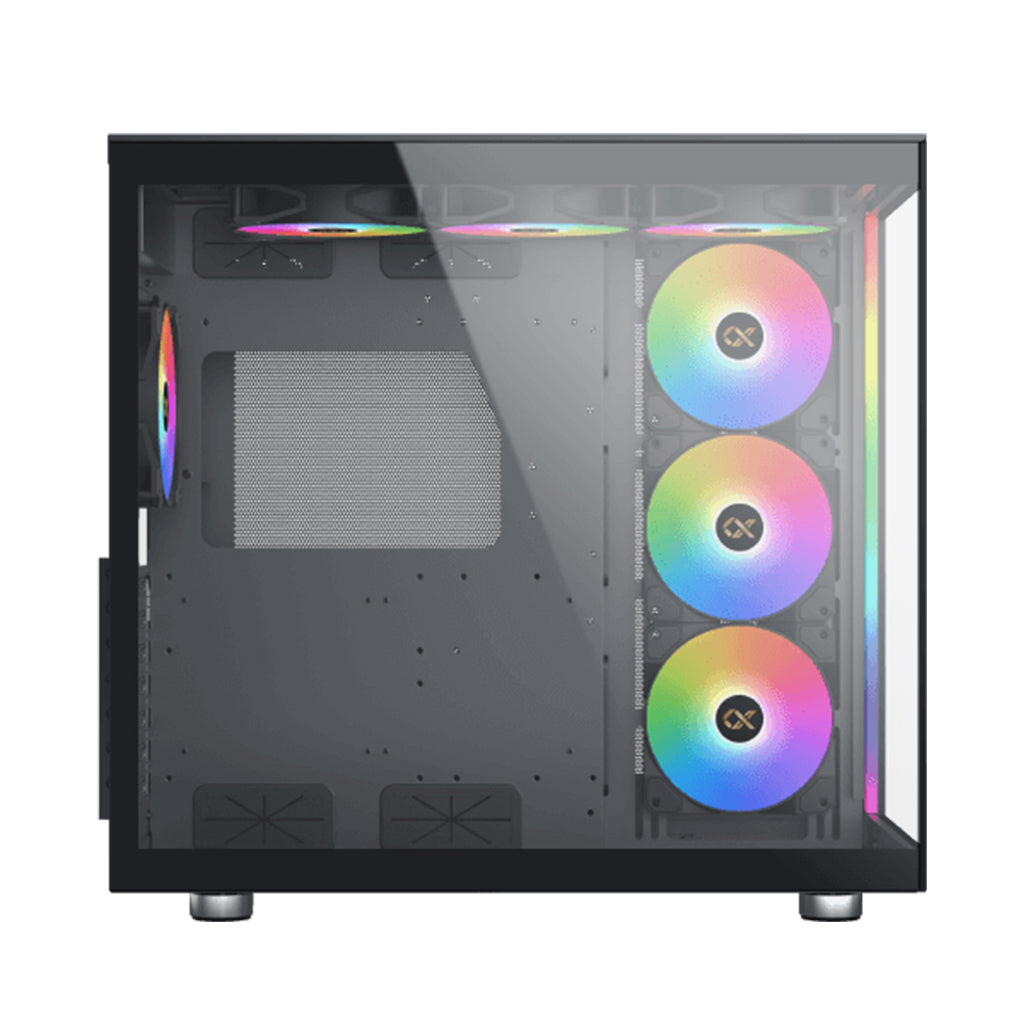

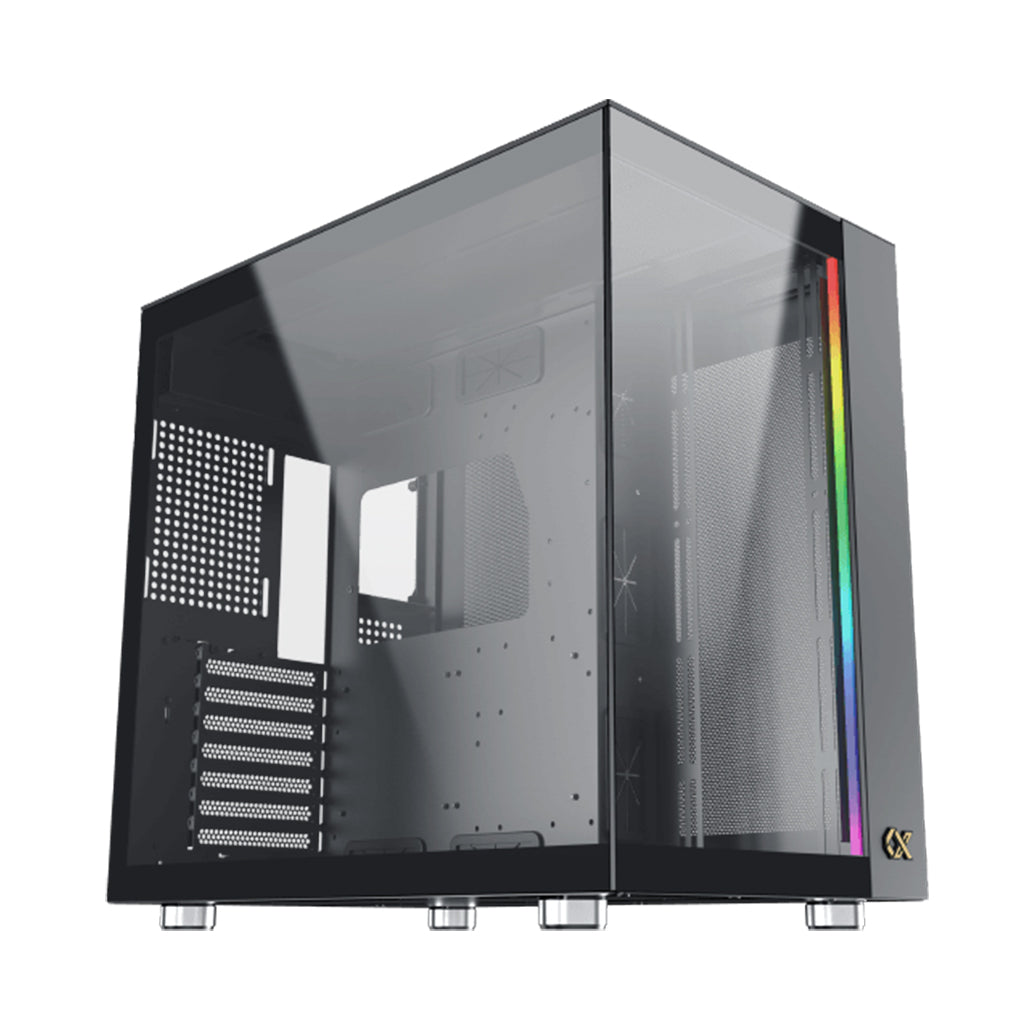

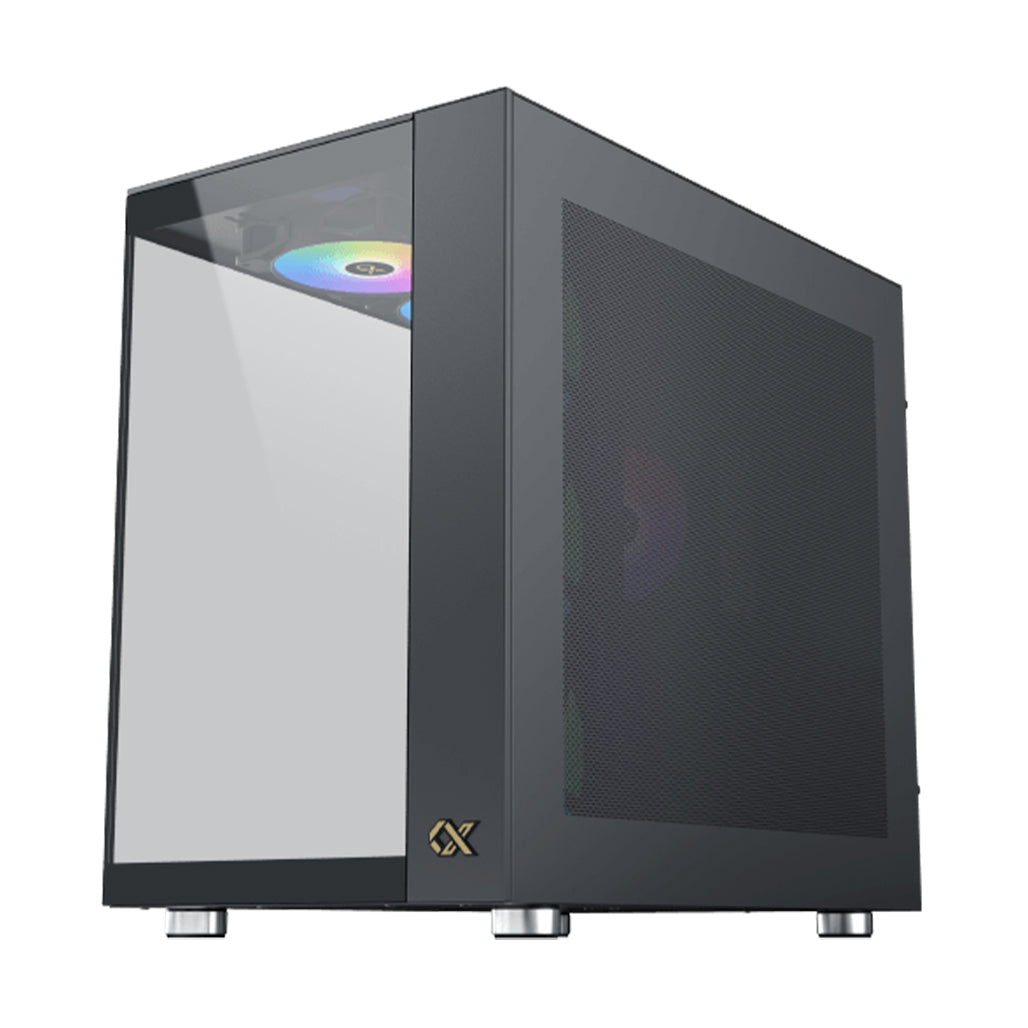

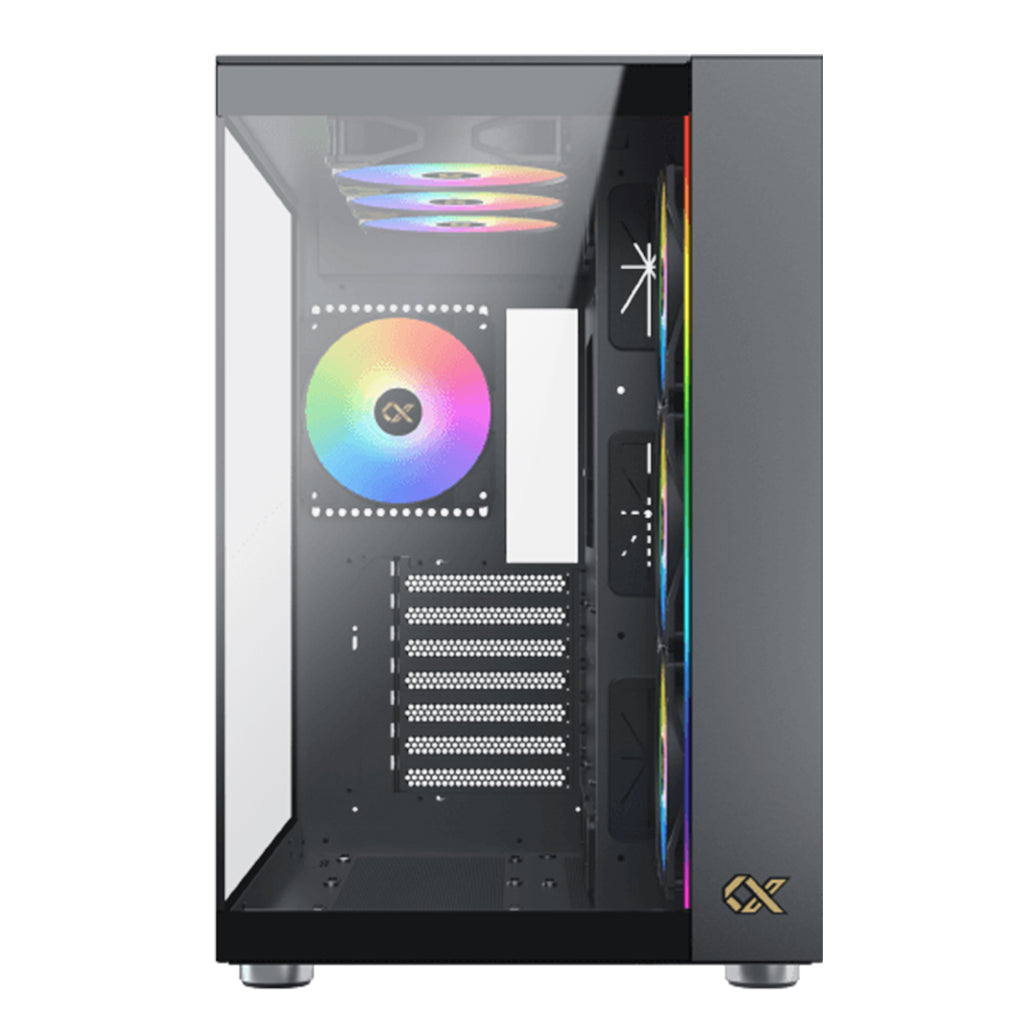

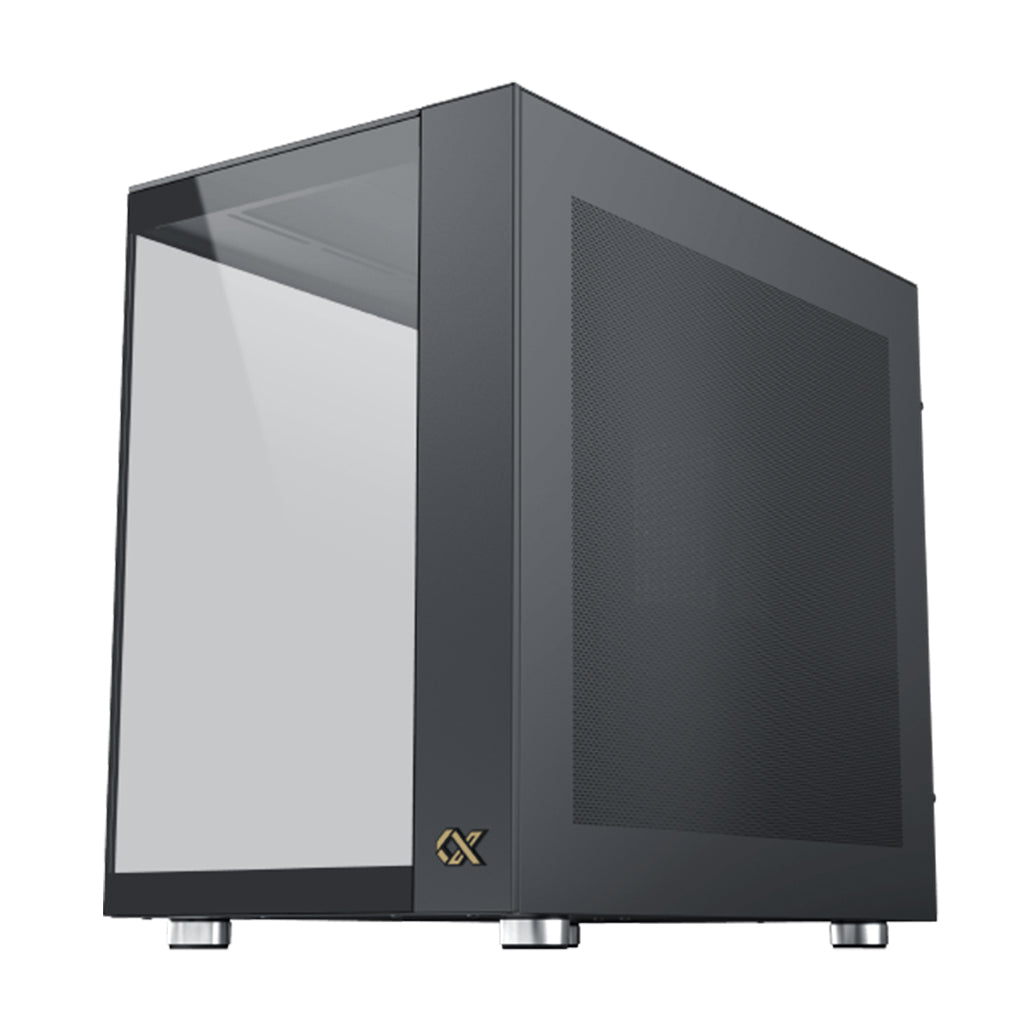

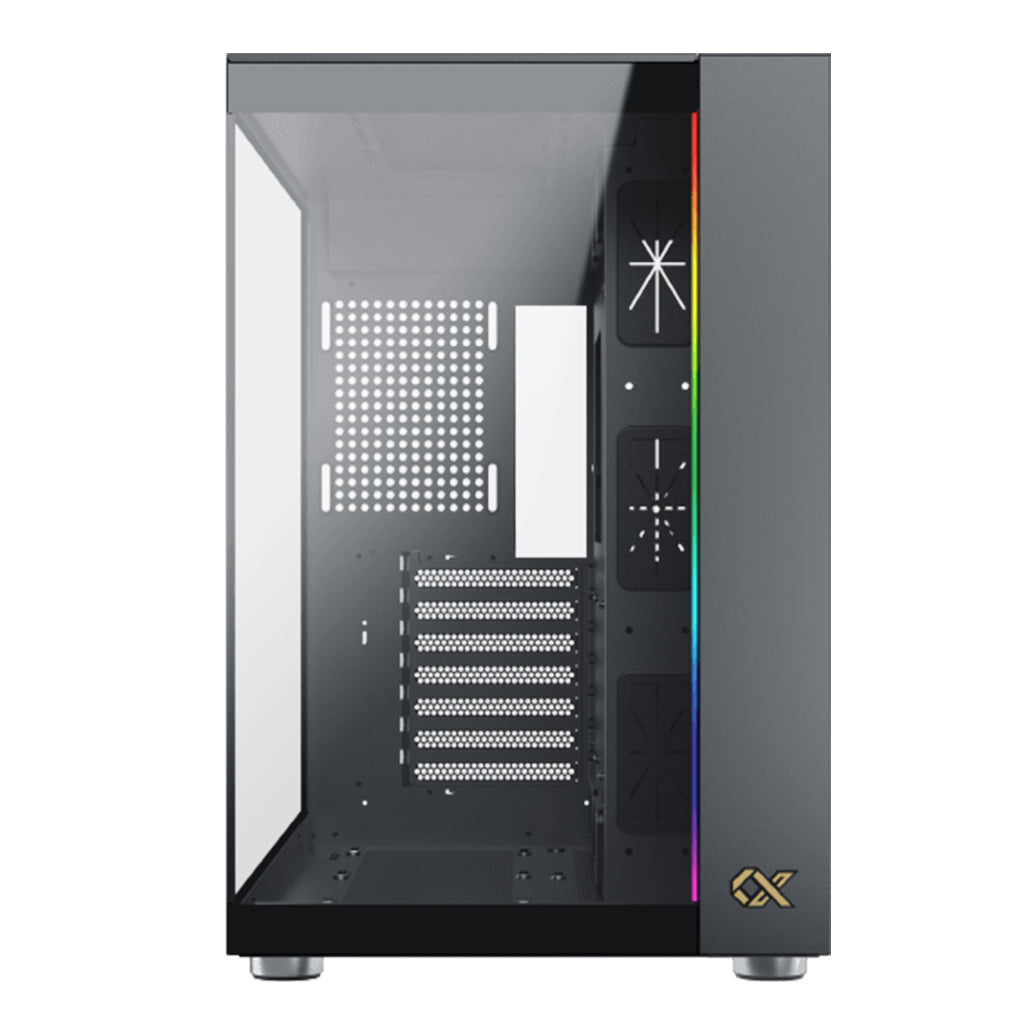

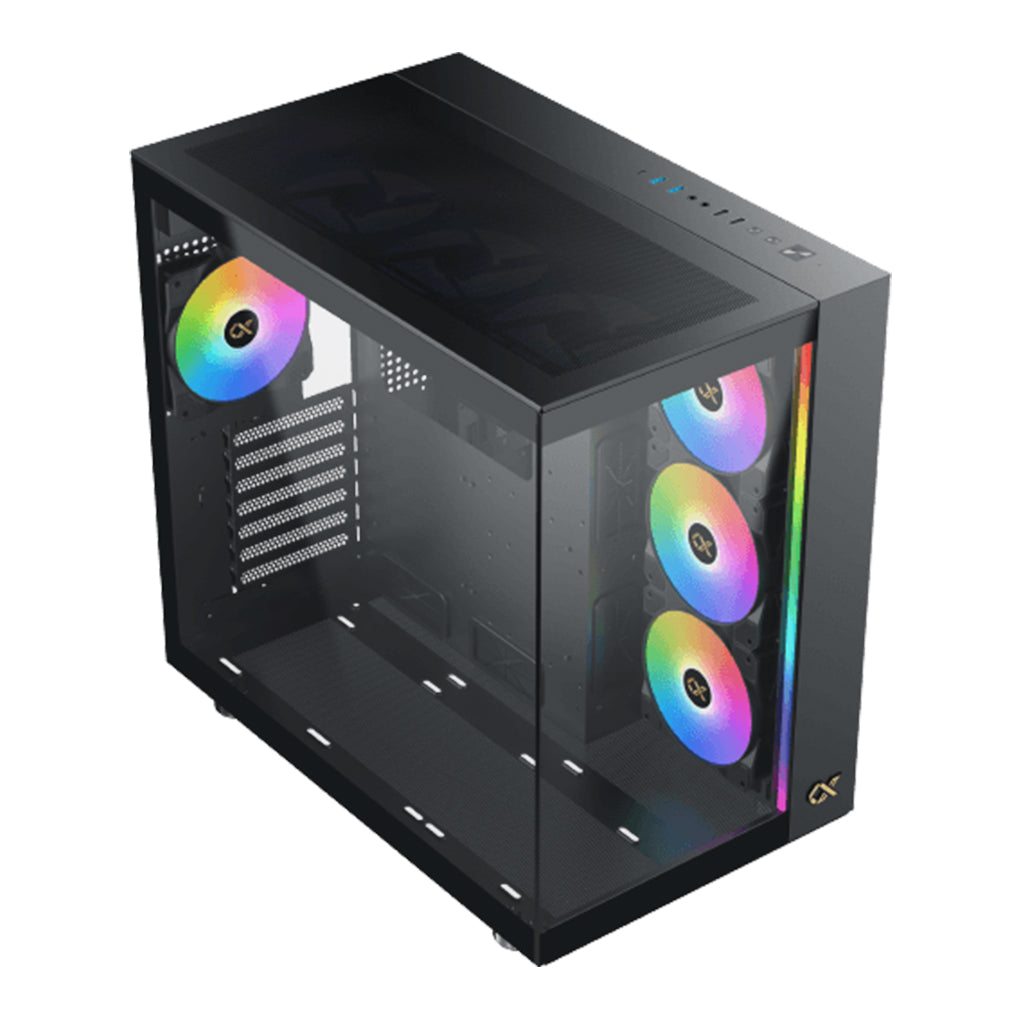

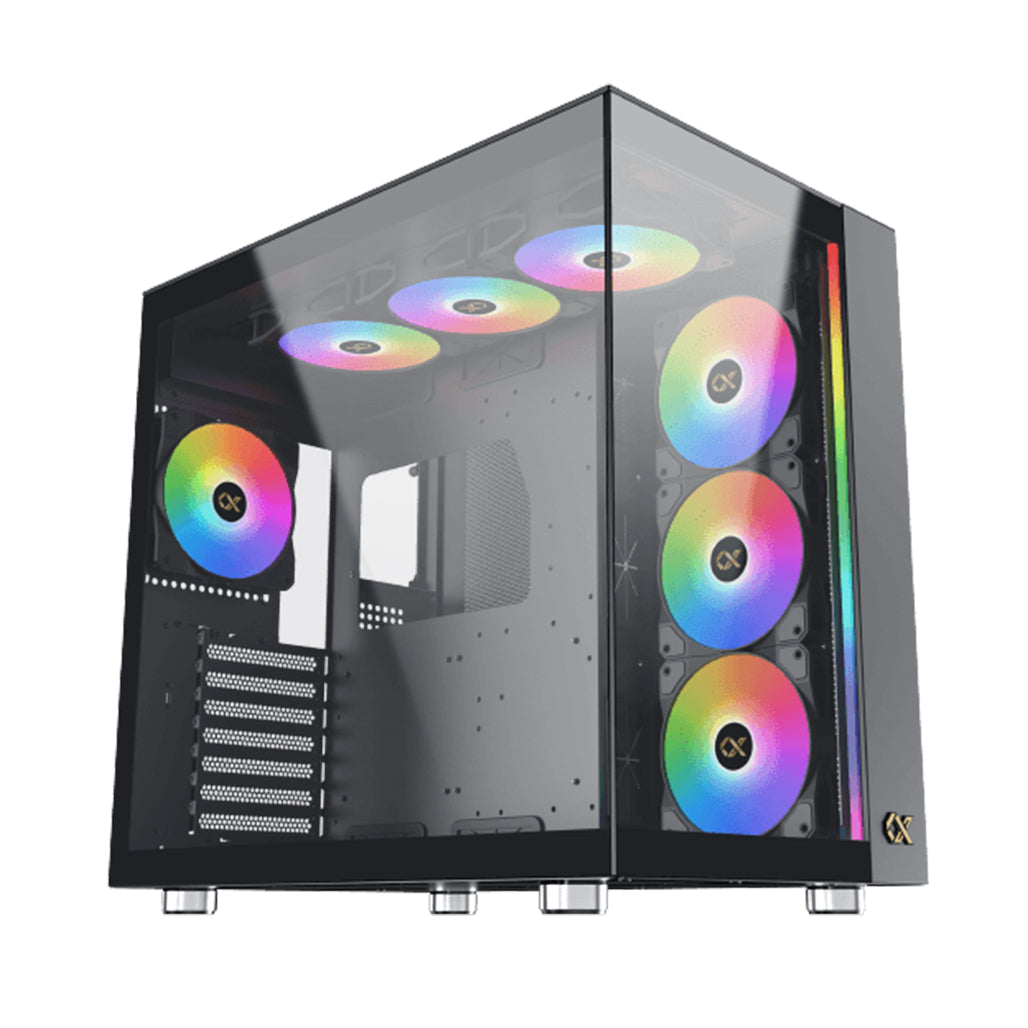

The Xigmatek Aqua Ultra Air is an E-ATX mid-tower case engineered for high-performance cooling and a sleek visual aesthetic. With a seamless front and side tempered glass design, this chassis showcases internal components while maintaining efficient airflow through strategically placed mesh panels. The pre-installed ARGB LED bar adds a dynamic lighting effect, providing an immersive gaming atmosphere.

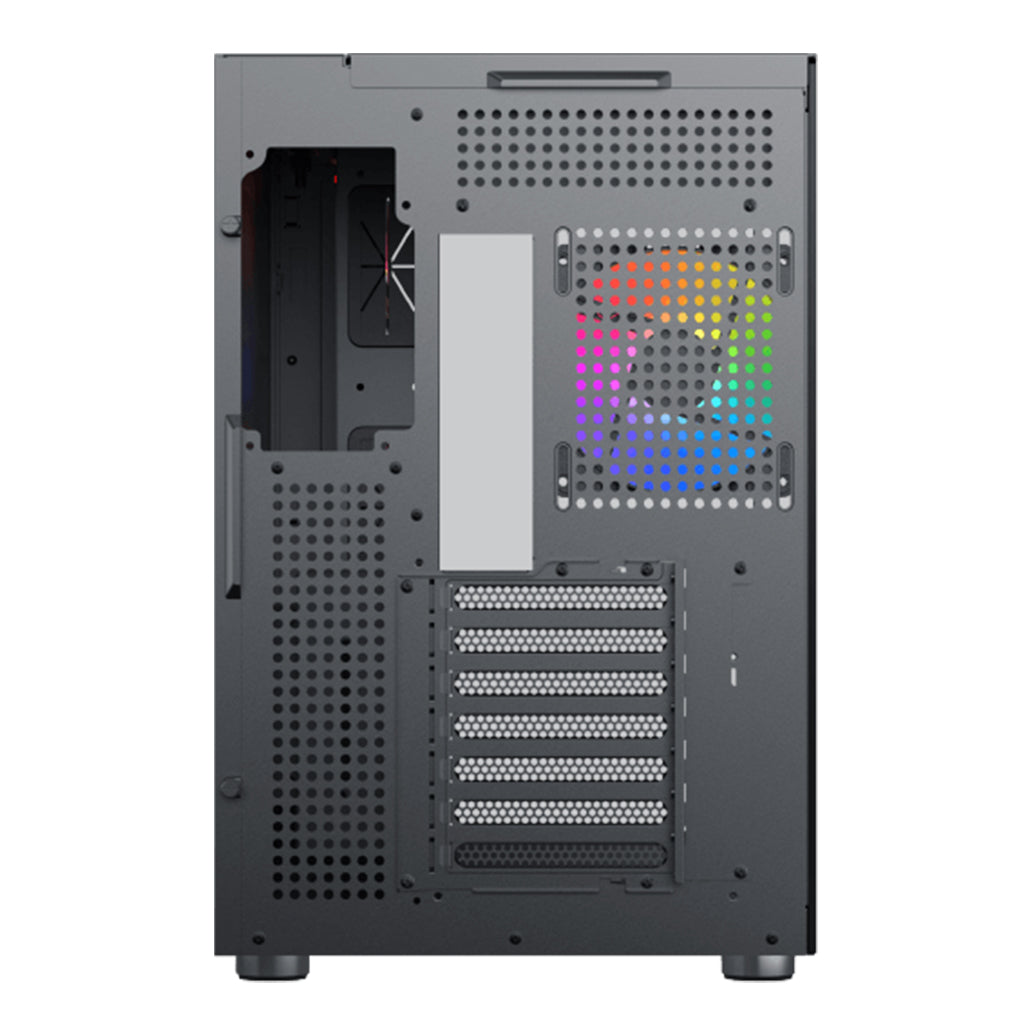

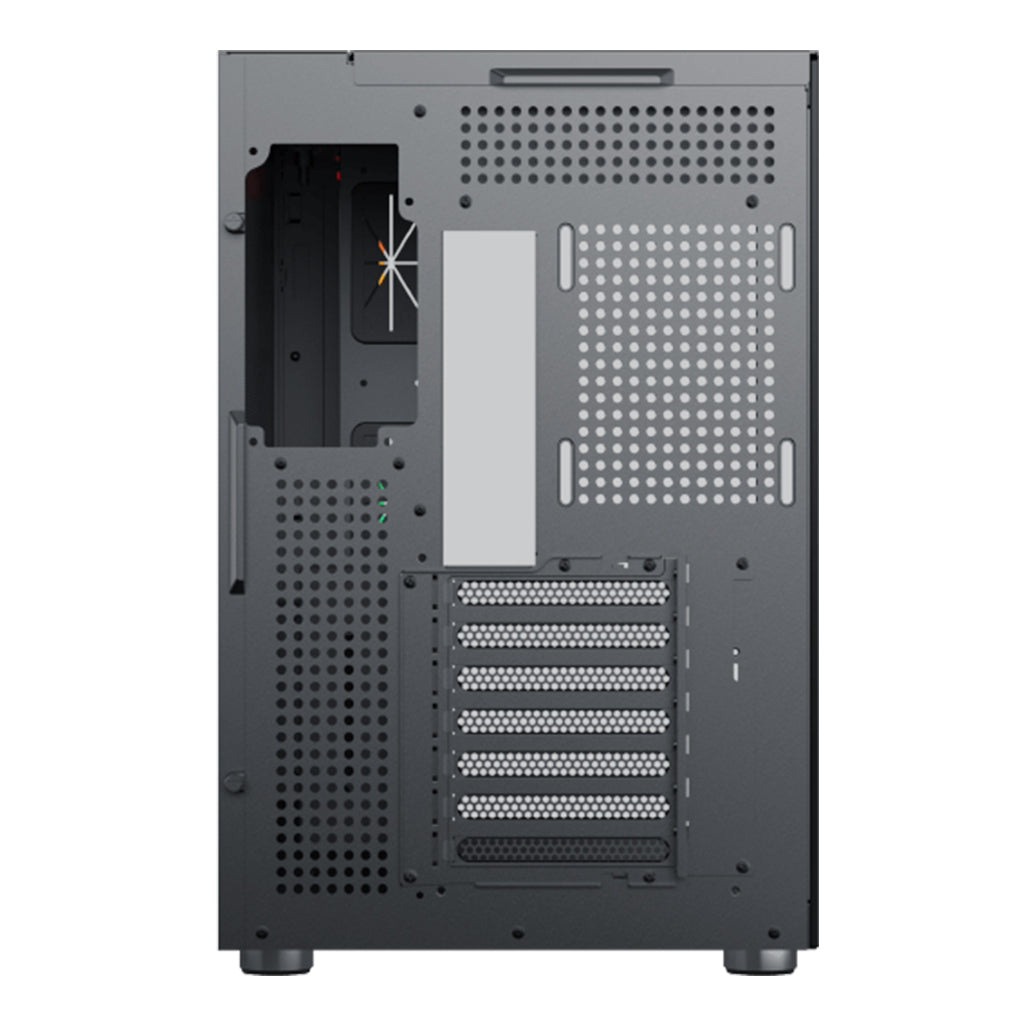

Designed with a vertical airflow layout, the Aqua Ultra Air optimizes cooling from the bottom up, directing fresh air through the high-airflow mesh bottom panel and exhausting heat through the top and rear fans. Up to 10 cooling fans can be installed, ensuring consistent airflow for high-performance builds. The modular fan brackets and removable motherboard extension panel further enhance installation flexibility, making this case ideal for custom liquid cooling setups.

For hardware compatibility, the Aqua Ultra Air supports GPUs up to 430mm, allowing it to house the latest high-end graphics cards. A dual-chamber layout separates the PSU and storage drives, preventing excess heat from reaching critical components. The removable HDD/SSD cages accommodate up to four 3.5” HDDs and four 2.5” SSDs, providing ample storage for gaming libraries and high-speed applications.

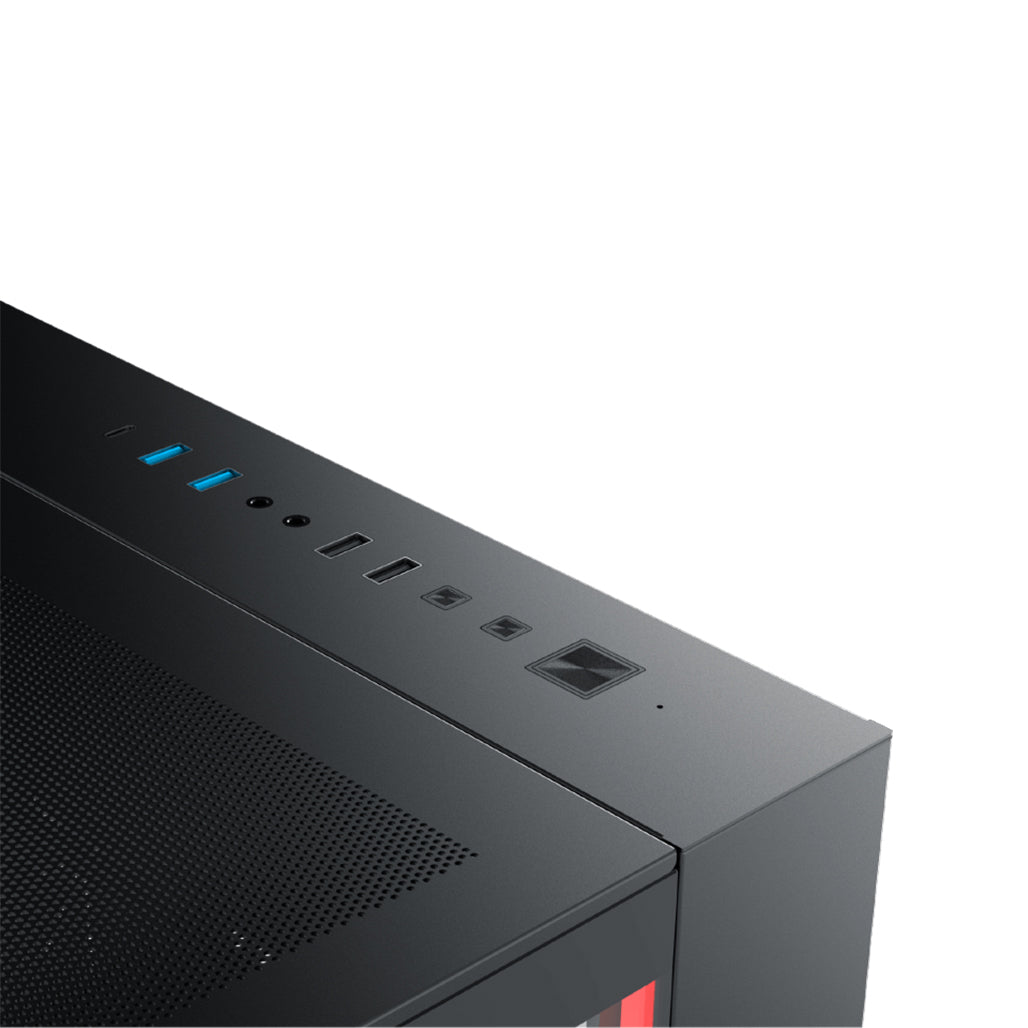

With top-mounted I/O connectivity, including USB 3.0, USB-C, and HD audio ports, the Aqua Ultra Air ensures seamless access to peripherals. Its versatile layout, superior cooling support, and eye-catching ARGB illumination make it a top-tier choice for gaming setups and professional workstations.

Key Features:

• Dual Tempered Glass Panels – Showcases internal components with a seamless side and front glass design
• Optimized Airflow – Bottom-to-top vertical cooling system enhances heat dissipation
• ARGB LED Lighting – Built-in LED strip with customizable effects for dynamic visuals
• Extensive Cooling Support – Holds up to 10 cooling fans for maximum airflow efficiency
• Extreme GPU Compatibility – Supports graphics cards up to 430mm in length
• Modular Design – Removable motherboard extension panel and fan brackets for hassle-free installation
• Enhanced Storage Options – Dual removable cages for up to four HDDs and four SSDs
• PSU Shroud & Dual-Chamber Layout – Prevents heat buildup and improves cable management
• Top-Mounted I/O Panel – USB 3.0, USB-C, HD Audio, and LED switch for quick connectivity

Specifications:

Case Form Factor:

• E-ATX Mid-Tower

Material:

• 0.8mm SPCC Steel

Dimensions (LxWxH):

• 460 x 285 x 445mm

Motherboard Compatibility:

• E-ATX, ATX, Micro-ATX, Mini-ITX

Drive Bays:

• 4x 3.5” HDDs (Removable Cages)
• 4x 2.5” SSDs

Expansion Slots:

• 7 Standard Slots (Supports Vertical GPU Installation)

Cooling Fan Support:

• Top: Up to 3x 120mm fans
• Motherboard Panel: Up to 3x 120mm or 3x 140mm fans
• Bottom: Up to 3x 120mm or 3x 140mm fans
• Rear: 1x 120mm fan

Water Cooling Support:

• Top: 240mm / 360mm radiator
• Motherboard Panel: 240mm / 280mm / 360mm radiator
• Bottom: 240mm / 360mm radiator
• Rear: 120mm radiator

Maximum Component Compatibility:

• Maximum GPU Length: 430mm
• Maximum CPU Cooler Height: 185mm
• Maximum PSU Length: 220mm

Power Supply Support:

• Standard PS2 ATX PSU

I/O Panel:

• USB 3.0 x 2
• USB 2.0 x 2
• USB-C x 1
• HD Audio Jack
• LED Switch Button
• Reset Button

The Xigmatek Aqua Ultra Air E-ATX Mid-Tower is built for performance-oriented users who seek maximum cooling efficiency, spacious interior layout, and a premium aesthetic. Designed with advanced airflow mechanics and modular installation features, this chassis is an ideal choice for high-end gaming rigs and enthusiast PC builds.
