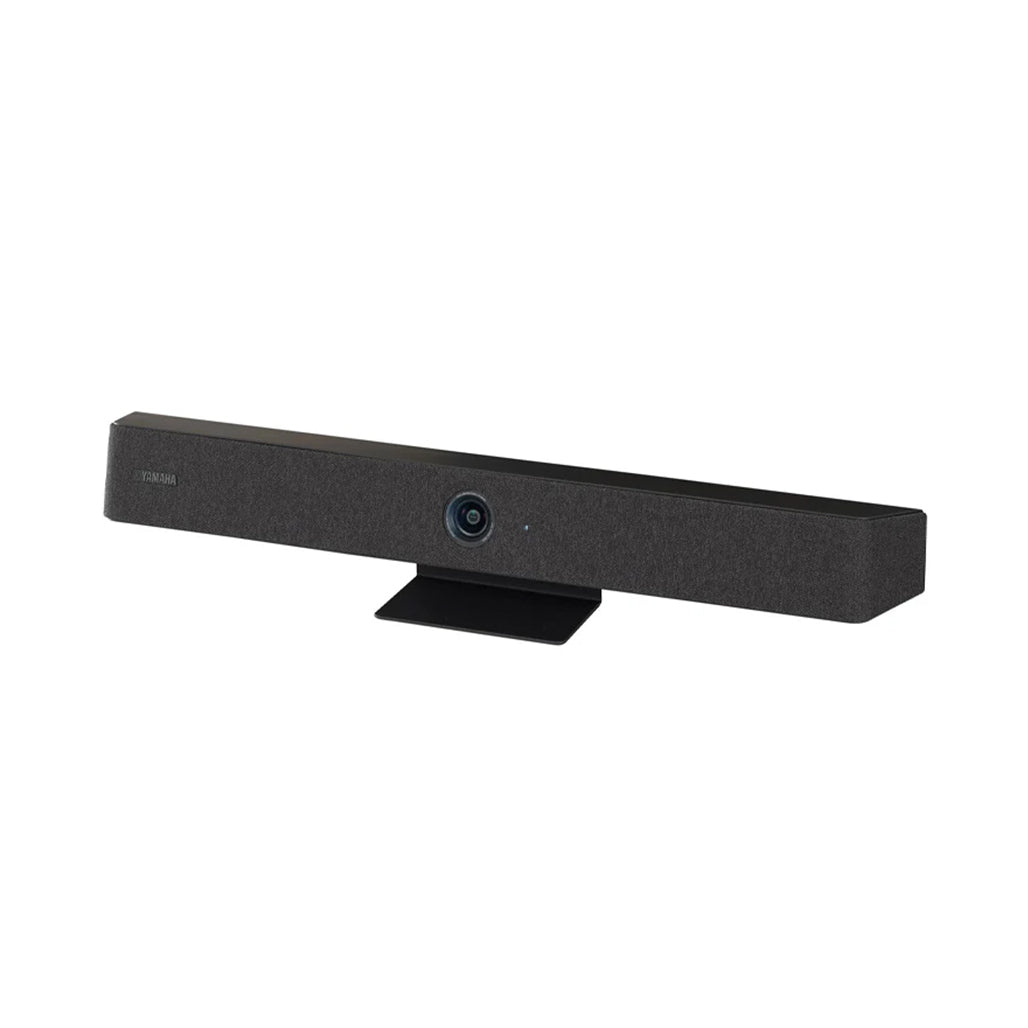

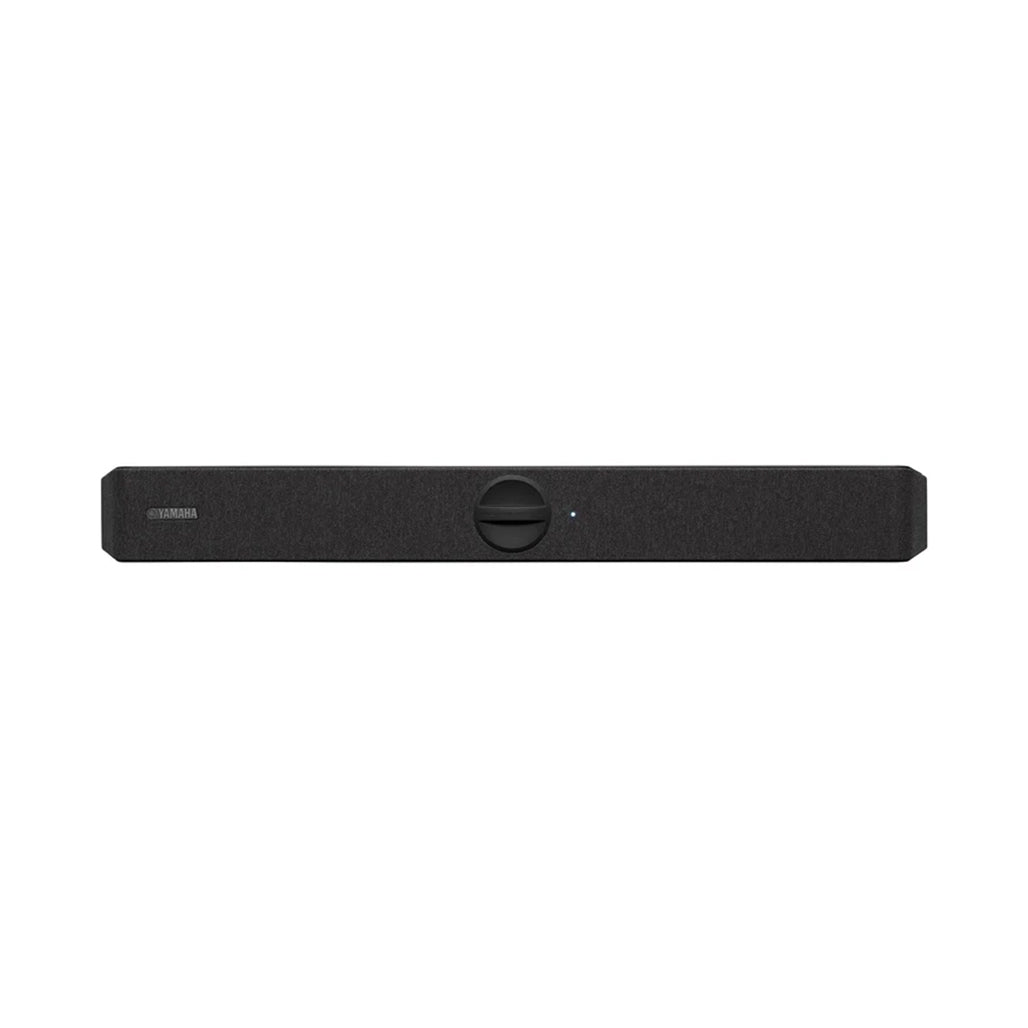

Yamaha CS-800 - Video Sound Bar For Huddle Rooms

The Yamaha CS-800 Video Sound Bar for Huddle Rooms has been designed as an all-in-one video conferencing solution where camera, microphone, and speaker functions are seamlessly unified. Advanced AI collaboration technology has been implemented to synchronize voice and video data, allowing meeting participants to be seen and heard with exceptional accuracy. A reliable hybrid collaboration experience is delivered in real time, even within busy and acoustically challenging work environments.

A newly developed SoundCap Eye™ technology has been integrated to analyze both visual and audio positioning data, ensuring that participant locations are precisely identified and tracked. Through intelligent camera framing, adaptive audio processing, and noise-aware volume control, a cinematic and immersive meeting experience is achieved. With a single USB connection, flexible installation options, and broad platform certification, effortless collaboration has been enabled across modern huddle rooms and open workspaces.

Key Features

SoundCap Eye™ Participant Positioning Technology
Participant locations are accurately pinpointed by combining voice pickup data with camera analysis. A harmonized tracking experience is delivered as facial position and speaking direction are continuously aligned, while unwanted background noise is effectively suppressed.

4K Camera with Smart Framing
A high-resolution 4K camera has been equipped with AI-based Smart Framing to automatically adjust video composition. Group, Speaker, and Individual framing modes are supported, ensuring that remote participants are presented with a clear and engaging visual experience.

Hexa-Microphone Beamforming System
Six MEMS microphones are arranged in a hexagonal array to create a three-dimensional beam. Spoken words are captured with greater precision, allowing clearer voice reproduction compared to conventional video sound bars.

Face Focus Beamforming
Meeting participants are continuously tracked through AI image analysis, while sound from off-axis directions is reduced. Voices are clearly captured even in noisy open spaces, improving intelligibility for far-end participants.

Self-Silence Function
Microphones are automatically muted when speech is not detected. Human Voice Activity Detection technology is used to distinguish voices from environmental sounds, preventing unnecessary noise from being transmitted.

Self-Volume Balancer
Speaker output levels are automatically adjusted based on ambient noise conditions. An appropriate volume is maintained at all times, ensuring privacy, clarity, and minimal disruption to surrounding areas.

Easy Launch with One-USB Connection
System wake-up, on-screen guidance, video, audio, and display connectivity are all initiated through a single USB connection. Setup complexity is reduced, allowing meetings to begin quickly and effortlessly.

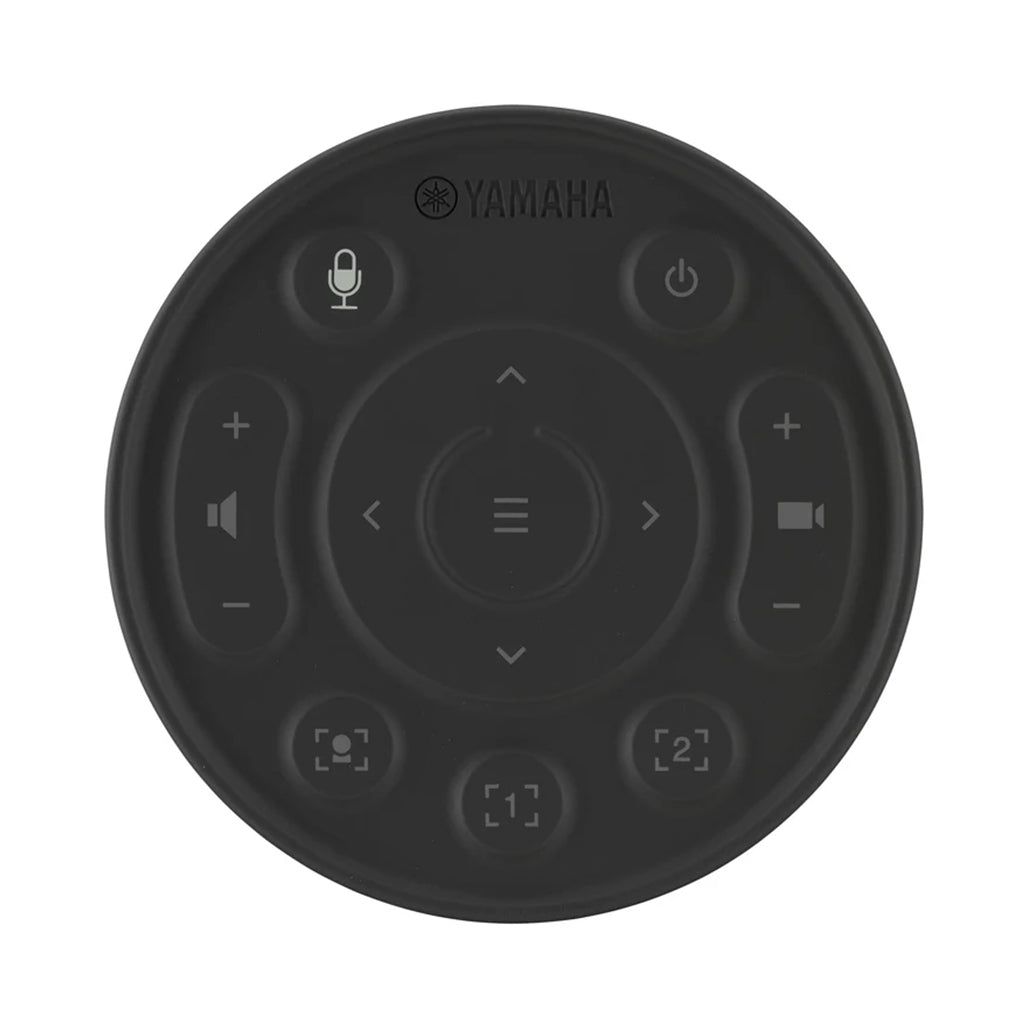

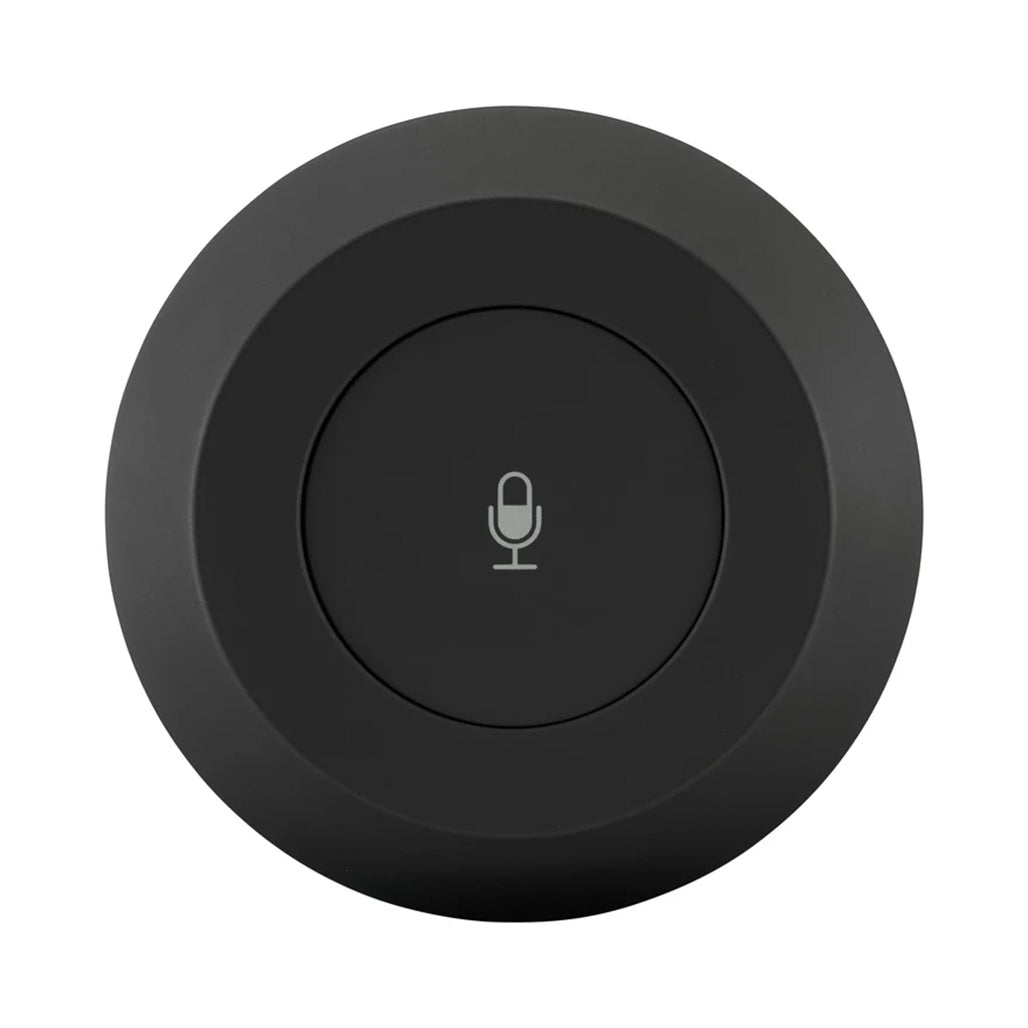

Dual Remote Interface
Both simple mute control and advanced camera and audio adjustments are provided. Manual framing, zoom control, volume adjustment, and smart framing selection are supported through an intuitive remote design.

Certified Collaboration Compatibility
Seamless operation has been ensured through certification with leading collaboration platforms, including Barco ClickShare Conference, Microsoft Teams, and Zoom Rooms.

Specifications

General
Dimensions: 620 × 90 × 70 mm
Weight: 1.7 kg
Power Requirements: AC 100–240 V (50/60 Hz)
Max Power Consumption: 42.0 W
Operating Temperature: 0 ℃ – 40 ℃, Humidity 20% – 85% (No condensation)
Storage Temperature: -20 ℃ – 60 ℃, Humidity 20% – 85% (No condensation)
Indicator: Status Indicator

Audio
Speakers: Full-range speaker × 1
Max Volume: 90 dBSPL (1 m)
Microphones: 6× MEMS Hexa-microphones
Coverage: 110° Frontward – 6.0 m (Normal) / 3.0 m (Face Focus)
Frequency Response: Speaker 100 Hz–20 kHz / Microphone 100 Hz–16 kHz
Audio Processing: Echo cancellation, Noise reduction, Gain control, Dereverberation, Smart Framing, SoundCap Eye

Camera & Video
Field of View: Diagonal 120°, Horizontal 110°
Focus Distance: 0.5 m to ∞
Resolution: Up to 3840 × 2160 (4K)
Frame Rate: 6 / 7.5 / 10 / 15 / 30 fps
USB Output: YUY2, MJPEG, NV12
Zoom: 5.0× Digital Zoom
Framing: Smart (Group / Individual / Speaker) and Manual PTZ

Connectivity & Interface
USB: Type-C, USB 2.0 / 3.2 Gen 1, UAC 2.0, UVC 1.1
HDMI: Version 1.4, up to 1080p at 30 fps
Wireless: Bluetooth, Wi-Fi
HDMI Features: HDCP 1.4, HDMI-CEC power and input control

Installation

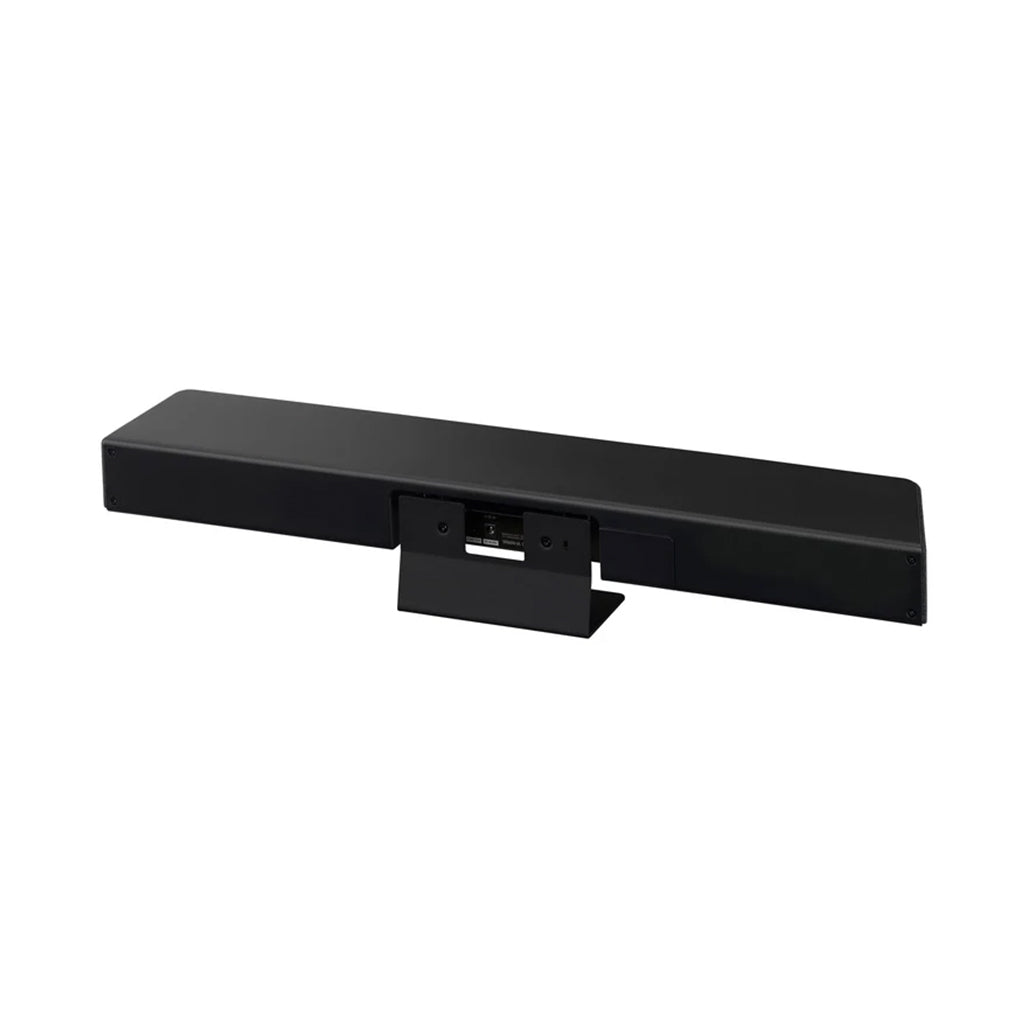

Tabletop: Included table stand
Wall Mount: Included wall bracket
Display Mount: BRK-TV1 / BRK-TV2 (Optional)

Accessories Included
Remote control, USB-C to A cable (5 m), HDMI cable (2 m), Lens cap, Power adapter, Table stand, Wall bracket, Screws, Hex wrench, Coin batteries (CR2032 × 2), Safety and Quick Guides, Terminal cover

Optional Accessories
BRK-WL1, BRK-TV1, BRK-TV2, USB 3.2 Gen 1 A–C cable (10 m / 25 m)

Software & OS Support
Supported OS: Windows 10/11, macOS 10.15–12, Chrome OS
Yamaha CS Manager: Audio and camera settings, firmware updates, logs, NTP, security, HDMI and Wi-Fi configuration

Conclusion

A comprehensive video conferencing solution has been delivered through the Yamaha CS-800, where intelligent camera control, precision audio capture, and simplified connectivity are combined into a single device. Reliable collaboration has been made possible across huddle rooms and open workspaces, ensuring that modern hybrid meetings are conducted with clarity, efficiency, and confidence.
