Brand
Processor
Sold Out

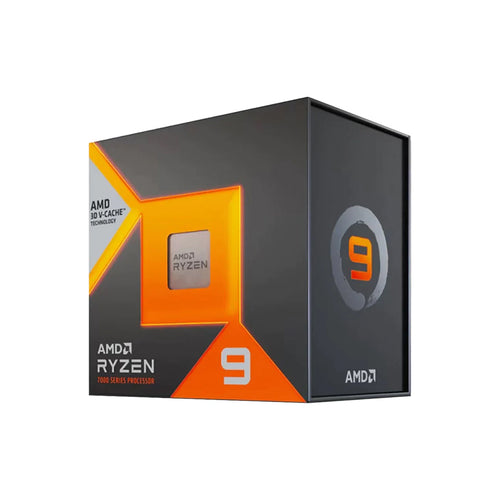

General Specifications Platform: Desktop Market Segment: Enthusiast Desktop Product Family: AMD Ryzen™ Processors Product Line: AMD Ryzen™ 9 Processors AMD PRO Technologies: No Consumer Use: Yes Regional Availability: Global, China, NA, EMEA, APJ, LATAM Former Codename: "Raphael AM5" Architecture: "Zen 4" # of CPU Cores: 12 Multithreading (SMT); Yes # of Threads: 24 Max. Boost Clock: Up to 5.4GHz Base Clock: 3.7GHz L1 Cache: 768KB L2 Cache: 12MB L3 Cache: 64MB Default TDP: 65W Processor Technology for CPU Cores: TSMC 5nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET...
General Specifications Platform: Desktop Market Segment: Enthusiast Desktop Product Family: AMD Ryzen™ Processors Product Line: AMD Ryzen™ 7 Processors AMD PRO Technologies: No Consumer Use: Yes Regional Availability: Global Former Codename: "Raphael AM5" Architecture: "Zen 4" # of CPU Cores: 8 Multithreading (SMT): Yes # of Threads: 16 Max. Boost Clock: Up to 5.3GHz Base Clock: 3.8GHz L1 Cache: 512KB L2 Cache: 8MB L3 Cache: 32MB Default TDP: 65W Processor Technology for CPU Cores: TSMC 5nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET CPU Compute Die (CCD) Size:...
General Specifications Platform: Boxed Processor Product Family; AMD Ryzen™ Processors Product Line: AMD Ryzen™ 7 5000 G-Series Desktop Processors with Radeon™ Graphics Former Codename: "Cezanne" Architecture: "Zen 3" # of CPU Cores: 8 # of Threads: 16 Max. Boost Clock: Up to 4.6GHz Base Clock: 3.8GHz L2 Cache: 4MB L3 Cache: 16MB Default TDP: 65W AMD Configurable TDP (cTDP): 45-65W Processor Technology for CPU Cores: TSMC 7nm FinFET Unlocked for Overclocking: Yes CPU Socket: AM4 Thermal Solution (PIB): Wraith Stealth Max. Operating Temperature (Tjmax): 95°C Launch Date: 4/13/2021 *OS Support:...

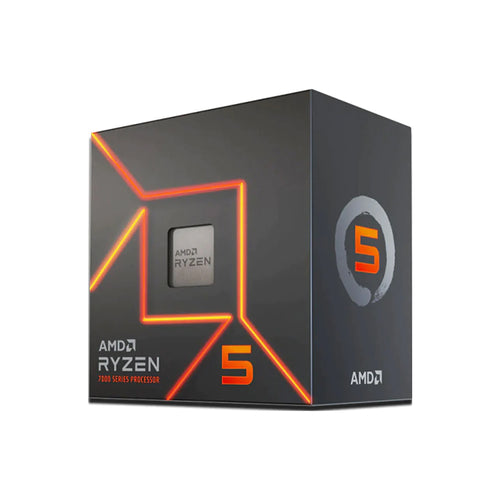

General Specifications Platform: Desktop Market Segment: Enthusiast Desktop Product Family: AMD Ryzen™ Processors Product Line: AMD Ryzen™ 5 Processors AMD PRO Technologies: No Consumer Use: Yes Regional Availability: Global Former Codename: "Raphael AM5" Architecture: "Zen 4" # of CPU Cores: 6 Multithreading (SMT): Yes # of Threads: 12 Max. Boost Clock: Up to 5.1GHz Base Clock: 3.8GHz L1 Cache: 384KB L2 Cache: 6MB L3 Cache: 32MB Default TDP: 65W Processor Technology for CPU Cores: TSMC 5nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET CPU Compute Die (CCD) Size:...

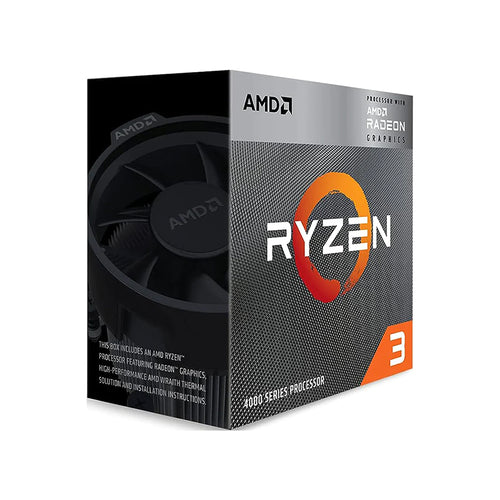

General Specifications Platform: Desktop Product Family: AMD Ryzen™ Processors Product Line: AMD Ryzen™ 3 4000 G-Series Desktop Processors with Radeon™ Graphics Former Codename; "Renoir" Architecture: "Zen 2" # of CPU Cores: 4 # of Threads: 8 Max. Boost Clock: Up to 4.0GHz Base Clock: 3.8GHz L1 Cache: 256KB L2 Cache: 2MB L3 Cache: 4MB Default TDP; 65W AMD Configurable TDP (cTDP): 45-65W Processor Technology for CPU Cores: TSMC 7nm FinFET Unlocked for Overclocking: Yes CPU Socket: AM4 Max. Operating Temperature (Tjmax): 95°C Launch Date: 7/21/2020 *OS Support: Windows 11 -...
# of CPU Cores 8 # of Threads 16 Max. Boost Clock Up to 4.7GHz Base Clock 3.8GHz L2 Cache 4MB L3 Cache 32MB Default TDP 105W Processor Technology for CPU Cores TSMC 7nm FinFET Unlocked for Overclocking Yes CPU Socket AM4 Thermal Solution (PIB) Not included Max. Operating Temperature (Tjmax) 90°C *OS Support Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit PCI Express® Version PCIe 4.0 System Memory Type DDR4 System Memory Specification Up to 3200MHz Graphics Capabilities Integrated Graphics No Graphics Model Discrete Graphics Card...
# of CPU Cores 6 # of Threads 12 Max. Boost Clock Up to 4.6GHz Base Clock 3.7GHz L2 Cache 3MB L3 Cache 32MB Default TDP 65W Processor Technology for CPU Cores TSMC 7nm FinFET Unlocked for Overclocking Yes CPU Socket AM4 Thermal Solution (PIB) Wraith Stealth Max. Operating Temperature (Tjmax) 95°C *OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit PCI Express® Version PCIe 4.0 System Memory Type DDR4 System Memory Specification Up to 3200MHz Graphics Capabilities Integrated Graphics No...
General Specifications # of CPU Cores 6 # of Threads 12 Max. Boost Clock Up to 3.6GHz Base Clock 3.2GHz L1 Cache 576KB L2 Cache 3MB L3 Cache 16MB Default TDP 65W Processor Technology for CPU Cores 14nm Unlocked for Overclocking Yes CPU Socket AM4 Thermal Solution (PIB) Wraith Spire (No LED) Thermal Solution (MPK) Wraith Spire Max. Operating Temperature (Tjmax) 95°C OS Support Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit PCI Express® Version PCIe 3.0 x16 System Memory Type DDR4 Memory Channels 2 System Memory...
