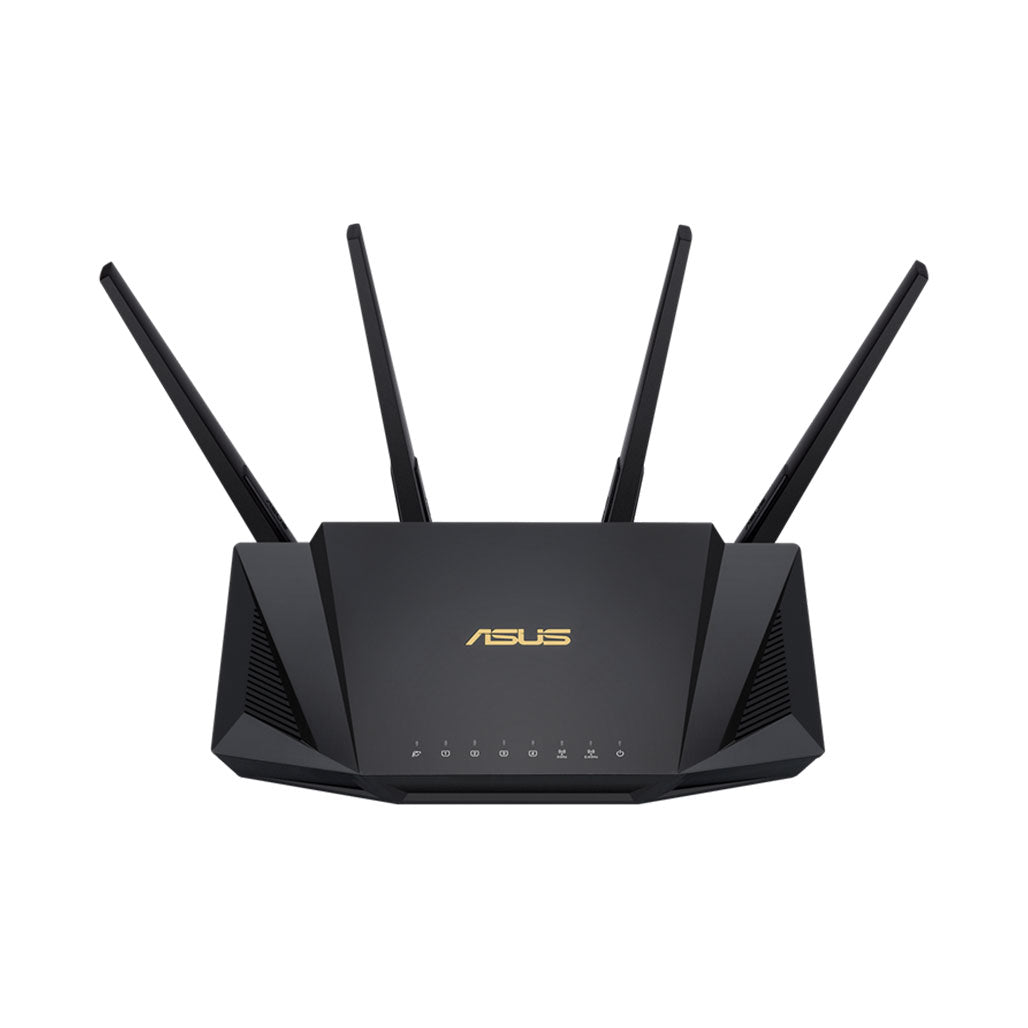

Asus RT-AX58U AX3000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology

Model

RT-AX58U

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

aAntenna

External antenna x 4

Transmit/Receive

2.4GHz 2x2
5GHz 2x2

Processor

1.5 GHz tri-core processor

Memory

256 MB Flash
512 MB RAM
256 MB Flash
512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

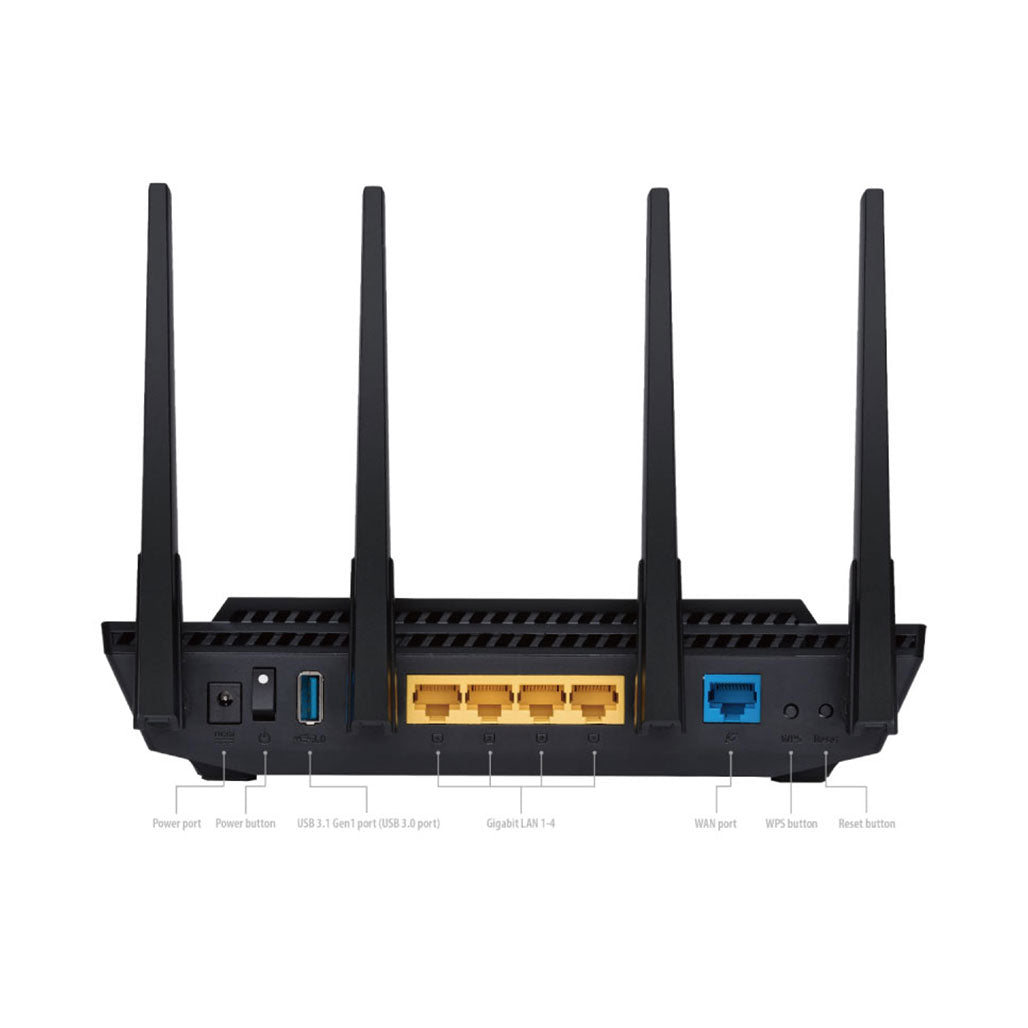

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
DC Output : 12 V with max. 2 A current

Package content

RT-AX58U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide

Product Weight (g)

538 g

AiMesh

AiMesh
Primary AiMesh router
AiMesh node

Router APP

ASUS Router APP

Alexa

Support Alexa skill

IFTTT

Support IFTTT

AiProtection

AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control

Parental Control
Parental Control Customized Internet schedule

Traffic Control

Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history

Wireless

IPv6
Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64

VPN

VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Administration

Operating mode : Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
