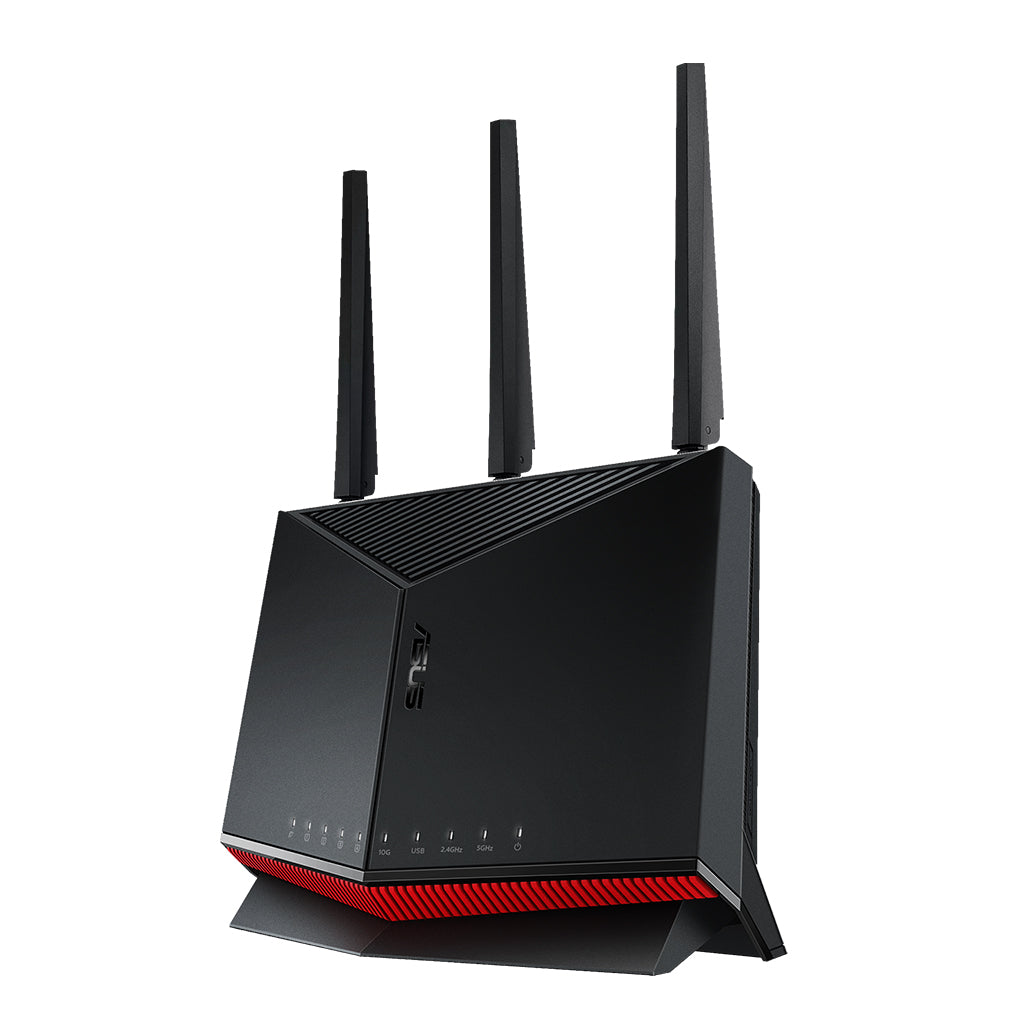

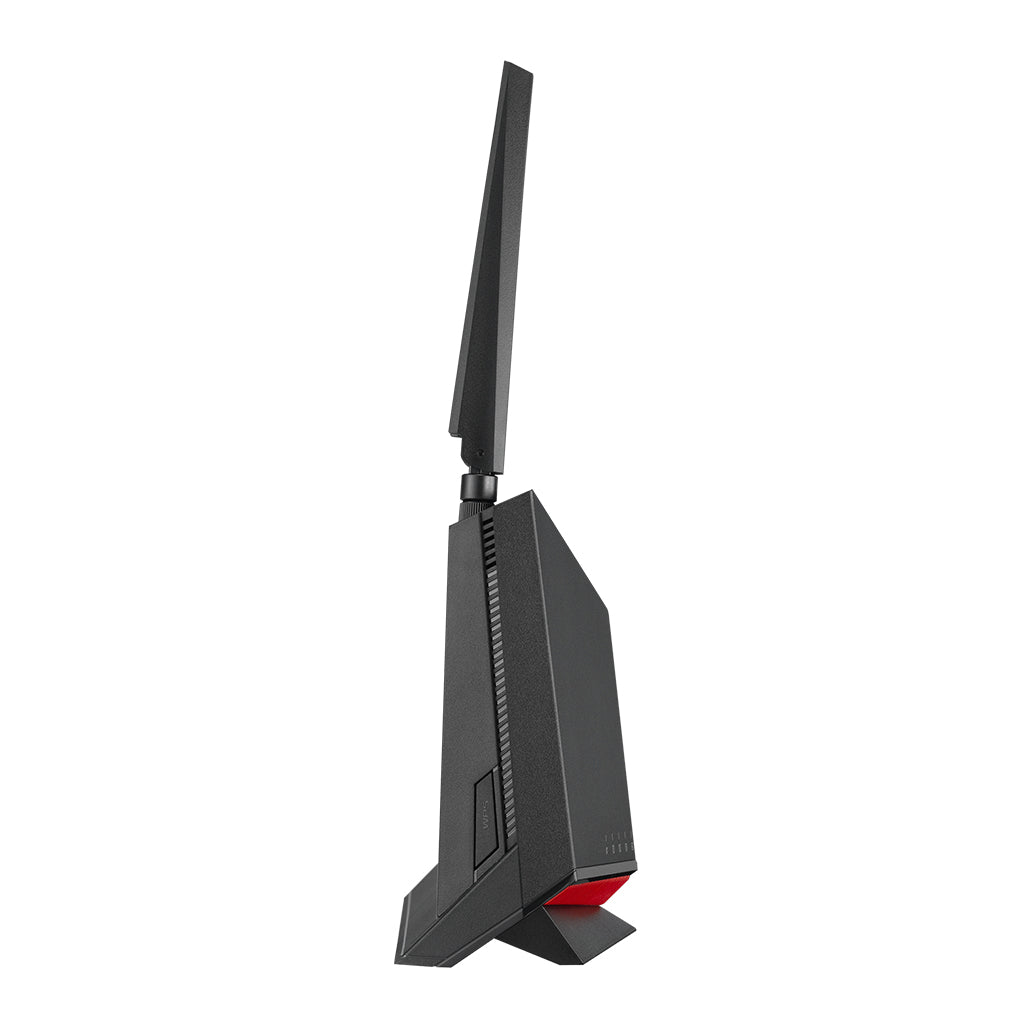

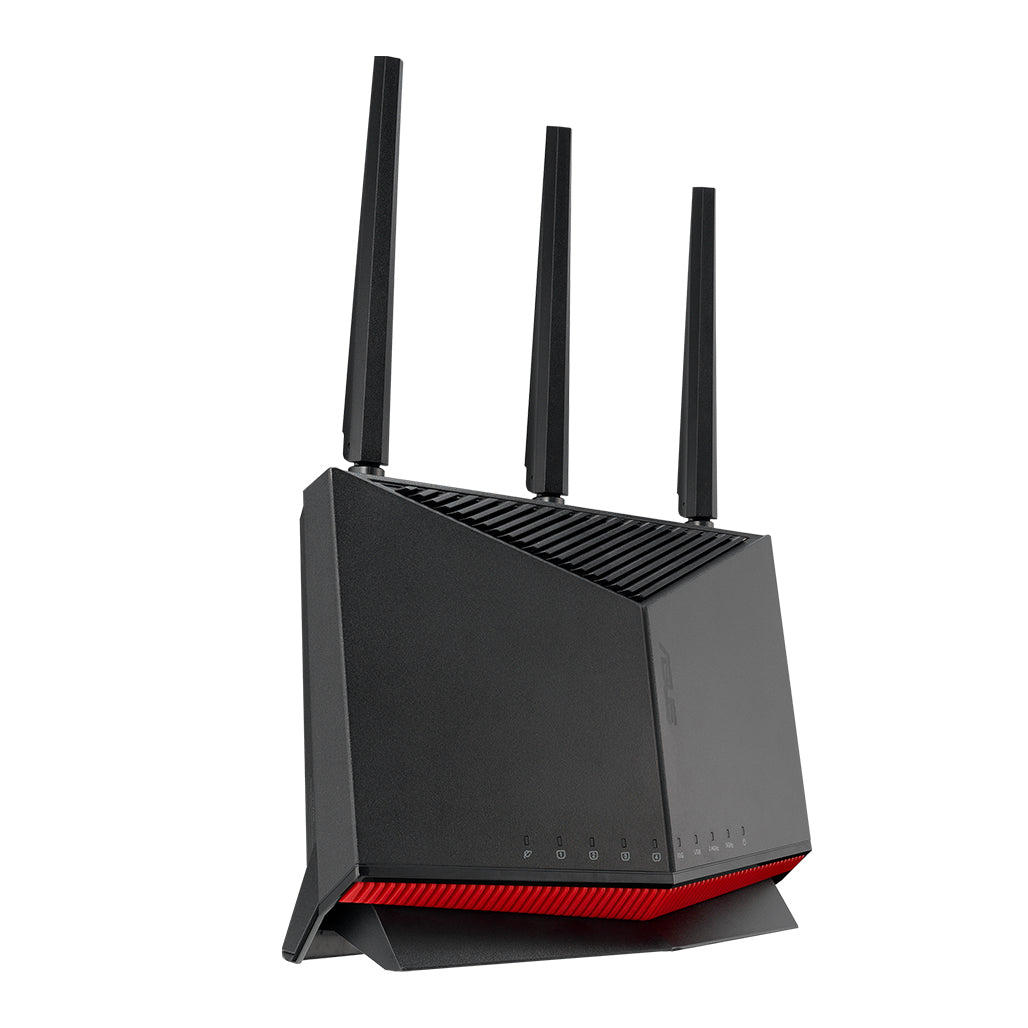

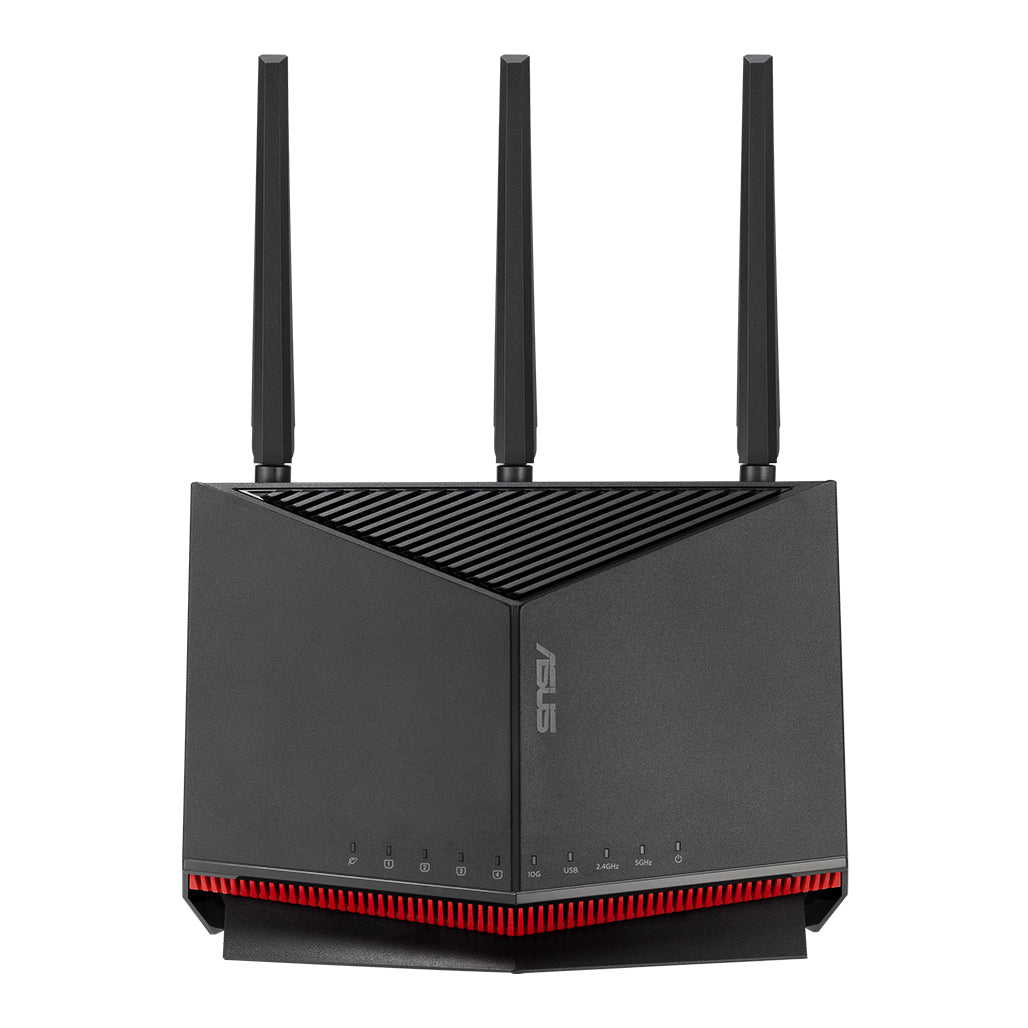

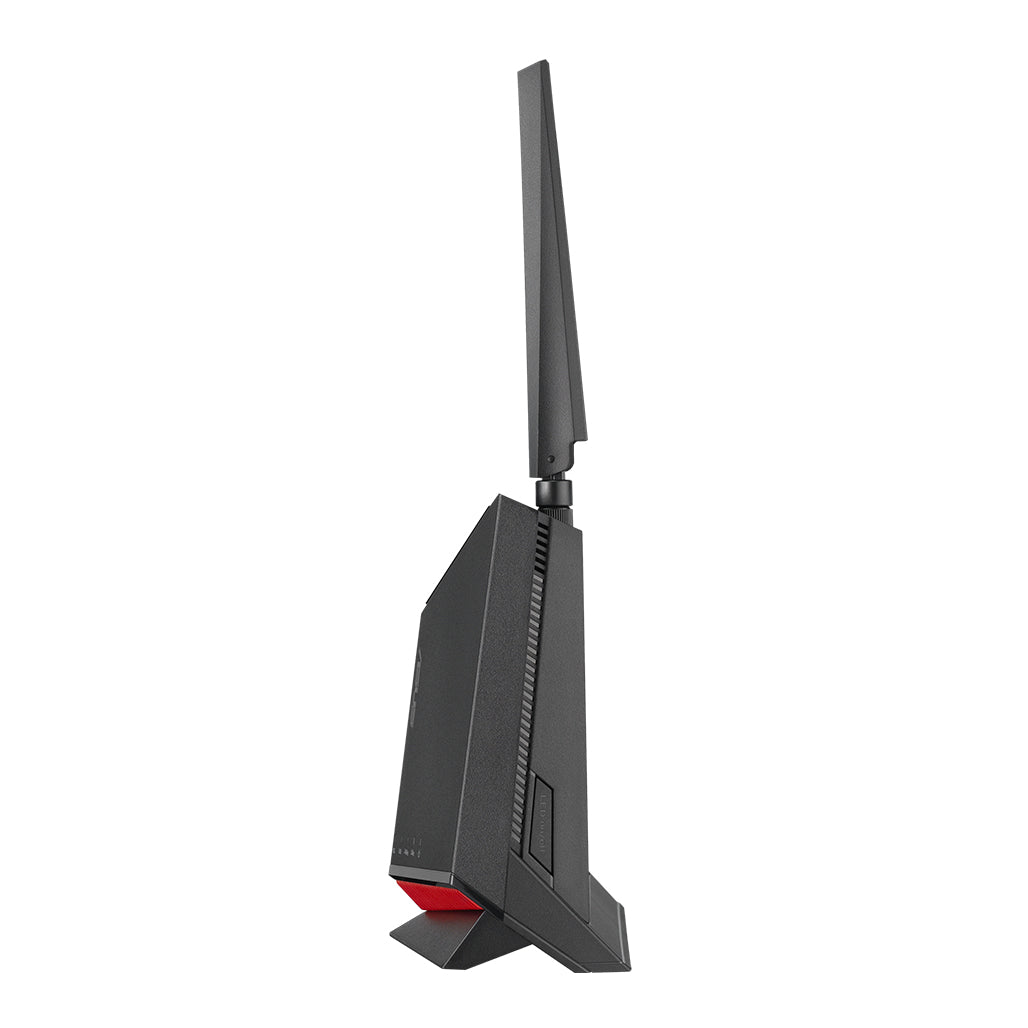

ASUS RT-BE86U - BE6800 Dual-Band WiFi 7 Router

The ASUS RT-BE86U BE6800 WiFi 7 Router is designed for next-generation connectivity, offering blazing-fast dual-band speeds of up to 6800 Mbps. Equipped with advanced features such as Multi-Link Operation (MLO), AiMesh support, and ultra-wide 160 MHz channels, this router delivers smooth, lag-free performance for streaming, gaming, and data-heavy workloads. It also ensures reliable coverage of up to 2,750 sq. ft. with high-gain antennas and powerful signal optimization.

With a 10G WAN/LAN port, up to four 2.5G LAN ports, and USB connectivity, the RT-BE86U unlocks unmatched wired and wireless flexibility for home studios, gaming setups, and smart homes. Backed by a quad-core 2.6 GHz processor, AiProtection Pro security powered by Trend Micro™, and robust parental controls, it ensures both high performance and advanced safety. This WiFi 7 powerhouse is built to future-proof your network while simplifying management with ASUSWRT 5.0 and the ASUS Router app.

Key Features

• WiFi 7 Performance: Dual-band speeds of up to 6800 Mbps (5764 Mbps on 5 GHz + 1032 Mbps on 2.4 GHz).

• Next-Gen Networking: One 10G WAN/LAN port and four 2.5G LAN ports, enabling a combined 20G network capacity.

• 160 MHz Channels & 4K-QAM: Faster data transfers, reduced latency, and enhanced wireless performance.

• Multi-Link Operation (MLO): Ensures seamless connections by combining 2.4 GHz and 5 GHz bands.

• Gaming Optimization: Dedicated 2.5G gaming port and Adaptive QoS for competitive, lag-free gameplay.

• Robust Security: AiProtection Pro with Trend Micro™, WPA3 encryption, VPN support, and advanced parental controls.

• AiMesh Support: Extends coverage up to 2,750 sq. ft. and integrates with other ASUS routers for whole-home WiFi.

• Powerful Hardware: Quad-core 2.6 GHz CPU, 1 GB RAM, and optimized cooling design for stable performance.

• Flexible Connectivity: USB 3.2 Gen 1, USB 2.0, and support for 4G/5G mobile tethering as backup internet.

Specifications

Model: RT-BE86U
Network Standard: IEEE 802.11a/b/g/n/ac/ax/be, IPv4, IPv6
Product Segment: BE6800 dual-band WiFi 7
WiFi Data Rate:

• 2.4 GHz: up to 1032 Mbps

• 5 GHz: up to 5764 Mbps

Antenna: 3 external + 1 internal
Transmit / Receive: 2.4 GHz 3x3, 5 GHz 4x4
Processor: 2.6 GHz quad-core CPU
Memory: 256 MB Flash, 1 GB RAM
Boosts Speed: OFDMA, 4096-QAM, 20/40/80/160 MHz bandwidth, Beamforming
Operating Frequency: 2.4 GHz + 5 GHz
Operating Modes: Router, AiMesh Node, Access Point, Media Bridge, Repeater

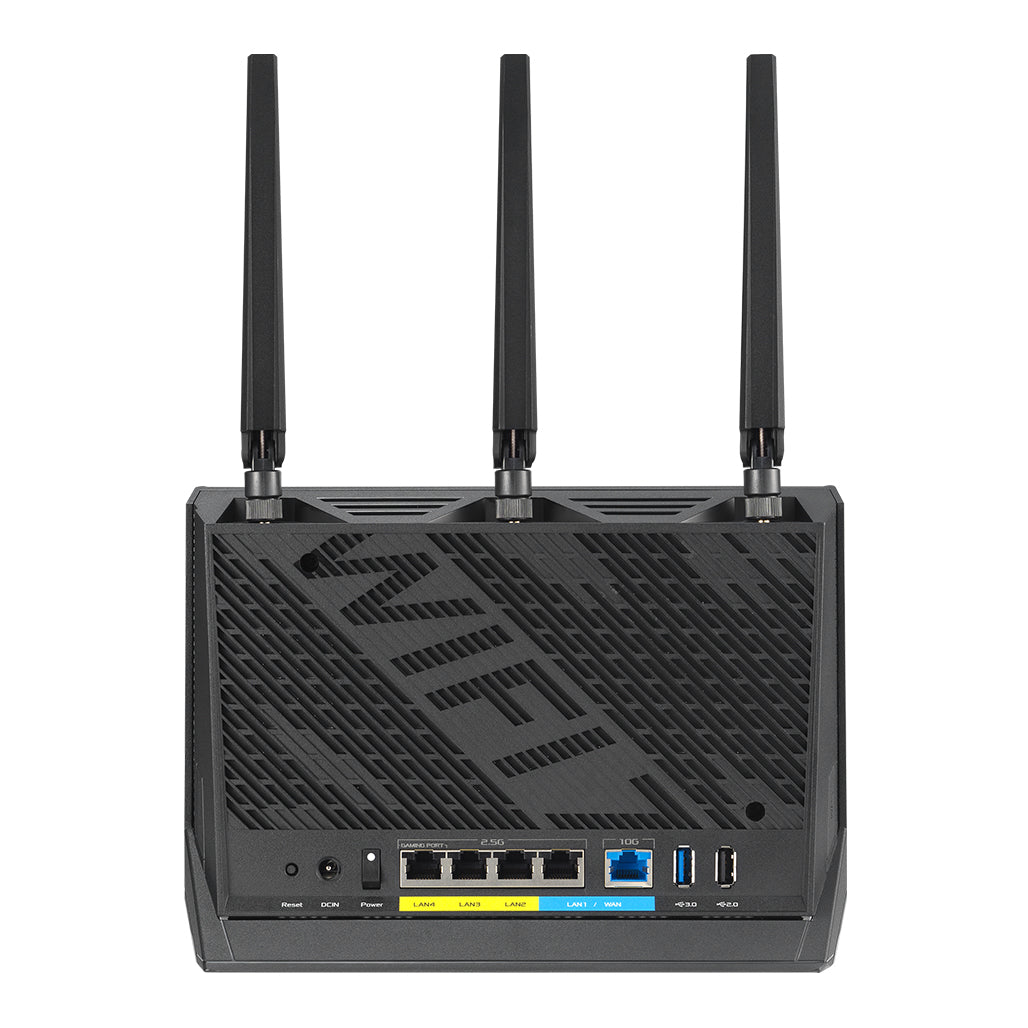

I/O Ports:

• 1 × 10G WAN/LAN

• 1 × 2.5G WAN/LAN

• 3 × 2.5G LAN

• USB 3.2 Gen 1 ×1

• USB 2.0 ×1

Buttons: WPS, Reset, Power, LED On/Off
LED Indicators: WAN, 10G, LAN, USB, 2.4 GHz, 5 GHz, Power
Power Supply: AC 110–240V, DC 12V/5A or 19.5V/2.31A
Package Content: Router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card
Weight: 854 g
Dimensions: 235 × 90 × 316 mm

Software & Features:

• AiMesh (Primary/Node)

• Game: Mobile Game Mode, Gear Accelerator, OpenNAT, Gaming Port

• Parental Control: Safe Browsing, Time Scheduling, 64 Profiles

• Guest Network Pro: Up to 5 per band, VLAN support

• Security: AiProtection Pro, WPA3/WPA2/WPA, VPN Client & Server (WireGuard®, IPSec, OpenVPN, PPTP, L2TP), Firewall filters

• Traffic Management: Adaptive QoS, Traditional QoS, Traffic Analyzer, Bandwidth Limiter

• WAN: Dual WAN, WAN Aggregation, Port Forwarding, DDNS, NAT Passthrough

• LAN: DHCP Server, IPTV, Link Aggregation, Wake on LAN

• Wireless: MU-MIMO, Beamforming, Airtime Fairness, Wireless Scheduler

• USB: File Sharing, Media Server, Download Master, Time Machine backup, AiCloud

• User Interface: ASUSWRT web UI, ASUS Router app

Conclusion

The ASUS RT-BE86U BE6800 WiFi 7 Router is engineered for users who demand maximum speed, seamless connectivity, and enterprise-grade security. With dual-band WiFi 7, 10G networking, advanced AiMesh compatibility, and comprehensive security, it is an ideal solution for gaming enthusiasts, content creators, and smart homes. Its powerful processor, wide coverage, and customizable features make it a future-ready router built to deliver reliable performance for years to come.
