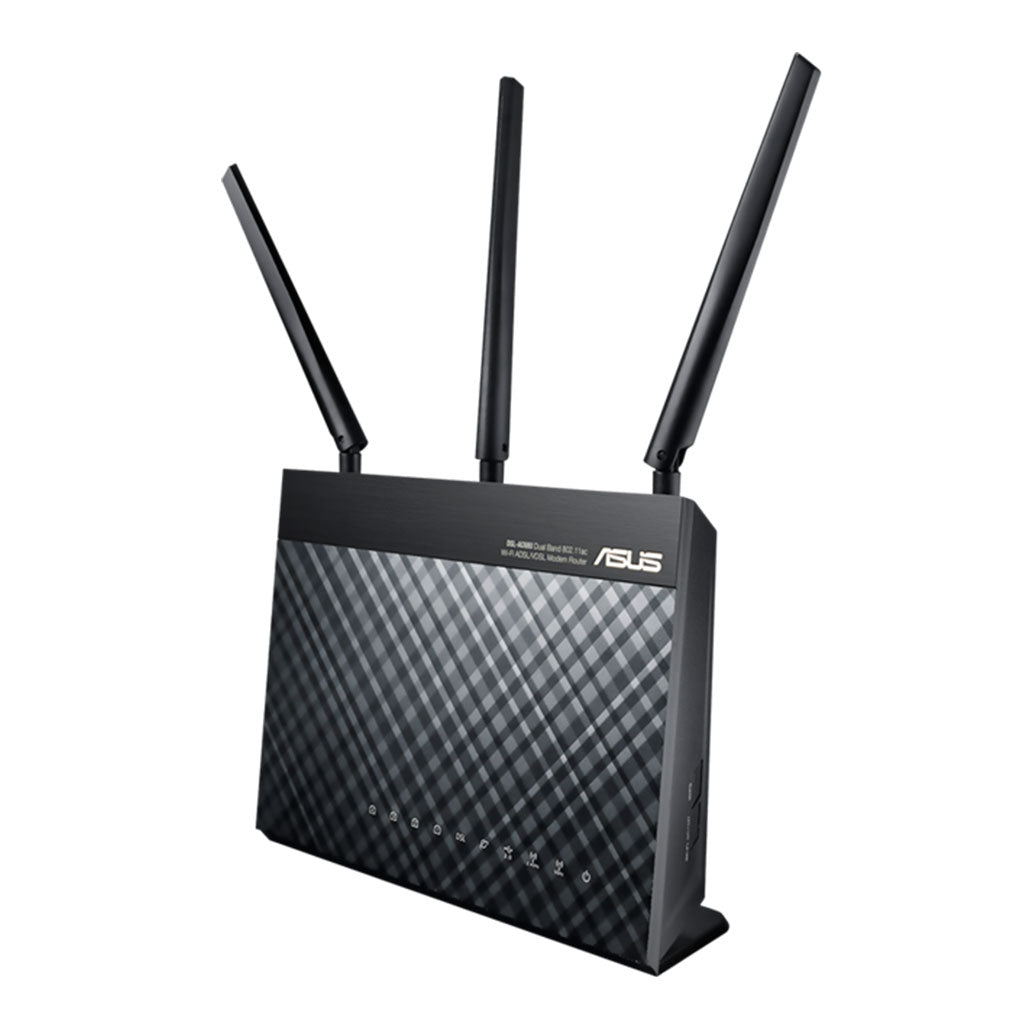

ASUS DSL-AC68U AC1900 Dual Band ADSL/VDSL Gigabit

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
IPv6

Product Segment

AC1900 ultimate AC performance : 600+1300 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) TurboQAM : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1300 Mbps

xDSL Data Rate

VDSL2/ADSL2+/ADSL2/ADSL multimode
Up to 100Mbps/100Mbps upstream/downstream
Support Annex A/B/I/J/L/M
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T993.2
G.992.1 (G.dmt), Annex A, and B Compliant
G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant
G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
G.993.2 Compliant, Annex A, B, up to profile 30a with external AFE.
G.993.5 (Vectoring)
ATM and PTM (dual-priority)

Antenna

External antenna x 3

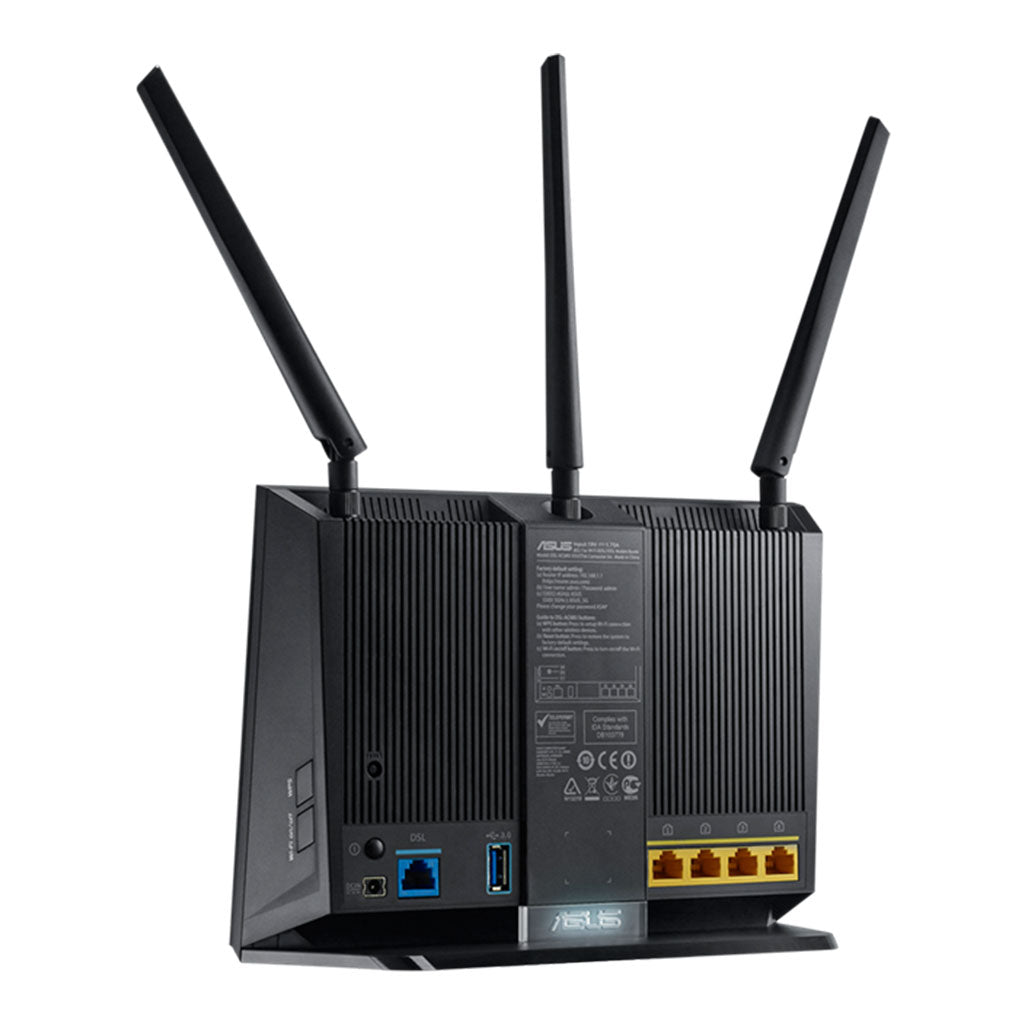

I/O Ports

1 x RJ11 for xDSL
4 x RJ45 10/100/1000/Gigabits BaseT for LAN
USB 3.0 x 1

Buttons

WPS Button, Reset Button, Power Button, Wireless on/off Button

LED Indicator

Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi

Power Supply

AC Input : 100 ~240 V(50~60HZ)
DC Output : 19 V/1.75 A

Package content

DSL-AC68U Dual-band Wireless-AC1900 VDSL/ADSL Modem Router
RJ-45 cable
RJ-11 cable
Support CD(User manual and utility)
Power adapter
Warranty card
Quick start guide
Splitter (varies with regions)

Product Information

Product Weight (g) : 640 g
Product Dimensions with antennas (L*W*H) mm : 220 x 160 x 83.3 ~ mm (WxDxH) (Without Bezel)

AiMesh

AiMesh
• Primary AiMesh router
• AiMesh node

Parental Control

"Allow you to block access to unwanted websites and apps."
• Maximum Parental Control profile : 16
• Maximum Parental Control content filter rule : 16

Guest Network

Guest Network
• Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal

Security

AiProtection Pro
Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64

AiProtection

AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
-- Maximum Bandwidth limiter rule : 32
• Traditional QoS
-- Maximum Traditional QoS rule : 32
Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic analysis period : Daily, Weekly, Monthly
• Website history

WAN

Dual WAN
3G/4G LTE dongle
Android phone tethering
Port forwarding
• Maximum port forwarding rule : 64
Port triggering
• Maximum port triggering rule : 32
DMZ
DDNS

LAN

DHCP Server
IGMP snooping
IPTV
Manually assign IP address
• Maximum manually assign IP address rule : 64
Wake on LAN (WOL)

Wireless

UTF-8 SSID
Wi-Fi MAC address filter
• Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming

USB application

HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Operating System

ASUSWRT

Administration

Configuration backup and restore
Diagnosis tools
Feedback system
System log
