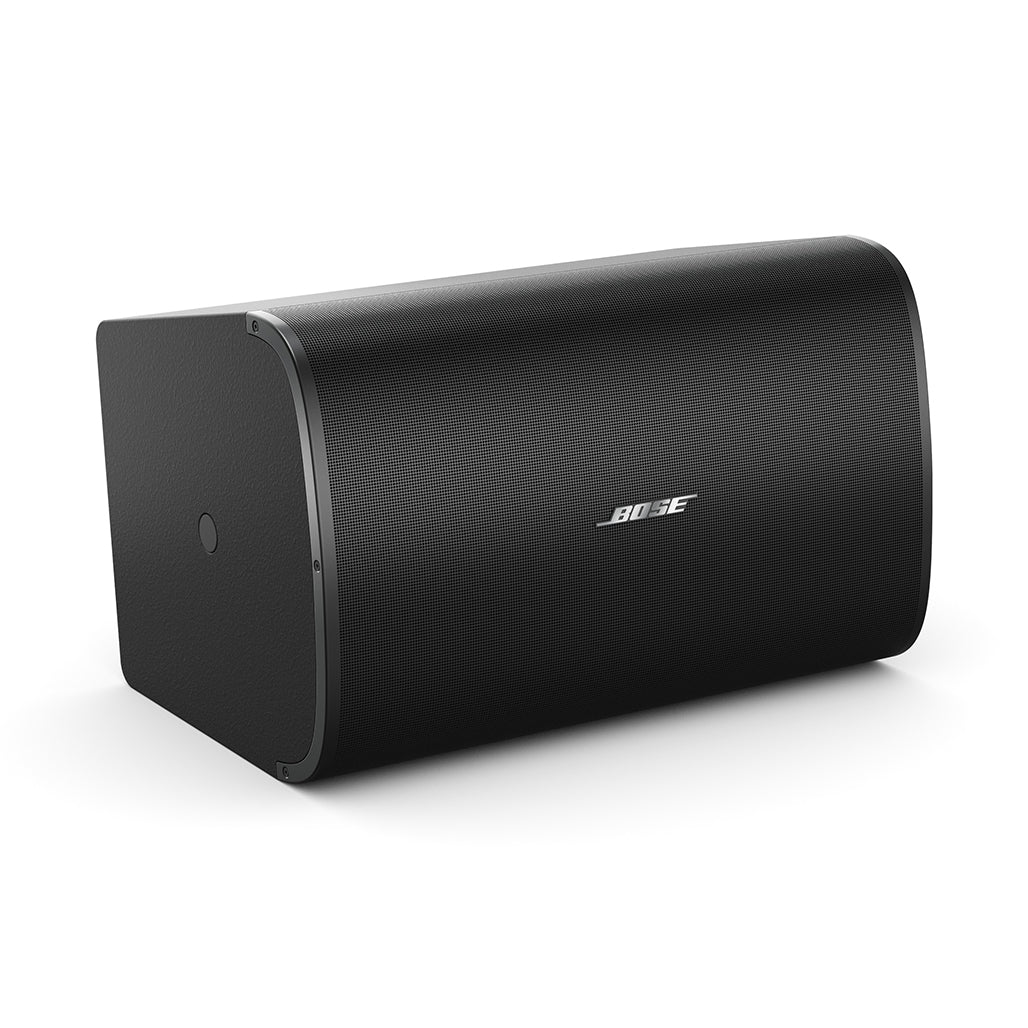

BOSE DM10S-SUB Commercial Subwoofer – 10" High-Performance Bass for Professional Installations

$735.00
$800.00

Quantity

1
Subtotal: $0.00

  • Vendor: Bose
  • SKU: 831856-0110-R49-K
  • Availability: In Stock
  • Product Type: Speakers

  • VAT: Excluding VAT

Engineered for outstanding low-frequency clarity, the BOSE DesignMax DM10S-SUB commercial subwoofer provides powerful 300-watt bass performance tailored for professional sound installations. Equipped with a custom 10-inch low-frequency driver, this subwoofer supports a frequency range from 35 Hz to 125 Hz, producing deep, resonant audio that fills spaces with premium-quality sound. Built for versatility, the DM10S-SUB effortlessly integrates into a wide range of venues including restaurants, conference rooms, places of worship, and retail spaces, making it a prime choice for contractors and audio professionals seeking superior acoustic performance in commercial environments.

A QuickHold™ mounting system and compact form factor help simplify installations and reduce labor time. Finished in a sleek black laminate over a high-density wood composite enclosure, the DM10S-SUB blends discreetly into any architectural style. Grilles with a tamper-resistant design, optional color matching, and a rotatable, removable logo ensure seamless visual integration. Designed to work optimally with Bose Professional amplifiers and DSPs, it unlocks advanced processing like SmartBass, enhancing response and consistency at all listening levels. This robust yet stylish surface-mounted subwoofer elevates the impact of any multi-speaker DesignMax setup.

Key Features

  • Professional-Grade Low-End Performance
    A custom-engineered 10-inch woofer is used to produce strong, deep bass that enhances any multi-speaker audio system. This makes it ideal for commercial venues where impactful sound reproduction is essential.

  • QuickHold™ Mounting System
    Installation is streamlined by a hidden U-bracket and QuickHold mechanism that minimize installation time, reduce strain, and prevent accidental damage.

  • Seamless Integration
    The DM10S-SUB’s sleek design features a minimum-bezel grille, a tamper-resistant build, and a rotatable/removable logo. Available in black or white, it is crafted to visually harmonize with any environment.

  • Flexible System Compatibility
    Designed to perform optimally with select Bose Professional DSPs and amplifiers. When connected, advanced loudspeaker EQ and SmartBass processing become accessible, ensuring consistent tonal quality across all volume levels.

  • Durability and Safety Compliance
    Constructed from high-density wood composite with a UV-resistant finish and a steel grille. The system is UL-1480A, CE, and NFPA70 compliant for dependable long-term use in indoor commercial installations.

Technical Specifications

Compliance

  • UL-1480A, S5591 / UL Listed

  • NFPA70

  • CE compliant

Physical Characteristics

  • Color: Black (RAL 9005)

  • Enclosure: High-density wood composite with solid color laminate, UV fade-resistant

  • Grille: Powder-coated perforated steel, paintable, tamper-resistant

  • Logo: Rotatable, removable

  • Mounting: QuickHold with included U-Bracket, (1) M8 safety cable insert

  • Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)

  • Dimensions (HxWxD):

    • Loudspeaker: 19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm)

    • With Bracket: 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm)

  • Net Weight: 35.5 lb (16.1 kg)

  • Shipping Weight: 41.5 lb (18.8 kg)

Performance

  • Frequency Range (-10 dB): 35 Hz – 125 Hz

  • Coverage (Horizontal/Vertical): Omnidirectional below 200 Hz

  • Max SPL @ 1 m: 115 dB

  • Impedance: 8 Ω (transformer bypass)

  • Power Handling (Continuous): 300 W

  • Power Handling (Peak): 1200 W

  • Signal Processing: Bose Professional EQ and SmartBass compatible

  • Sensitivity: 90 dB

  • Transformer Taps (100V): 40, 80, 150 W, bypass

  • Transformer Taps (70V): 20, 40, 80, 150 W, bypass

Transducers

  • Crossover: 80 Hz – 200 Hz via DSP

  • Driver Protection: 40 Hz high-pass filter (18 dB/octave) recommended

  • Woofer: 1 × 10 in (254 mm)

Conclusion
Designed with performance, reliability, and aesthetic integration in mind, the BOSE DesignMax DM10S-SUB subwoofer has been crafted to meet the demands of professional-grade commercial audio systems. From conference centers and hospitality venues to worship spaces and upscale retail environments, it delivers consistent, powerful bass in an unobtrusive footprint. Its compatibility with Bose Professional systems, ease of installation, and refined industrial design make it a standout solution for integrators seeking both audio excellence and architectural harmony.
