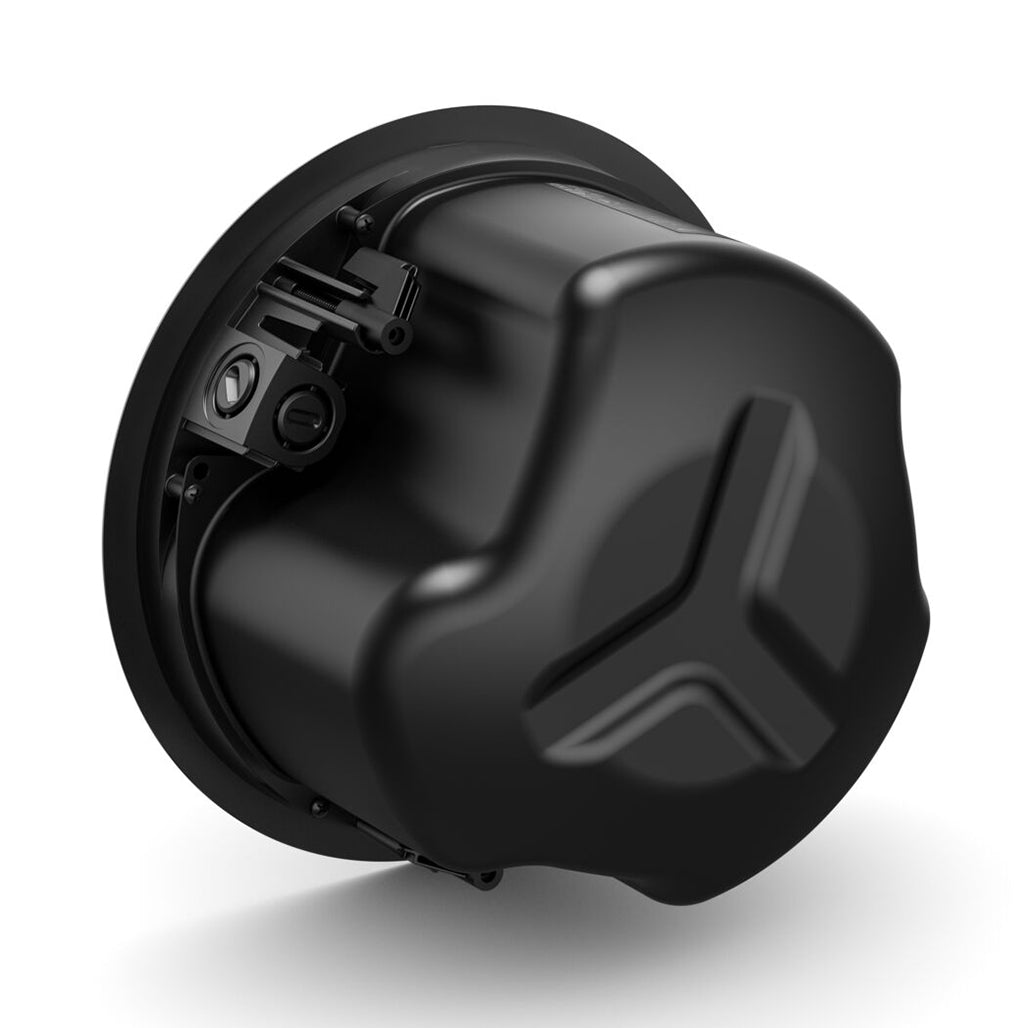

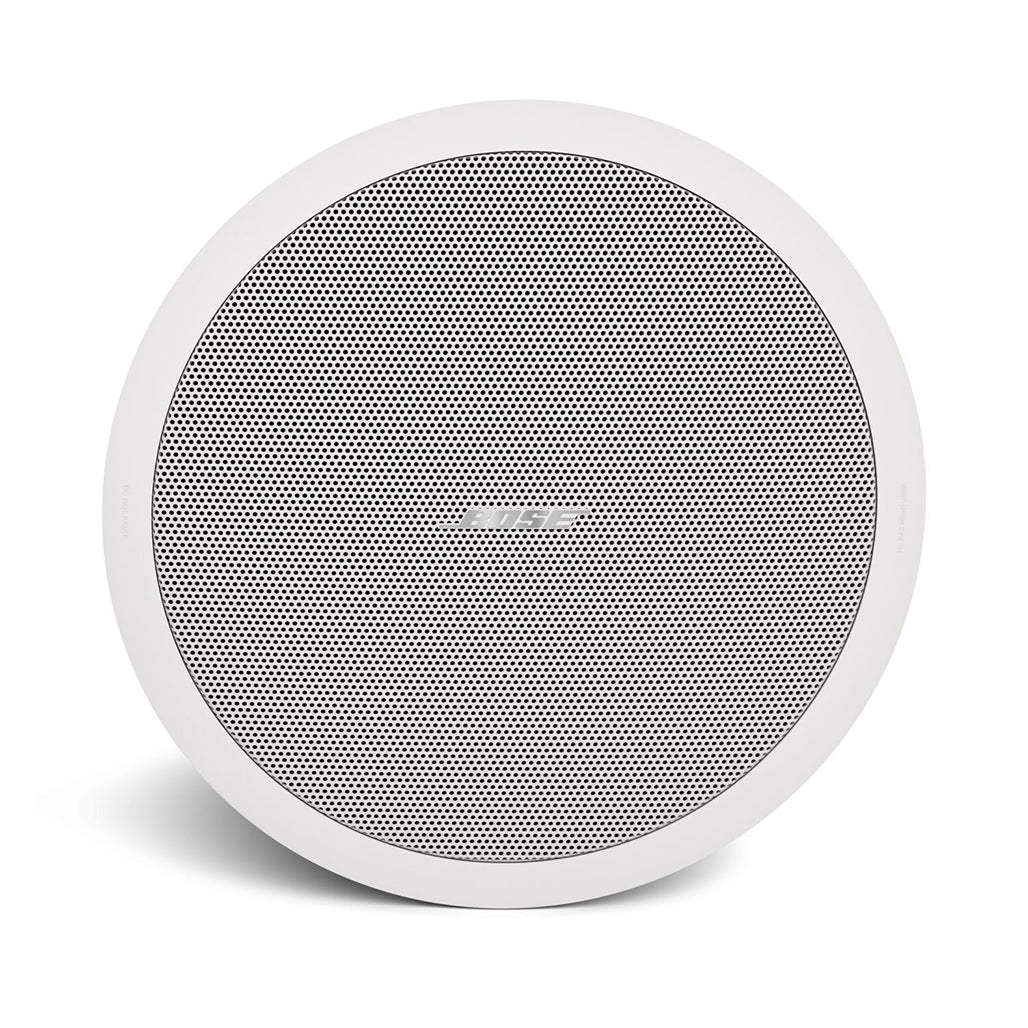

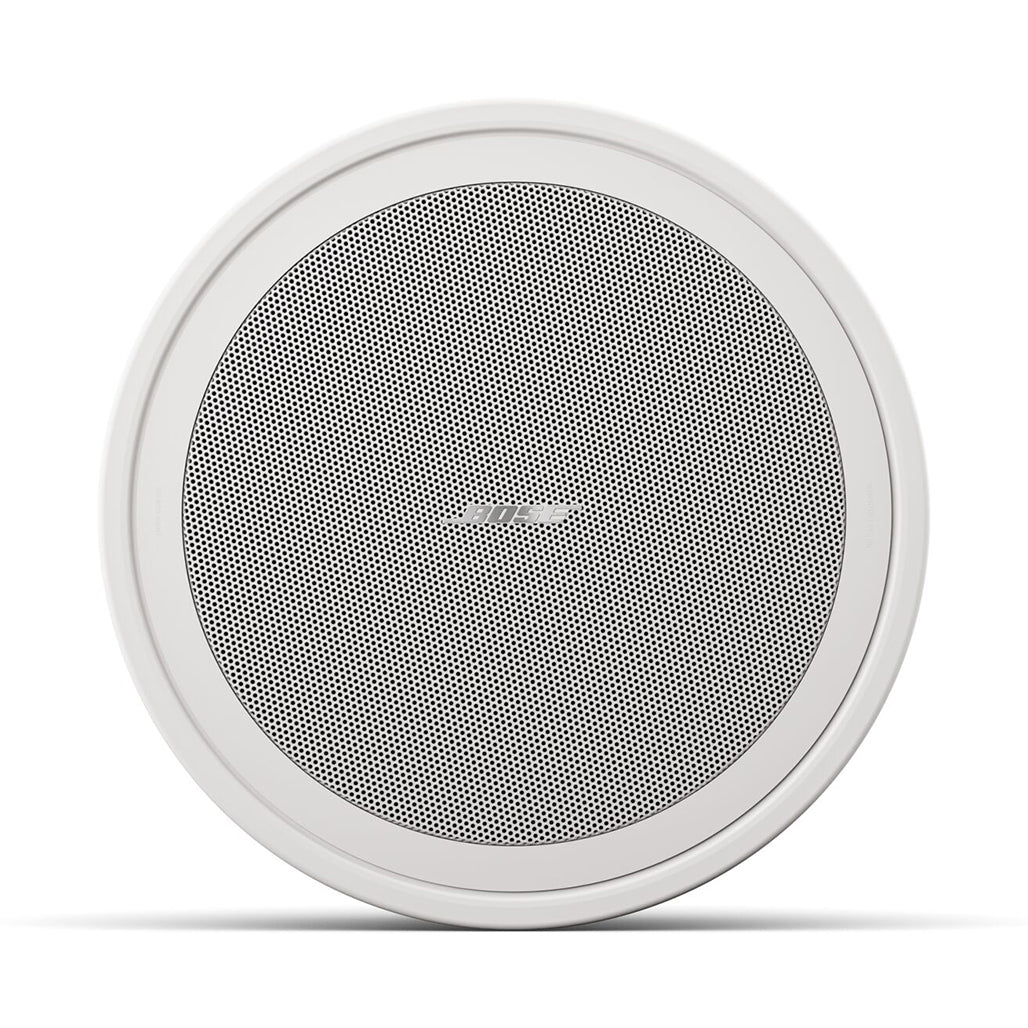

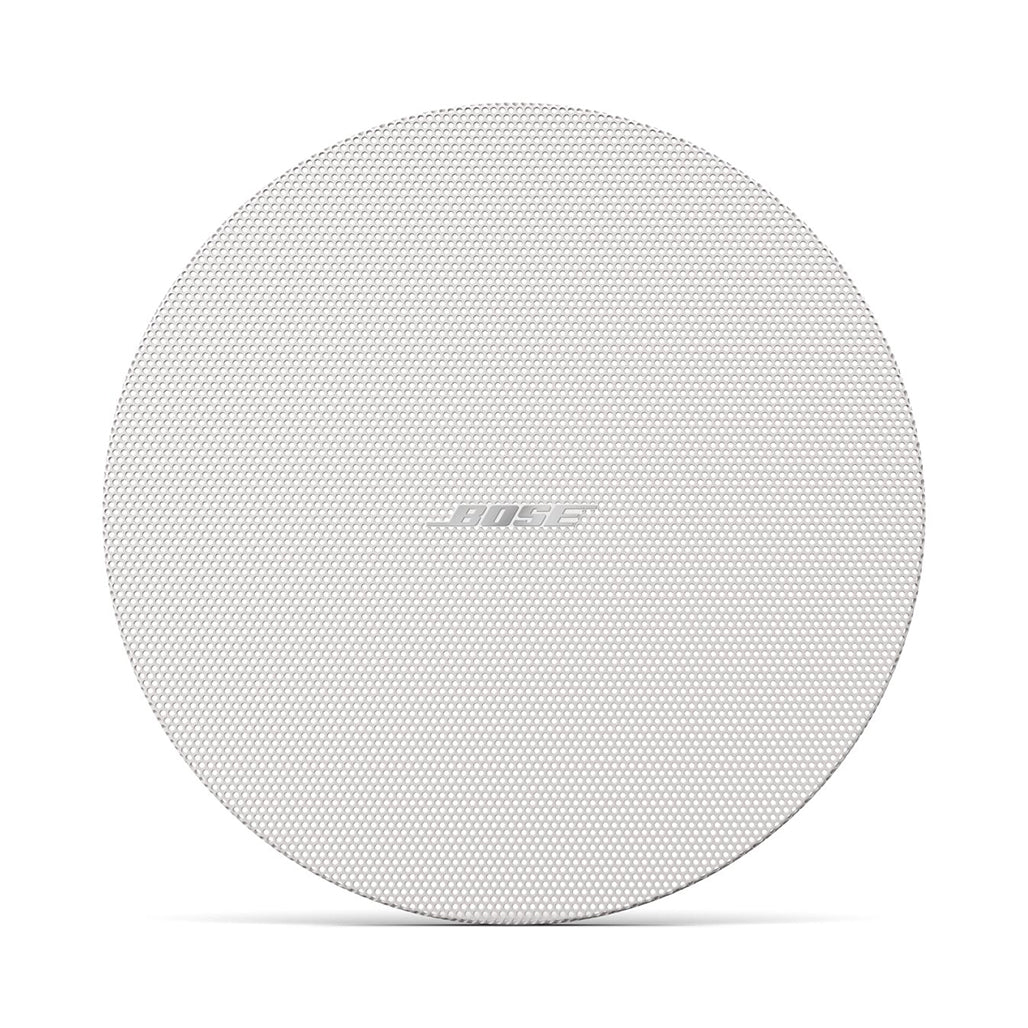

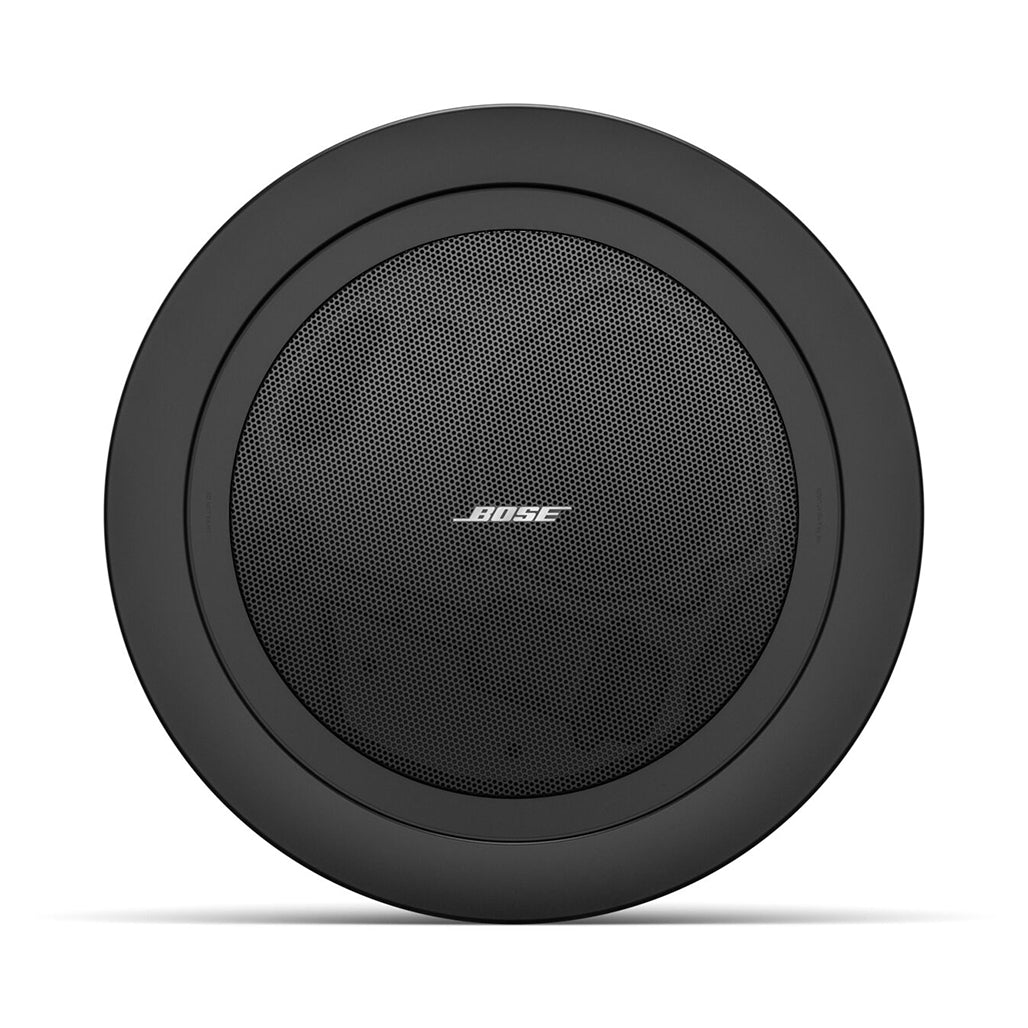

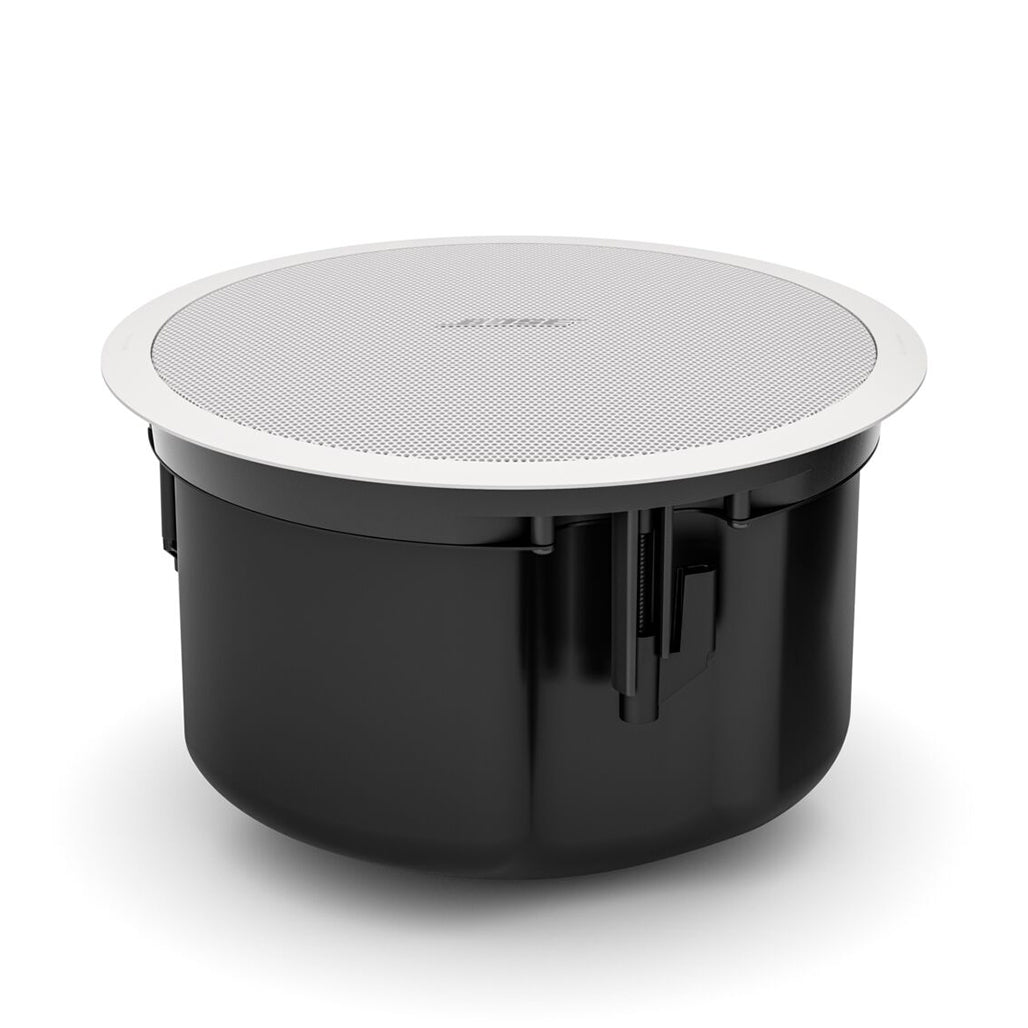

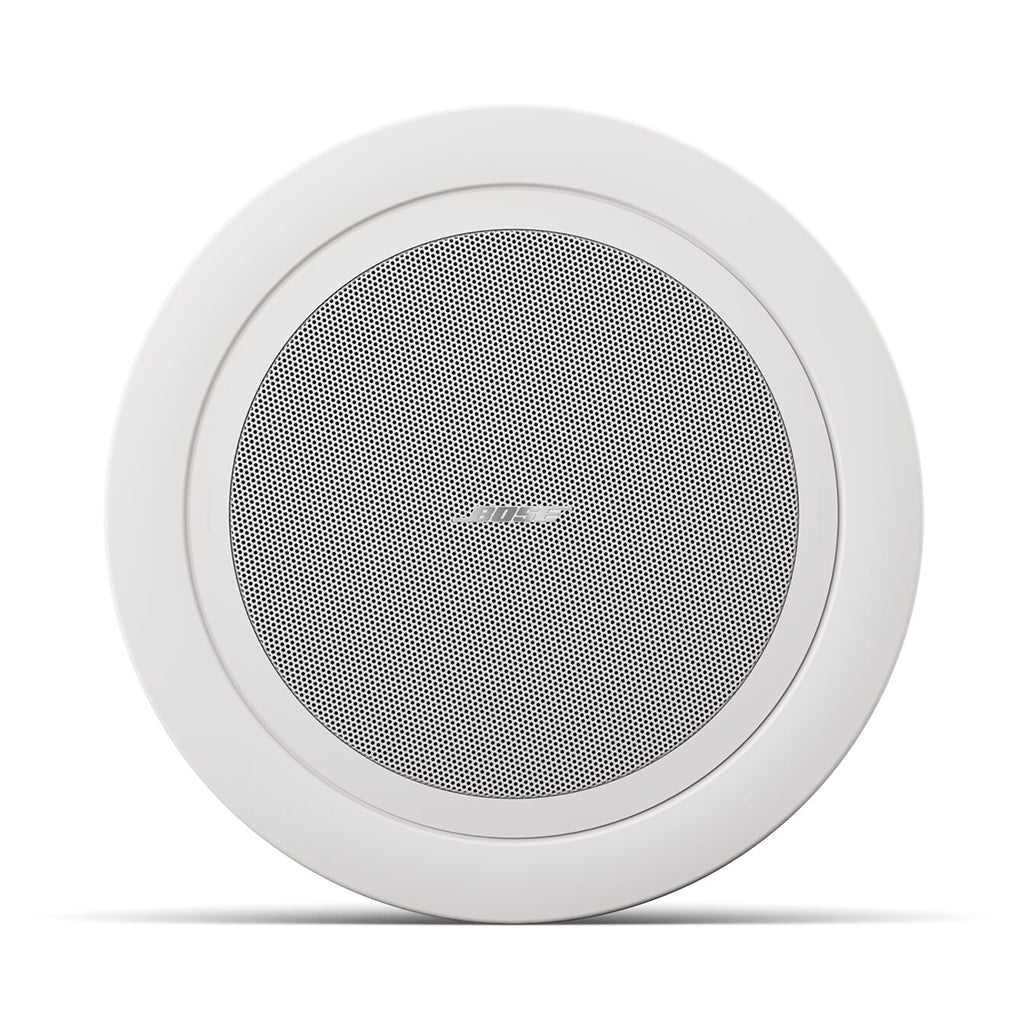

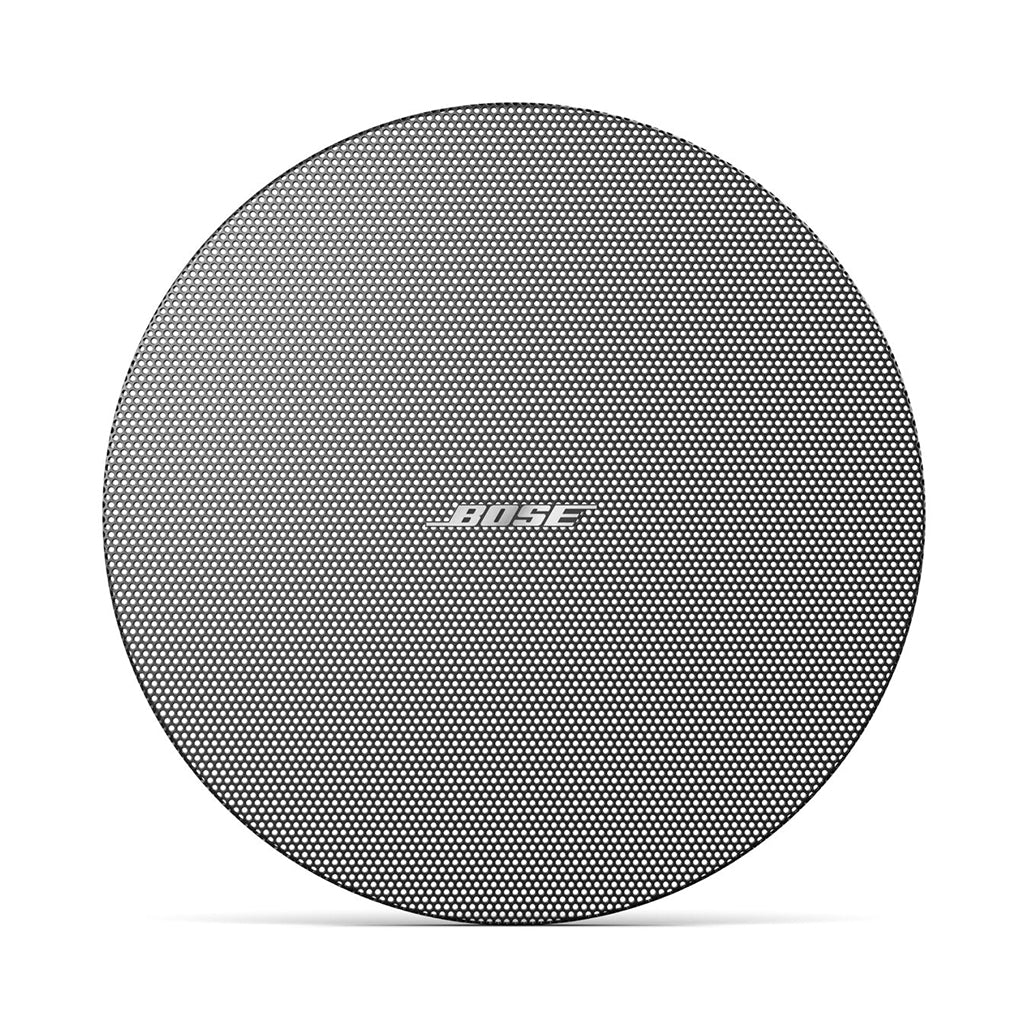

Bose FreeSpace FS4CE In-Ceiling Commercial Loudspeakers – Weather-Resistant, Voice Alarm Certified (Pair)

Designed for versatility and premium sound coverage, the Bose FreeSpace FS4CE in-ceiling loudspeakers deliver crystal-clear audio for commercial environments, making them ideal for restaurants, retail stores, offices, and public venues. These speakers are engineered to provide consistent tonal balance across all models in the FS line, ensuring smooth background music performance and clear vocal reproduction. With a modern aesthetic and robust weather-resistant build, they seamlessly blend into a wide range of indoor and outdoor installations.

The FS4CE speakers meet stringent safety and performance standards, including EN54-24 certification for voice alarm systems, making them compliant with fire detection and emergency communication systems. Thanks to their IP55-rated design, UV-resistant enclosures, and Euroblock inputs, the FS4CE offers both reliability and ease of installation in wet or demanding environments. Whether used in voice announcement systems or ambient soundscapes, they offer long-lasting performance with minimal maintenance.

Key Features

• Consistent Tonal Quality: Shared voicing across all FreeSpace FS models ensures tonal consistency in multi-speaker setups.

• Voice and Music Optimization: Designed to reproduce clear speech and smooth background music through precision-engineered transducers.

• Flexible Mounting Options: Compatible with in-ceiling, surface-mount, and pendant-mount setups, offering mix-and-match installation flexibility.

• Modern, Discreet Design: Available in black or white with a removable, rotatable logo to match any commercial interior.

• Comprehensive Accessory Support: A wide suite of accessories accommodates unique mounting needs and various site-specific applications.

• Quick, Clean Installation: Front-baffle input locations and Euroblock connectors streamline installation in commercial environments.

• Fire Safety Certified: Fully compliant with EN54-24 for voice alarm systems, enhancing emergency system integration.

• Outdoor Ready: Rated IP55 for wet locations and designed to withstand extreme temperatures and UV exposure.

Technical Specifications

Compliance

• EN 54-24 Certified: Yes

• Safety Ratings: EN 54-24:2008, UL 1480(A), UL 2043 compliant, NFPA 70/72, CSA C22.1 Section 32

Physical

• Colors: Black (RAL 9005), White (RAL 9003)

• Enclosure Material: Engineered plastics with UV-resistant steel backcan

• Grille: Powder-coated perforated steel

• IP Rating: IP55

• Ceiling Cutout: 9.8 in (249 mm)

• Logo: Removable and rotatable

• Mounting: Three arms and one safety cable point

• Operating Temperature: -25 °C to 70 °C (-13 °F to 158 °F)

• Dimensions:

  • Loudspeaker: 10.7 in × 6.8 in (272 mm × 172 mm)

  • Backcan: 8.7 in × 6.4 in (220 mm × 163 mm)

• Net Weight (Single): 7.7 lb (3.5 kg)

• Shipping Weight (Pair): 20.0 lb (9.1 kg)

Performance

• Frequency Range (-10 dB): 70 Hz – 17,000 Hz

• Coverage (Horizontal/Vertical): 145°

• Max SPL @ 1m: 104 dB

• Nominal Impedance: 8 Ω (bypass)

• Power Handling:

  • Continuous: 40 W

  • Peak: 160 W

• Sensitivity: 88 dB (1 W @ 1 m)

• Recommended Processing: Not required; compatible with Bose EQ and SmartBass

• Transformer Taps:

  • 100V: 5, 10, 20, 40 W, bypass

  • 70V: 2.5, 5, 10, 20, 40 W, bypass

Transducers

• Low-Frequency Driver: 1 × 4.5 in (114 mm) woofer

• Driver Protection: High-pass filter at 70 Hz, 24 dB/octave recommended

Conclusion
The Bose FreeSpace FS4CE in-ceiling speakers deliver professional-grade sound quality and compliance for a wide array of commercial audio applications. Their rugged construction, certified safety features, and adaptable installation options make them a reliable choice for both indoor and outdoor setups. Ideal for environments that demand both clarity and durability, these speakers are crafted to perform under pressure without sacrificing aesthetic appeal.
