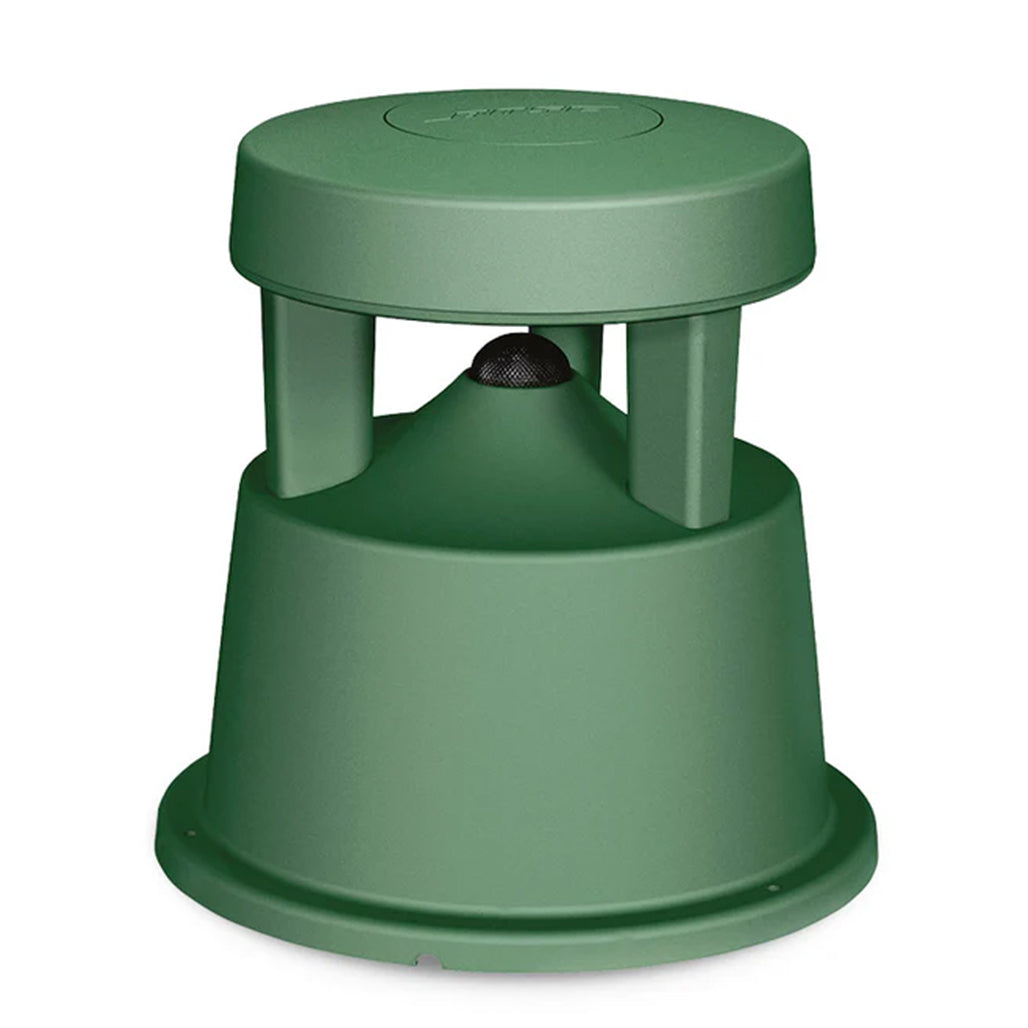

Bose FreeSpace 360P Series - In-Ground Loudspeaker

The Bose FreeSpace 360P Series II In-Ground Loudspeaker has been engineered to deliver consistent, high-quality audio in demanding indoor and outdoor commercial environments. Designed to visually blend into landscaping, this full-range environmental loudspeaker is well suited for in-ground or above-ground placement in shopping malls, outdoor restaurants, resorts, theme parks, and hospitality venues. With true 360-degree horizontal coverage, sound is distributed evenly across open areas, ensuring a uniform listening experience without hot spots or dead zones.

Clear and balanced performance has been achieved through a downward-firing full-range driver and an acoustically optimized enclosure that disperses mid and high frequencies efficiently. Low-frequency response has been extended down to 60 Hz, allowing music and paging audio to remain natural and intelligible in ambient spaces. Durable construction and weather-resistant design allow the loudspeaker to perform reliably in year-round installations, while flexible transformer taps support easy integration into distributed 70V/100V systems.

Key Features

Full-Range Environmental Performance
A single downward-firing 4.5-inch (114 mm) advanced composite environmental full-range driver has been used to provide balanced audio reproduction for music and voice in open-air and indoor environments.

360° Horizontal Sound Coverage
True 360-degree horizontal dispersion has been implemented, allowing sound to be projected evenly in all directions, making it ideal for pathways, courtyards, and large open spaces.

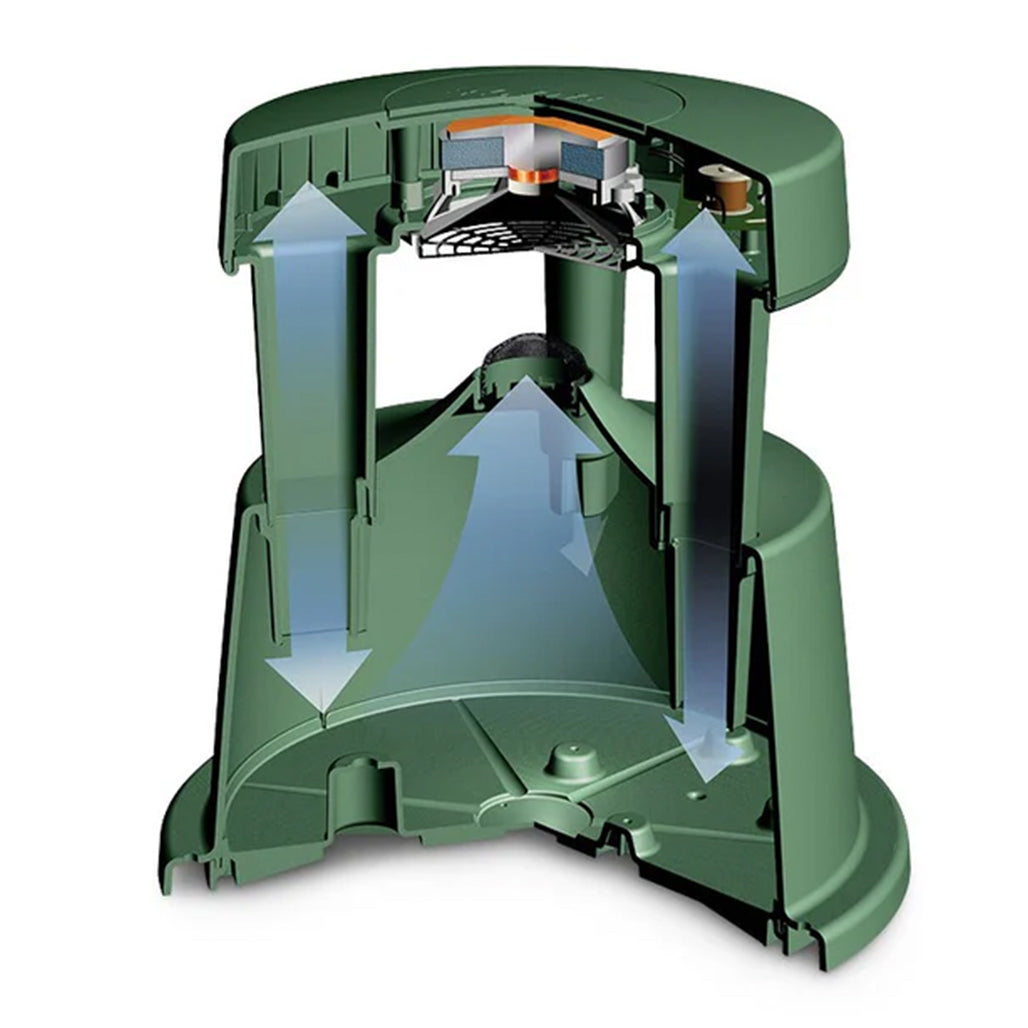

Acoustic Diffuser Cabinet Design
The cabinet shape has been engineered to act as an acoustic diffuser, directing mid- and high-frequency energy outward toward listeners. The base functions as a tuned, multi-chambered ported enclosure to support low-frequency performance.

Domed Port Grille for Consistent Clarity
A domed port grille has been incorporated to reflect sound upward into the listening area, helping maintain clarity and consistency across the coverage zone.

Flexible Installation and System Integration
A multi-tap line transformer has been included, allowing quick and easy adjustment of tap settings for 70V or 100V distributed audio systems, with an option for transformer bypass.

Built for Long-Term Reliability
A tamper-resistant exterior and an internal speaker protection circuit have been integrated to safeguard the driver and ensure dependable operation in public and commercial spaces.

Specifications

Physical Specifications
Ingress Protection: IP35
Mounting/Rigging Provisions: 3 × #10 (M4) holes in base, 3 × #10 (M4) screws required
Net Weight: 14.5 lb (6.6 kg)
Product Dimensions (H × W × D): 368 mm × 379 mm (14.5 in × 14.9 in), loudspeaker diameter × height
Shipping Weight: 14.9 lb (6.8 kg)

Performance Specifications
Frequency Range (-10 dB): 60 Hz – 15,000 Hz
Horizontal Coverage: 360°
Vertical Coverage: 50°
Maximum SPL at 1 m: 107 dB
Sensitivity (SPL/1 W at 1 m): 87 dB
Nominal Impedance: 8Ω (transformer bypassed)
Power Handling, Continuous: 70/100V: 80 W / 8Ω: 65 W
Power Handling, Peak: 70/100V: 320 W / 8Ω: 260 W
Recommended Signal Processing: No Bose Professional EQ required; Bose Professional EQ presets available for best performance

Transformer Taps
100V: 10 W, 20 W, 40 W, 80 W, bypass
70V: 10 W, 20 W, 40 W, 80 W, bypass

Transducers and Protection
Low-Frequency Transducer: 1 × Bose Professional 4.5 in (114 mm) environmental driver
Driver Protection: Recommended high-pass filter at 60 Hz with minimum 24 dB/octave filter; presets available

Conclusion
The Bose FreeSpace 360P Series II In-Ground Loudspeaker has been purpose-built for commercial environments where discreet appearance, wide sound coverage, and dependable performance are essential. With robust weather resistance, flexible installation options, and evenly distributed full-range audio, this loudspeaker is well suited for enhancing background music and paging systems across landscaped and architectural spaces.
