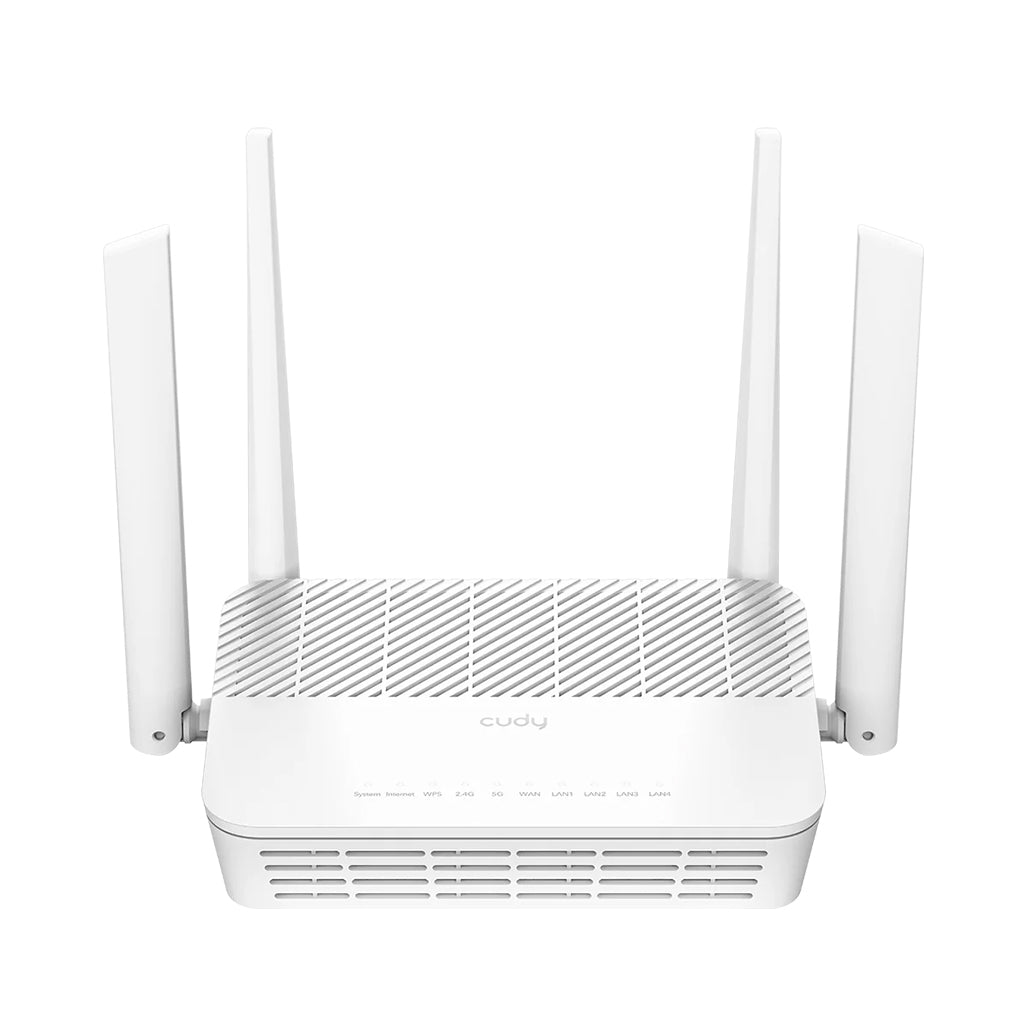

Cudy AX3000 2.5G Mesh Wi-Fi 6 Router

The Cudy AX3000 2.5G Mesh Wi‑Fi 6 Router was designed to deliver ultra-fast wireless performance, stable connectivity, and advanced networking features for modern smart homes and demanding online activities. Powered by Wi-Fi 6 technology with 160 MHz bandwidth and 1024-QAM modulation, wireless speeds of up to 3000 Mbps are supported for smooth 4K streaming, competitive gaming, video conferencing, and large file transfers. Multi-gig internet connectivity is enabled through the dedicated 2.5GbE WAN port, while four Gigabit LAN ports provide reliable wired networking for desktops, consoles, smart TVs, and NAS systems.

Broader wireless coverage is achieved through five wireless streams, high-gain antennas, Beamforming technology, and advanced Wi-Fi optimization features such as OFDMA and MU-MIMO. Stable performance is maintained even when a large number of connected devices are active simultaneously. Up to 200 recommended devices and a maximum capacity of 512 devices are supported, making this router suitable for connected homes, offices, gaming environments, and smart automation systems.

Advanced networking and security features are included to provide flexible network management and secure remote access. Multiple VPN server and client protocols are supported, including WireGuard, OpenVPN, IPsec, PPTP, and L2TP. DNS over TLS encryption is also supported through Cloudflare, Google, Quad9, and custom DNS providers to help secure browsing activity. Cudy Mesh compatibility allows seamless whole-home roaming when paired with other Cudy Mesh devices, while IPTV and VLAN support simplify television and network service configuration.

Key Features

Ultra-Fast AX3000 Wi-Fi 6 Performance

Wireless speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz are supported for high-speed streaming, gaming, and multi-device connectivity. Faster data transmission and lower latency are achieved with Wi-Fi 6 technologies including OFDMA, MU-MIMO, BSS Color, and 1024-QAM.

2.5GbE WAN Port for Multi-Gig Internet

A dedicated 2.5 Gigabit WAN port is included to fully utilize high-speed fiber internet plans. Four additional Gigabit LAN ports allow stable wired connections for gaming PCs, consoles, smart TVs, and storage devices.

Enhanced Whole-Home Coverage

Signal coverage is improved with four fixed antennas, Beamforming technology, and optimized multi-stream architecture. Stronger and more reliable wireless connections are maintained across large homes and through obstacles such as walls.

Connect More Devices Simultaneously

Up to 200 recommended connected devices and a maximum capacity of 512 devices are supported. Efficient traffic handling and reduced congestion are provided for smart homes, offices, and busy wireless environments.

Advanced VPN & Security Support

Secure remote access and encrypted browsing are enabled with integrated VPN server and client support. DNS over TLS encryption and WPA3 security help protect personal data and network traffic.

Flexible Network Modes & Mesh Support

Multiple operation modes including Router, Access Point, Range Extender, WISP, Client, and Mesh are supported for versatile deployment. Cudy Mesh compatibility enables seamless roaming throughout the home.

Specifications

General

• Model Version: WR3000H 1.0
• Wi-Fi Standard: Wi-Fi 6
• Max Wi-Fi Modulation: 1024-QAM
• Max Wi-Fi Channel Width: 160 MHz
• Max Capacity: 512 Devices
• Recommended Client Upper Limit: 200 Devices
• Coverage Area: Up to 220 m (722 ft) in open-space environments

Processor & Memory

• CPU: 1.3 GHz Dual-Core ARM Cortex-A53
• Flash/ROM: 128 MB NAND
• RAM: 256 MB DDR3

Wireless Performance

• 5 GHz Wi-Fi Speed: 2402 Mbps
• 2.4 GHz Wi-Fi Speed: 574 Mbps
• 5 GHz Streams: 2 Spatial Streams with 3T3R
• 2.4 GHz Streams: 2 Spatial Streams
• Antennas: 4× Fixed
• Beamforming: Supported
• Wi-Fi Efficiency Features:
  • OFDMA
  • MU-MIMO
  • BSS Color

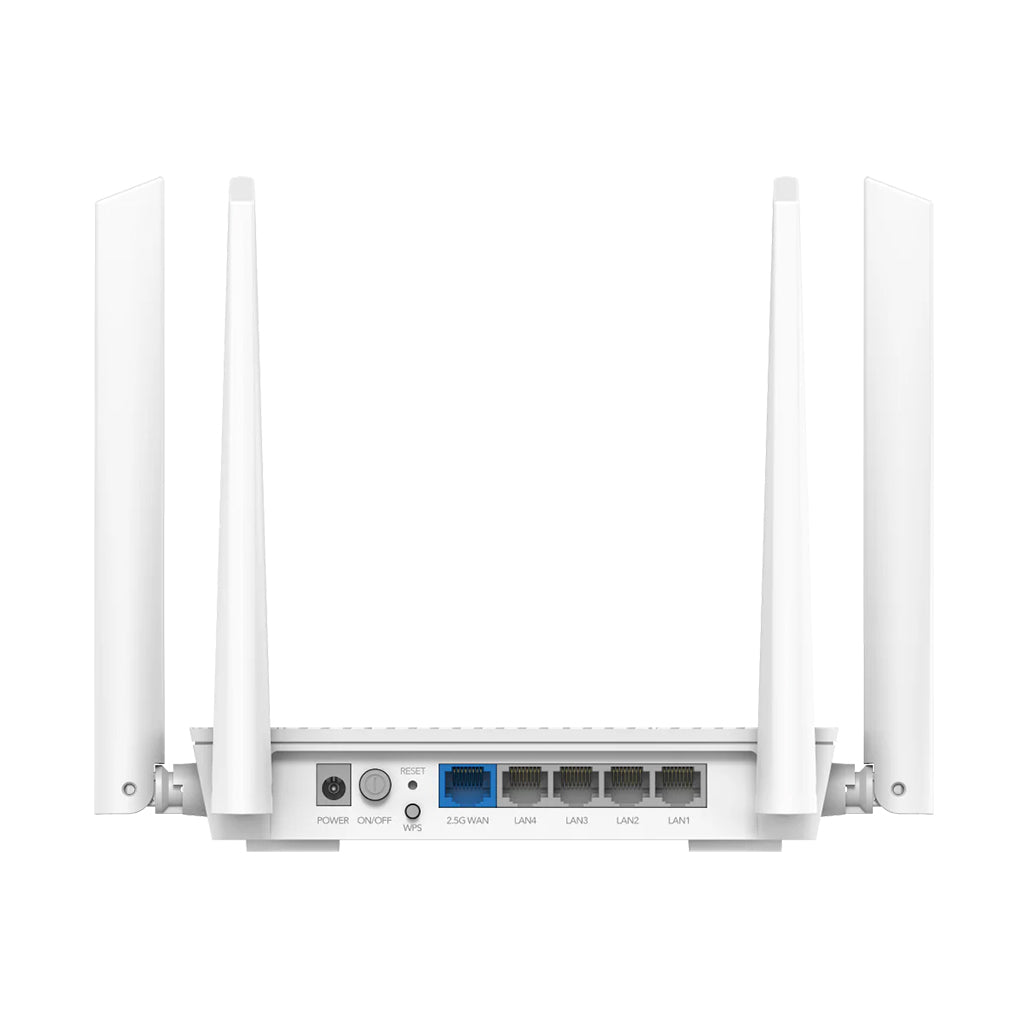

Ports & Interfaces

• 1× 2.5GbE WAN Port
• 4× Gigabit LAN Ports
• DC Power Jack

Buttons & LEDs

• Power On/Off Button
• WPS Button
• Reset Button
• LED Indicators:
  • System
  • Internet
  • WPS
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
  • WAN
  • LAN

Security & VPN

• Wi-Fi Security: WPA/WPA2/WPA3
• VPN Server Support:
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
• VPN Client Support:
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP

VPN Performance

• OpenVPN Client: 90 / 120 Mbps
• OpenVPN Server: 180 / 160 Mbps
• WireGuard Client: 224 / 230 Mbps
• WireGuard Server: 360 / 314 Mbps

Network Features

• IPv4 / IPv6 Support
• IPTV & VLAN Support
• QoS Per-User Rate Limiting
• DHCP Server
• Port Forwarding
• UPnP
• DMZ
• SPI Firewall
• DoS Protection
• DNS over TLS
• Wake on LAN
• MAC Filtering
• Parental Controls
• App Control & Cloud Control

Operation Modes

• Wi-Fi Router
• Access Point
• Range Extender
• WISP
• Client
• Cudy Mesh

Power

• Power Input: 12V⎓1.5A
• Max Power Consumption: 12W
• Idle Power Consumption: 4.5W

Physical Specifications

• Installation:
  • Desktop
  • Wall-Mount
• Dimensions:
  • Main Unit: 173 × 123.8 × 33 mm
  • Antenna Length: 171 mm
• Product Weight: 347.6 g

Environment

• Operating Temperature: 0 ℃ to 40 ℃
• Storage Temperature: -40 ℃ to 70 ℃
• Operating Humidity: 10%–90% Non-Condensing
• Storage Humidity: 5%–95% Non-Condensing

Certifications

• FCC
• CE

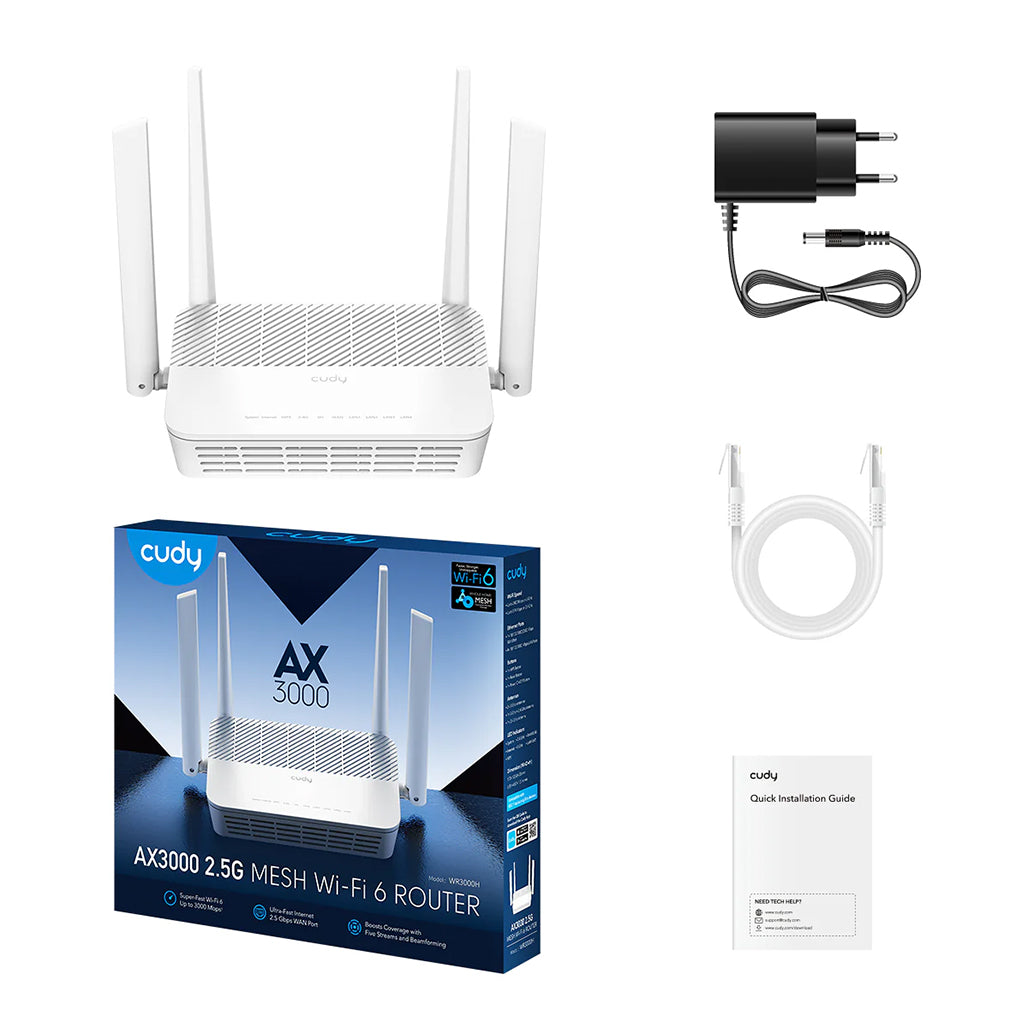

Package Contents

• WR3000H Router
• Power Adapter
• Ethernet Cable
• Installation Guide

The Cudy AX3000 2.5G Mesh Wi‑Fi 6 Router was built to provide high-speed wireless networking, reliable coverage, advanced security, and multi-gig internet support for modern connected environments. Strong Wi-Fi performance, extensive VPN compatibility, Mesh support, and flexible operation modes make it an ideal solution for gaming, streaming, remote work, and smart home networking.
