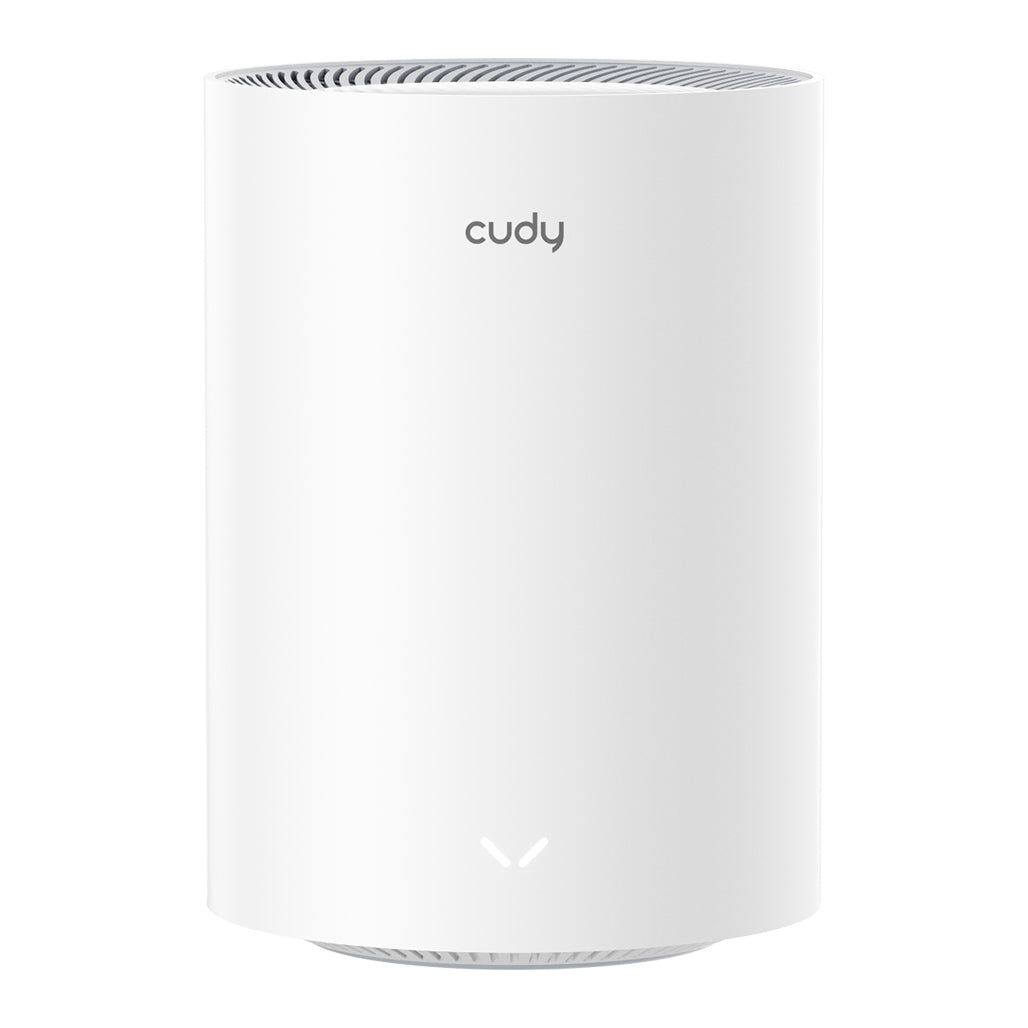

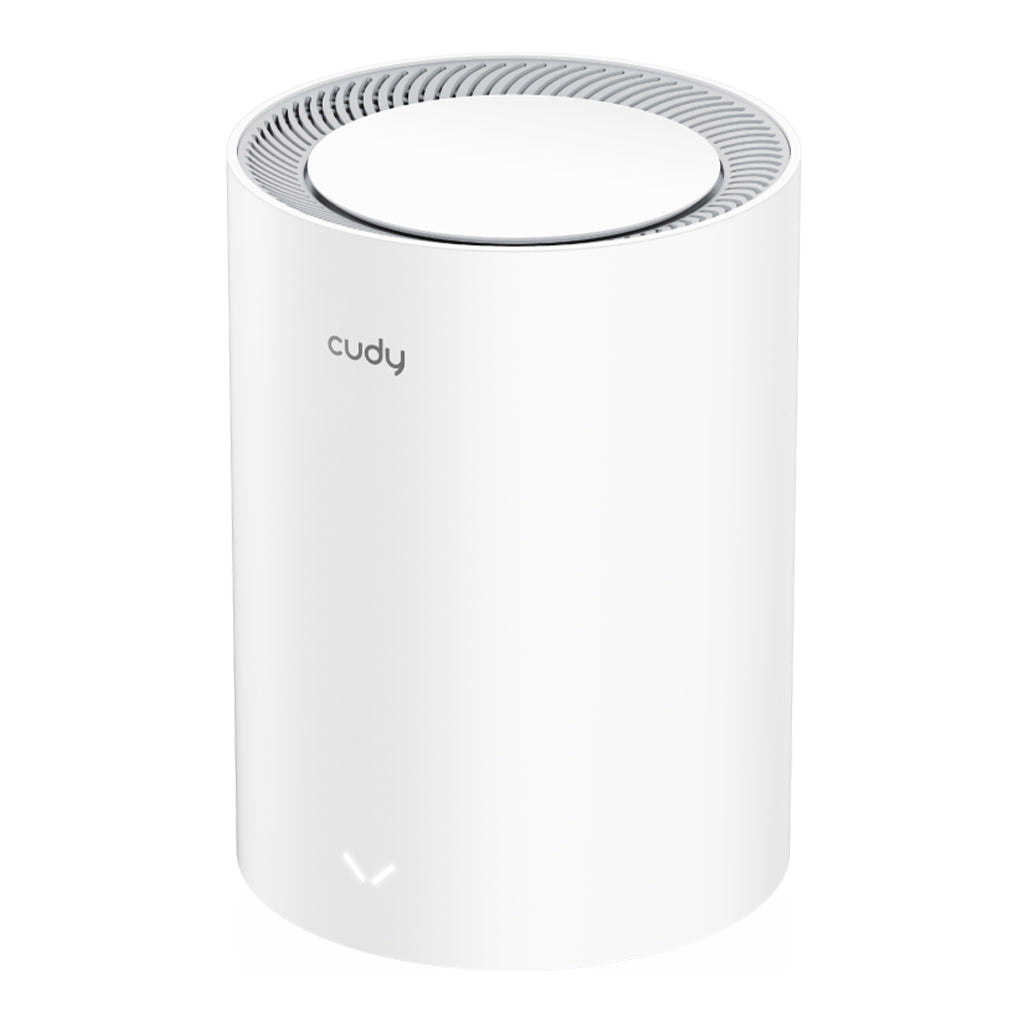

Cudy M3000 - AX3000 WiFi 6 Mesh System with 2.5G Port 1 Pack

A high-performance whole-home networking system has been engineered to deliver ultra-fast and stable wireless connectivity through Wi-Fi 6 technology. Seamless coverage is provided across large homes, supporting 4K streaming, online gaming, and heavy multi-device usage without interruption. A 2.5G WAN port has been included to fully support ultra-high-speed internet plans up to 2.5 Gbps, ensuring that modern broadband speeds are effectively utilized.

Advanced mesh networking has been implemented to eliminate dead zones and maintain consistent roaming across multiple nodes. Strong signal stability is achieved through five internal antennas and multi-band backhaul technology, allowing smooth transitions between rooms and floors. Reliable connectivity for up to 200 connected devices is maintained, making the system suitable for smart homes, offices, and high-density usage environments.

Key Features

• Wi-Fi 6 AX3000 Performance: High-speed dual-band throughput is delivered for smooth streaming and gaming experiences.
• 2.5G High-Speed WAN Port: Ultra-fast internet plans are supported without bandwidth bottlenecks.
• Mesh Networking Technology: Full-home coverage is maintained through seamless node communication.
• Dual-Core Processing Power: Stable routing performance is ensured through a 1.3 GHz CPU.
• High Device Capacity: Up to 200 devices are supported simultaneously without performance drops.
• Advanced Wireless Efficiency: OFDMA, MU-MIMO, and 1024-QAM are enabled for optimized traffic handling.
• Flexible VPN Integration: WireGuard, OpenVPN, IPsec, and more are supported for secure connections.
• Smart App Control: Network management is simplified through cloud-based app control.
• Multi-Mode Operation: Router, Access Point, Range Extender, WISP, and Client modes are supported.
• Enhanced Security System: WPA3 encryption, SPI firewall, and DoS protection are implemented.

Specifications

Model Version M3000 2.0
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 5× Internal
FEM or PA/LNA 5 GHz: 3× Internal
2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Indoor Coverage Reference 2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. You may see different figures on the older retail box which is based on test taken in wooden structure, while the figures on the website is taken from a concrete structure.

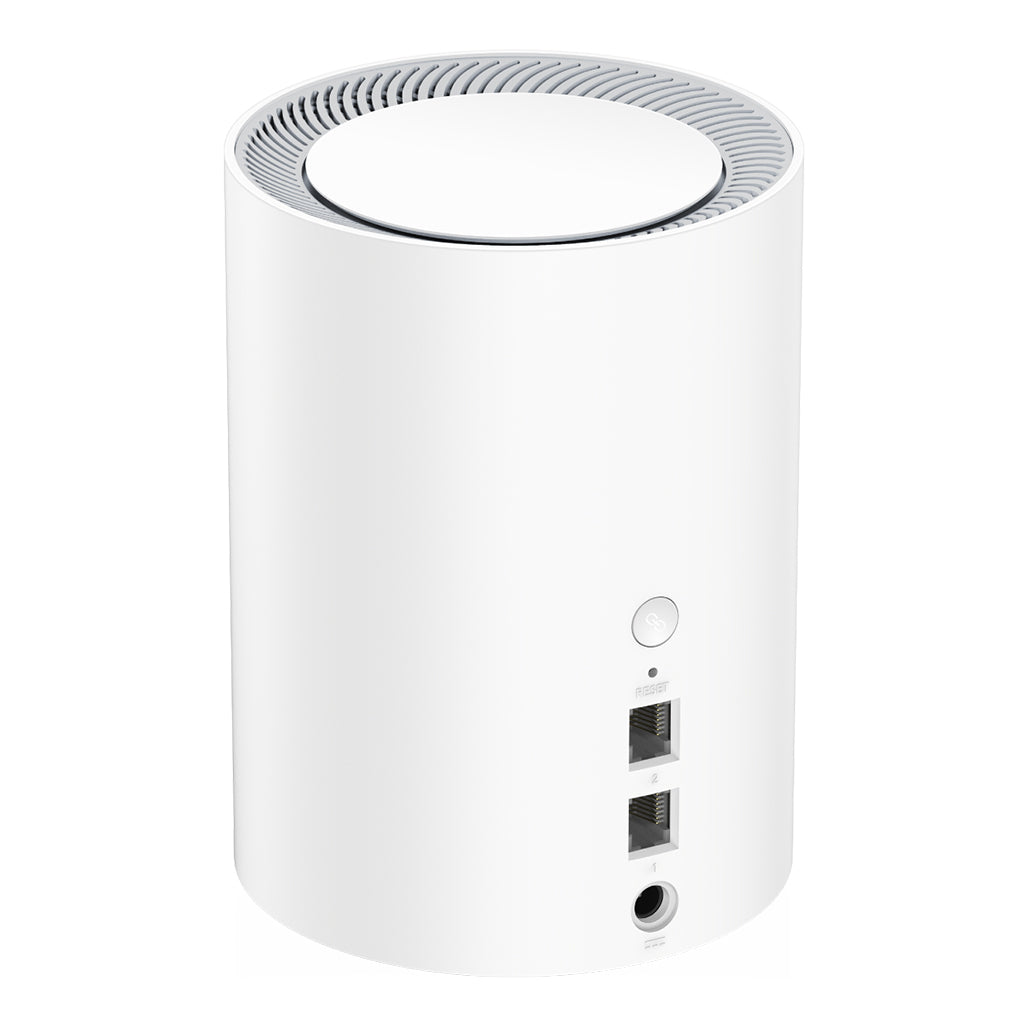

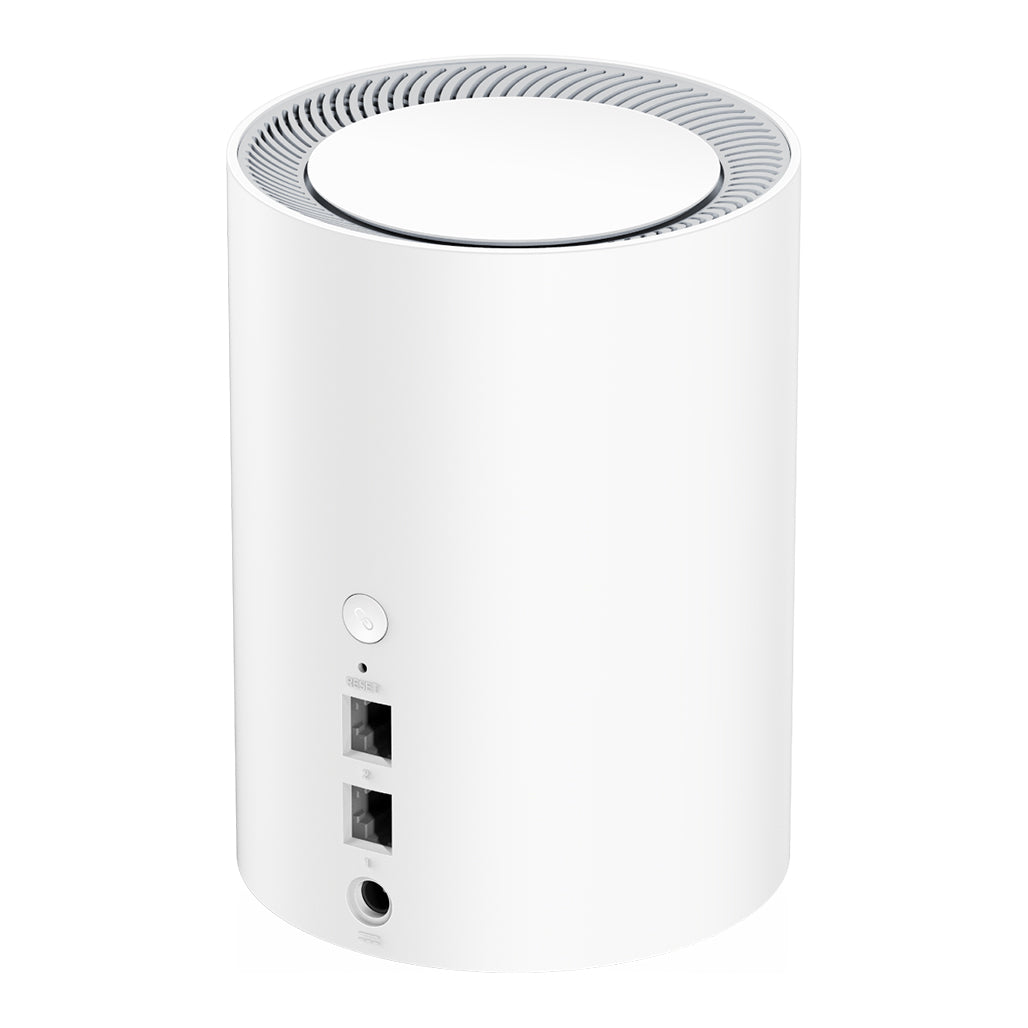

Interfaces 2.5G RJ45 Ports 1
Gigabit RJ45 Ports 1
Ethernet Notes The 2.5G port is the WAN port, the Gigabit port is LAN port
LED System
Speed/Link/ACT of Ethernet Port
Physical Buttons WPS Button
Reset Button
Power Interfaces DC Jack
Power Power Methods DC
Power Input 12V⎓1A
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption (W) 11.5W
Idle Power Consumption (W) 4.2W
Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Desktop
Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
Product Weight 360 g (12.7 oz.)

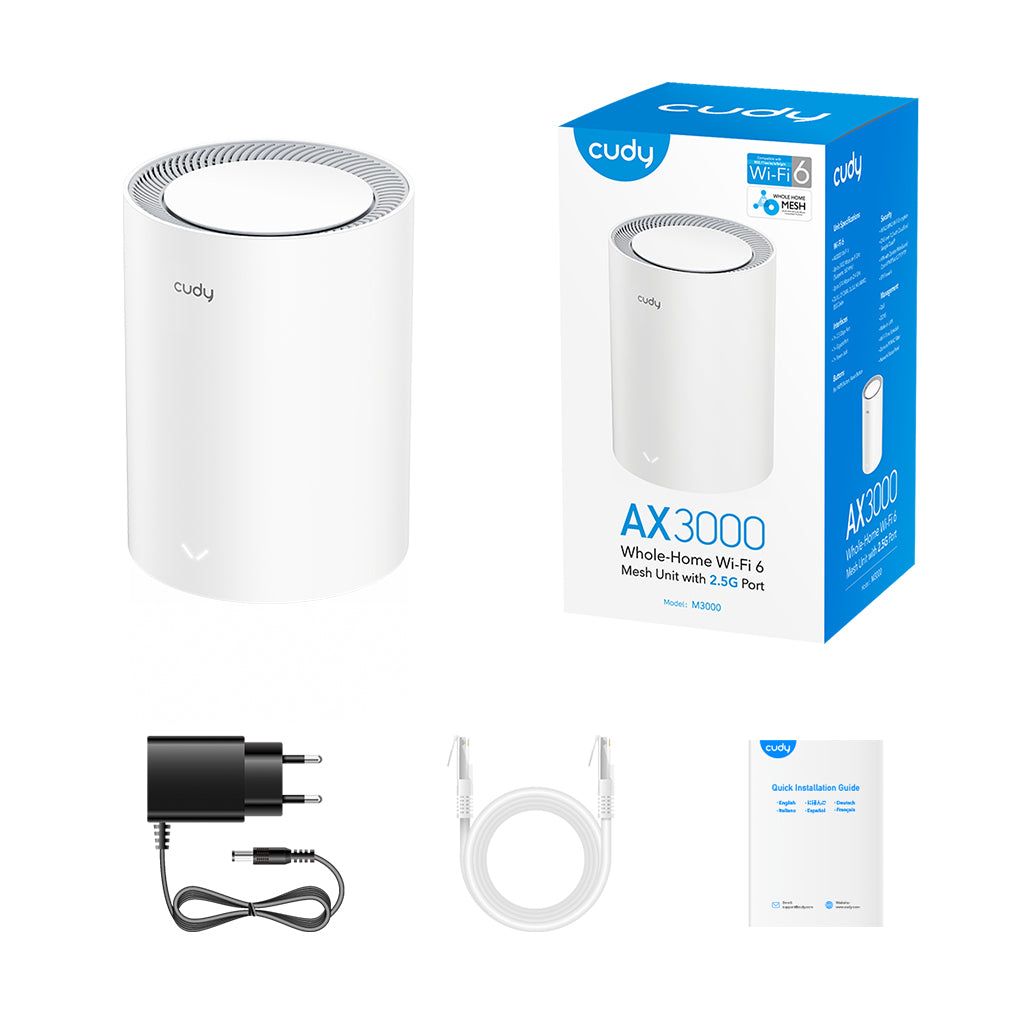

Package Content M3000
Power Adapter
Ethernet Cable
Installation Guide
Ordering Information Retail Package Weight 1-Pack | EU / US: 680 g (23.99 oz.)
2-Pack | EU / US: 1370 g (48.33 oz.)
3-Pack | EU / US: 1827 g (64.45 oz.)
Retail Package Dimension 1-Pack: 145×130×265 mm
5.71×5.12×10.43 inches,2-Pack:
330×130×265 mm
12.99×5.12×10.43 inches,3-Pack:
380×130×265 mm
14.96×5.12×10.43 inches
Units per Carton 1-Pack: 16
2-Pack: 8
3-Pack: 4
Carton Dimension 1-Pack: 57×56×26 cm
22.44×22.05×10.24 inches
2-Pack: 55×54.5×35.3 cm
21.65×21.46×13.9 inches
3-Pack: 53.6×40×28.7 cm
21.1×15.75×11.3 inches
Carton Gross Weight 1-Pack | EU / US: 12.2 kg (26.9 lbs)
2-Pack | EU / US: 12.3 kg (27.12 lbs)
3-Pack | EU / US: 8.2 kg (18.08 lbs)
Carton Net Weight 1-Pack | EU / US: 10.9 kg (24.03 lbs)
2-Pack | EU / US: 11.0 kg (24.25 lbs)
3-Pack | EU / US: 7.3 kg (16.09 lbs)

Model Version M3000 2.0
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency OFDMA
MU-MIMO
BSS Color
Max Capacity 512
Recommended Client Upper Limit 200
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS
General Operation Modes Wi-Fi Router
Access Point
Range Extender
WISP
Client
Mesh Cudy Mesh
Mesh Backhaul Wireless Backhaul
Wired Backhaul
Multi-Band Backhaul
WAN Mode DHCP
Static IP
PPPOE
PPTP
L2TP
Network QoS Per-User Rate Limiting
DHCP Address Reservation
DHCP Client List
Server
IP Versions IPv4/IPv6
IPv6 Protocols Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
Multicast IPTV/VLAN Bridge
Tag VLAN
VoIP VLAN
IPTV VLAN
TTL Customization Extend
Spoof
Custom
IGMP IGMP Proxy
IGMP Snooping
Forwarding Port Forwarding
Port Triggering
UPnP
DMZ
Firewall SPI Firewall
DoS Protection
Block PING
Application Layer Gateway IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough
Utilities VPN Server WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
VPN Client WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
DNS Options DNS over TLS
Manual DNS
Rebind Protection
Override Clients' DNS
DNS over TLS Providers Cloudflare
Google
Quad9
Custom
Wake on LAN Online Detection
Management Parental Controls Profiles Settings
Offline Time
Online Time
Pause the Internet
Web Filter
All Devices Management Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management Internet On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management Domain Filter
IP Filter
System LED Control Local Control Method Config Web Page
App Control
Remote Control Method Config Page via HTTPS
App Control
TR069/TR098/TR111/TR143/TR181
Firmware Upgrade Local Update
App (Over the Air)
Online Update
Reliability Timed Reboot
Backup and Restore
Diagnostic Tools Diagnosis
Ping
Traceroute
NSLookup
System Log
Languages English
Bengali
Catalan
Czech
German
Greek
Spanish
French
Hebrew
Croatian
Hungarian
Italian
Japanese
Khmer
Korean
Dutch
Norwegian
Polish
Portuguese
Romanian
Russian
Slovak
Swedish
Thai
Turkish
Ukrainian
Vietnamese
Simplified Chinese
Traditional Chinese
Dashboard Panel Internet Status
Mesh Status
Devices Management
WAN Status
LAN Status
WISP Status
Wi-Fi Status
VPN Status
DHCP Server Status
System Version
Charts Mesh Topology
Internet Speed
WISP Speed
Wi-Fi Speed

Conclusion

A high-capacity mesh networking system has been designed to deliver stable, ultra-fast, and scalable Wi-Fi coverage across large environments. Reliable performance is maintained even under heavy multi-device usage, while advanced mesh coordination ensures uninterrupted roaming and consistent speed throughout the space.
