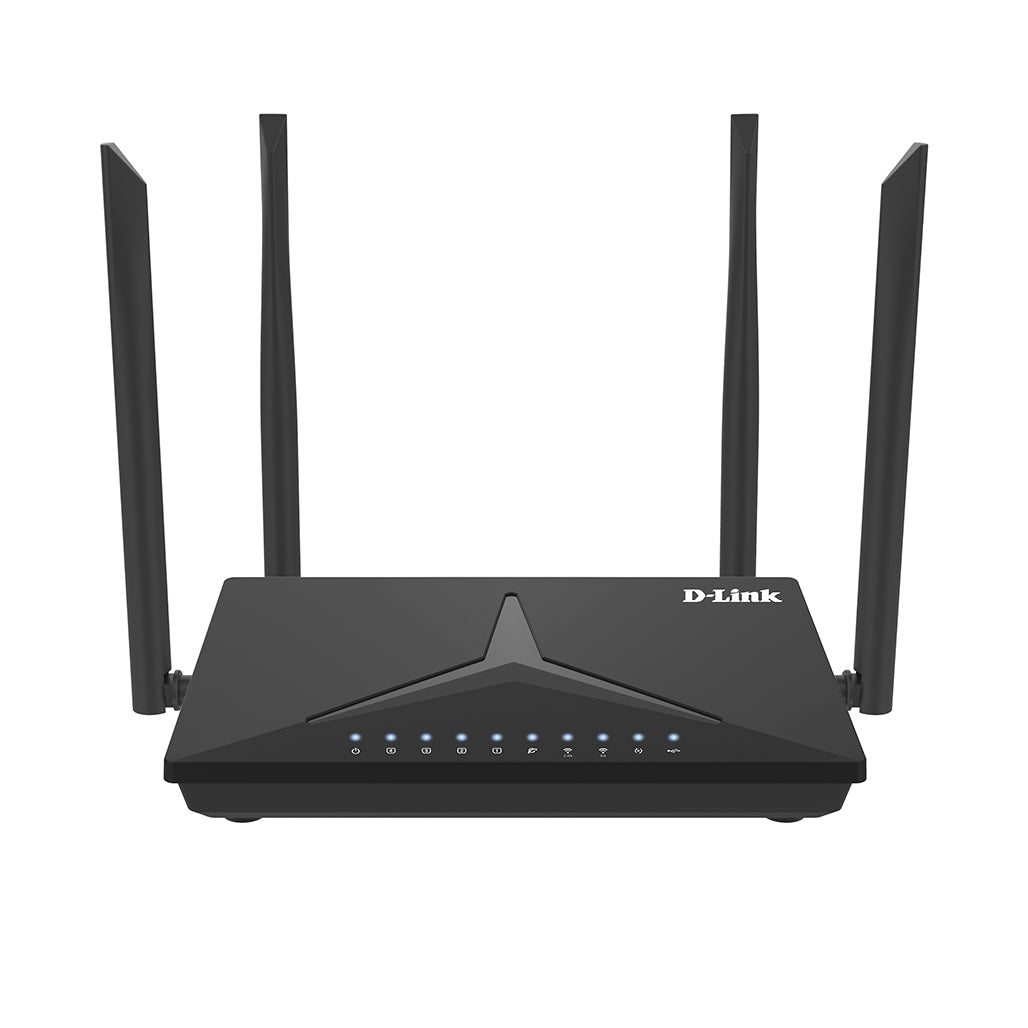

The D-Link DIR-825M AC1200 MU-MIMO Gigabit Router is engineered to deliver exceptional performance and flexibility for Small Office/Home Office (SOHO) environments. With support for high-speed 802.11ac Wi-Fi, this router ensures rapid and reliable wireless connectivity across both the 2.4 GHz and 5 GHz bands, offering speeds up to 1200 Mbps. Designed to meet the needs of modern networking demands, the DIR-825M provides robust wired and wireless performance, making it ideal for high-definition streaming, online gaming, and seamless multimedia experiences.

This router's dual-band technology enables simultaneous operation on both frequency bands, reducing interference and optimizing performance for various applications. The DIR-825M also supports Wireless Mesh and Repeater modes, allowing for easy expansion and enhancement of your network coverage. The inclusion of Gigabit Ethernet ports further ensures high-speed wired connections for devices such as Network-Attached Storage (NAS) systems and gaming consoles, providing a dependable and high-speed network environment.

Key Features:

• High-Speed Connectivity: The DIR-825M supports the latest 802.11ac Wi-Fi standard, delivering combined wireless speeds of up to 1200 Mbps. This capability ensures smooth and efficient performance for demanding tasks such as HD streaming, online gaming, and intensive web browsing.

• Dual-Band Wireless: Featuring both 2.4 GHz and 5 GHz bands, the DIR-825M enables concurrent high-speed connections, reducing network congestion and improving overall performance. Each band can operate independently or be used to create separate networks, enhancing flexibility and user experience.

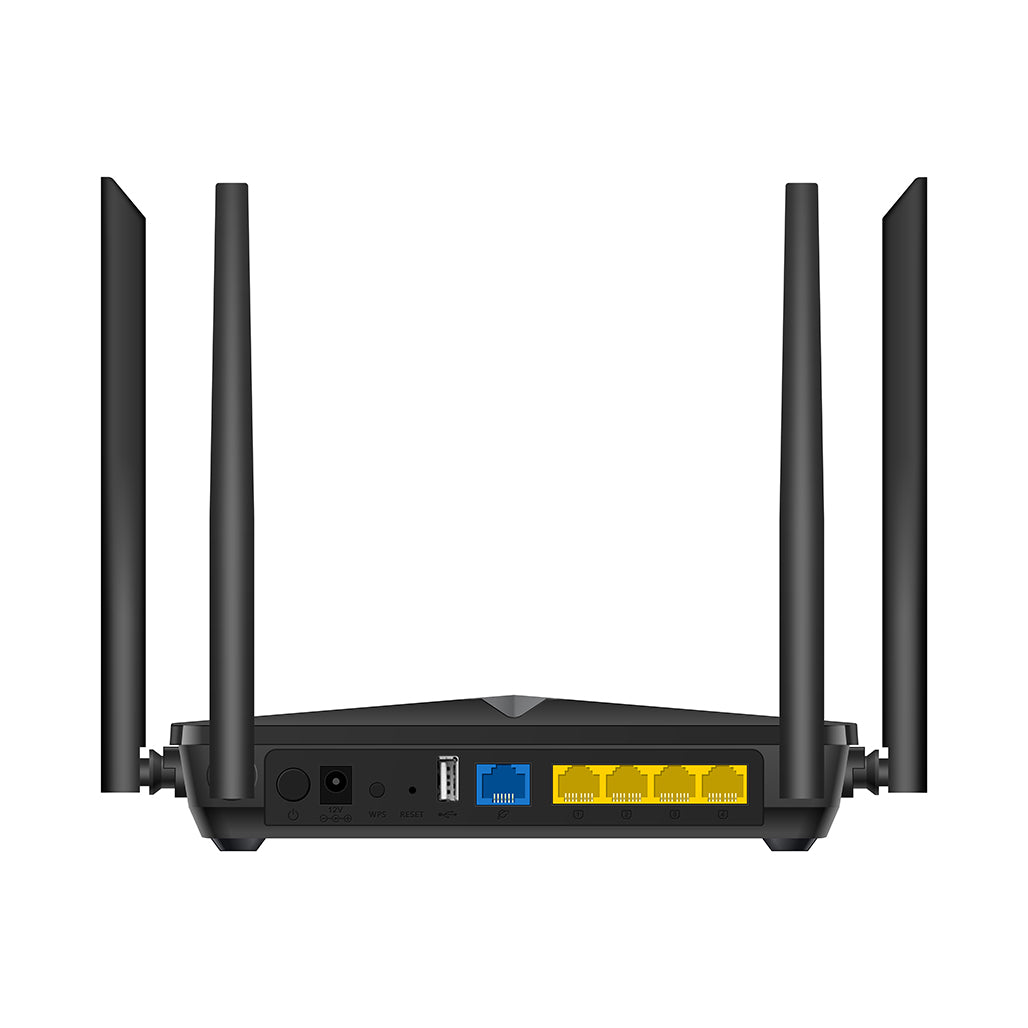

• Gigabit Ethernet Ports: Equipped with four Gigabit Ethernet ports, the DIR-825M provides fast and reliable wired connections for devices such as NAS, media centers, and gaming consoles. The 10/100/1000 Mbps ports support high-speed data transfer and reduce latency in wired connections.

• PoE Support and Expansion: The router supports Wireless Mesh and Repeater modes, allowing users to extend network coverage easily. This flexibility is beneficial for expanding the network in larger spaces or areas with challenging signal conditions.

• Advanced Security Features: The DIR-825M includes comprehensive security measures to protect your network. It features a built-in firewall with various functions including NAT, SPI, URL filtering, and DoS protection. Additionally, advanced wireless security protocols such as WPA2 and WPA ensure secure connections and safeguard against unauthorized access.

• User-Friendly Setup and Management: The router offers an intuitive setup process via a web-based interface or Wi-Fi Protected Setup (WPS) for quick and secure configuration. Remote management is available through TR-069, and firmware updates can be performed easily through the web interface.

Specifications:

• Device Interface:

  • 1x 10/100/1000 WAN Ethernet
  • 4x 10/100/1000 LAN Ethernet
  • 1x USB 2.0

• LEDs:

  • Power, Internet, 4 LAN LEDs, USB, 2.4GHz WLAN, 5GHz WLAN, WPS

• Buttons:

  • POWER button, WPS button, RESET button

• Antenna:

  • 2x 5dBi 2.4GHz External Antennas
  • 2x 5dBi 5GHz External Antennas

• Power Connector:

  • DC input

• CPU Frequency:

  • Single core 1GHz

• WAN Connection Types:

  • PPPoE, Static IP, Dynamic IP, and Dual Access

• Network Functions:

  • DHCP server/client, Dynamic DNS, Static Routing

• Firewall Functions:

  • NAT, SPI, URL Filter, MAC Filter, IP Filtering, Port Filtering, DMZ, Port Forwarding

• VPN Support:

  • PPTP/L2TP/GRE, IPSec/PPTP/L2TP pass-through

• Management:

  • Firmware updates, Configuration saving/restoring, Web GUI access, TR-069 remote management

• Wireless Module Parameters:

  • Standards: IEEE 802.11 a/b/g/n/ac
  • Frequency Range: 2.4GHz, 5GHz
  • Wireless Security: 128-bit Personal/192-bit Enterprise Wi-Fi Encryption, MAC filter, WPS
  • Advanced Functions: Wireless Client Mode, AP Mode, Repeater Mode, WISP Mode, Mesh Ready, Multiple SSIDs
  • Transfer Rate: HT20 up to 144 Mbps, HT40 up to 300 Mbps, VHT80 up to 867 Mbps

• Physical Dimensions:

  • 197 x 133.86 x 44.26 mm

• Operation Environment:

  • Power: 12V DC, 1A
  • Temperature: Operating: 0 to 40°C; Storage: -20 to 90°C
  • Humidity: Operating: 5% to 95% (non-condensing)

The D-Link DIR-825M AC1200 MU-MIMO Gigabit Router provides a powerful and versatile solution for enhancing both wired and wireless network performance in SOHO environments. With its advanced features, user-friendly setup, and robust security measures, this router ensures a reliable and secure network experience.
