DJI Action 2 - Dual screen Combo

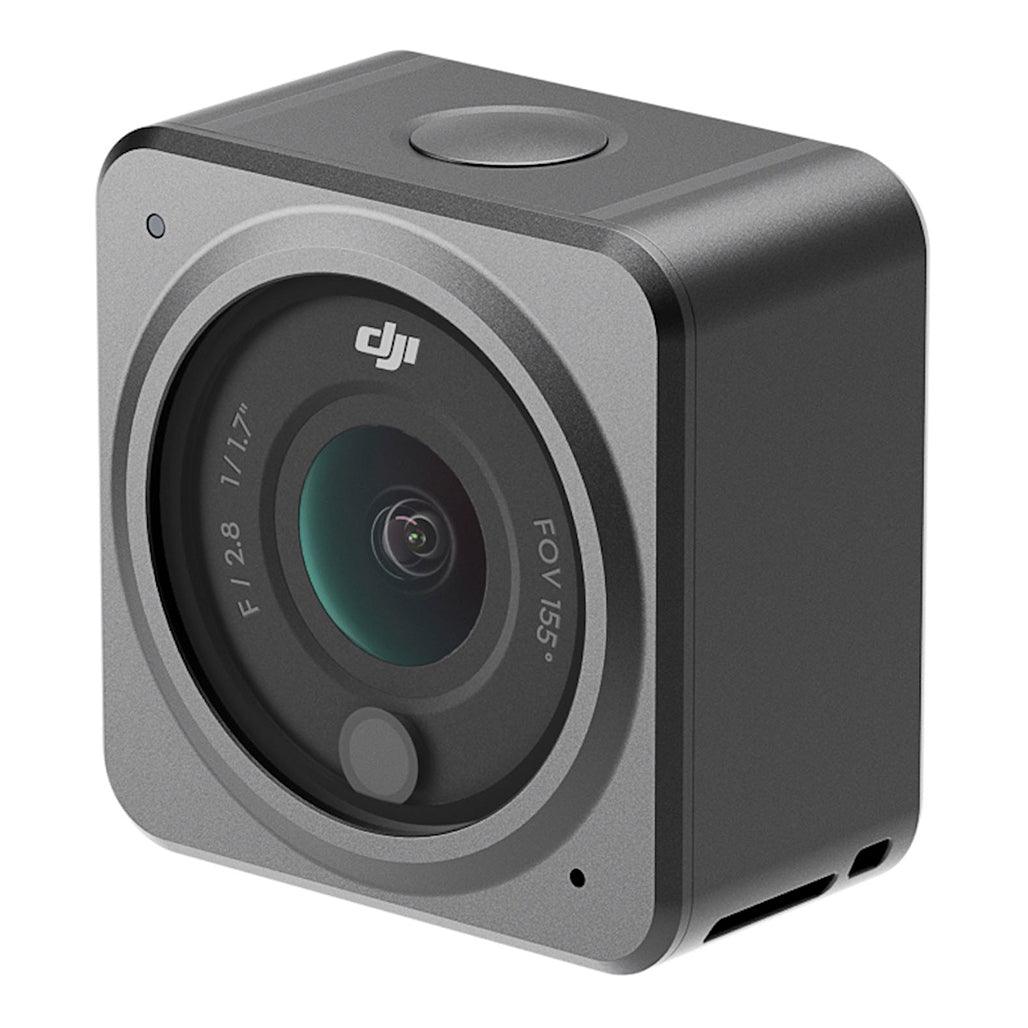

Camera Unit

General

·       Dimensions

• 39×39×22.3 mm

·       Waterproof

• 10 m without Waterproof Case, 60 m with Waterproof Case

·       Number of Microphones

• 1

·       Weight

• 56 g

·       Touchscreen

• 76 inches 350 ppi
  500±50 cd/m² 446×424

Camera

·       Sensor

• 1/1.7” CMOS

·       Lens

• FOV: 155°
  Aperture: f/2.8
  35mm Format Equivalent: 12.7 mm
  Focus Range: 0.3 m to ∞

·       ISO Range

• Photo: 100-6400
  Video: 100-6400

·       Electronic Shutter Speed

• Photo: 1/8000-30 s
  Video: 1/8000 s to the limit of frames per second

·       Max Photo Resolution

• 4000×3000

·       Zoom

• Digital Zoom
  Photo: 4x
  Video: 2x (> 60fps), 3x (≤ 60fps, HorizonSteady On), 4x (≤ 60fps, HorizonSteady Off)
  Slow Motion/Timelapse: Not available

·       Still Photography Modes

• Single: 12 MP
  Countdown: Off/0.5/1/2/3/5/10 seconds

·       Video

• 4K (4:3): 4096×3072 @ 24/25/30/48/50/60fps
  4K (16:9): 3840×2160 @ 100/120fps
  4K (16:9): 3840×2160 @ 24/25/30/48/50/60fps
  7K (4:3): 2688×2016 @ 24/25/30/48/50/60fps
  2.7K (16:9): 2688×1512 @ 100/120fps
  2.7K (16:9): 2688×1512 @ 24/25/30/48/50/60fps
  1080p (16:9): 1920×1080 @ 100/120/200/240fps
  1080p (16:9): 1920×1080 @ 24/25/30/48/50/60fps

·       Slow Motion

• 4K: 4x (120fps)
  7K: 4x (120fps)
  1080p: 8x (240fps), 4x (120fps)

·       Timelapse

• 4K/2.7K/1080p
  Intervals: 0.5/1/2/3/4/5/6/7/8/10/13/15/20/25/30/40 seconds
  Duration: 5/10/20/30 minutes, 1/2/3/5 hours, ∞

·       Stabilization

• EIS: RockSteady 2.0+HorizonSteady
  * EIS is not supported in Slow Motion and Timelapse mode. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9)

·       Max Video Bitrate

• 130 Mbps

·       Supported File Formats

• exFAT

·       Photo Format

• JPEG / RAW

·       Video Formats

• MP4 (H.264 / HEVC)

·       Built-in Storage Capacity

• 32GB
  * 22.4GB of available storage. The Camera Unit doesn't have a microSD card slot, but storage capacity can be expanded by inserting a microSD card into the Front Touchscreen Module or Power Module.

·       Audio Output

• 48 KHz; AAC

Battery

·       Type

• LiPo 1S

·       Capacity

• 580 mAh

·       Energy

• 23 Wh

·       Voltage

• 85 V

·       Operating Temperature

• 0° to 40° C (32° to 104° F)

·       Charging Temperature

• 5° to 60° C (41° to 140° F)

·       Operating Time

• 70 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

Connection

·       Wi-Fi Operation Frequency Range

• 400-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

·       Wi-Fi Protocol

• 11 a/b/g/n/ac

·       Wi-Fi Transmit Power (EIRP)

• 4 GHz: <16 dBm (FCC/CE/SRRC/MIC)
  5.1 GHz: <14 dBm (FCC/CE/SRRC/MIC)
  5.8 GHz: <14 dBm (FCC/CE/SRRC)

·       Bluetooth Operation Frequency Range

• 400-2.4835 GHz

·       Bluetooth Transmit Power (EIRP)

• <4 dBm

·       Bluetooth Protocol

• BLE 5.0

Front Touchscreen Module

General

·       Dimensions

• 39×41.6×24.6 mm

·       Waterproof

• Not waterproof without Waterproof Case, 60 m with Waterproof Case

·       Number of Microphones

• 3

·       Weight

• 64 g

·       Touchscreen

• 76 inches 350 ppi
  500±50 cd/m² 446×424

·       Supported SD Cards

• microSD (Max. 256GB)

·       Recommended microSD Cards

• Recommended models:
  Samsung EVO 128GB UHS-I Speed Grade 3 microSDHC
  Samsung EVO Plus 128GB UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme 64GB V30 A2 UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme Pro 32GB UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme 16GB UHS-I Speed Grade 3 microSDXC
  Lexar 1066x 64GB UHS-I Speed Grade 3 microSDHC
  Kingston Canvas React Plus 64GB UHS-II Speed Grade 3 microSD
  Kingston Canvas Go!Plus 64GB UHS-I Speed Grade 3 microSD

Battery

·       Battery Type

• LiPo 2S

·       Capacity

• 1300 mAh

·       Energy

• 5 Wh

·       Voltage

• 7 V

·       Operating Temperature

• 0° to 40° C (32° to 104° F)

·       Charging Temperature

• 5° to 60° C (41° to 140° F)

·       Operating Time

• Camera Unit + Front Touchscreen Module: 160 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

·       Charging Time

• Camera Unit + Front Touchscreen Module: 90 minutes
  * Tested in a laboratory environment when using a 5V/2A USB adapter

Power Module

General

·       Dimensions

• 39×41.6×21.4 mm

·       Waterproof

• Not waterproof without Waterproof Case, 60 m with Waterproof Case

·       Weight

• 6 g

·       Supported SD Cards

• microSD (Max. 256GB)

·       Recommended microSD Cards

• Recommended models:
  Samsung EVO 128GB UHS-I Speed Grade 3 microSDHC
  Samsung EVO Plus 128GB UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme 64GB V30 A2 UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme Pro 32GB UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme 16GB UHS-I Speed Grade 3 microSDXC
  Lexar 1066x 64GB UHS-I Speed Grade 3 microSDHC
  Kingston Canvas React Plus 64GB UHS-II Speed Grade 3 microSD
  Kingston Canvas Go!Plus 64GB UHS-I Speed Grade 3 microSD

Battery

·       Battery Type

• LiPo 2S

·       Capacity

• 1300 mAh

·       Energy

• 5 Wh

·       Voltage

• 7 V

·       Operating Temperature

• 0° to 40° C (32° to 104° F)

·       Charging Temperature

• 5° to 60° C (41° to 140° F)

·       Operating Time

• Camera Unit + Power Module: 180 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

·       Charging Time

• Camera Unit + Power Module: 90 minutes
  * Tested in a laboratory environment when using a 5V/2A USB adapter
