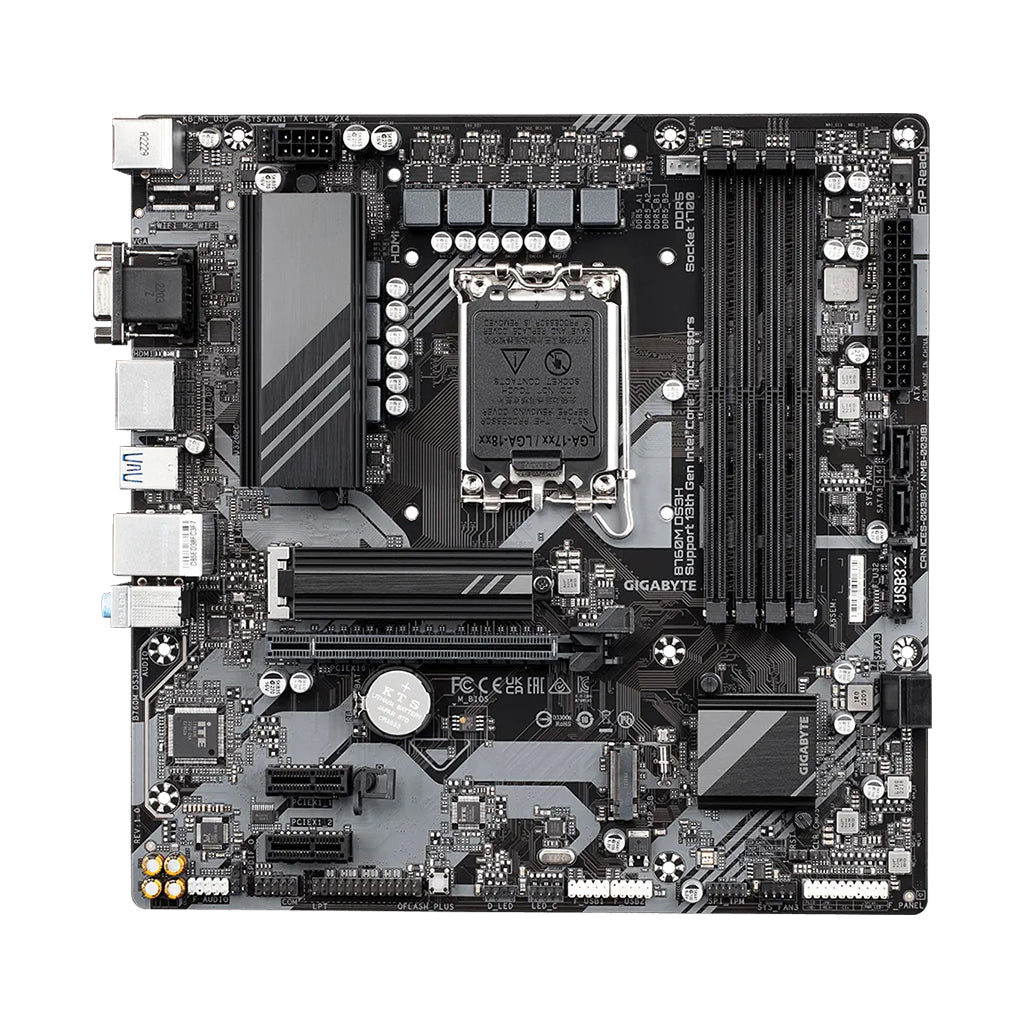

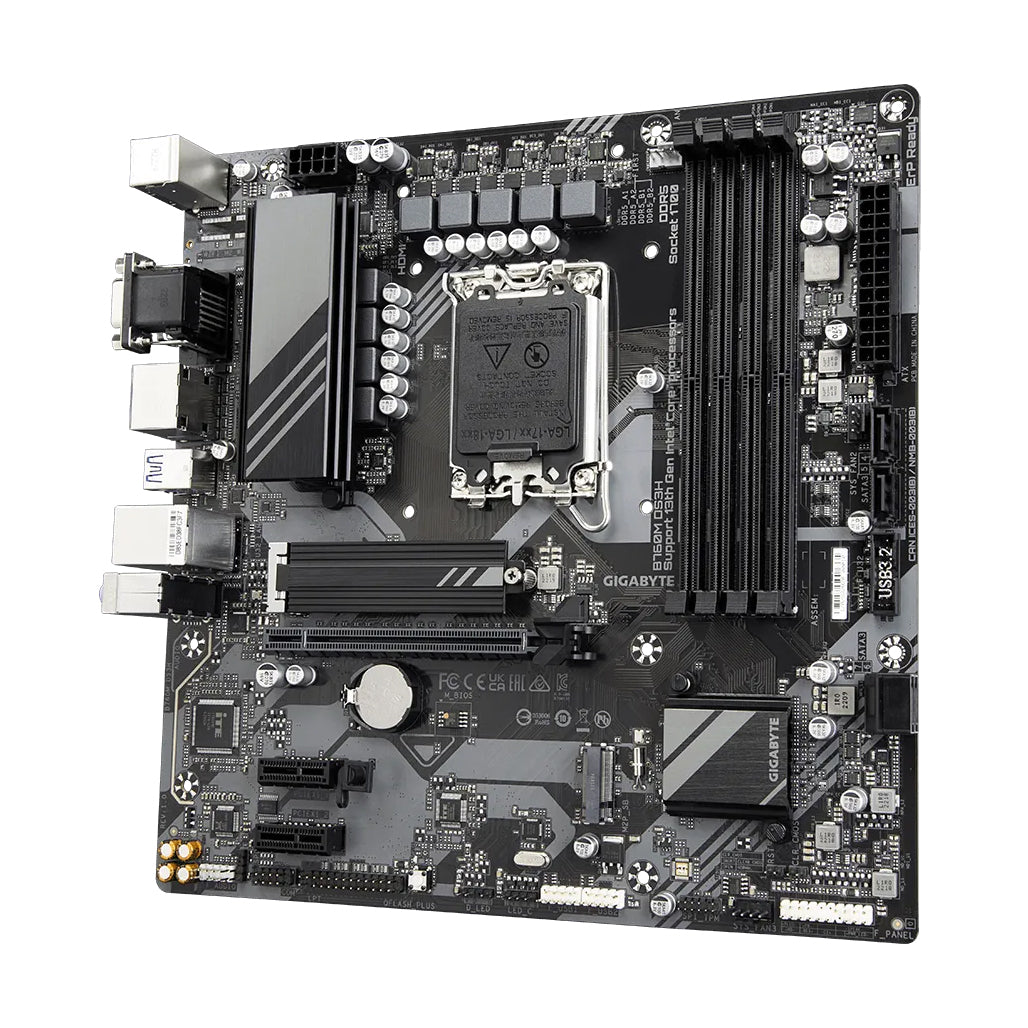

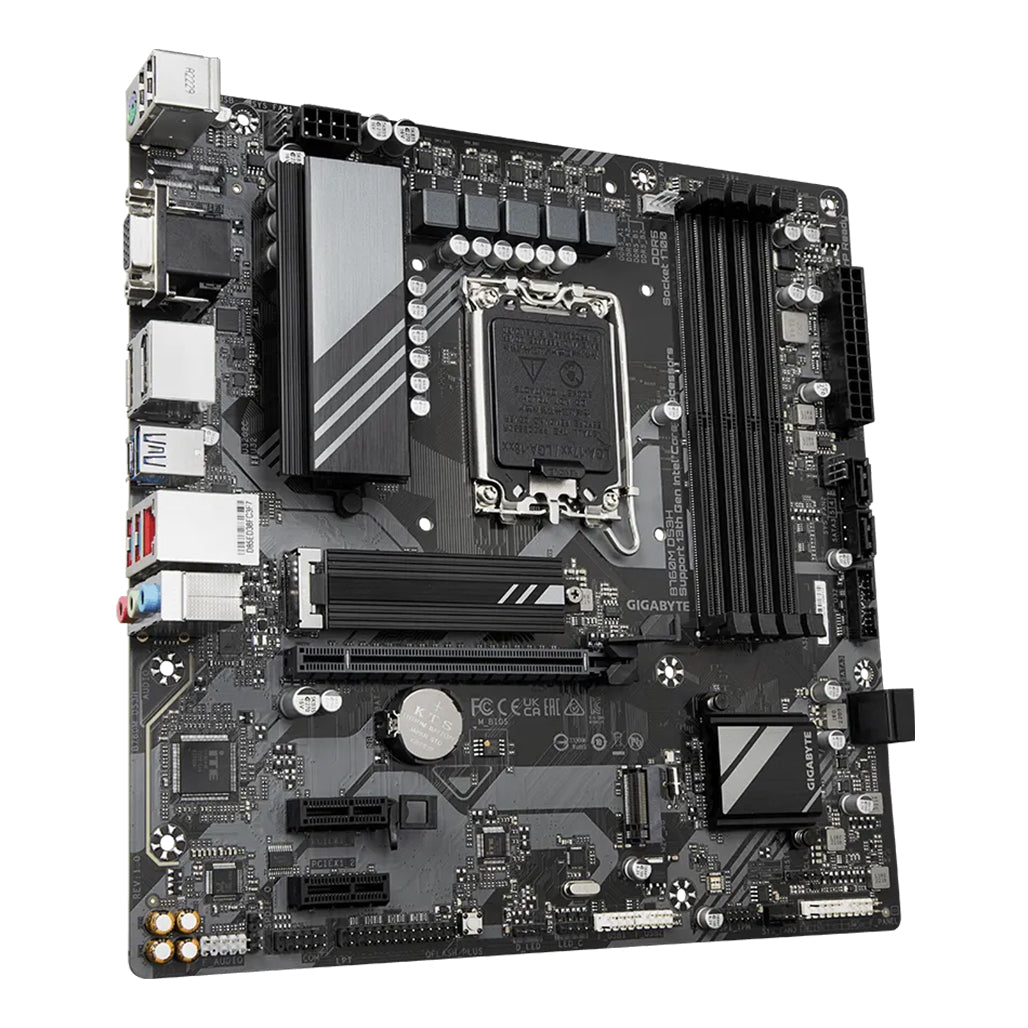

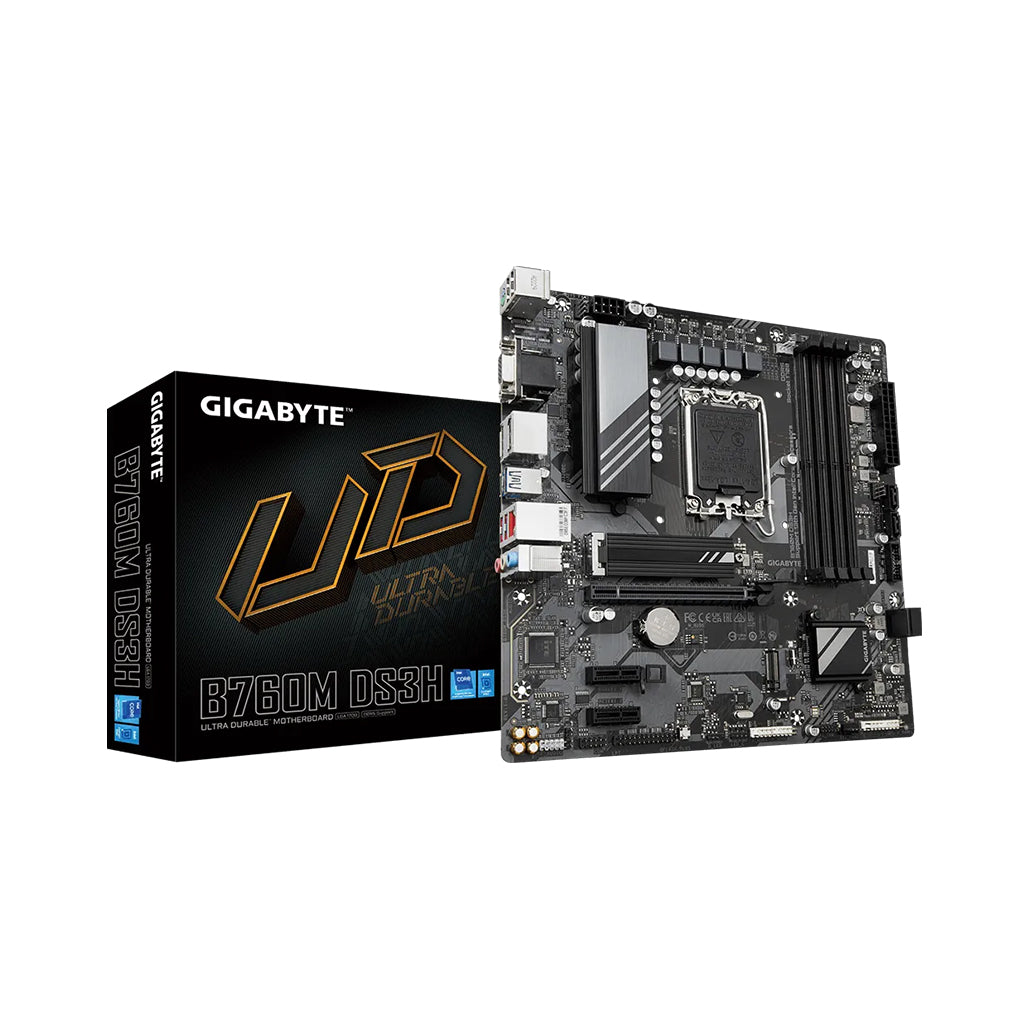

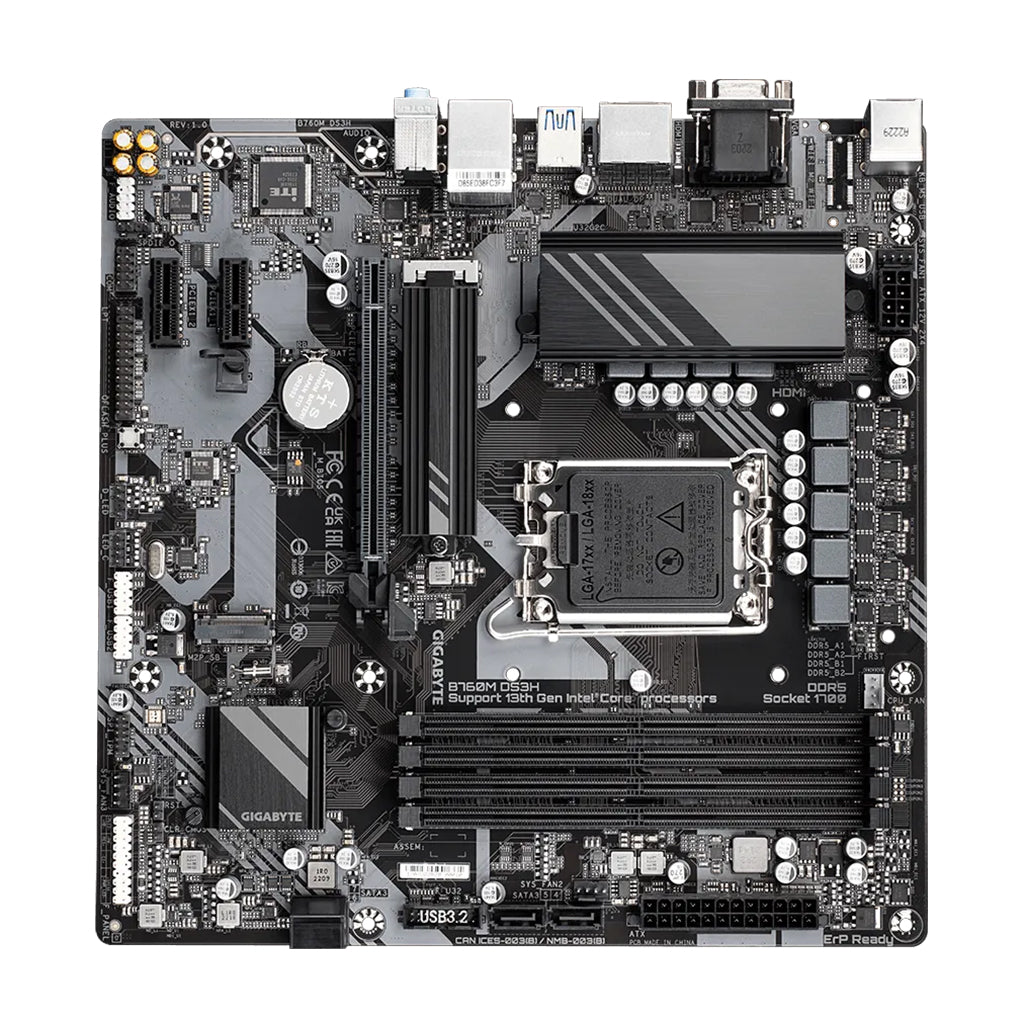

The GIGABYTE B760 Micro ATX motherboard is designed with comprehensive features tailored for the latest Intel® processors, supporting 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® CPUs via the LGA1700 socket. Robust performance is achieved through compatibility with advanced DDR5 memory modules, supporting high frequencies up to DDR5-7600 MT/s (overclocked) and capacities up to 256 GB, enabling effective multitasking and superior stability.

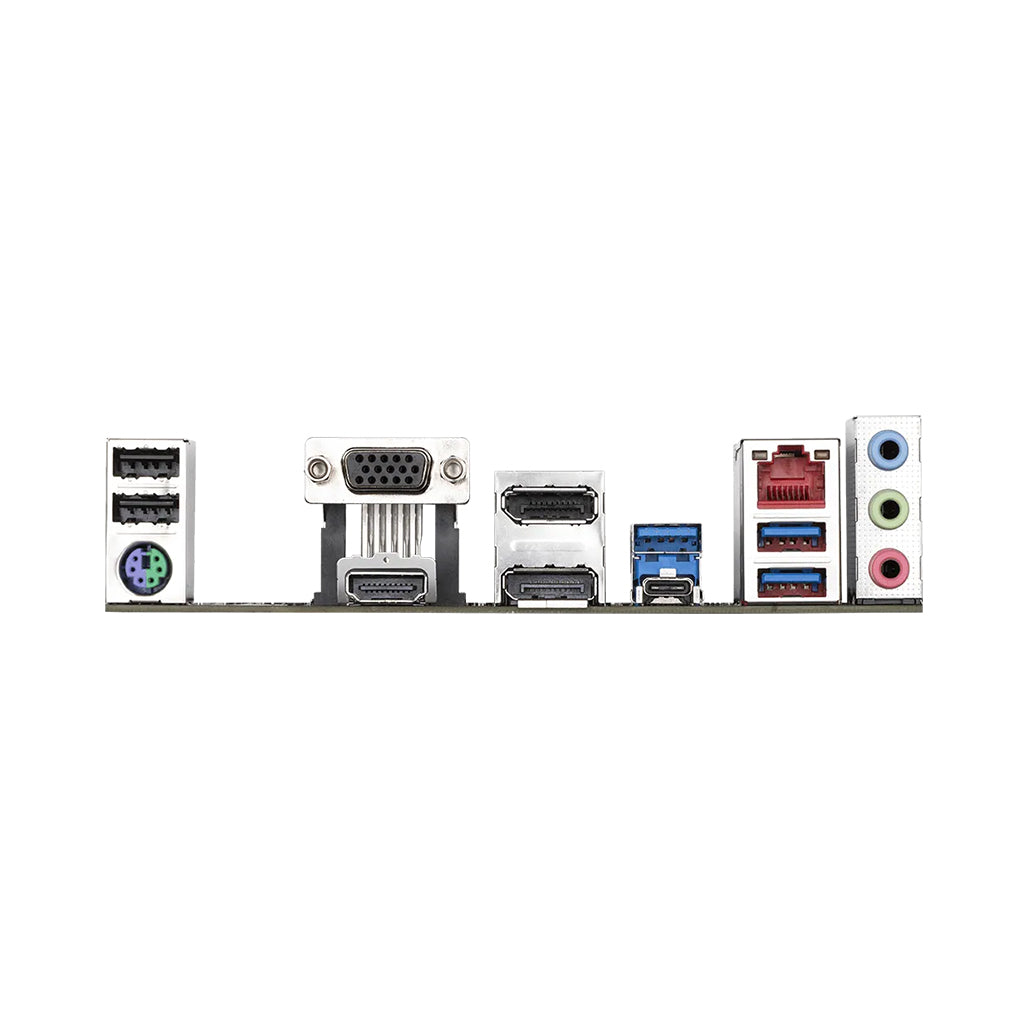

Extensive connectivity options are provided by the inclusion of PCI Express 4.0, USB 3.2 Gen 2 Type-C®, and multiple display outputs—HDMI 2.1, DisplayPort 1.2, and D-Sub ports. A quad-display configuration is supported, allowing simultaneous multitasking across various displays with maximum resolutions reaching 4096x2160@60Hz for HDMI, ensuring exceptional visual performance for productivity and multimedia tasks.
Storage options on the motherboard are maximized with two M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors, facilitating fast data transfers and ample storage capacity. RAID configurations including RAID 0, RAID 1, RAID 5, and RAID 10 are fully supported, allowing optimized data reliability and performance for intensive applications.
Additional features include Realtek® 2.5GbE LAN for fast networking, Realtek® High Definition Audio supporting 7.1-channel surround sound, comprehensive BIOS options via AMI UEFI BIOS, and GIGABYTE’s user-friendly tools such as Q-Flash and GIGABYTE Control Center. Stability, security, and performance are carefully integrated into this board, making it a suitable solution for gaming, content creation, and high-performance computing systems.
Specifications:
