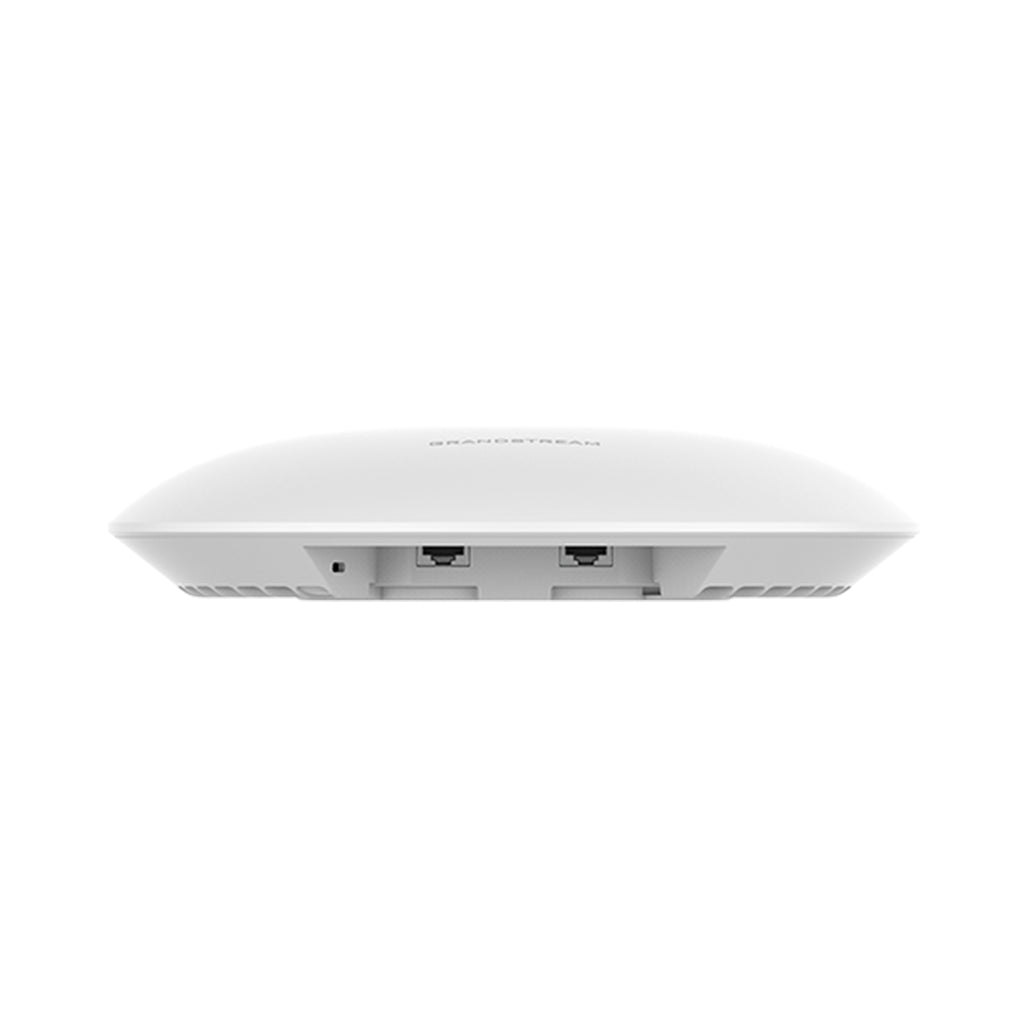

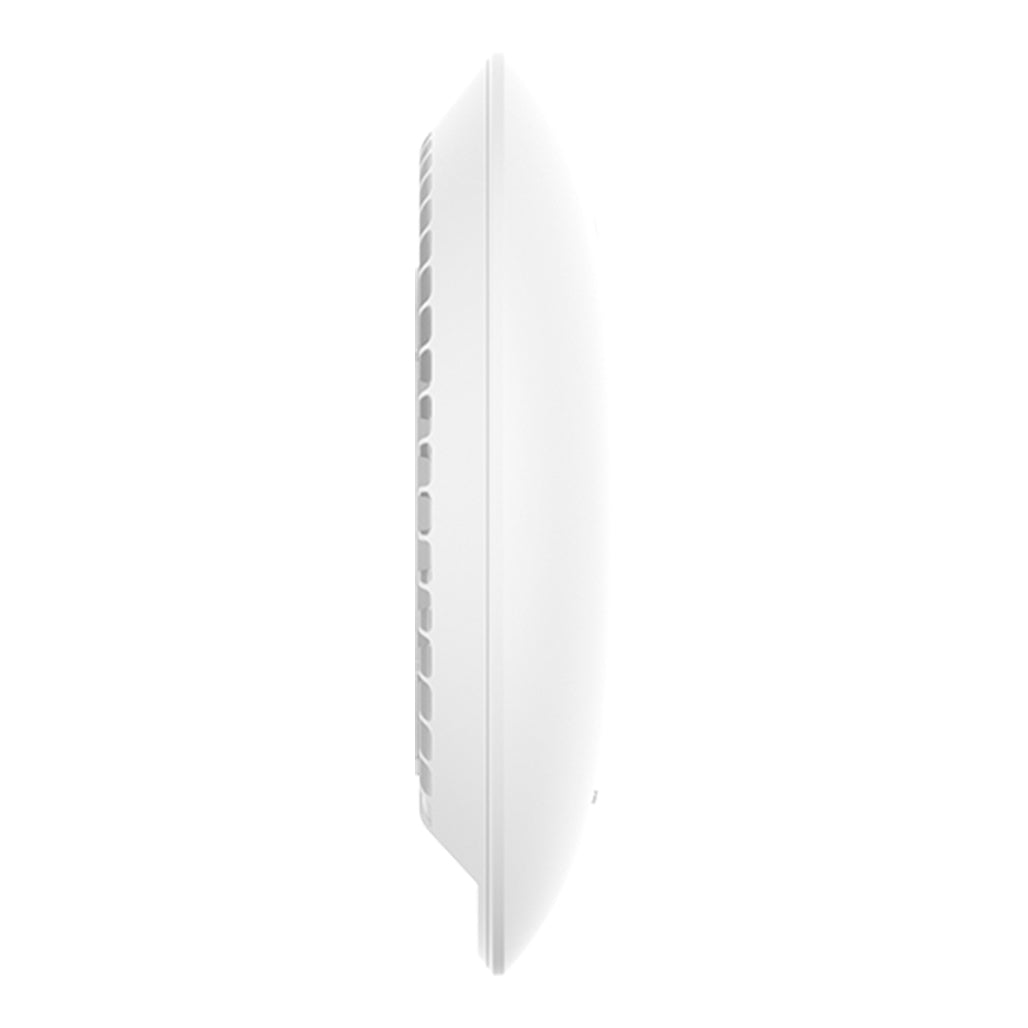

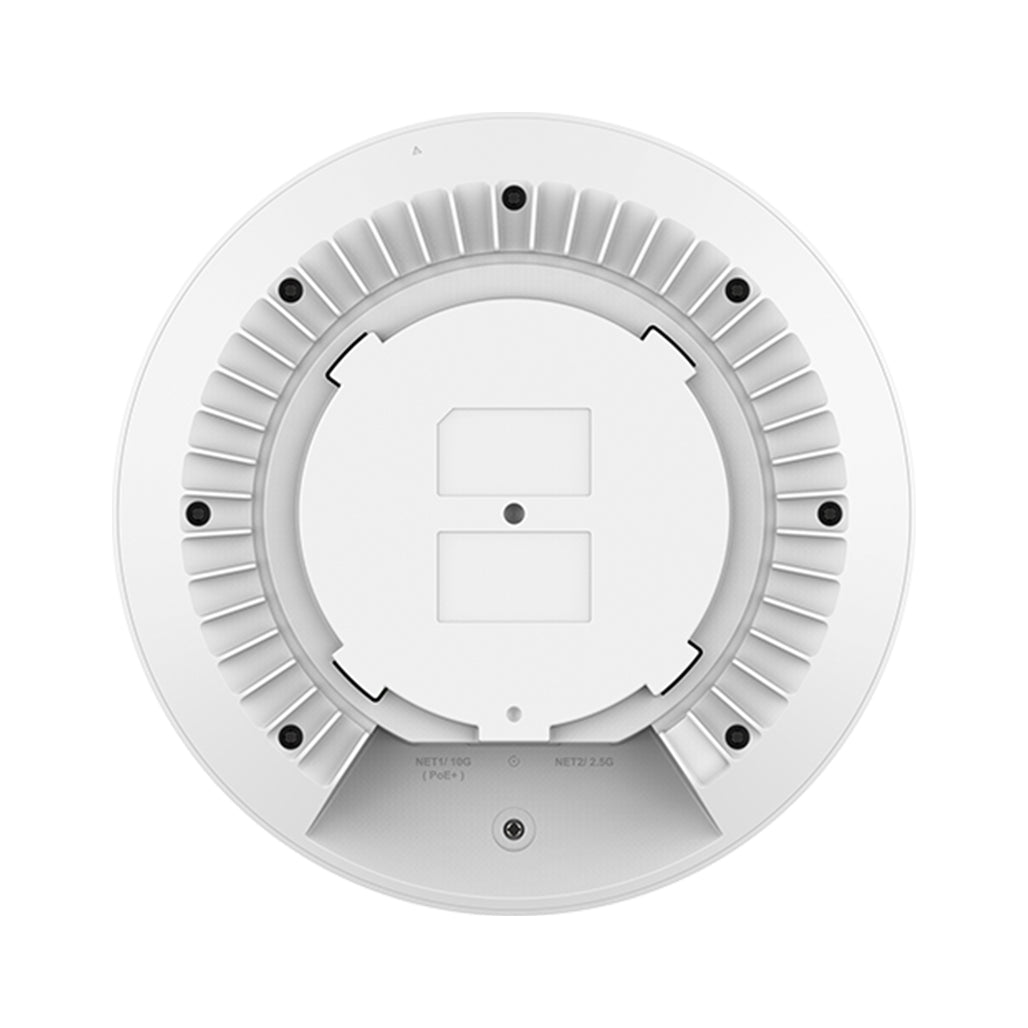

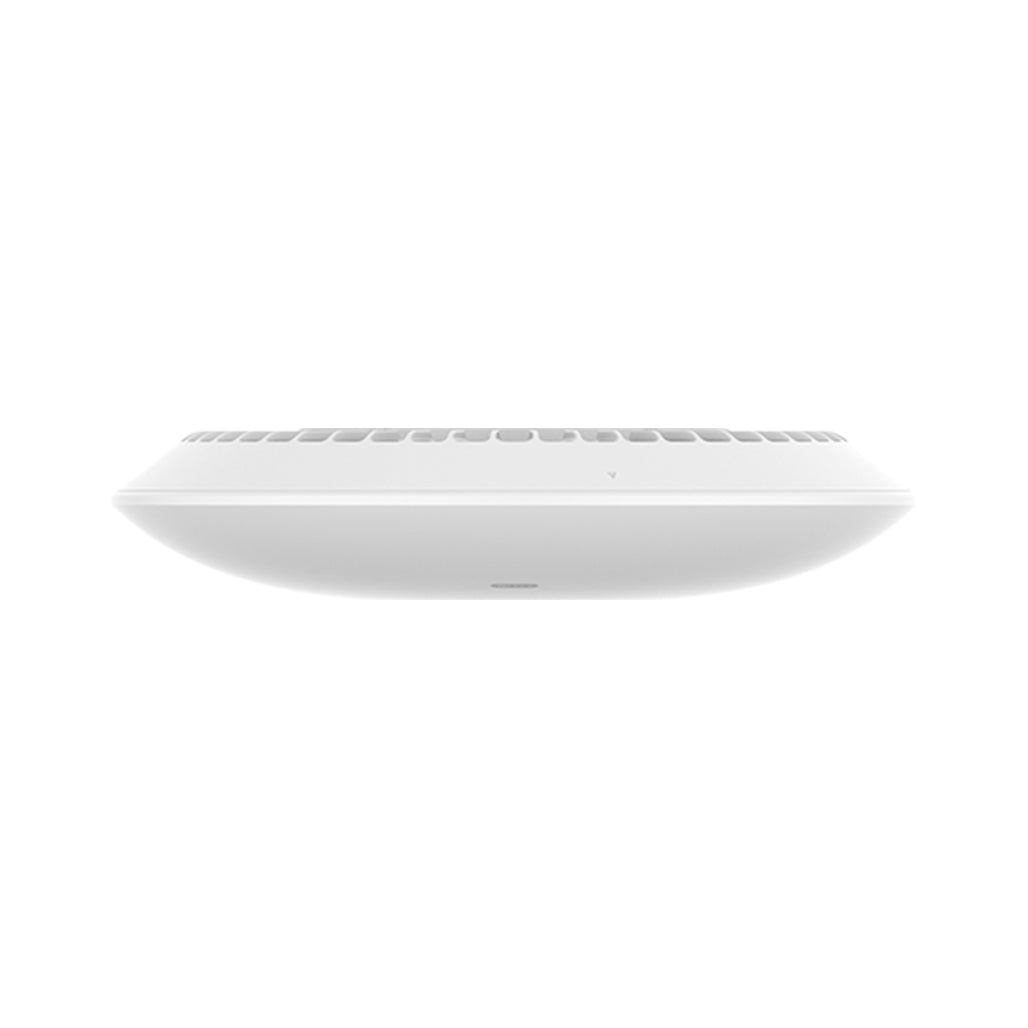

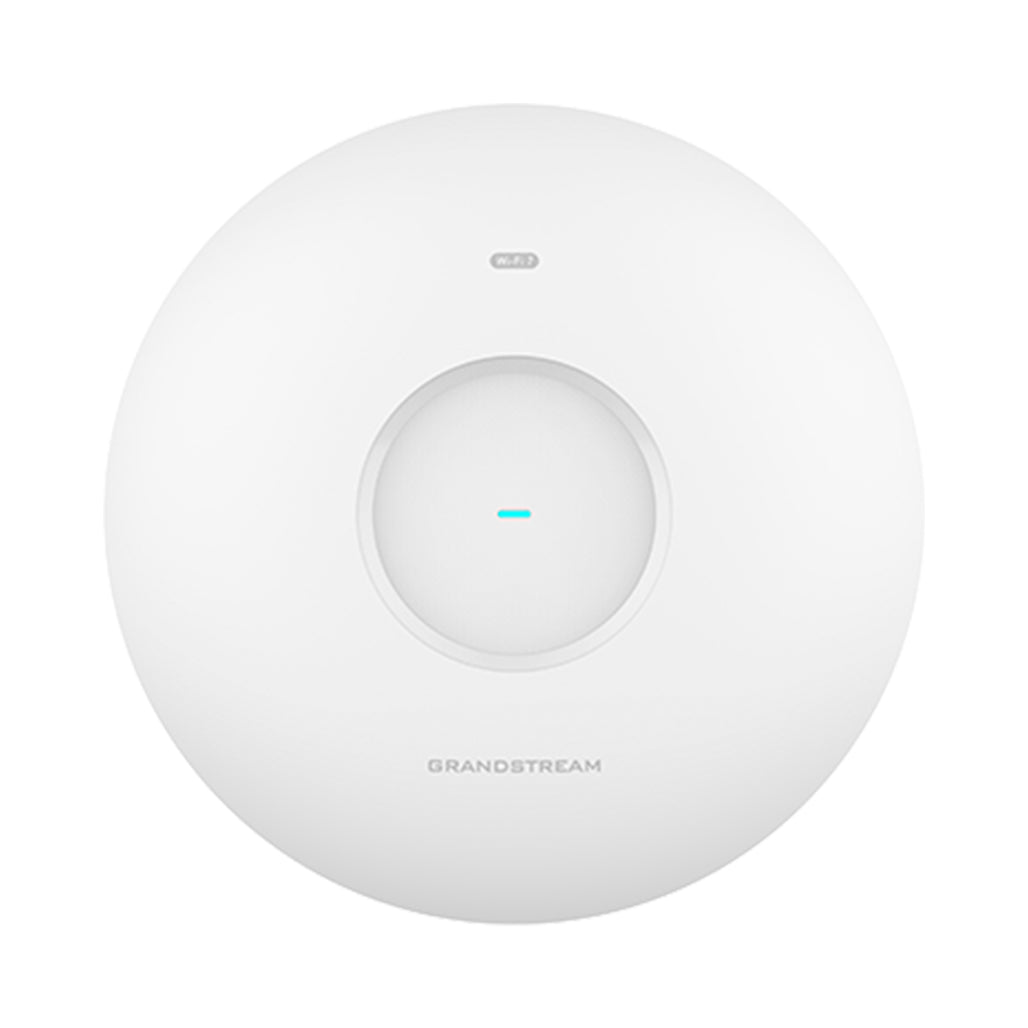

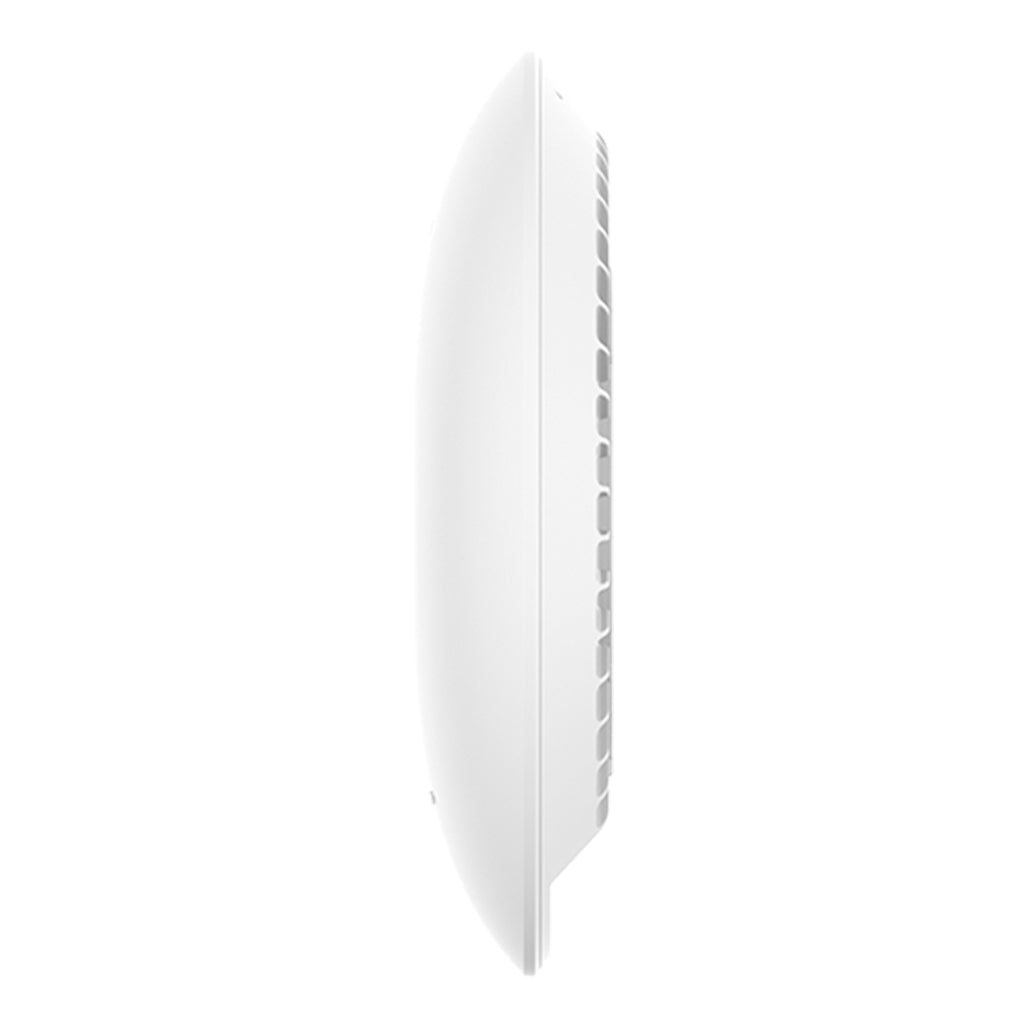

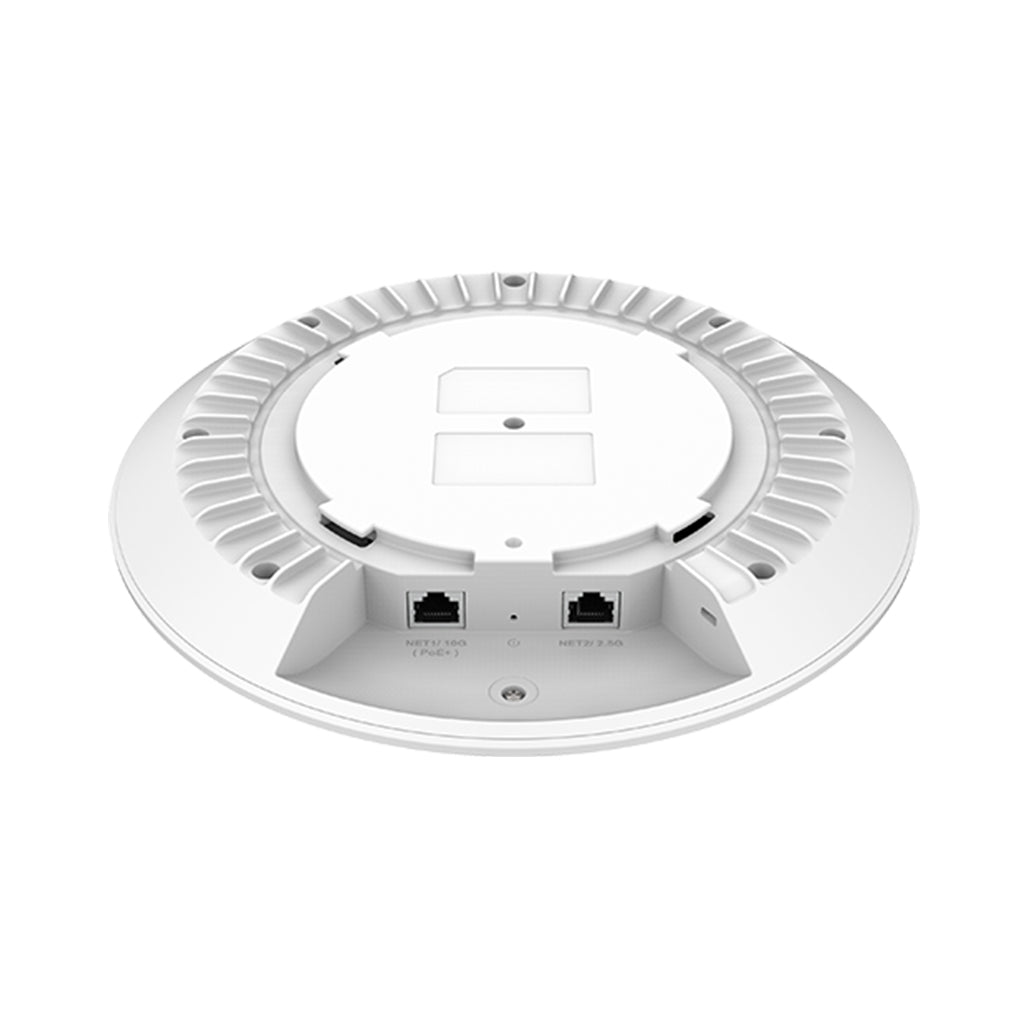

Grandstream GWN7674 Tri-Band Wi-Fi 7 Access Point

The Grandstream GWN7674 is a high-performance enterprise-grade Wi-Fi 7 tri-band access point designed for medium-sized businesses, large enterprises, offices, hotels, schools, retail spaces, and high-density network environments. With aggregate wireless speeds of up to 21Gbps BE21000, advanced Wi-Fi 7 technology, and support for up to 768 concurrent Wi-Fi clients, the GWN7674 delivers fast, stable, and reliable wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands.

Built with powerful 4x4:4 MU-MIMO on the 5GHz and 6GHz bands, 2x2:2 MU-MIMO on the 2.4GHz band, and advanced features such as MLO, 4K-QAM, MRU, and Preamble Puncturing, the Grandstream GWN7674 is ideal for demanding networks that require high throughput, low latency, and smooth performance for video conferencing, cloud applications, VoIP, streaming, and business-critical wireless connections.

Key Features

Ultra-Fast Wi-Fi 7 Performance
Delivers up to 21Gbps aggregate wireless throughput with BE21000 tri-band Wi-Fi 7 performance for modern high-speed networks.

Tri-Band Wireless Connectivity
Supports 2.4GHz, 5GHz, and 6GHz bands for improved speed, reduced congestion, and better wireless efficiency.

High-Density Client Support
Connect up to 768 concurrent Wi-Fi devices, making it ideal for offices, enterprises, hospitality, education, and commercial spaces.

Advanced Wi-Fi 7 Technology
Includes MLO, 4K-QAM, MRU, and Preamble Puncturing technology for faster speeds, lower latency, and better spectrum usage.

Powerful MU-MIMO Performance
Features 4x4:4 MU-MIMO on 5GHz and 6GHz bands and 2x2:2 MU-MIMO on the 2.4GHz band for efficient multi-device connectivity.

Long Wireless Coverage
Provides coverage of up to 175 meters, helping deliver strong and reliable Wi-Fi across larger indoor areas.

High-Speed Wired Networking
Equipped with 1x 10G Ethernet WAN/LAN port and 1x 2.5G Ethernet WAN/LAN port, offering up to 12.5Gbps aggregate wired throughput.

Advanced Security Protection
Includes secure boot, digital signature protection, unique security certificates, random default passwords, MAC filtering, client isolation, rogue AP detection, ARP attack defense, and ND attack defense.

Flexible Management Options
The embedded controller manages up to 50 local GWN access points, while GDMS Networking supports unlimited cloud AP management and GWN Manager provides on-premise software management.

PoE++ Support
Supports PoE++ power with self-power adaptation, making installation easier for ceiling or wall-mounted deployments.

Specifications

• Brand: Grandstream
• Model: GWN7674
• Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax/be
• Wi-Fi Technology: Tri-Band Wi-Fi 7
• Aggregate Wireless Throughput: Up to 21Gbps
• Aggregate Wired Throughput: Up to 12.5Gbps
• Client Devices: Up to 768 concurrent clients
• 2.4GHz Throughput: 688Mbps, 2x2:2 MU-MIMO
• 5GHz Throughput: 8647Mbps, 4x4:4 MU-MIMO
• 6GHz Throughput: 11529Mbps, 4x4:4 MU-MIMO
• Coverage Range: Up to 175 meters
• Network Interfaces: 1x 10G Ethernet WAN/LAN, 1x 2.5G Ethernet WAN/LAN
• Power: PoE++ support
• Maximum Power Consumption: 36W
• SSIDs: 48 total SSIDs, 16 per radio
• Antennas: 12 built-in single antennas
• Security: WPA2, WPA3, WPA/WPA2, WPA2/WPA3, OSEN, MAC filtering, client isolation, rogue AP detection, ARP attack defense, ND attack defense
• Management: Embedded controller, GDMS Networking, GWN Manager
• Mounting: Indoor wall mount or ceiling mount, mounting kits included
• Dimensions: 250 × 250 × 54.5mm
